Automatic Capping Machine

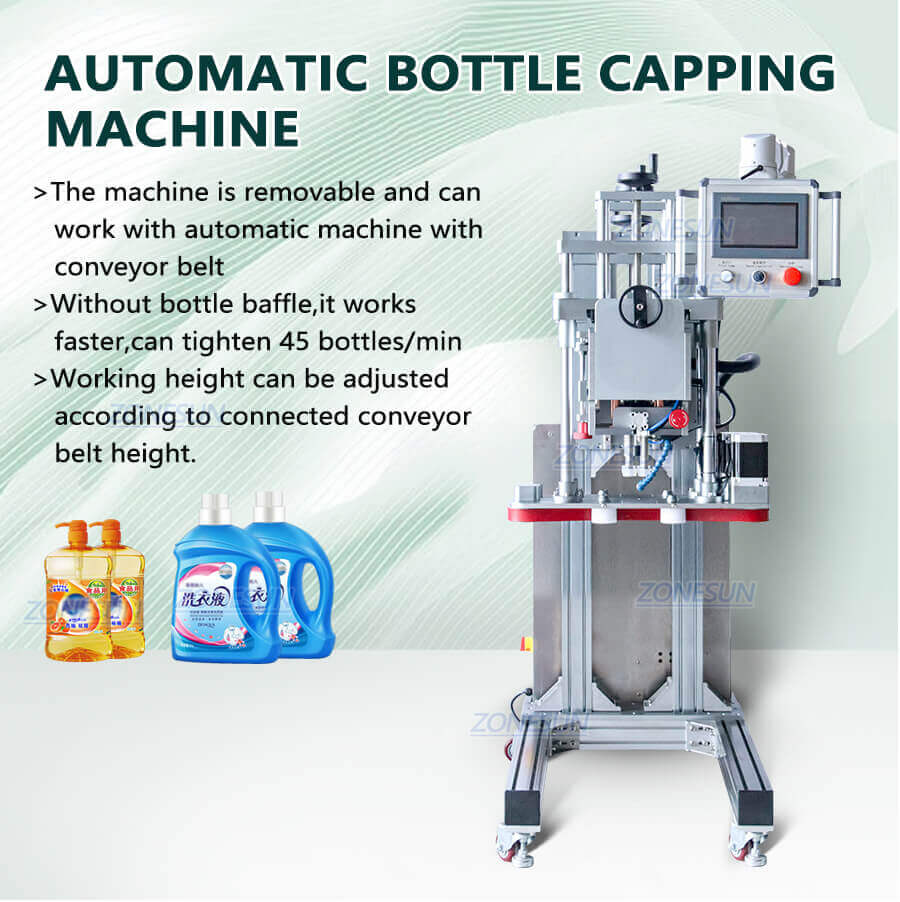

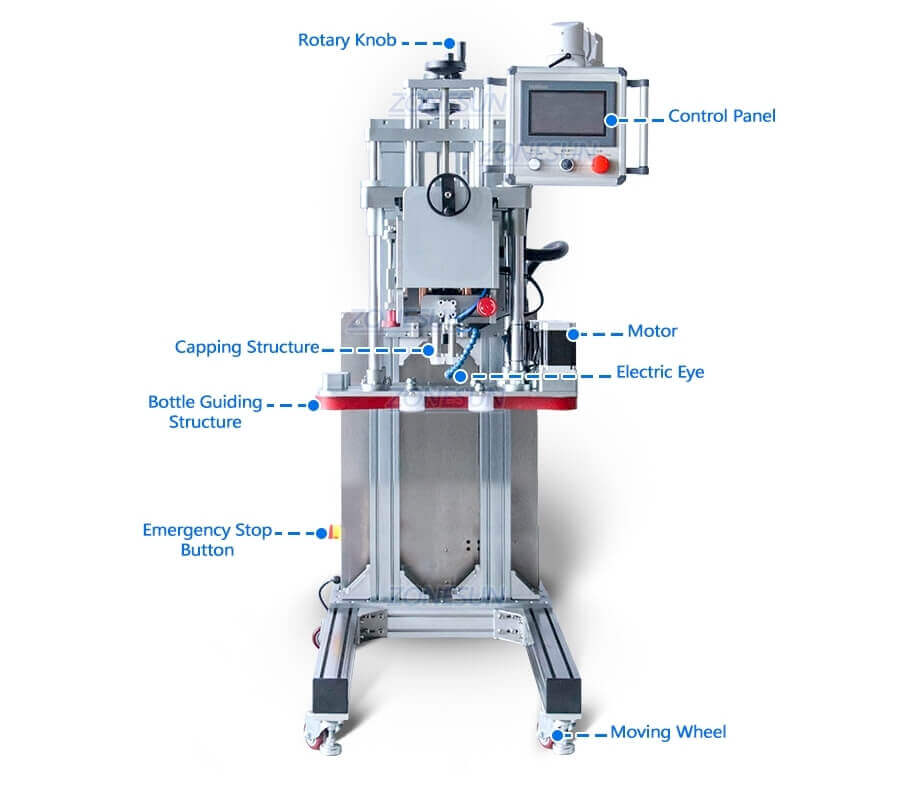

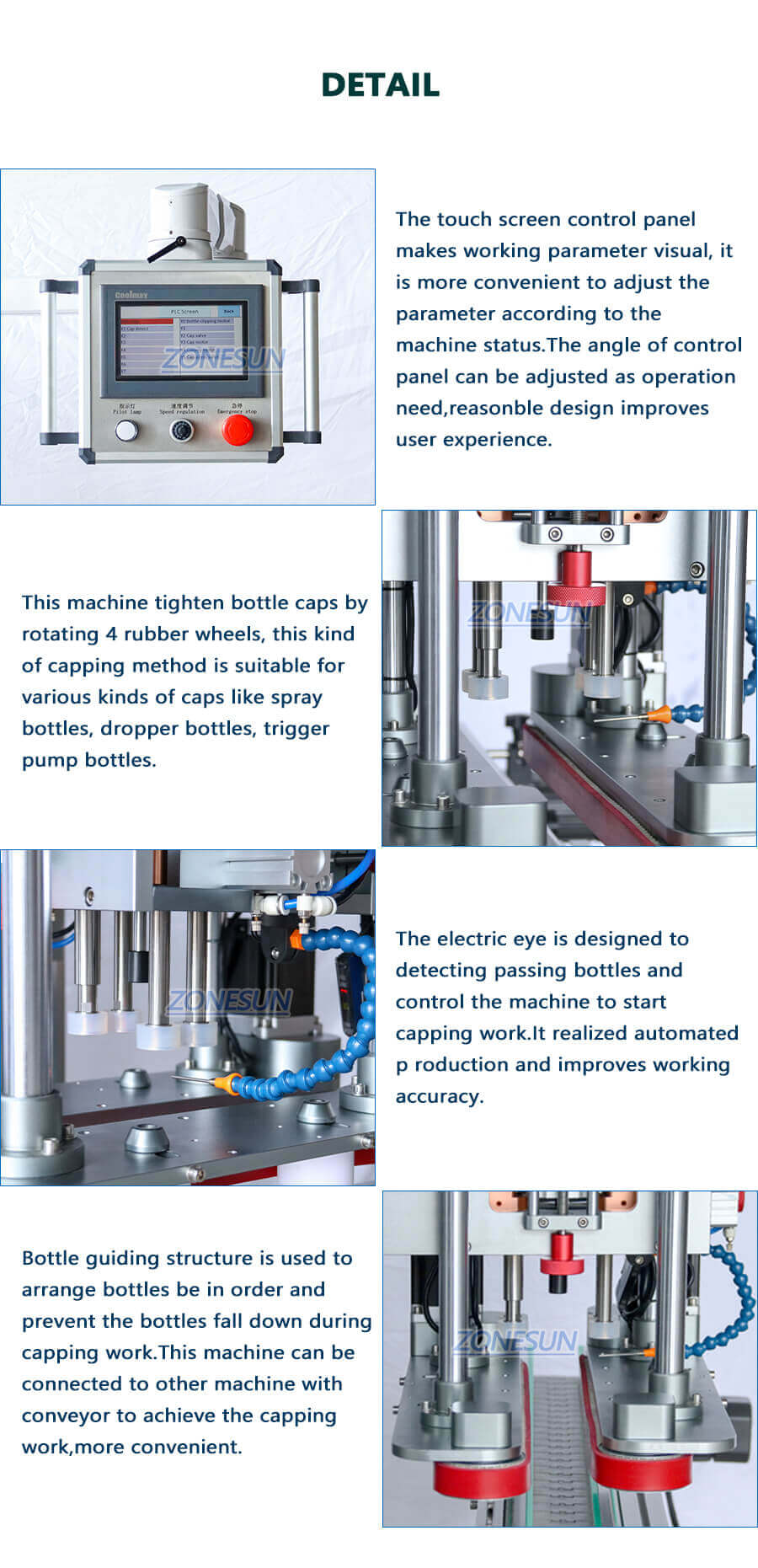

This automatic bottle capping machine uses 4 rubber wheels to tighten bottle caps with screw thread,this kind of capping method is suitable for various kinds of bottle caps.It can be connected to automatic filling machine(or other machine with conveyor) to realize automated production.It is widely used in food,daily chemical and cosmetics industries.
Share to
Description:
This automatic bottle capping machine uses 4 rubber wheels to tighten bottle caps with screw thread,this kind of capping method is suitable for various kinds of bottle caps.It can be connected to automatic filling machine(or other machine with conveyor) to realize automated production.It is widely used in food,daily chemical and cosmetics industries.
Parameter:
| Machine model | ZS-XG20A |
| Machine voltage | 110/220V 50-60Hz 1KW |
| Working speed | About 48 bottles/min |
| Cap diameter | 20-68mm(standard) 15-70mm/20-115mm(customized) |
| Bottle size | 80-300mm (H)*25-150mm(Diameter) |
| Machine size | About 600*1030*1700mm(L*W*H) |
| Machine weight | About 200kg |
| Package size | About 1270*720*1870mm |
| Package weight | About 241kg |
