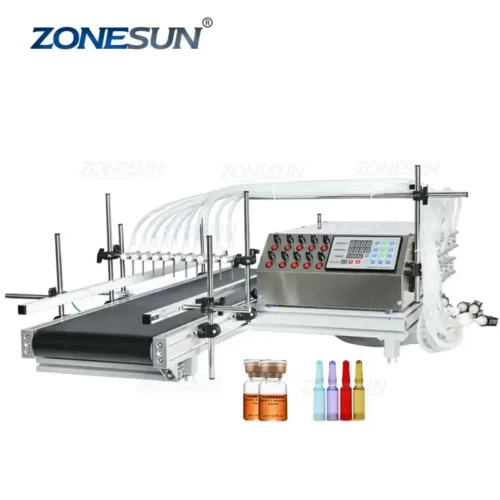

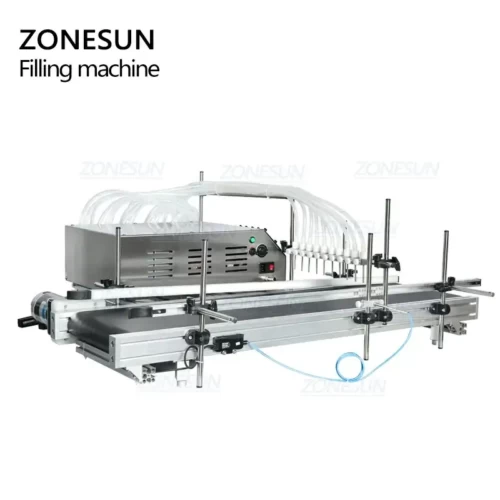

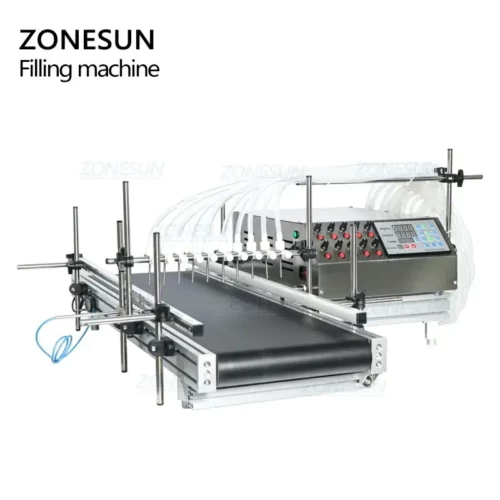

10 Head Vaccine Bottle Filling Machine

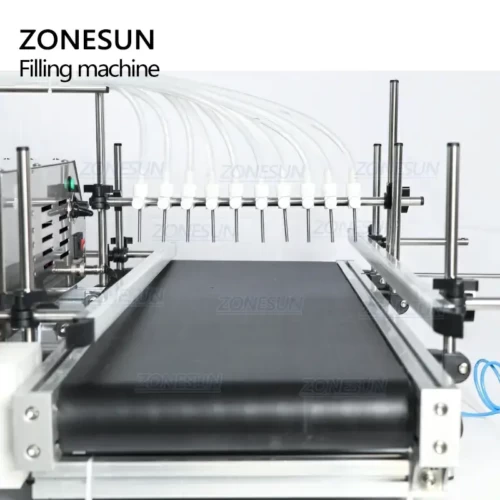

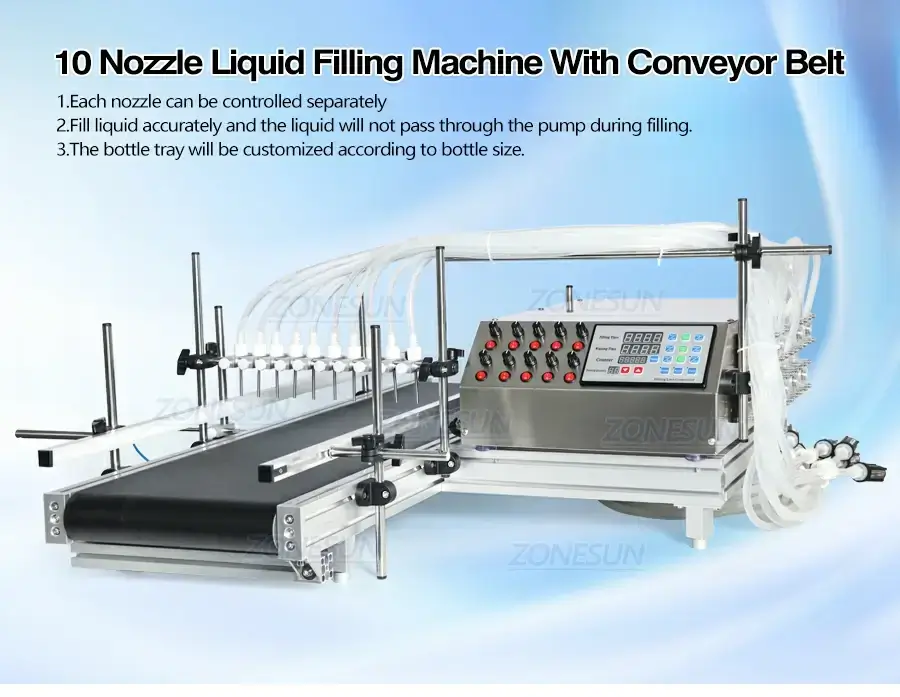

The 10 nozzle peristaltic pump is designed with automatic conveyor belt to realize automated production.It is suitable for small volume liquid like eye drops,essential oil.Each nozzle of this machine can be controlled separately.The peristaltic pump can ensure the liquid cleaness and filling accuracy.
Share to
Description:

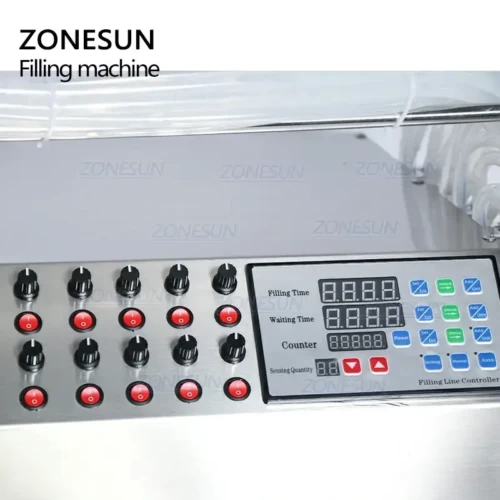

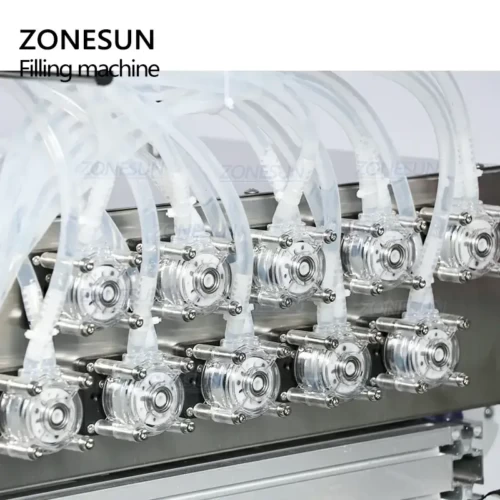

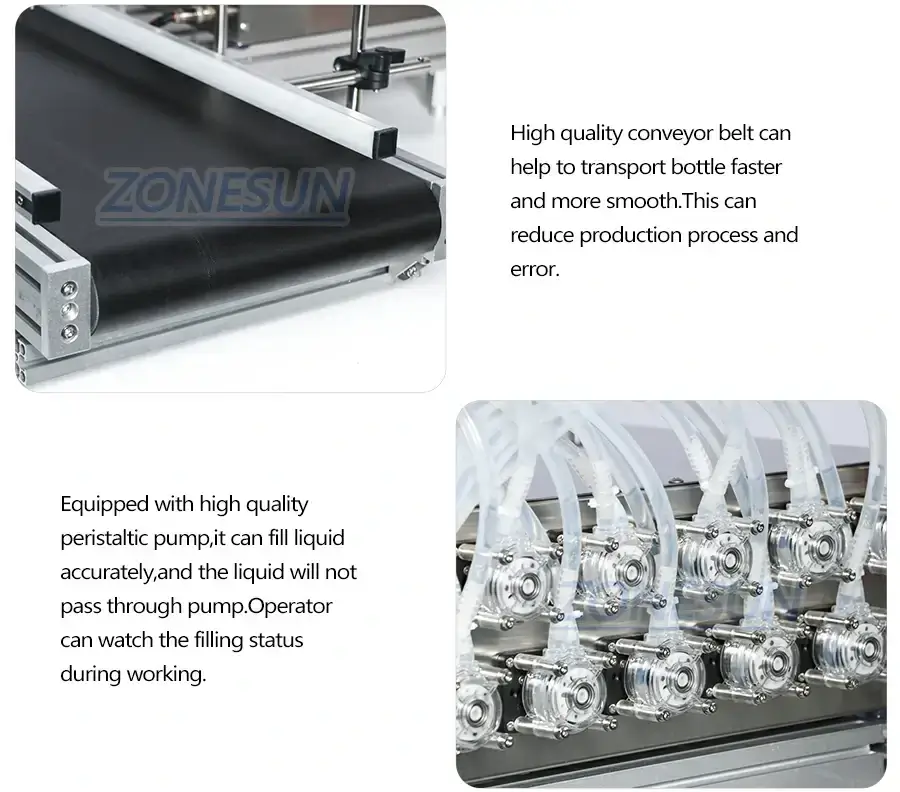

The 10 nozzle peristaltic pump is designed with automatic conveyor belt to realize automated production.It is suitable for small volume liquid like eye drops,essential oil.Each nozzle of this machine can be controlled separately.The peristaltic pump can ensure the liquid cleaness and filling accuracy.
Parameter:
| Machine model | ZS-DTPP10B |
| Power supply | AC110V/220V 50Hz-60Hz 60W*4 |
| Filling Range | ≤50ml |
| Maximum flow | 650ml/min for each nozzle (based on water ) |
| Filling nozzles | 10(we can customize nozzles based on your demands) |
| Working speed | 70-90 bottles/min(based on 50ml-water) |
| Filling accuracy | ≤±1% (For water) |

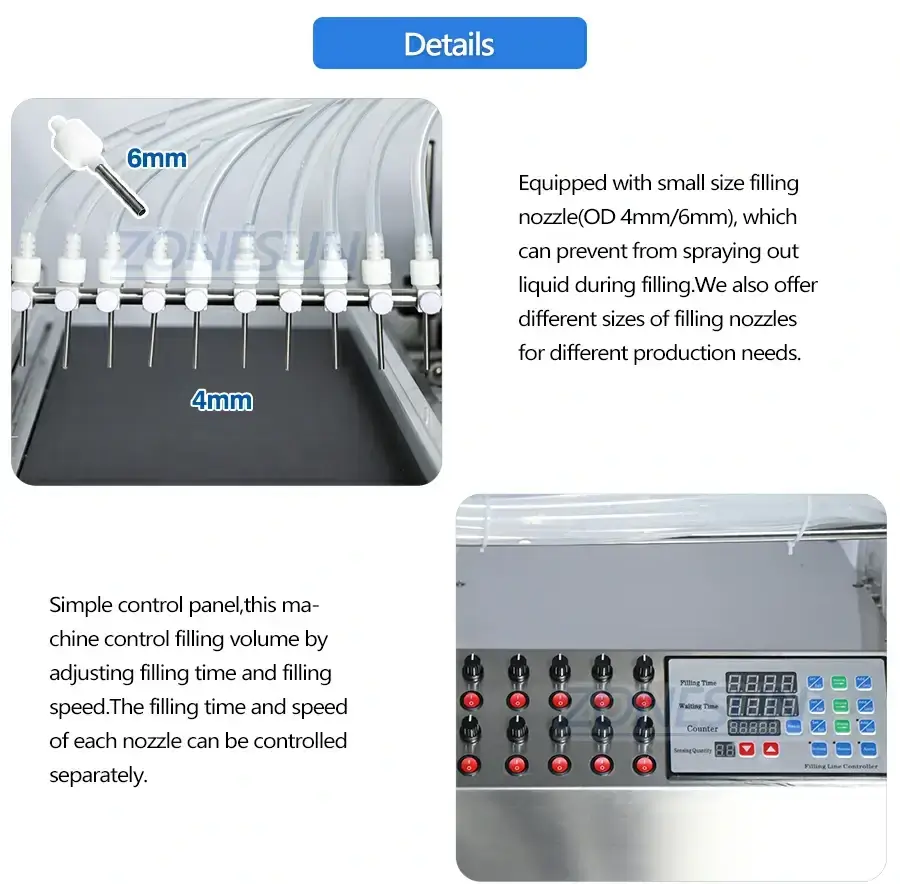

| Diameter of filling nozzle | 4mm |
| Delay range | 0.01-999.9s |

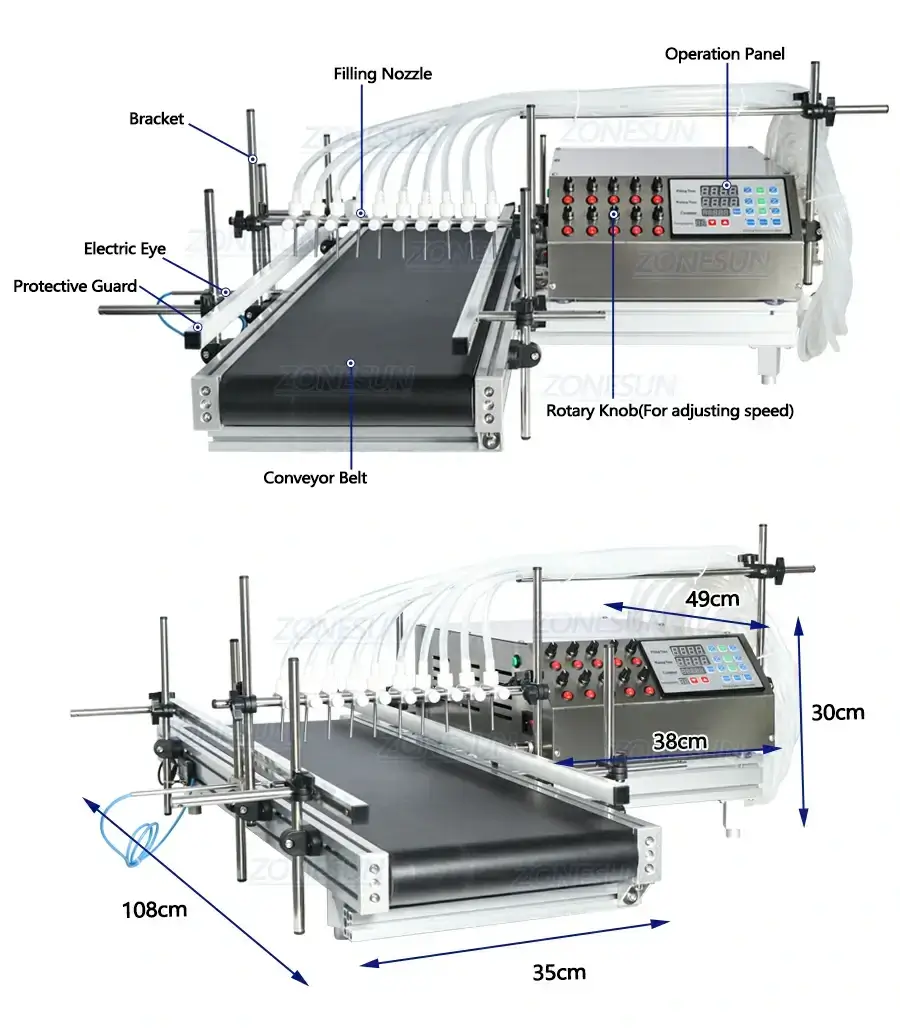

| Conveyor size | 1080*350mm(L*W) |
| Machine size | About 380*490*300mm(Without conveyor belt) |
| Net weight | About 38kg |
