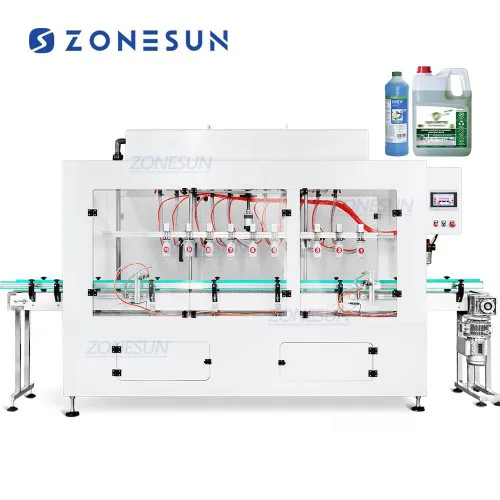

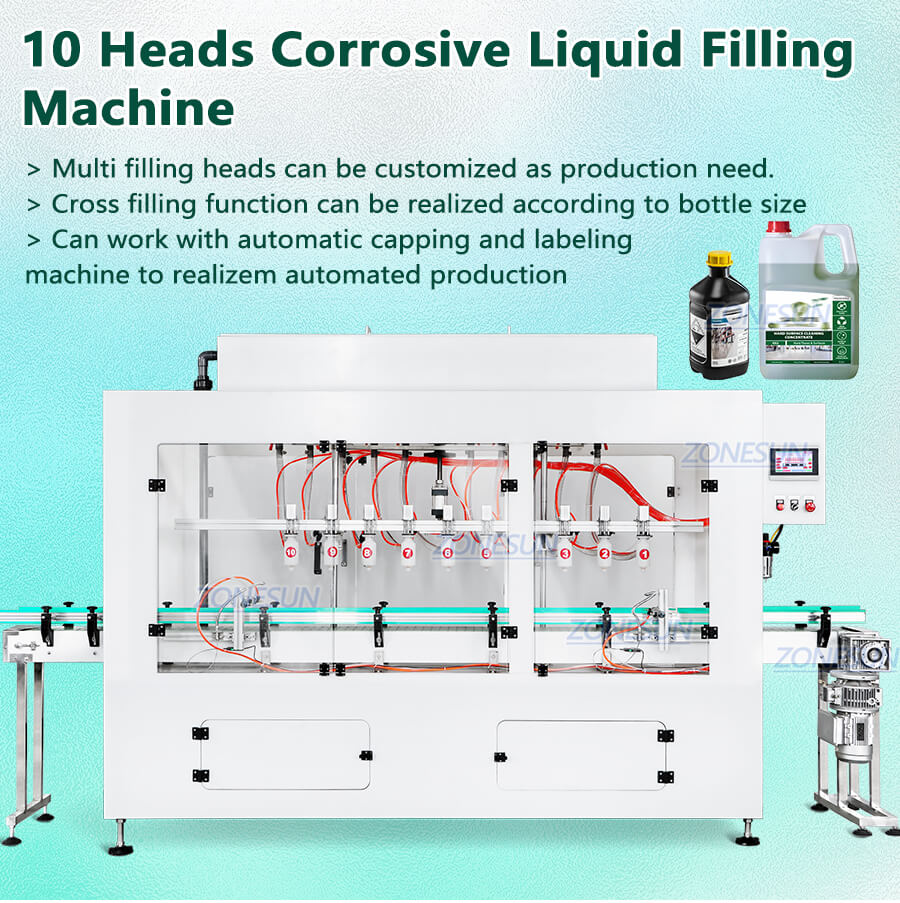

10 Heads Corrosive Liquid Filling Machine
This corrosive liquid filling machine is a versatile industrial device designed to efficiently fill containers with corrosive liquids using ten filling heads simultaneously. It’s adaptable to various container sizes and is commonly used in industries like chemicals and cleaning products.
Share to
Product Description:
This corrosive liquid filling machine is a versatile industrial device designed to efficiently fill containers with corrosive liquids using ten filling heads simultaneously. It’s adaptable to various container sizes and is commonly used in industries like chemicals and cleaning products.
Product Parameters:
| Machine model | ZS-YTCR10A |
| Voltage | 110/220V 50-60HZ 1.5KW |
| Air pressure | 0.4-0.7MPa |
| Suitable bottle diameter | φ30mm-φ120mm |
| Suitable bottle height | 40mm-350mm |
| Hopper size | About 2000*350*300mm(Customized) |
| Filling range | 100ml-3000ml |
| Filling speed | 600BPH (based on filling volume) |

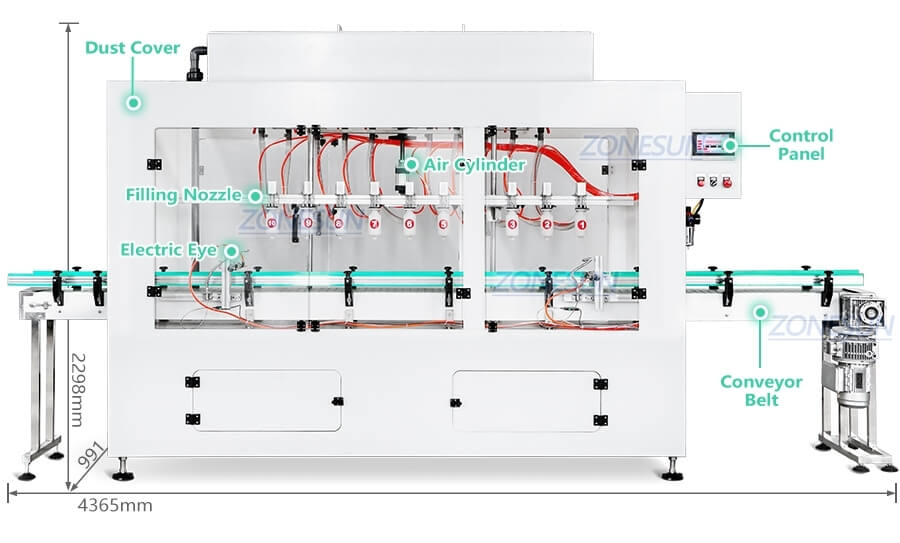

| Machine dimension | About 4365*991*2298mm |
Product Details:

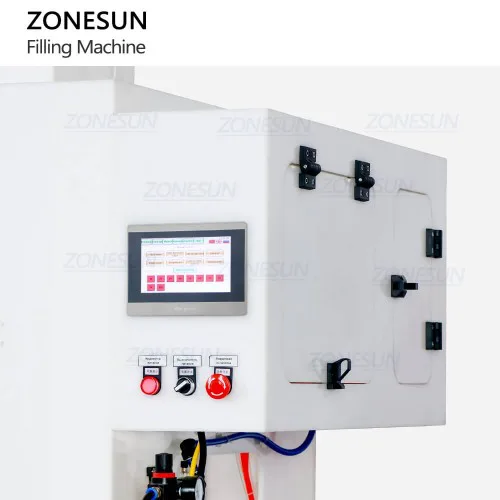

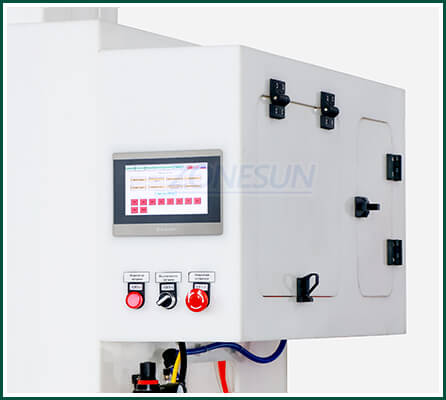

The touch screen control panel enables real-time monitoring of the machine’s performance, allowing for immediate adjustments and maintenance, thereby minimizing downtime.

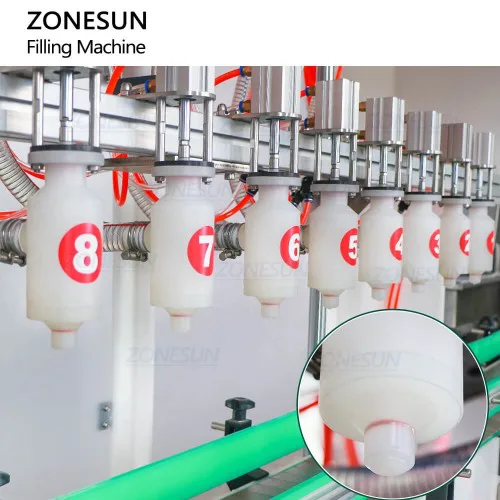

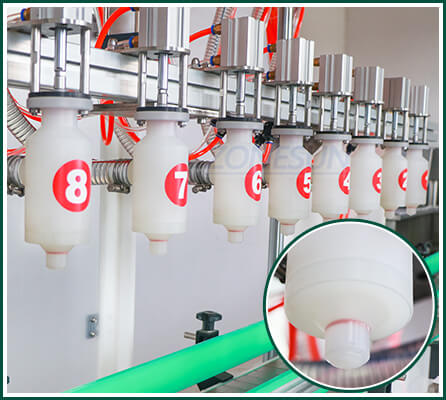

These nozzles are designed to minimize spills and maintain a cleaner workspace, reducing the risk of slips and chemical burns. They are equipped with anti-dripping features.

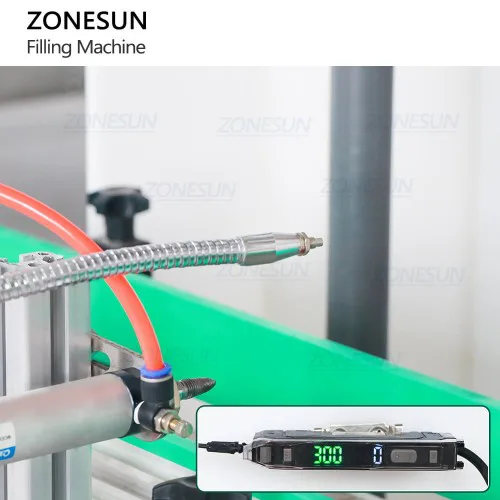

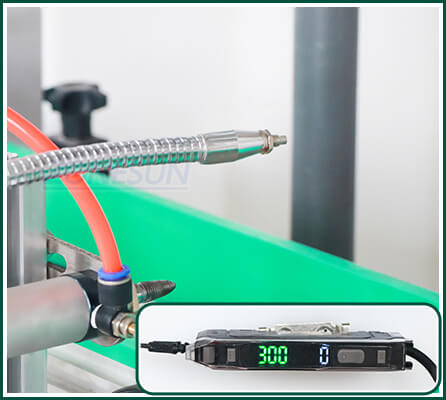

The machine is equipped with an electric eye that detects passing bottles and sends a signal to the system, allowing it to operate automatically. The sensitivity of the electric eye can be adjusted based on the containers, enhancing working accuracy.

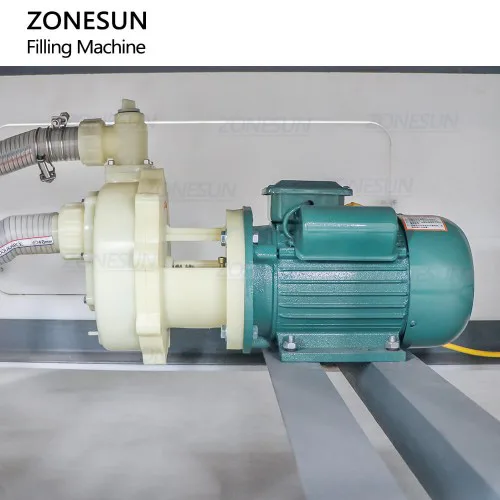

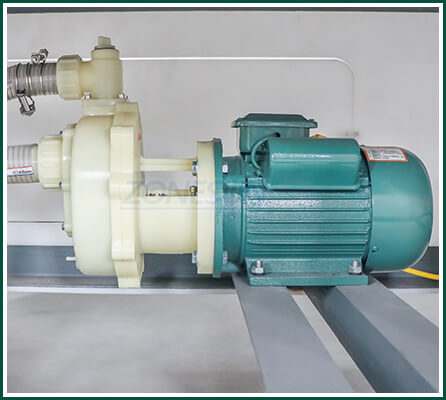

The machine utilizes a diaphragm pump to supply the filling material. This ensures better control over the discharge pressure and flow rates, crucial for accurate filling operations.

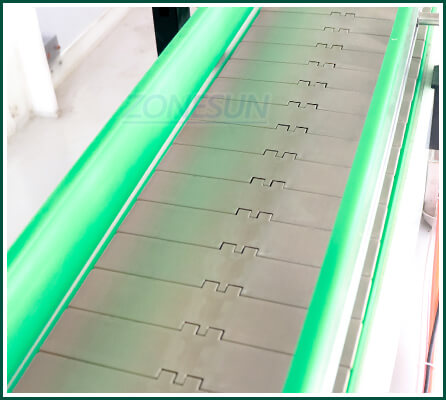

The machine is equipped with a chain conveyor that can be customized for width and length based on production needs. It also has a larger weight capacity, ensuring smooth product conveyance.
