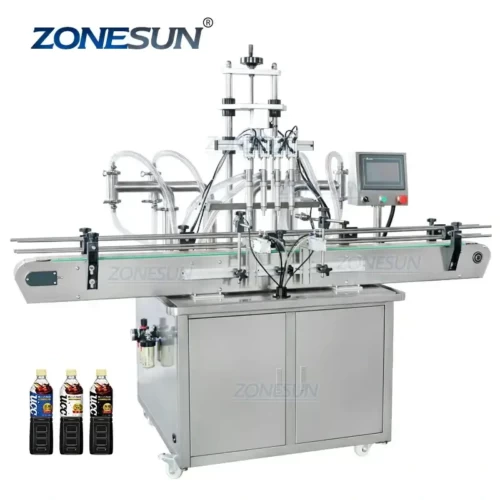

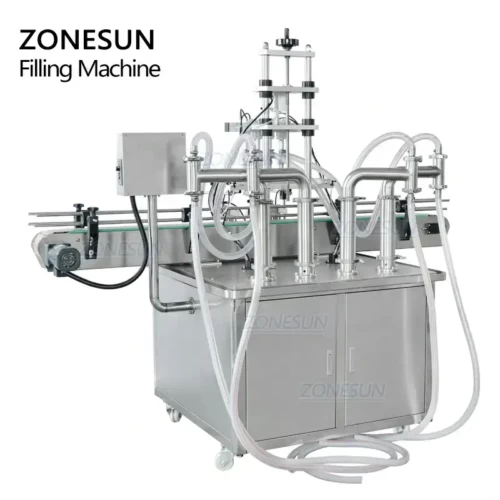

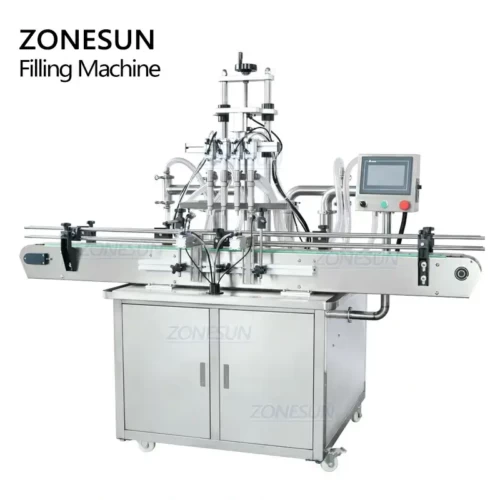

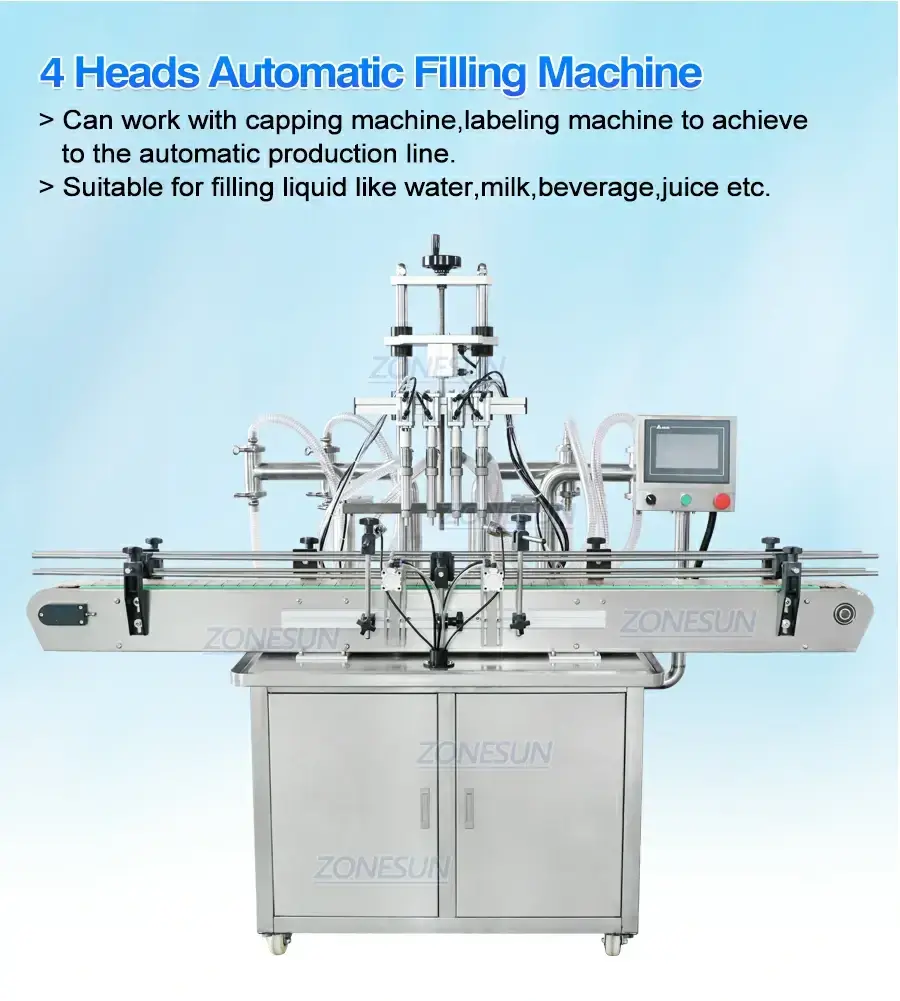

4 Head Liquid Filling Machine

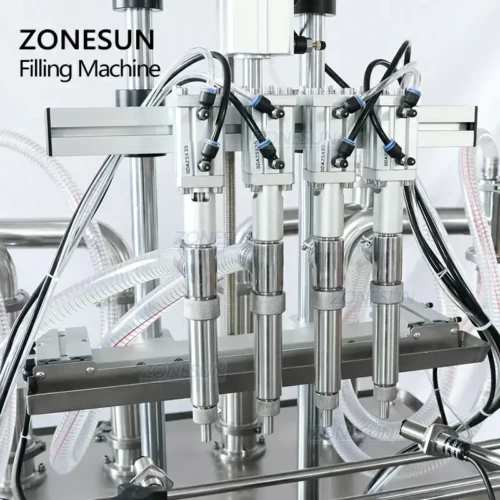

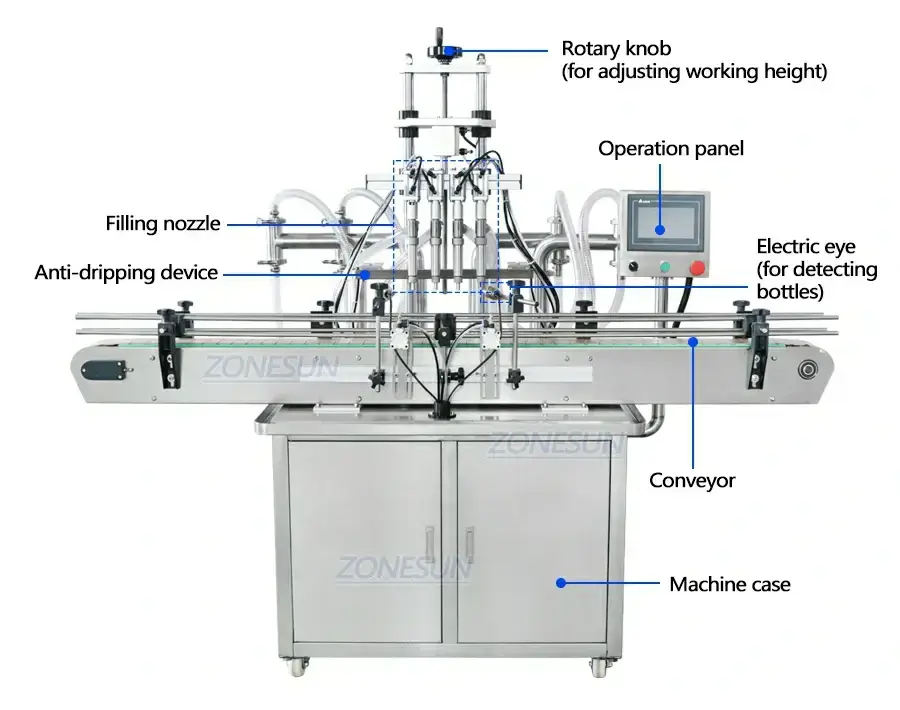

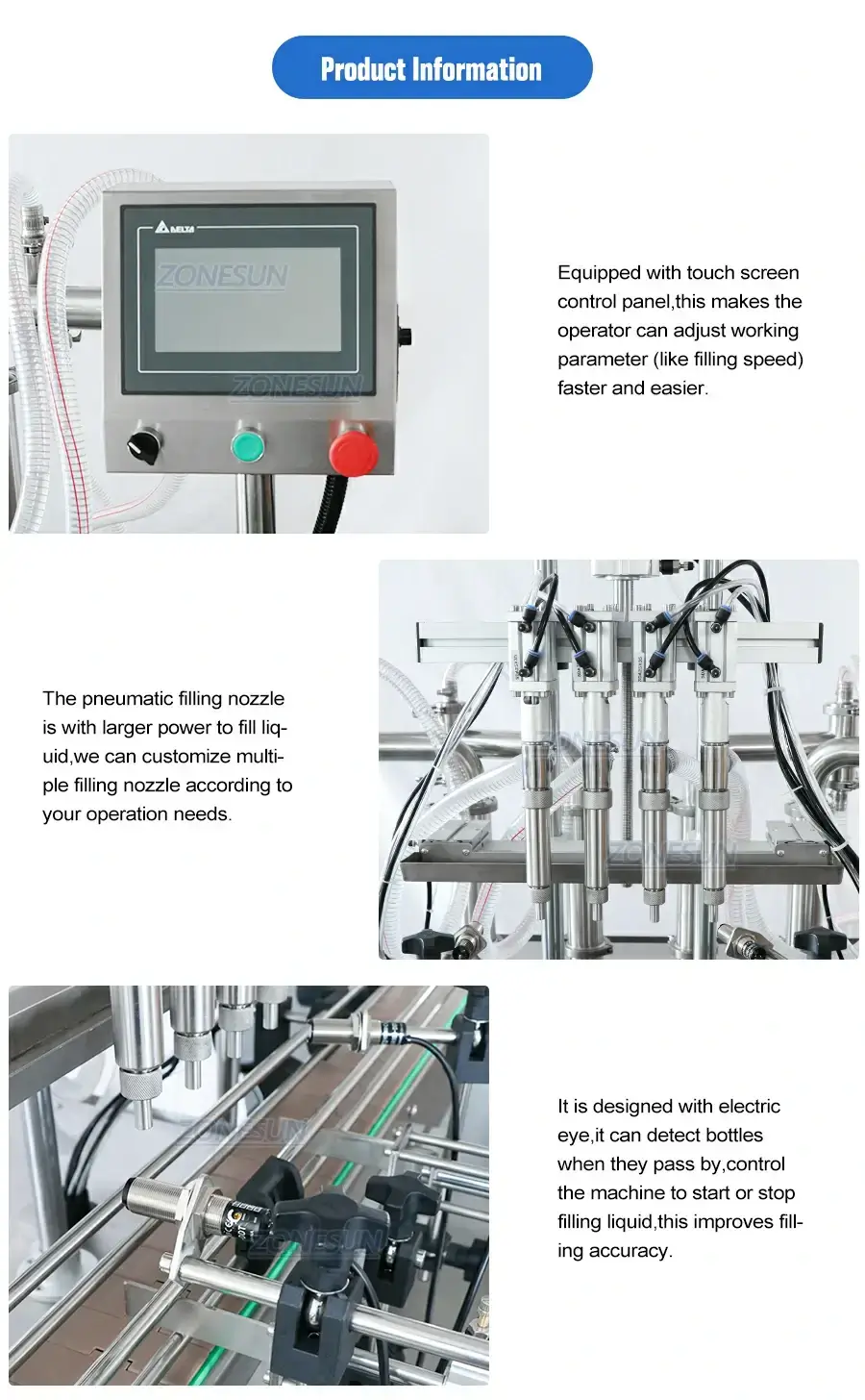

This automatic filling machine is with larger air cylinder which can help to fill liquid faster.This machine is easy to operate and each nozzle can be controlled separately,it can work with the capping machine,labeling machine to achieve to automatic production line,helps you improve working efficiency.
Share to
Description:
This automatic filling machine is with larger air cylinder which can help to fill liquid faster.This machine is easy to operate and each nozzle can be controlled separately,it can work with the capping machine,labeling machine to achieve to automatic production line,helps you improve working efficiency.
Parameter:
| Model | ZS-YT4T-4Y |
| Voltage | 110/220V 50-60HZ 800W |
| Filling Range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
| Working Speed | 20-35bottles/min |
| Filling Accuracy | ≤±1% |
| Air Pressure | 0.5-0.7MPa |
| Size Of Air Compressor Connector | φ10mm |

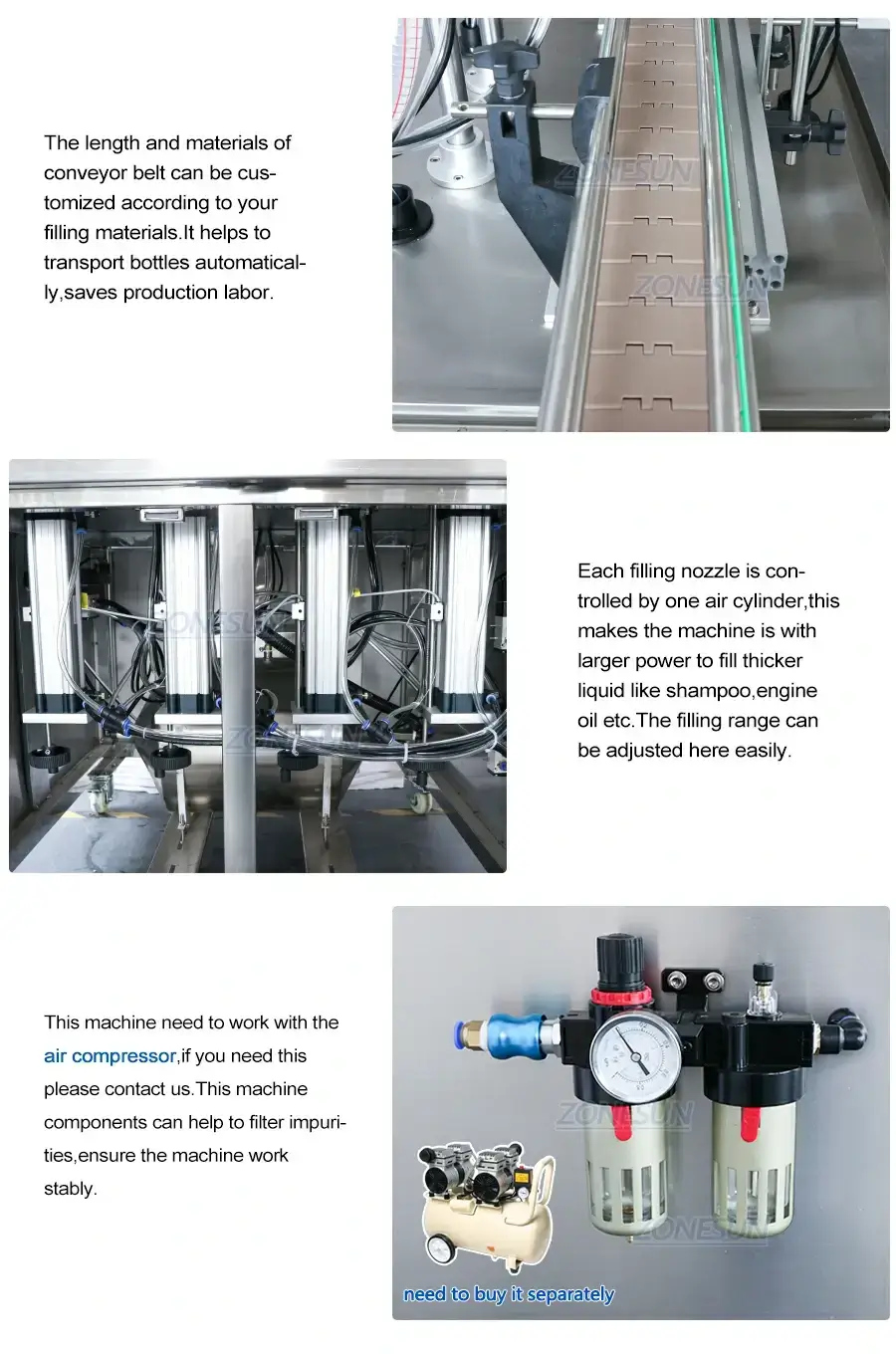

| Conveyor Length | 2050mm(standard ) / 3050mm(wider version) |
| Conveyor Material | Plastic(standard) / stainless steel(custom version) |
