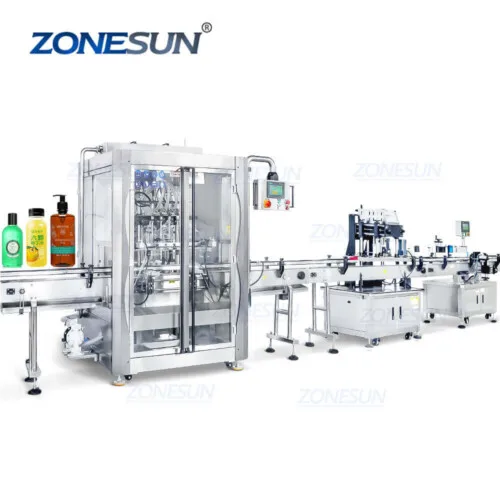

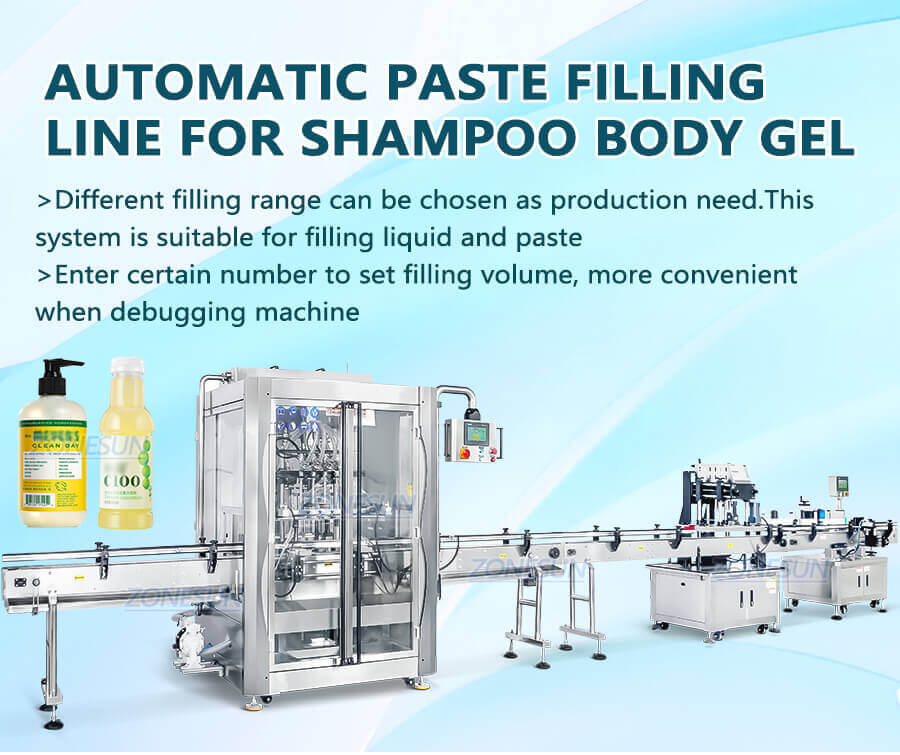

4 Heads Servo Filling Line
This is a packaging system composed of servo filling machine,servo capping machine and round bottle labeling machine,which is used to complete the paste filling process,bottle capping process and labeling process.It is suitable for food,daily chemical and cosmetics industries.
Share to
Description:
This is a packaging system composed of servo filling machine,servo capping machine and round bottle labeling machine,which is used to complete the paste filling process,bottle capping process and labeling process.It is suitable for food,daily chemical and cosmetics industries.
Parameter:

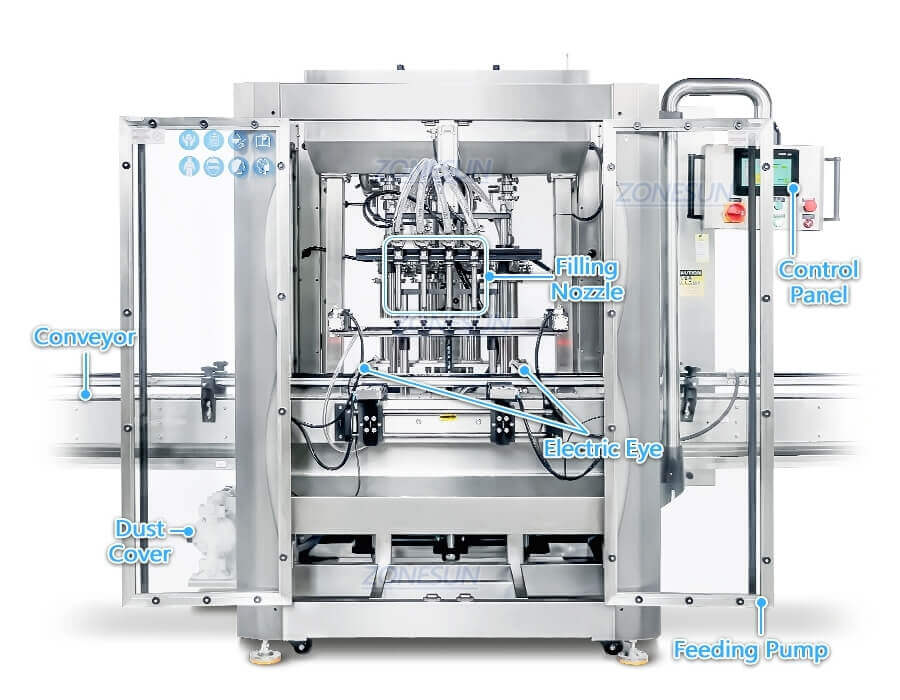

| Machine model | ZS-SV4R |
| Filling capacity | 100-1000ml (can be customized) |
| Filling speed | 16-24 bottles/minute (according to the filling material) |
| Power supply | 220V/380V |
| Motor power | 2.5KW |
| Air consumption | 1KGS*30LITER /min |

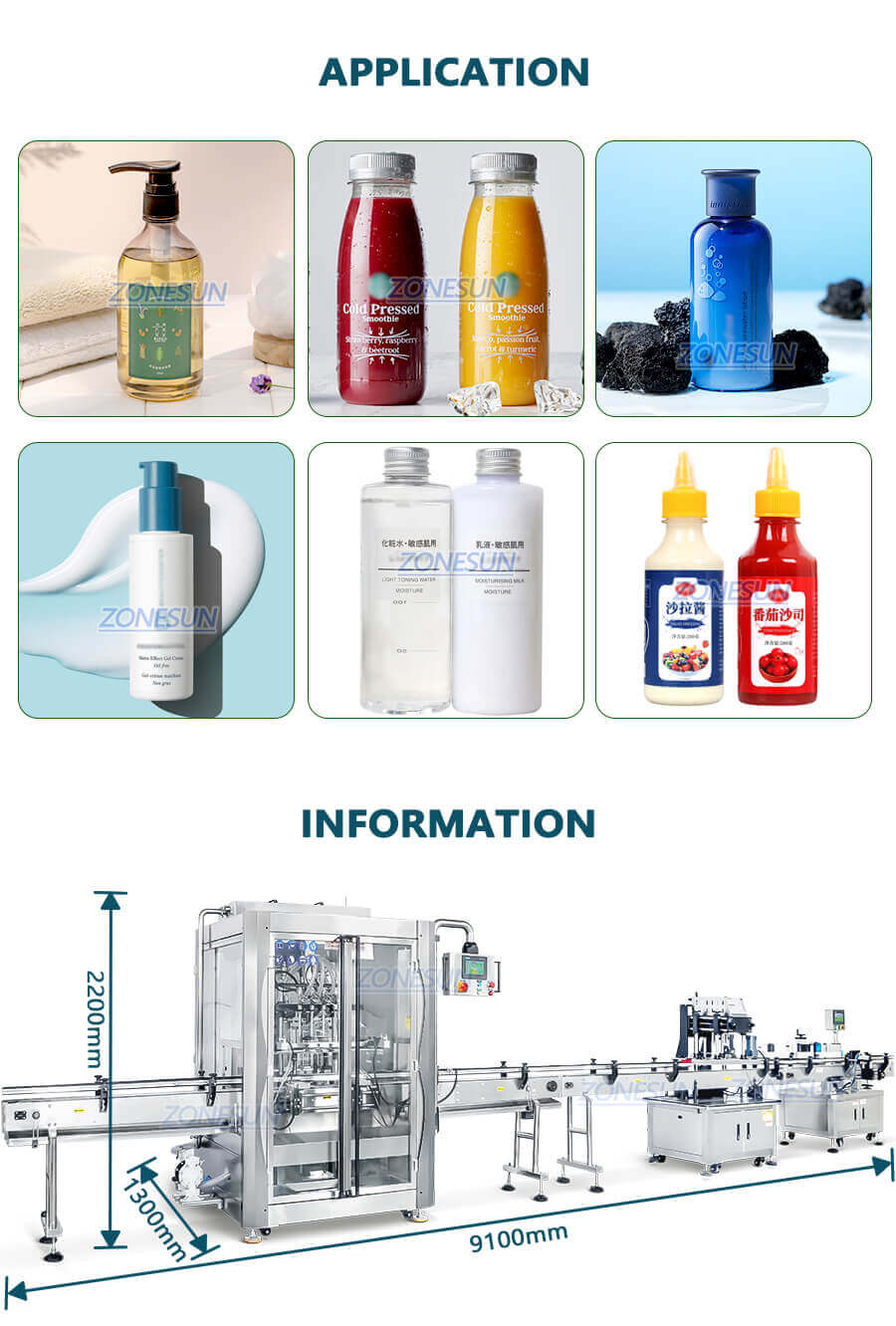

| Machine size | About 2000*1000*2200mm |
| Weight | About 450kg |

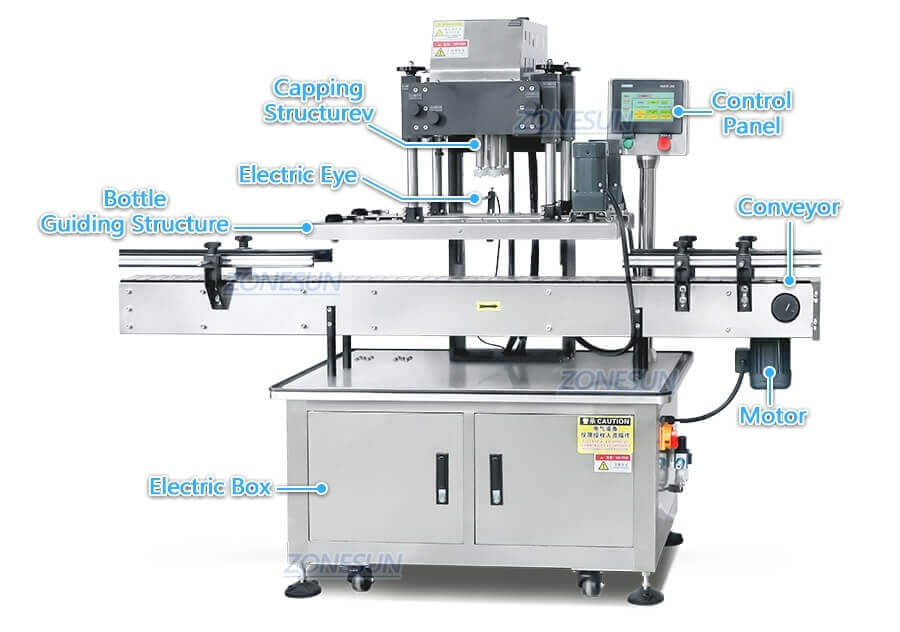

| Machine model | ZS-XG440R |
| Power supply voltage | AC 110/220V 50-60HZ |
| Power | 2KW |
| Suitable cover diameter | 30-80mm(can be customized) |
| Working pressure | 0.5-0.7MPa |
| Working speed | About 25-60 bottles/min |
| Machine size | About 2000*900*1600mm |
| Net weight | About 250kg |

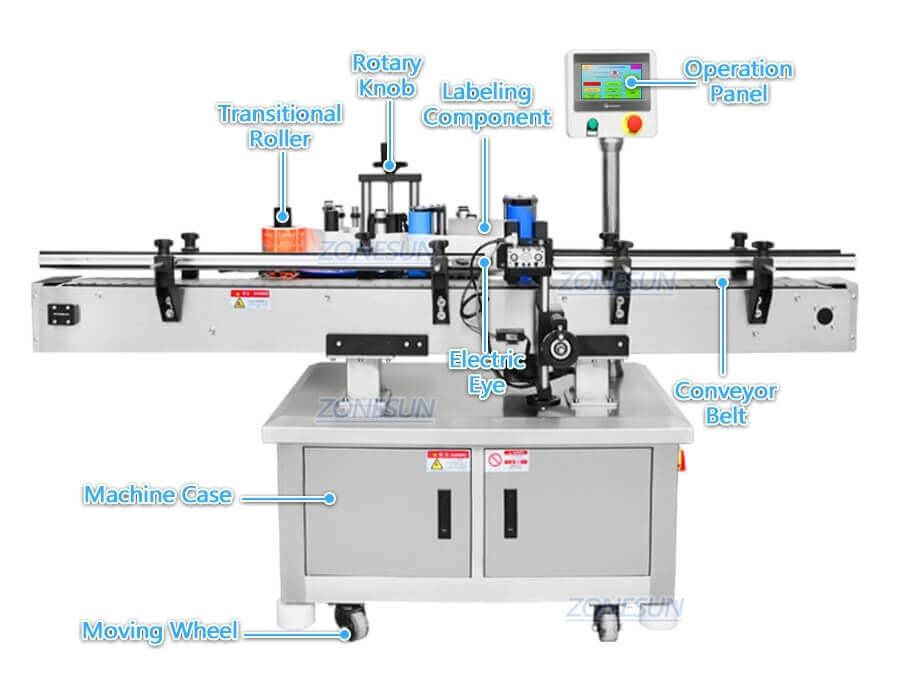

| Model | ZS-TB260R |
| Power supply | AC220V 50Hz/60Hz 1000W |
| Labeling capacity(bottles/min) | 25-50 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0mm |
| Suitable Bottle Diameter | φ12-100mm |
| Label size(mm) | (L)20-300mm (H)15-150mm(Can be customized) |
| Roll inside diameter(mm) | φ76mm |
| Roll outside diameter(mm) | φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About 2000*820*1380mm |
| Machine weight | About 180kg |
| Packing Size | About 2100*890*1520mm |
| Package weight | About 250kg |
