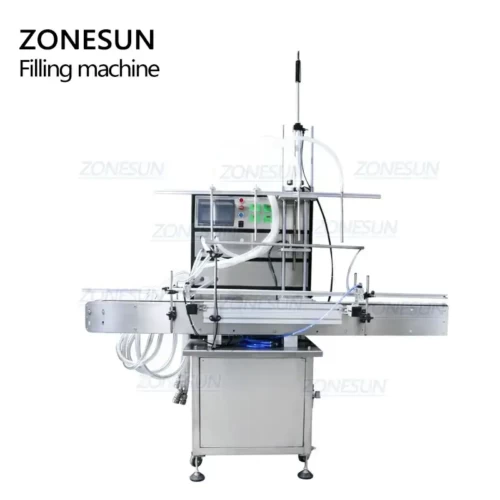

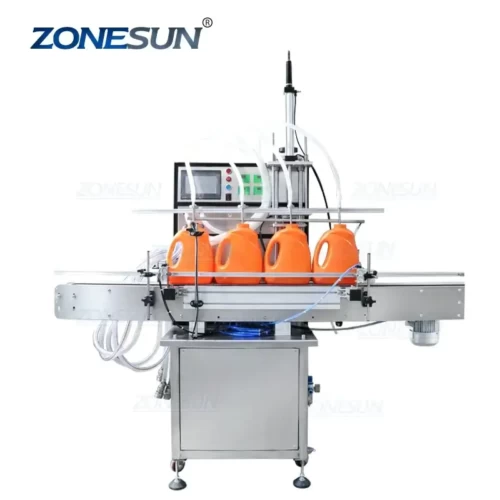

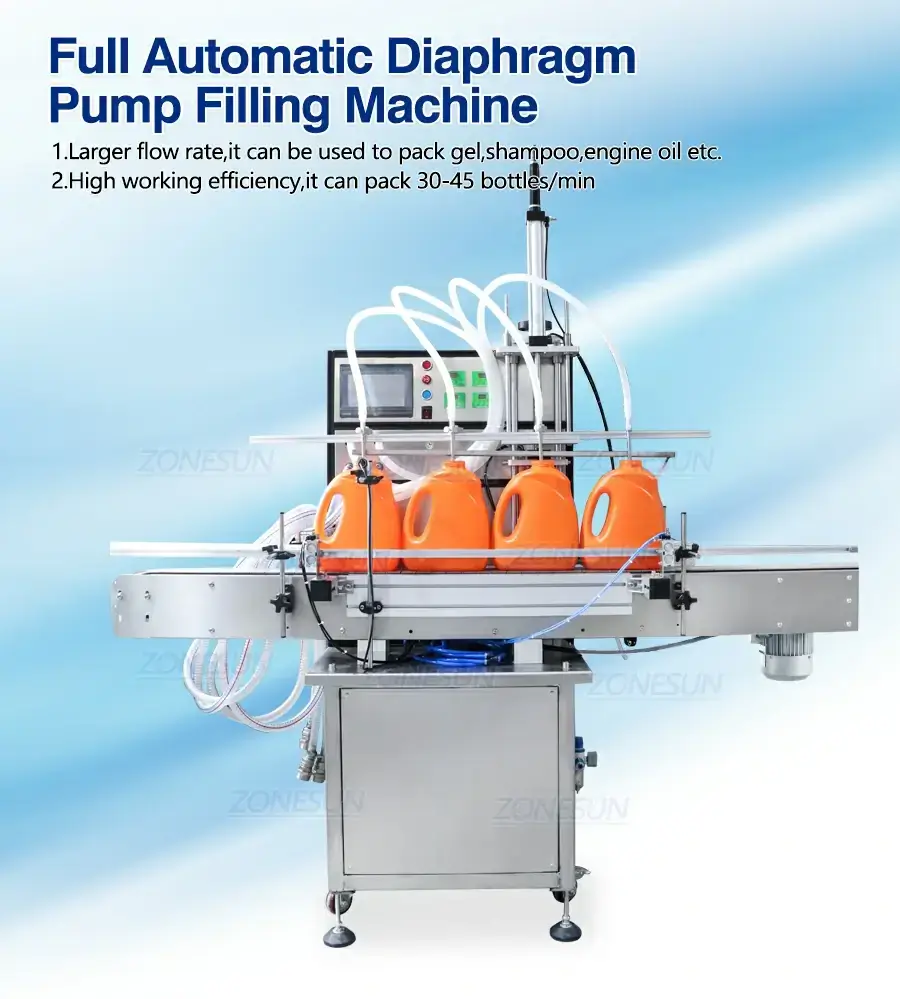

40L Vertical Diaphragm Pump Filling Machine

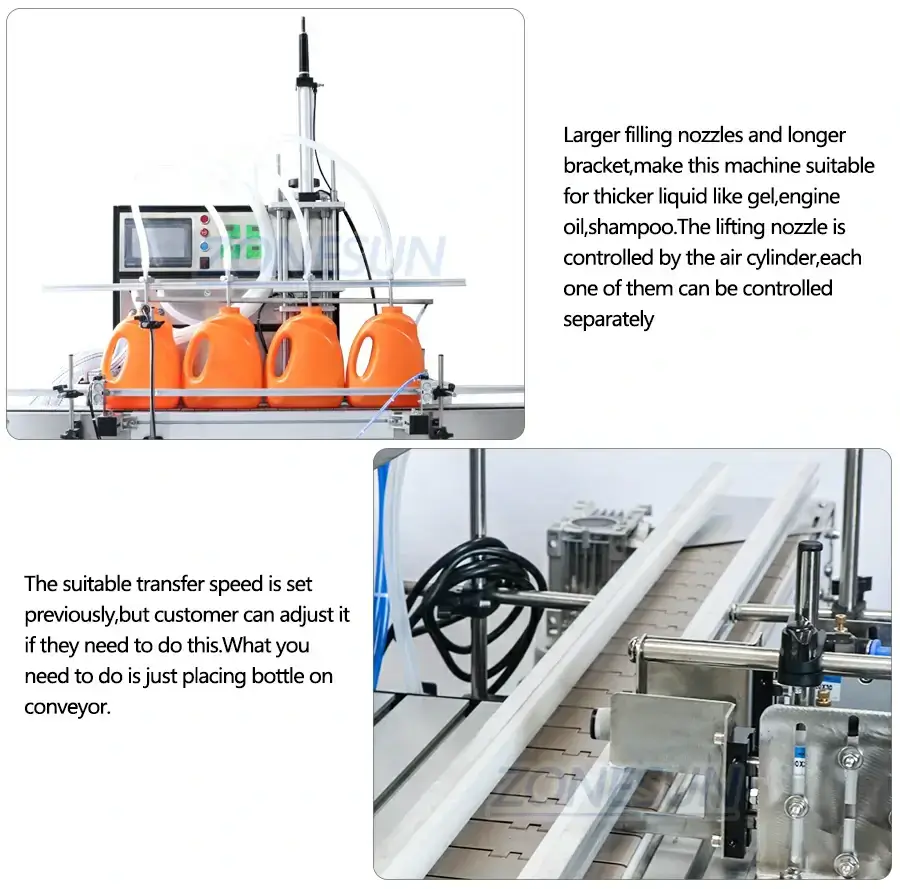

Equipped with diaphragm pump,this liquid filling machine can work automatically,it can fill about 30-45 bottles/min.Each filling nozzle of this machine can be controlled separately,additionally the 40L/min large flow rate makes it suitable for fill thicker liquid like gel,hand sanitizer,laundry detergent,shampoo etc.
Share to
Description:
Equipped with diaphragm pump,this liquid filling machine can work automatically,it can fill about 30-45 bottles/min.Each filling nozzle of this machine can be controlled separately,additionally the 40L/min large flow rate makes it suitable for fill thicker liquid like gel,hand sanitizer,laundry detergent,shampoo etc.
Parameter:
| Machine model | ZS-VTDP40 |
| Power supply | 220V-50HZ/110V-60HZ |
| The whole machine power | 1500W |
| Max flow rate | 50ML/MIN-40L/MIN |
| Material of pump | Diaphragm Pump |
| Filling accuracy | ≤100ml deviations≤±1ml > 100ml deviation≤+1% ( based on water) |
| Filling speed | 30-45bottles/min(depending on botles and filling liquid) |
| Packing weight | About 218kg |
| Packing size | About 2020*815*1980mm |

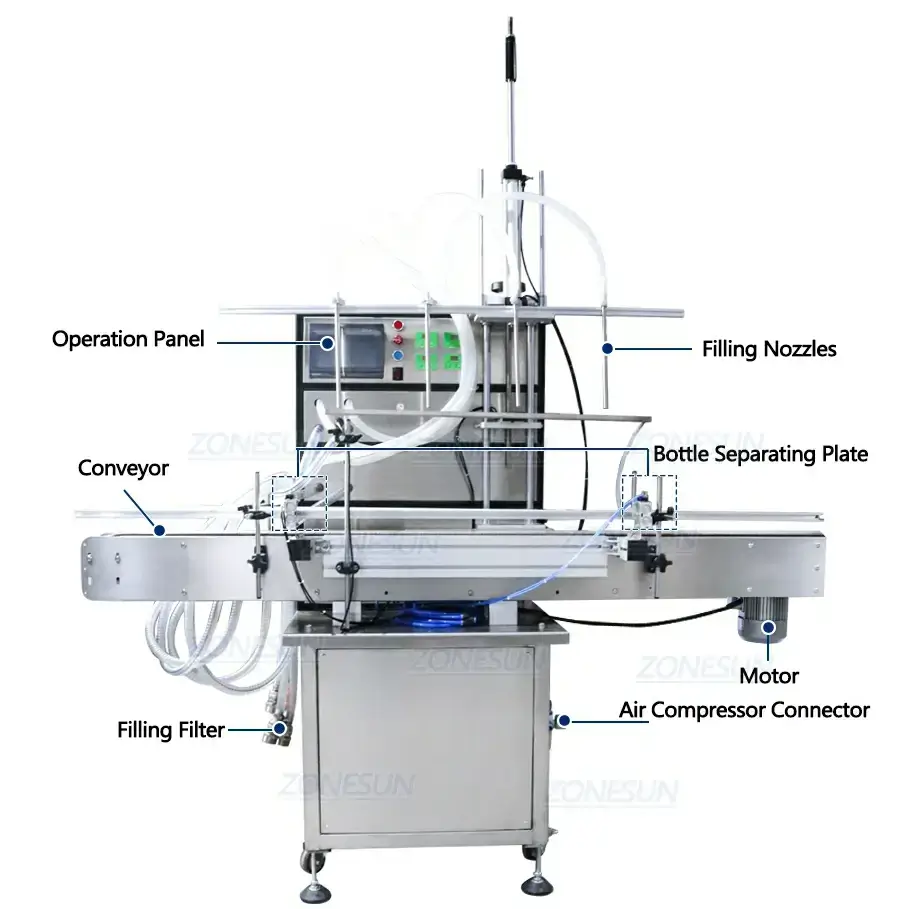

| Size of air compressor connector | OD8mm |
