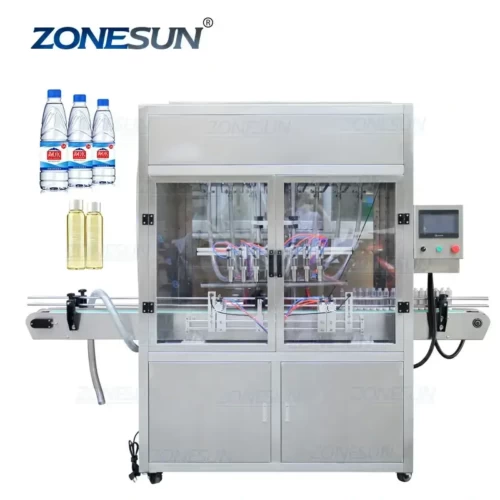

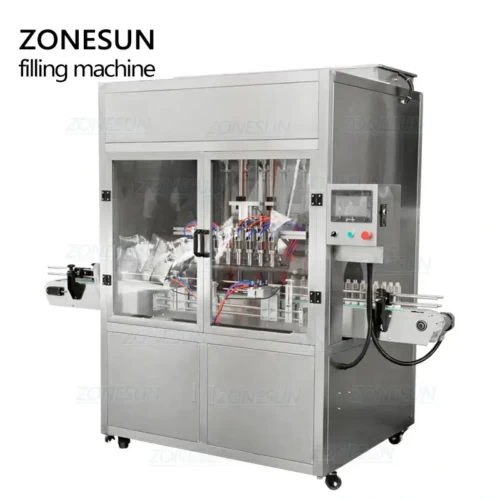

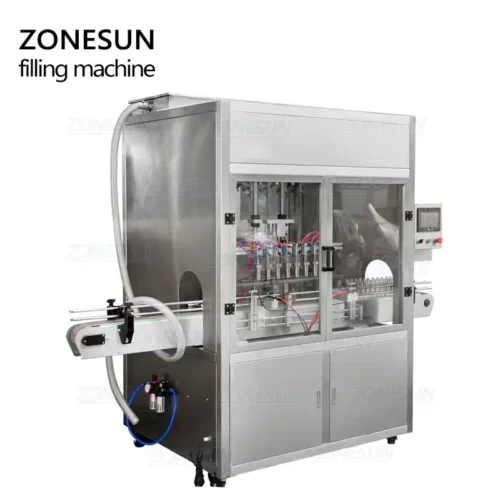

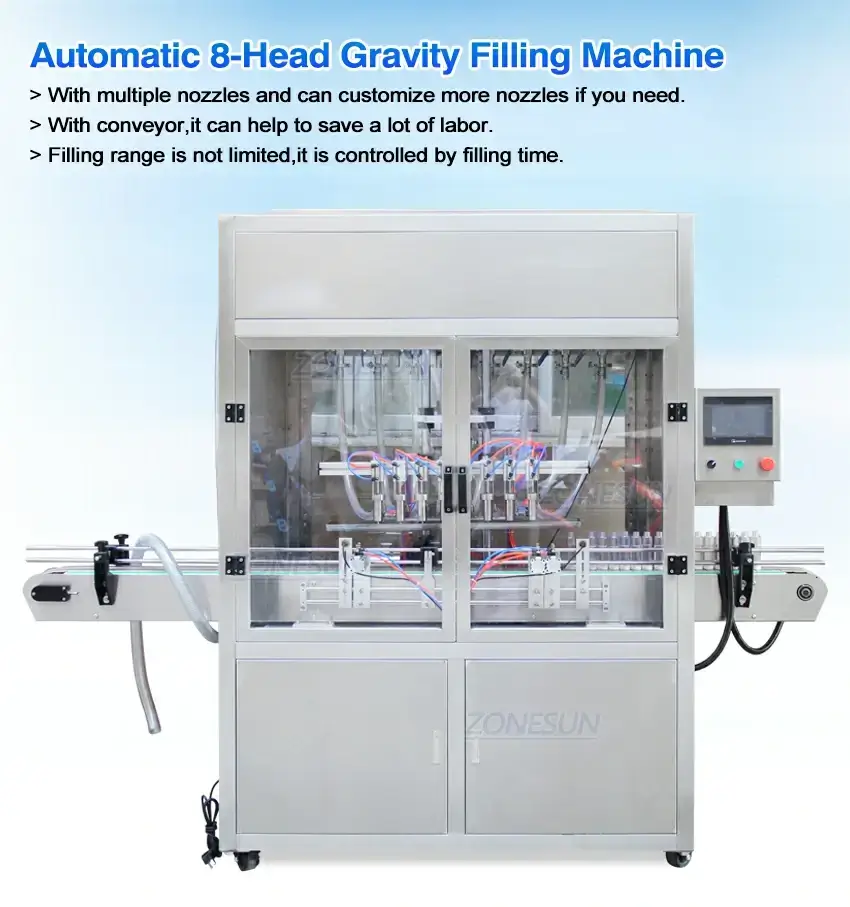

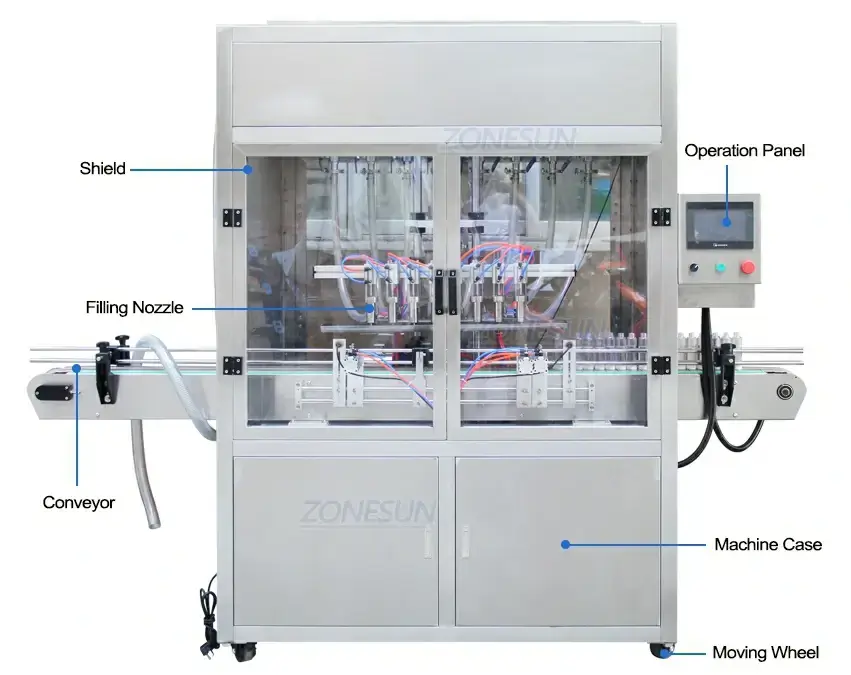

8-head Liquid Gravity Filling Machine
ZS-YT8T-8ZL automatic filling machine is a machine which has compact design,beautiful appearance,wide application field.The filling range is not limited,it is totally controlled by filling time.The filling speed is controlled by rotating the valve.It is easy to operate and suitable for liquid like water,juice,milk,perfume etc.
Share to
Description:

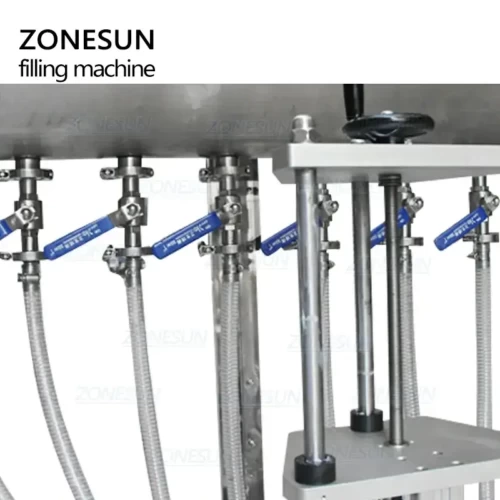

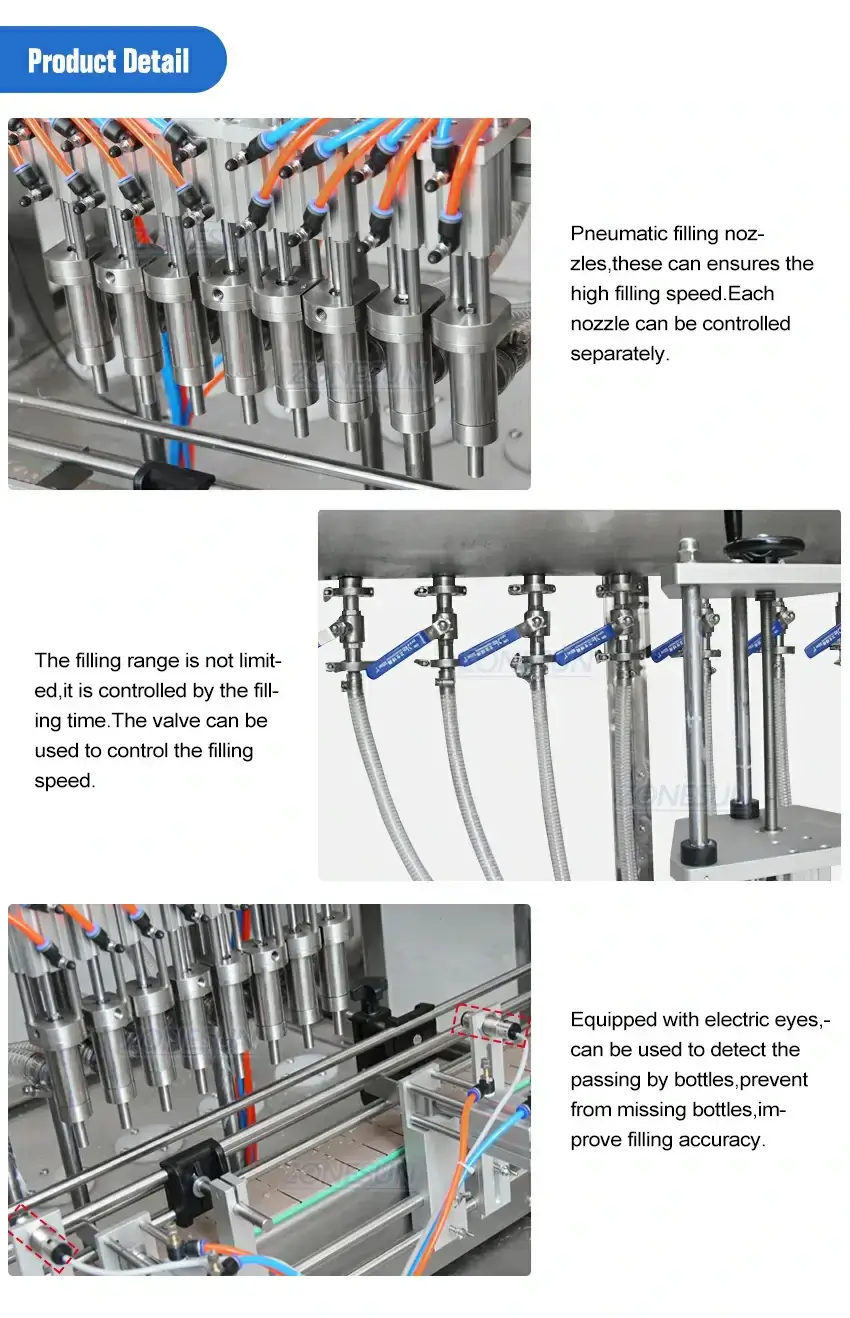

ZS-YT8T-8ZL automatic filling machine is a machine which has compact design,beautiful appearance,wide application field.The filling range is not limited,it is totally controlled by filling time.The filling speed is controlled by rotating the valve.It is easy to operate and suitable for liquid like water,juice,milk,perfume etc.
Parameter:
| Model | ZS-YT2T-2ZL | ZS-YT4T-4ZL | ZS-YT6T-6ZL | ZS-YT8T-8ZL |
| Voltage | 110/220V 50-60HZ | |||
| Flling Range | Not limited,control by filling time | |||
| Working Speed(based on water) | 10-40bottles/min | 20- 50bottles/min | 30-70bottles/min | 40-80bottles/min |
| Flling Accuracy | ≤±1% | |||
| Air Pressure | 0.5-0.7MPa | |||
| Power of whole machine | 800W | |||
| Machine weight | 220kg | 260kg | 300kg | 650kg |
| Dimension | 200x120x230cm | 200x120x230cm | 250x130x230cm | 280x130x250cm |
