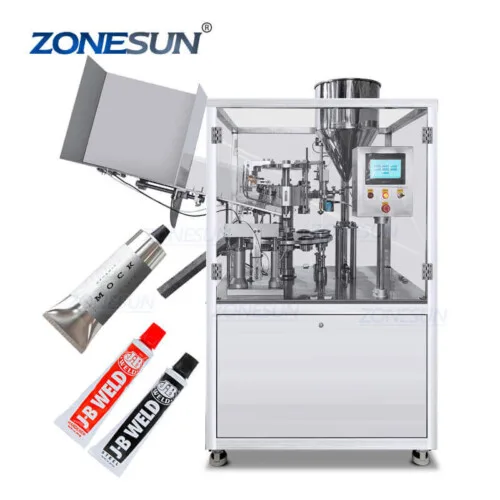

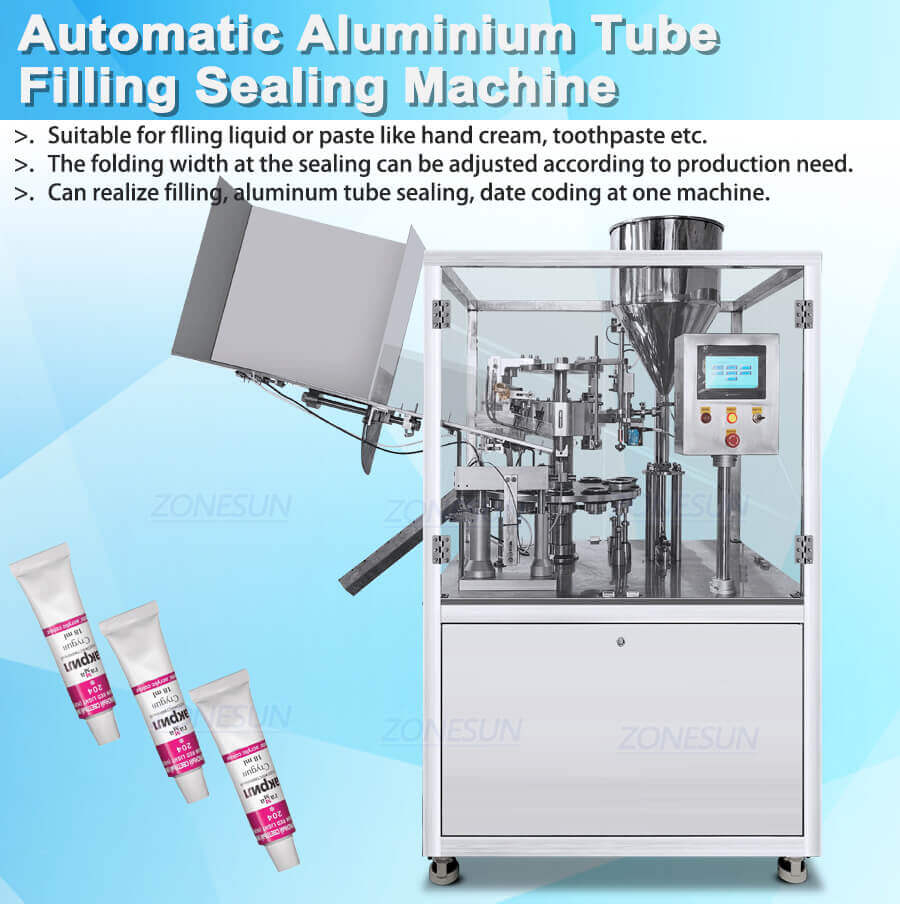

Aluminum Tube Filling Sealing Machine

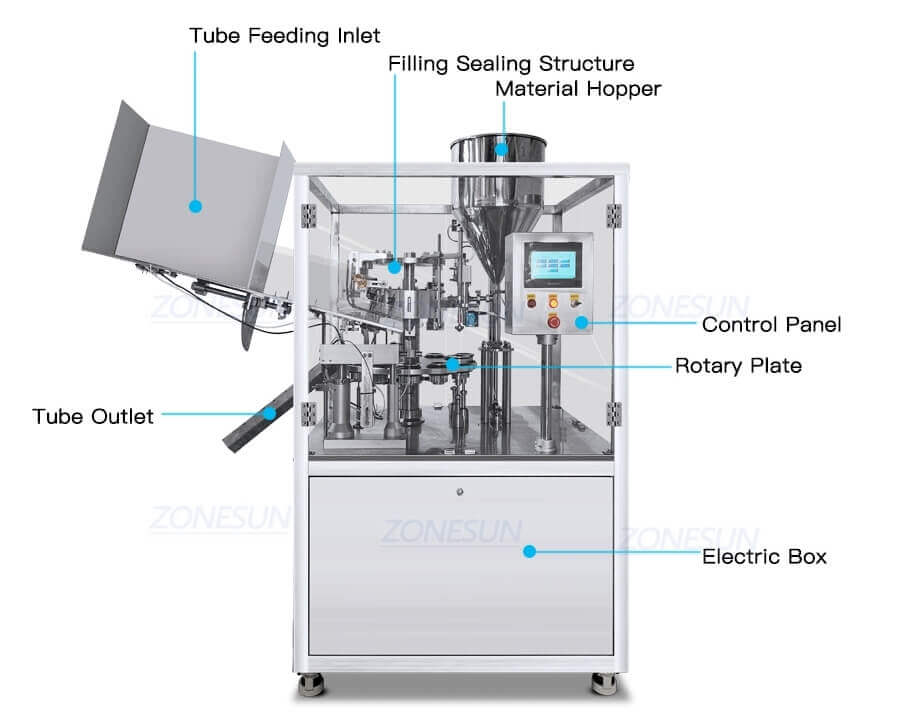

This filling sealing machine combines filling structure,sealing structure at one rotary workbench,it is designed for packaging aluminium tube products like toothpaste,hand cream,ointment etc.
Share to
Description:
This filling sealing machine combines filling structure,sealing structure at one rotary workbench,it is designed for packaging aluminium tube products like toothpaste,hand cream,ointment etc.
Parameter:
| Machine model | ZS-FS009A |
| Machine voltage | 220/380V 2.6KW |

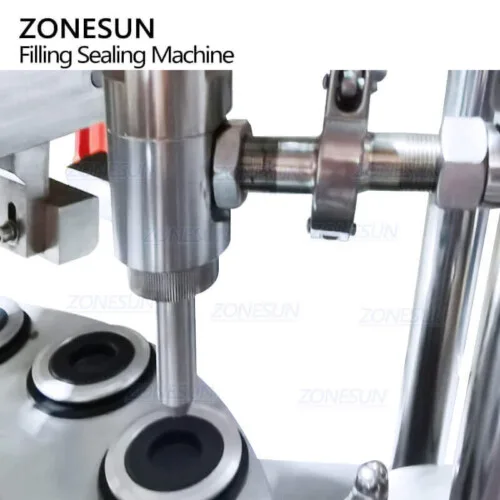

| Filling pump | Piston pump |
| Filling accuracy | ±1% |
| Working speed | 20-50 pieces/min |
| Filling volume | 6-75ml/20-150ml/50-300ml (according to production need) |
| Aluminium tube length | 60-220mm(Can be customized) |
| Aluminium tube diameter | φ13-40mm |
| Air pressure | 0.55-0.65MPa |
| Machine size | About 2150*950*2000mm |
| Machine weight | About 600kg |
| Machine Configuration | ||
| Machine Component | Brand | Origin |
| PLC | INOVANCE | China |
| Photoelectric Sensors | Panasonic | Japan |
| Color Mark Sensor | Sick/Panasonic | Germany/Japan |
| Relay/Air Switch | Delixi/CHINT | China |

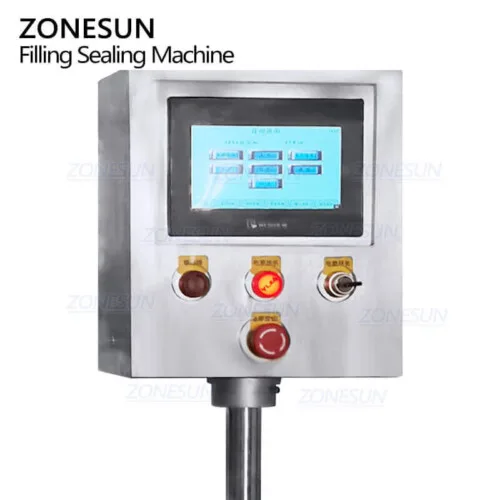

| Touchscreen | INOVANCE | China |
| Pneumatic Element | AirTAC | Taiwan,China |
| Motor Inverter | INOVANCE | China |
