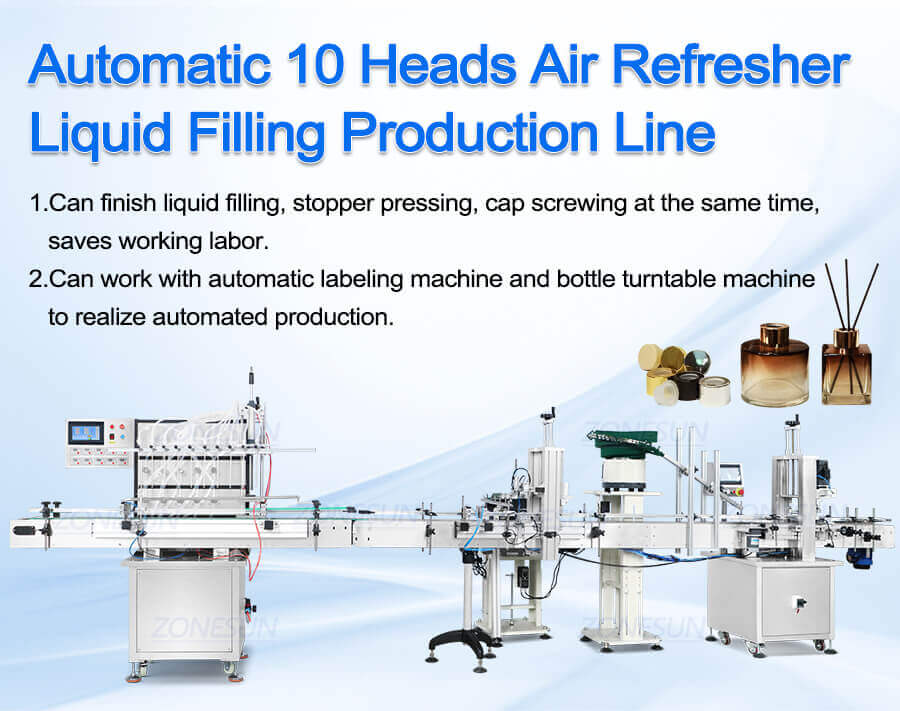

Automatic 10 Heads Air Refresher Liquid filling Production Line

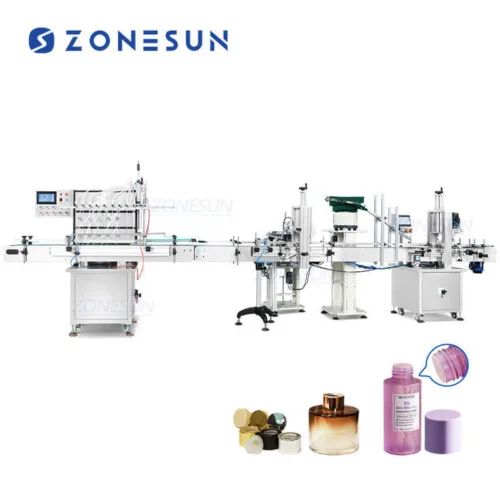

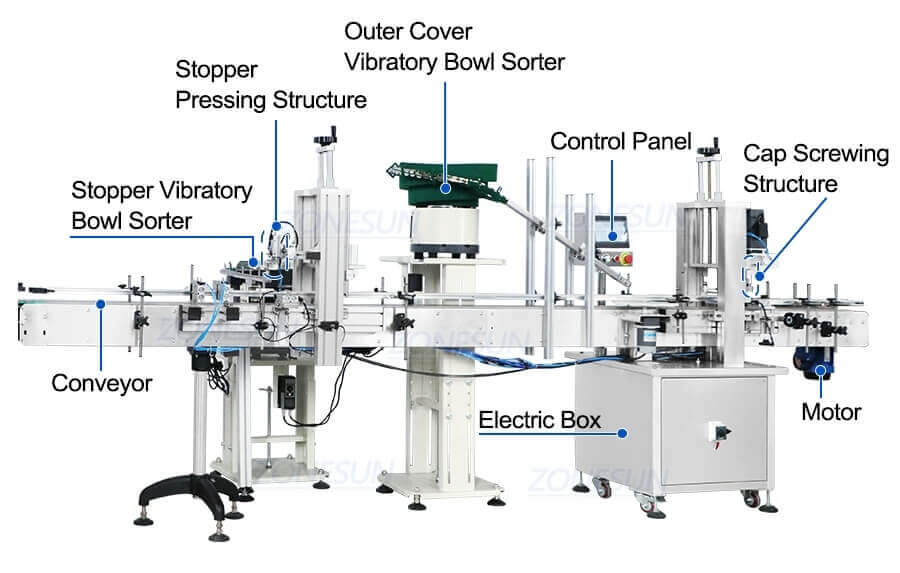

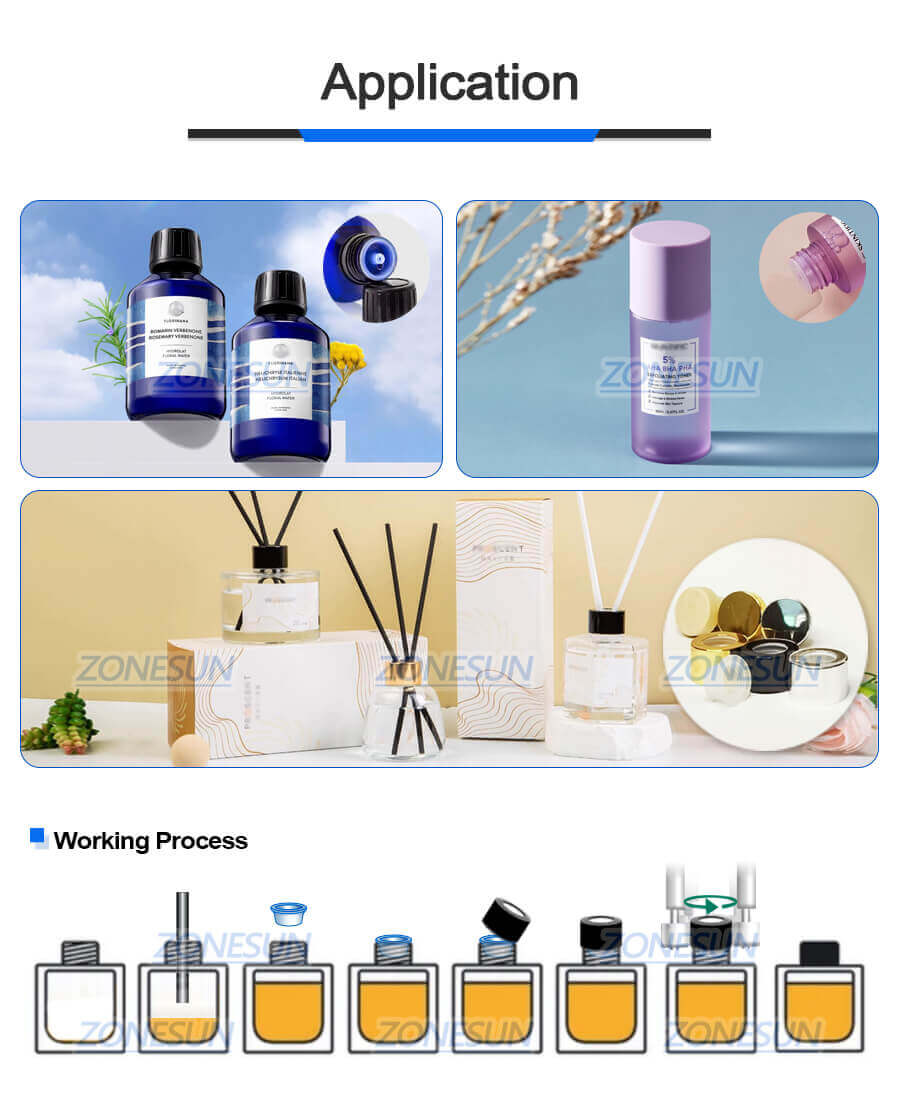

This liquid filling line consists of 10 heads filling machine, stopper pressing, and cap screwing machine. It can simultaneously complete liquid filling, stopper pressing, and cap screwing. It can also be connected to an automatic labeling machine and bottle turntable machine to save labor.
Share to
Product Description:
This liquid filling line consists of 10 heads filling machine, stopper pressing, and cap screwing machine. It can simultaneously complete liquid filling, stopper pressing, and cap screwing. It can also be connected to an automatic labeling machine and bottle turntable machine to save labor.
Product Parameters:
| Machine model | ZS-VTMP80C10 |
| Voltage | 110/220V 50-60hz |
| Filling pump | 316 Stainless steel magnetic pump |
| Max flow rate | 6L/min |
| Working capacity | About 20-40BPM( based on filling material and filling volume) |
| Filling accuracy | ≤±1% ( based on filling material and filling volume) |
| Size of air compressor connector | OD 8mm |
| Package size | About 1960*720*1730mm |
| Package weight | About 250kg |
| Machine model | ZS-XG16X |
| Working voltage | 220V/110V 50- 60HZ |
| Bottle height | 30-300mm |
| Cap diameter | 18-70mm |
| Bottle diameter | 20-160mm |
| Working speed | 10-25 bottles/min(depending on cap size and shape) |
| Working pressure | 0.4-0.6MPa |
| Size of air compressor connector | OD 8mm |
| Package size | About 1970*510*990mm(Stopper Pressing Machine)+2020*770*1750mm(Screw Capper) |
| Gross weight | About 104kg(Stopper Pressing Machine)+303kg(Screw Capper) |
Product Details:

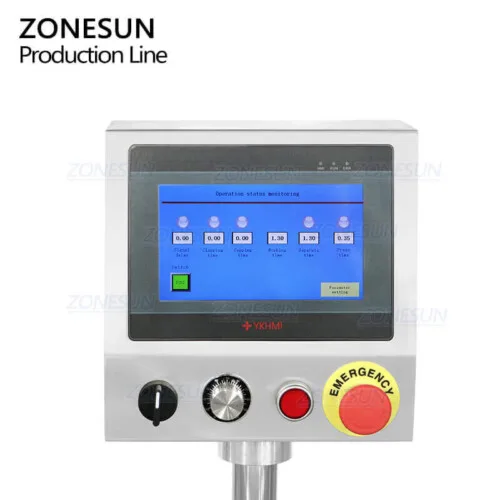

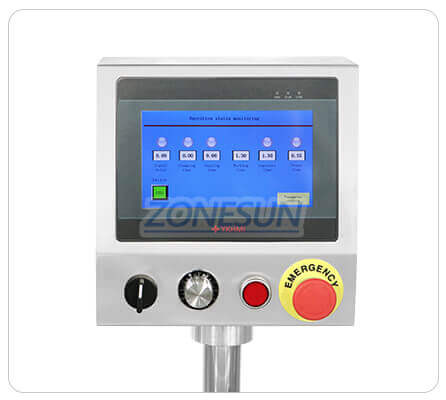

The PLC control panel offers real-time display of working data, providing a more intuitive interface that streamlines machine operation. It can be customized into various languages based on production requirements.

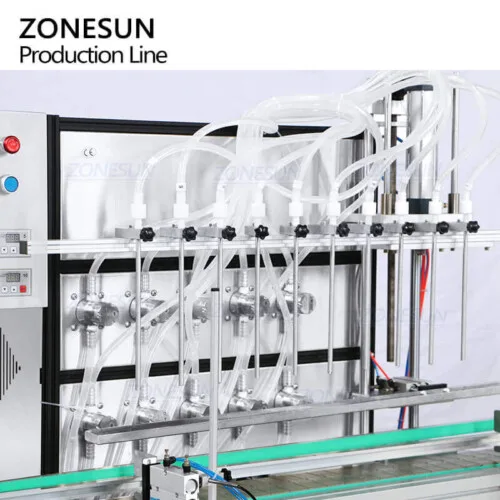

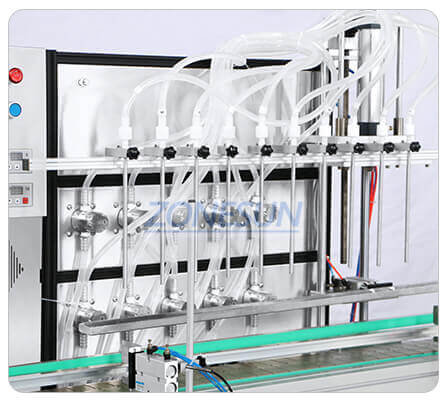

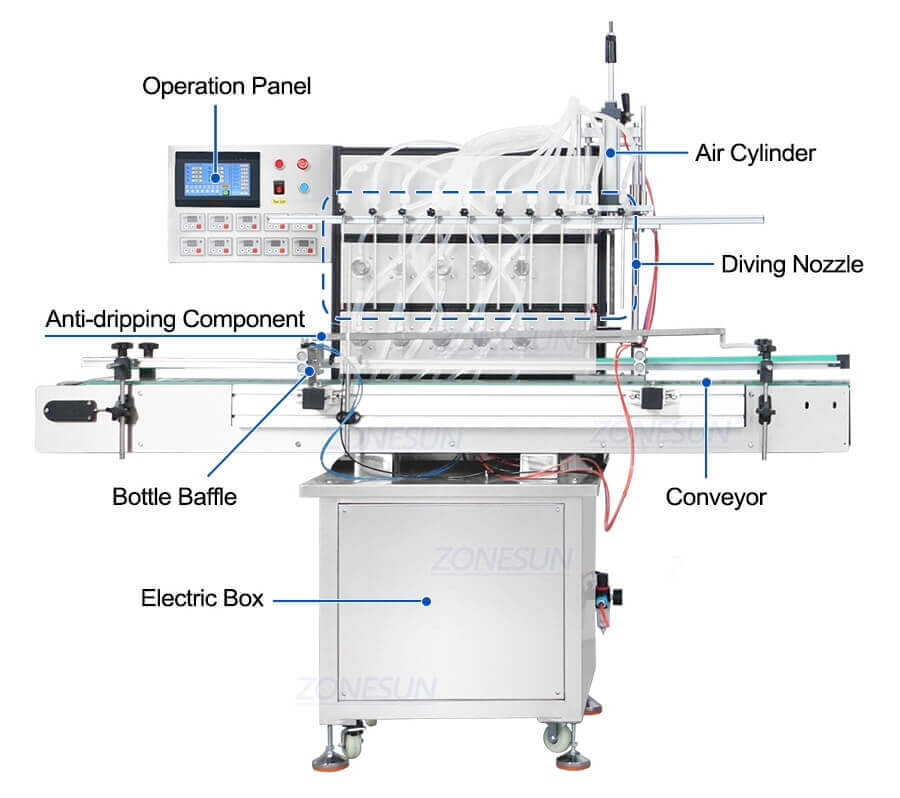

The filling system is equipped with a 316 stainless steel magnetic pump, ensuring high filling accuracy. The diving filling nozzle prevents liquid from splashing during filling, making it ideal for foamy liquids. Customizable multiple filling nozzles are available upon request.

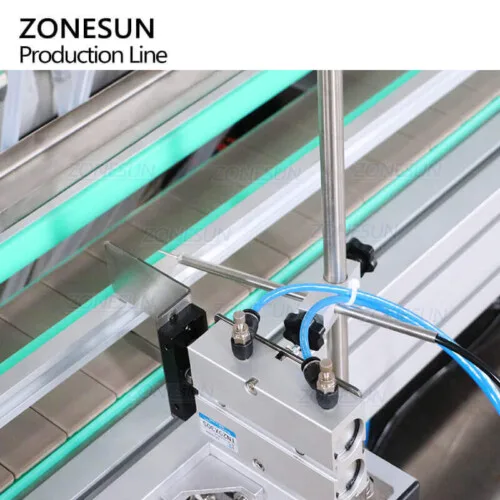

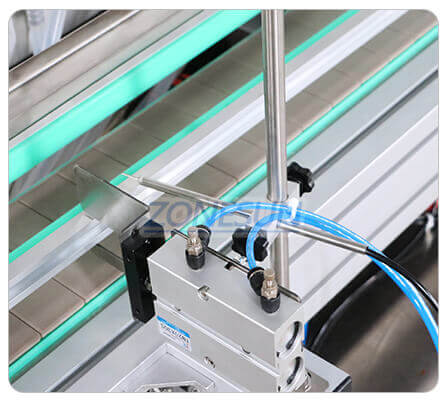

The electric eye system can detect bottles passing by and automatically trigger the filling and capping process, enhancing operational efficiency.

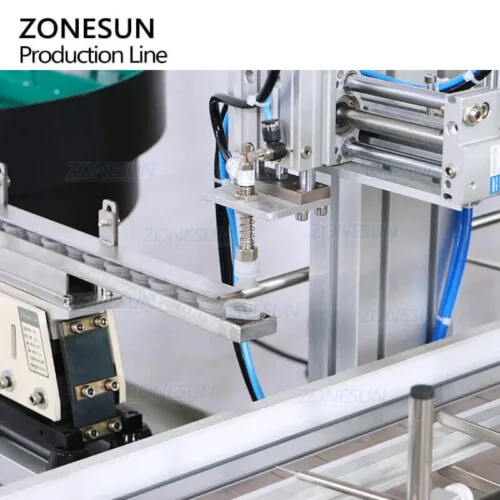

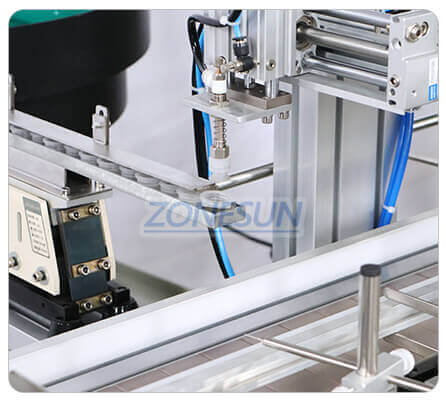

The air nozzles, controlled by an air cylinder, can pass through stoppers and place them on the bottle mouth like a human hand. This is ideal for light caps or stoppers and provides high working accuracy.

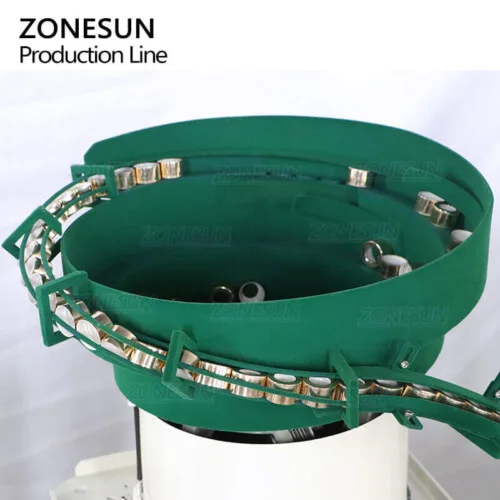

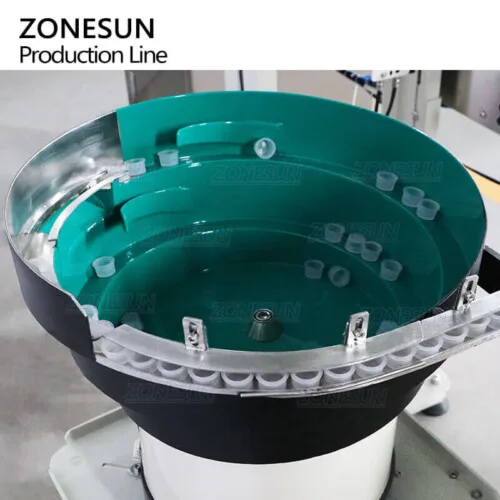

Vibratory bowl sorting machines streamline the sorting process, reducing manual labor and boosting efficiency. They are tailored to specific sizes and offer high accuracy.

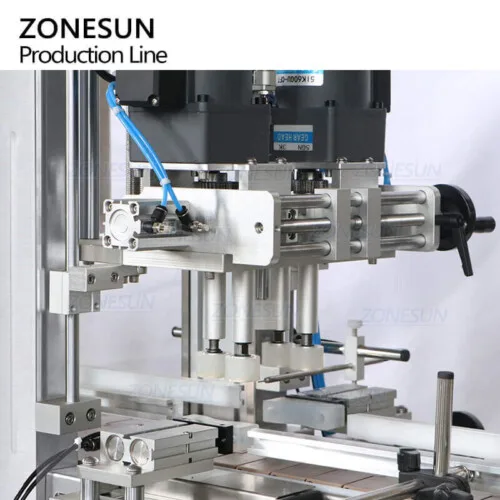

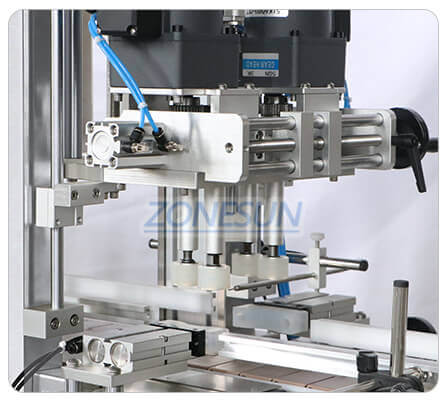

The capping structure can be adjusted for different bottle cap sizes and shapes, making it suitable for various types of caps, including spark caps, dropper bottles, and sharp-pointed bottles.

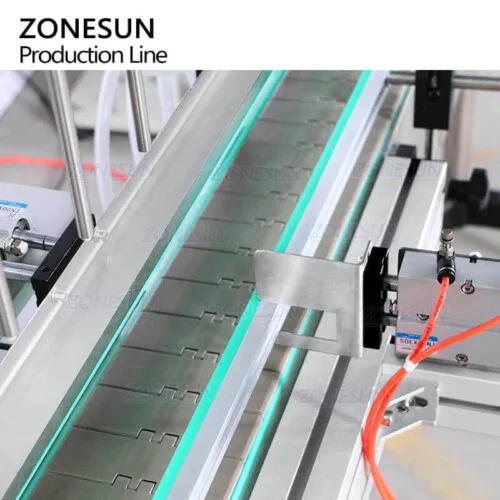

The chain conveyor can be tailored to your specific production requirements, ensuring it has a larger weight capacity and delivers products more stably and smoothly.
