Upgrade touch screen control panel makes parameter setting more convenient and intuitively

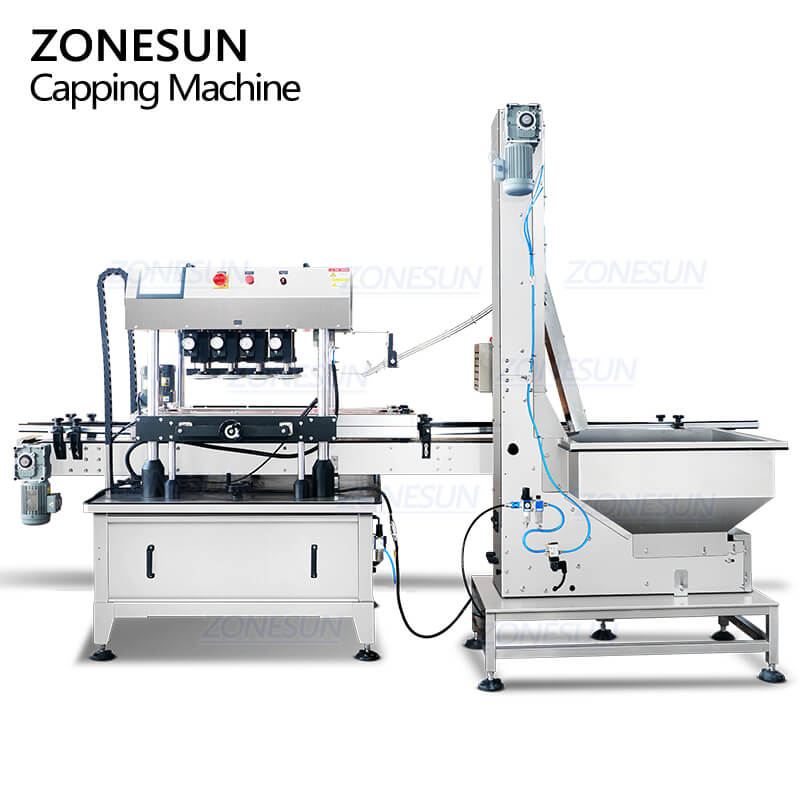

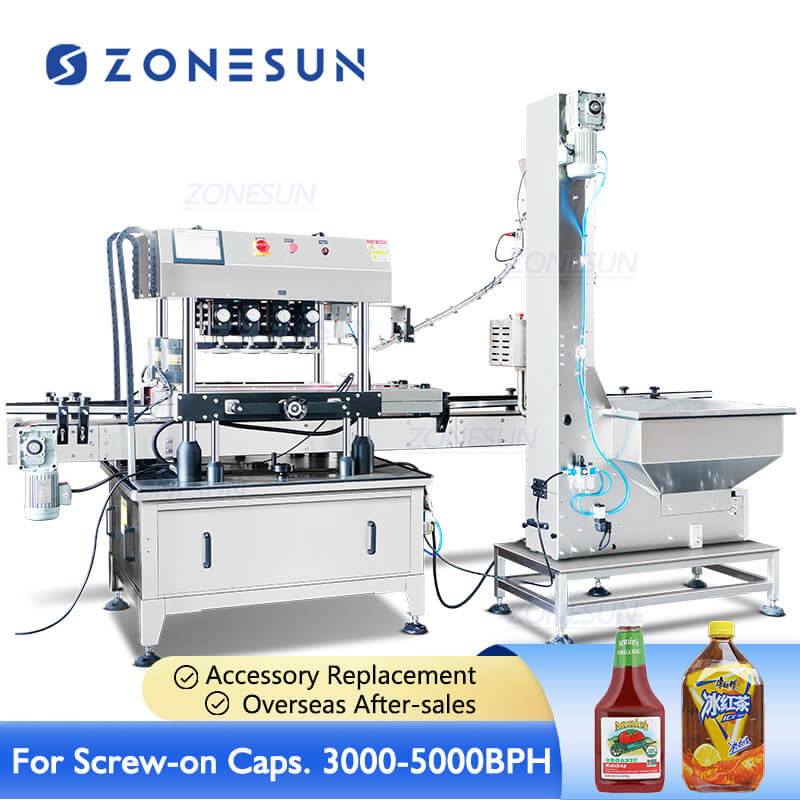

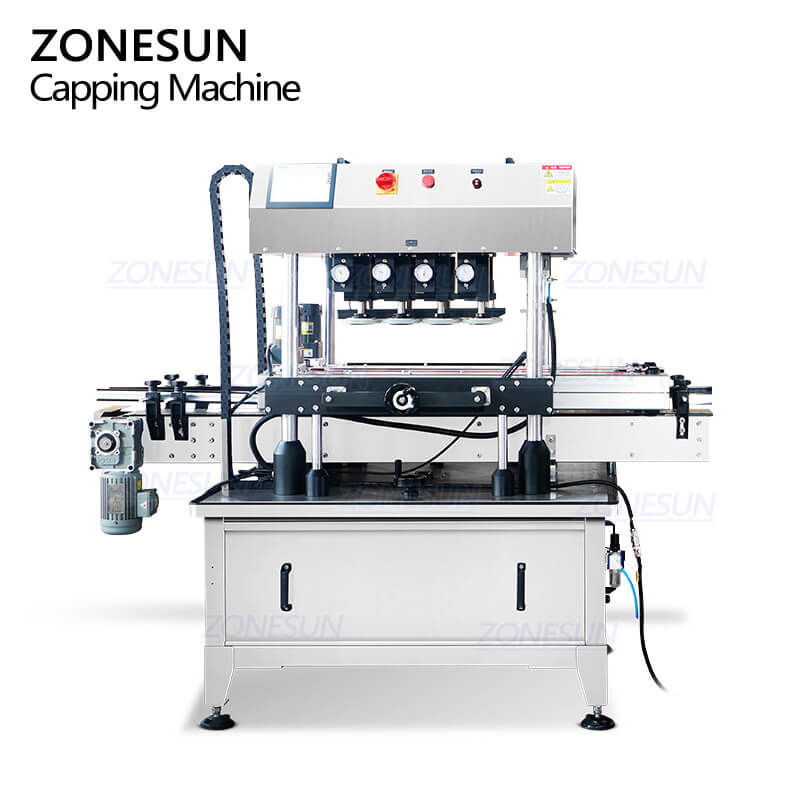

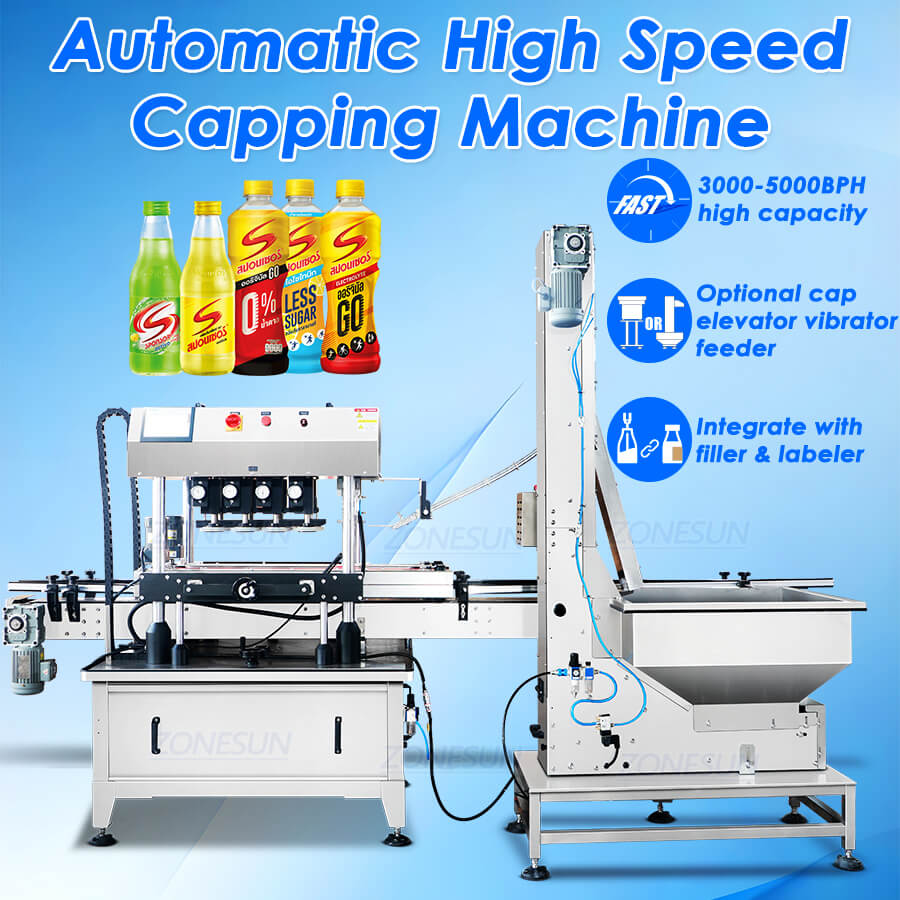

Automatic Bottles High Speed Capping Machine
This high speed capping machine can work stably and fast, the working speed is adjustable, and this machine is with guiding device which is adjustable according to bottle width. This ensures the capping speed and effect. This machine is suitable for food, beverage, cosmetics and industries.
Share to
Product Description:
This high speed capping machine can work stably and fast, the working speed is adjustable, and this machine is with guiding device which is adjustable according to bottle width. This ensures the capping speed and effect. This machine is suitable for food, beverage, cosmetics and industries.
Product Parameters:
| Machine Model | ZS-XG440B |
| Voltage | 220V/110V 50-60Hz |
| Power | 2kW |
| Production Capacity | 3000-5000BPH(depending on bottle & cap size) |
| Suitable Bottle Diameter | 35-120mm(Can be customized) |
| Suitable Bottle Height | 60-200mm(Can be customized) |

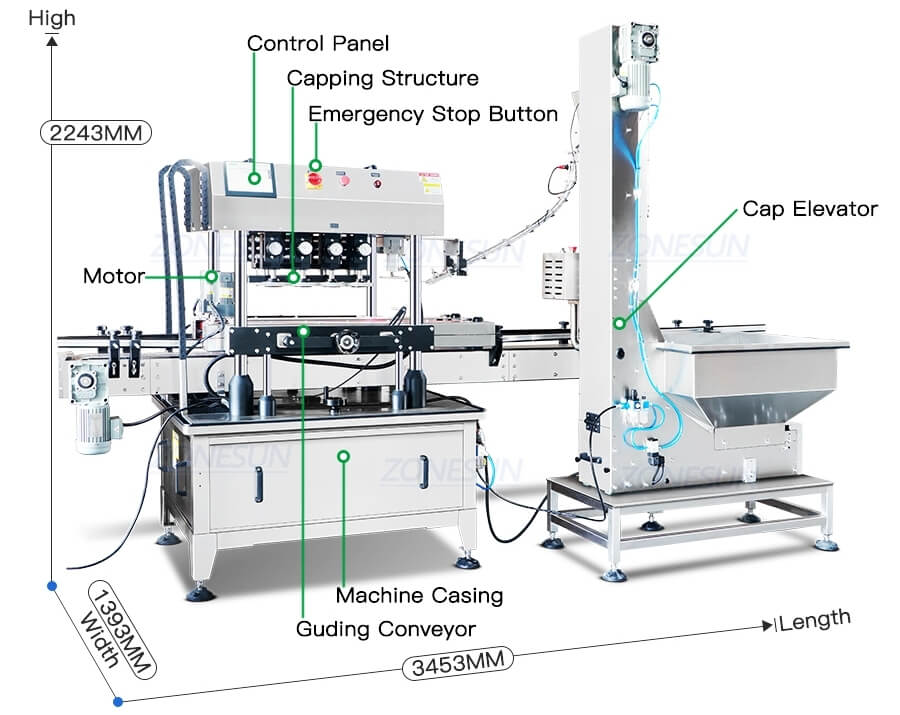

| Machine Size | About 2000*900*1600mm(Only Capper)About 3453*1393*2243mm(Capper with cap elevator) |
| Machine Weight | About 300kg(Only Capper) |
| Package Size | 2060*1100*1840mm(Only Capper)2340*890*1400(Cap elevator) |
| Package Weight | 600kg(Only Capper)+219kg(Cap elevator) |
| Capping Machine Configuration | ||
| Name | Origin | Brand |
| Inverter | Guangzhou, China | Coreken |
| Conveyor Motor | China | ZD |
| Intermediate Relay | Japan | Omron |
| Photoelectric Sensor | Japan | Keyence |
| Fiber Optic Sensor | Germany | SICK |
| Power Switch | Nanjing, China | Shuangke |
Product Details:

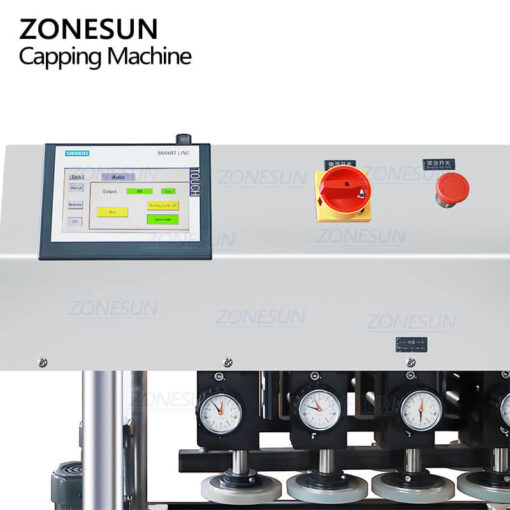

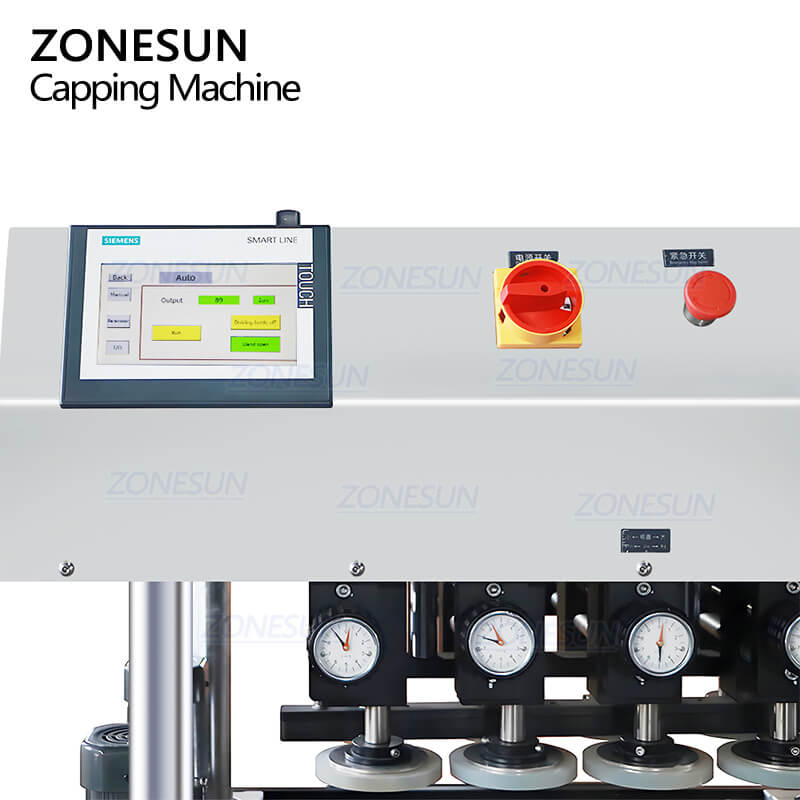

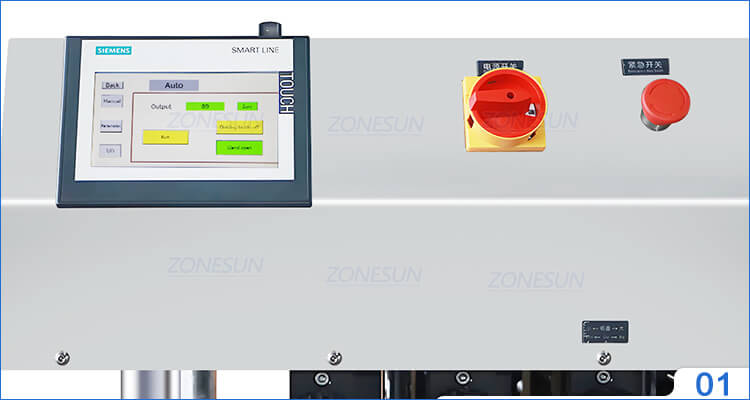

Control Panel

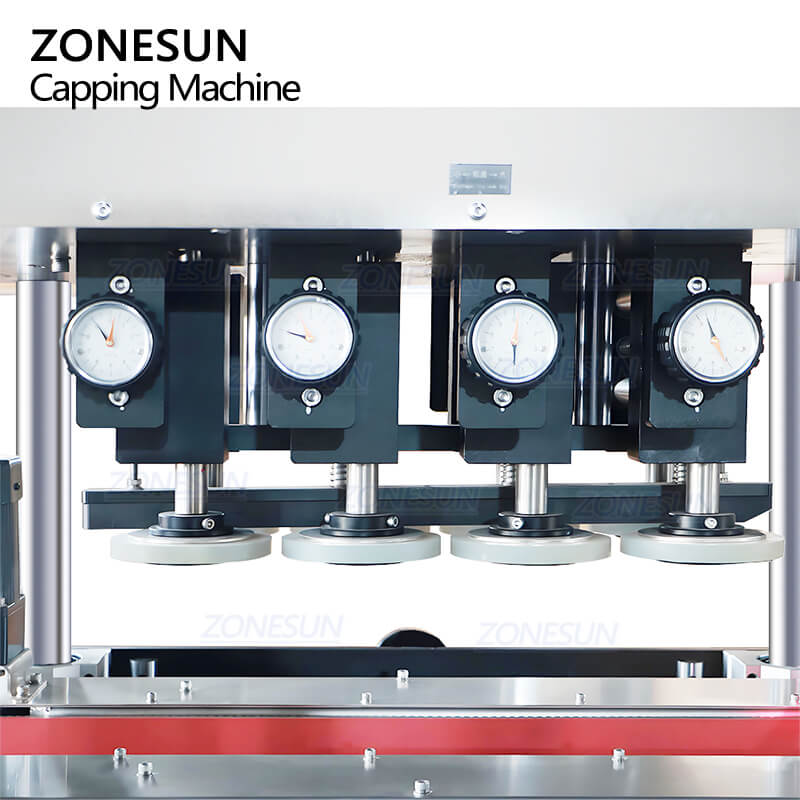

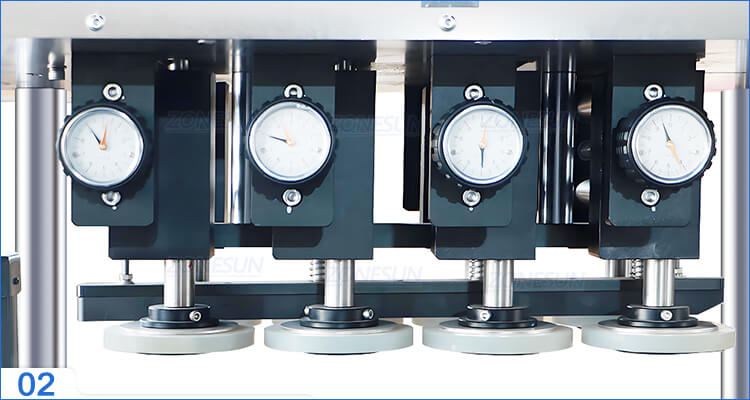

Capping Structure
3000-5000BPH high working capacity, capping head quantity is customizable as production need

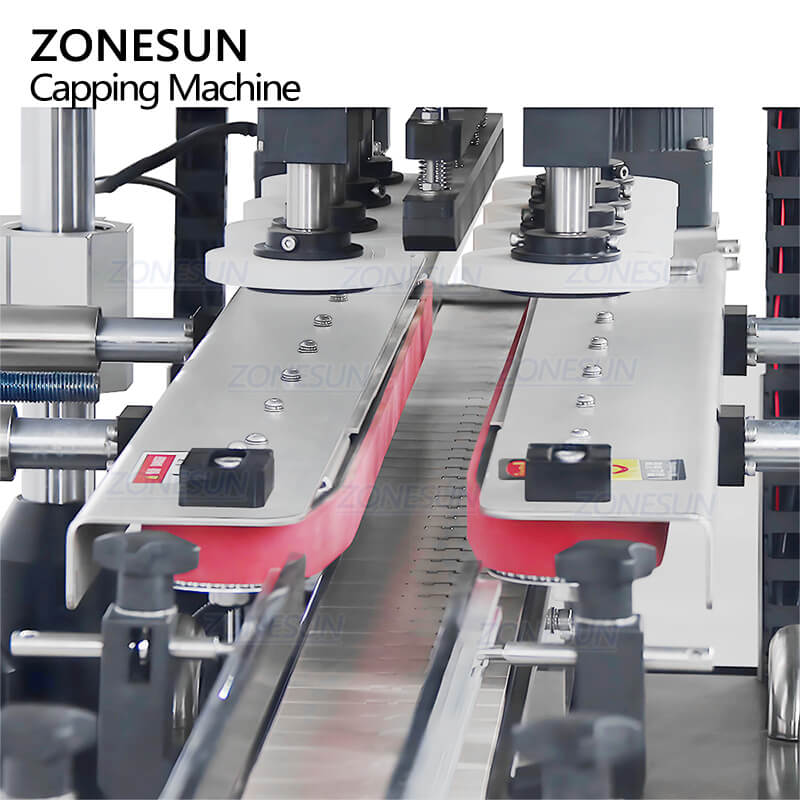

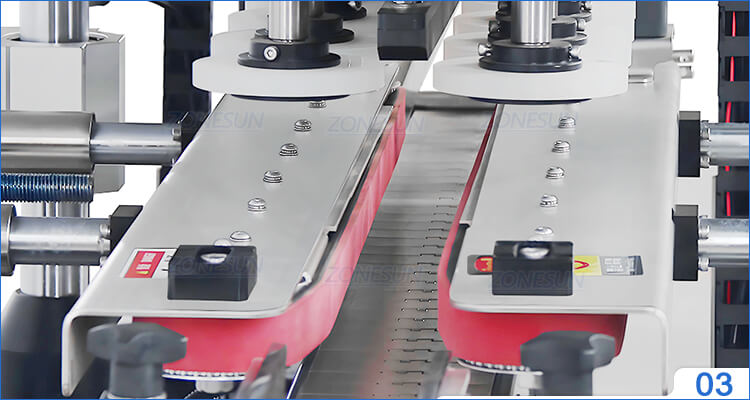

Guiding Conveyor
This can transport and clamp bottle during capping work to improve capping accuracy

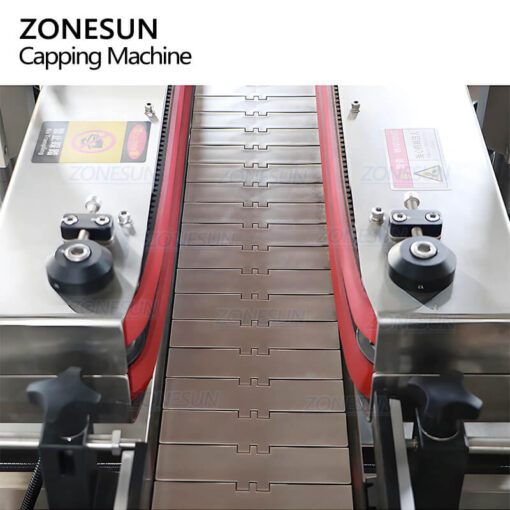

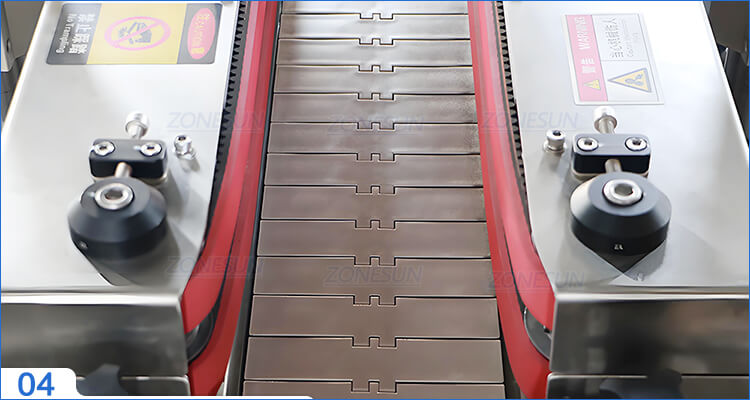

Chain Conveyor
Length and width are customizable, it has larger weight capacity.It can also integrate with filler & labeler

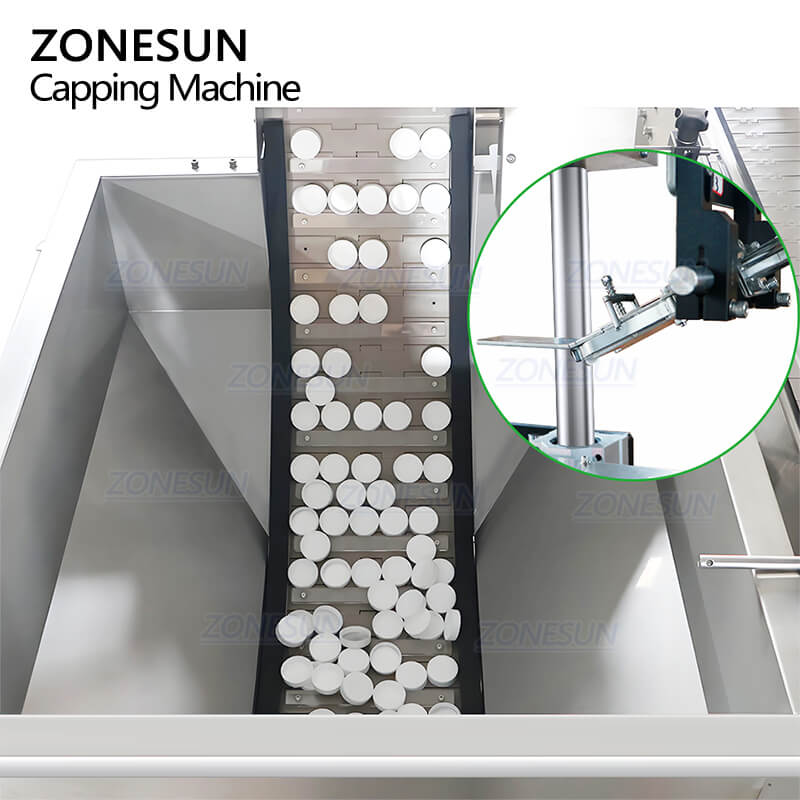

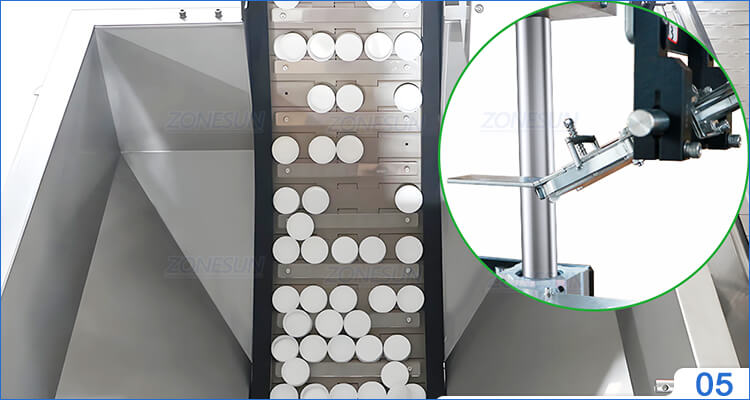

Optional Cap Elevator
It feeds bottle caps in time to ensure high working speed. This is customizable based on cap size
