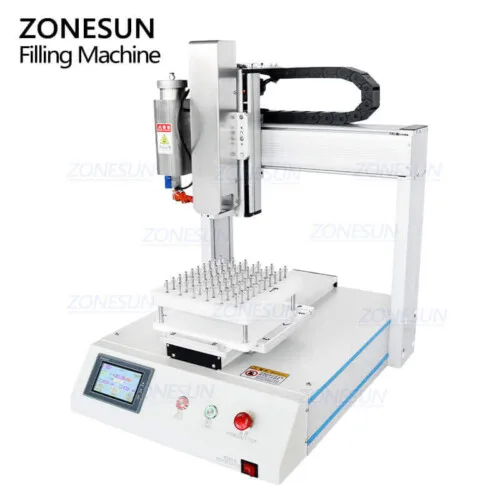

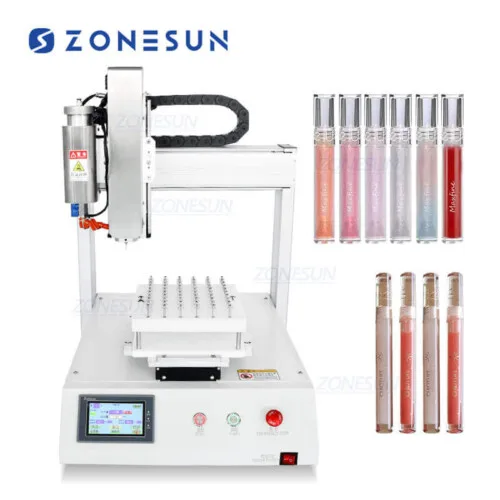

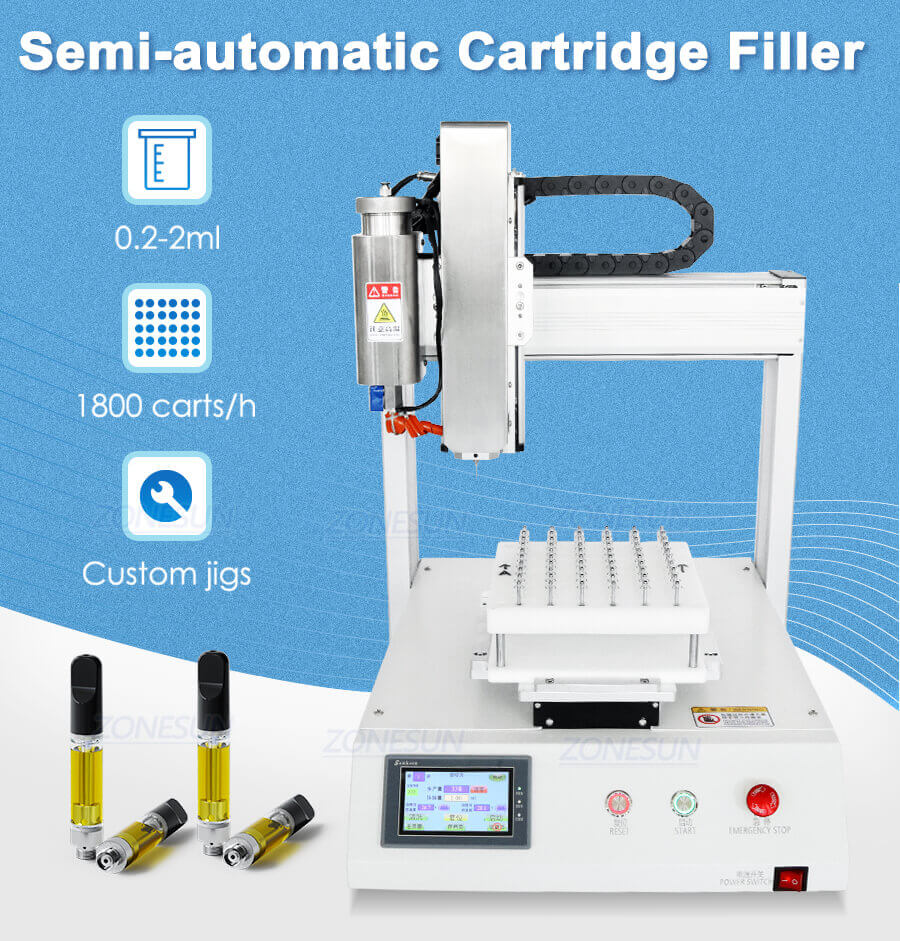

Automatic Cartridge Filling Machine
This machine is specifically designed for filling liquids like oil, eliquid, or ejuice. It features a robotic nozzle that moves along the X and Y axes, filling containers such as cig cartridges or atomizers. It also includes an automatic container transporter using a movable plate. It’s widely used in the biological and chemical industries.
Share to
Description:
This machine is specifically designed for filling liquids like oil, eliquid, or ejuice. It features a robotic nozzle that moves along the X and Y axes, filling containers such as cig cartridges or atomizers. It also includes an automatic container transporter using a movable plate. It’s widely used in the biological and chemical industries.
Parameter:
| MachineModel | ZS-EL221 |
| Voltage | 220V/110V50-60Hz |
| Power | 500W |
| NumberofFillingNozzle | 1(Canbecustomized) |
| FillingRange | 0.2-2ml |
| FillingSpeed | About10-30pcs/min
(dependonthecartridgesizeandliquid) |
| SuitableBottleDiameter | >2mm |
| SuitableBottleHeight | 5-100mm |
| CapacityofOilStorageBarrel | 300ml |

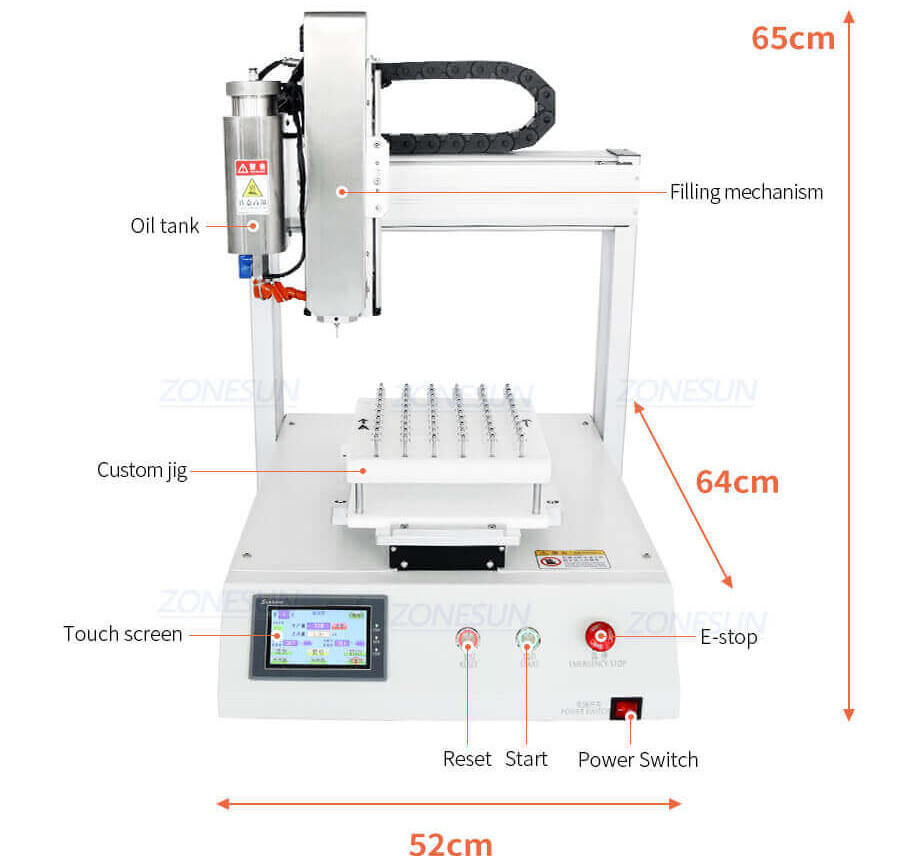

| MachineSize | About520*640*650mm |
| MachineWeight | About46kg |
| PackageSize | About570*700*795mm |
| PackageWeight | About68KG |
Product Detail:

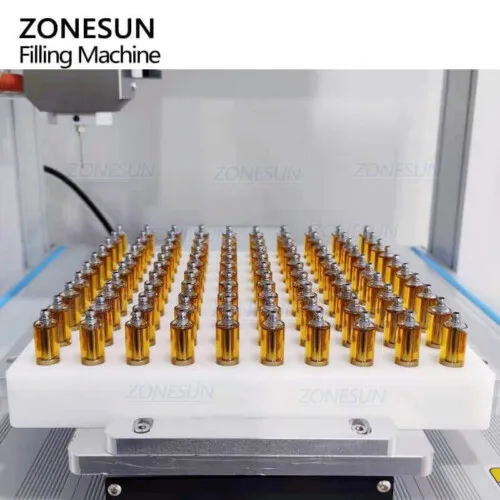

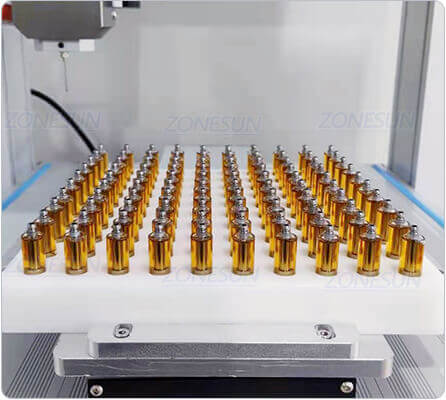

The kit includes 2 custom jigs specifically designed to hold and support multiple cartridges during the filling process. We offer customization options. Please reach out to us for more details.

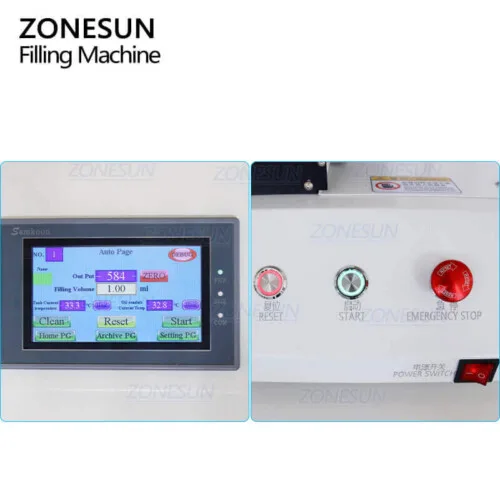

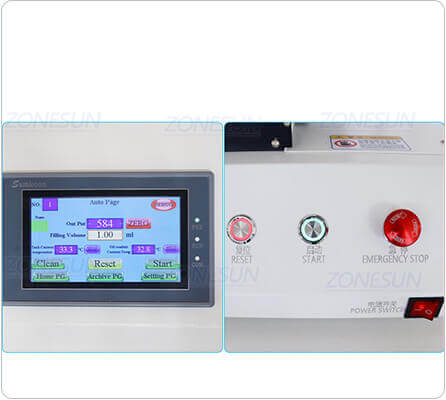

The touchscreen interface offers a visual and interactive way to control the PLC system. Additionally, your machine is equipped with button controls for added operational flexibility.

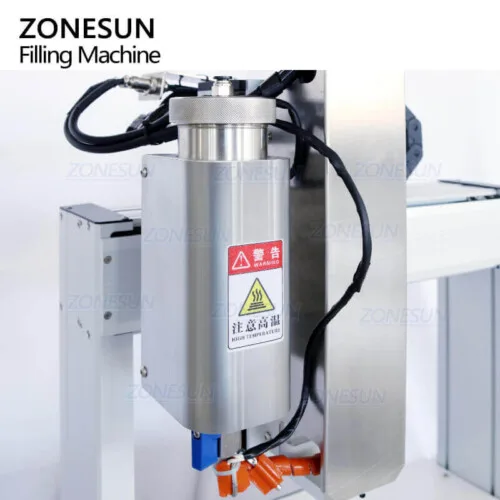

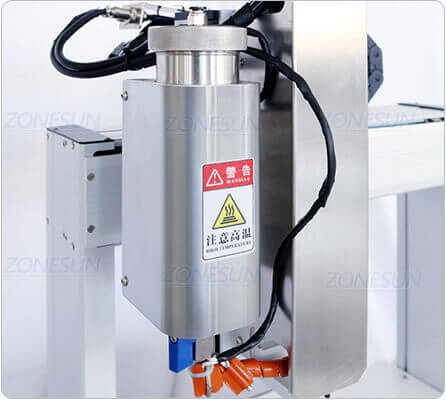

The filler comes with a generous 300ml tank, enabling you to fill a considerable amount of e-liquid before needing to top up. This larger capacity minimizes refill frequency and ensures smooth and continuous filling operations.

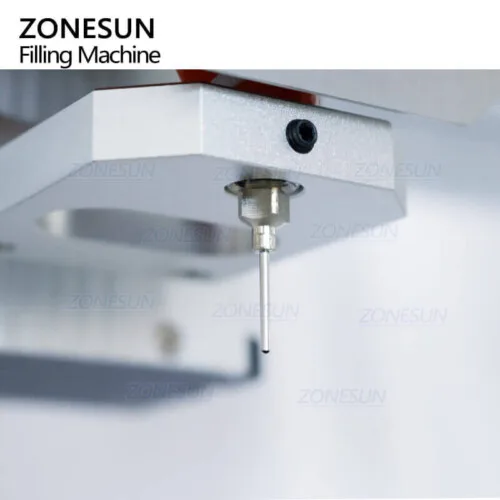

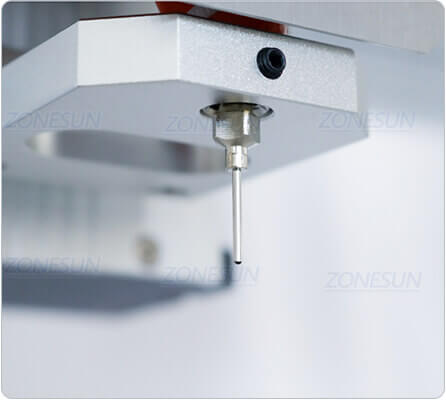

The filler employs a single-head injection pump design. The filling head, coupled with the workstation, facilitates XYZ axis movement. This enables precise positioning of the filling head over each cartridge, ensuring accurate and uniform filling across all cartridges.
