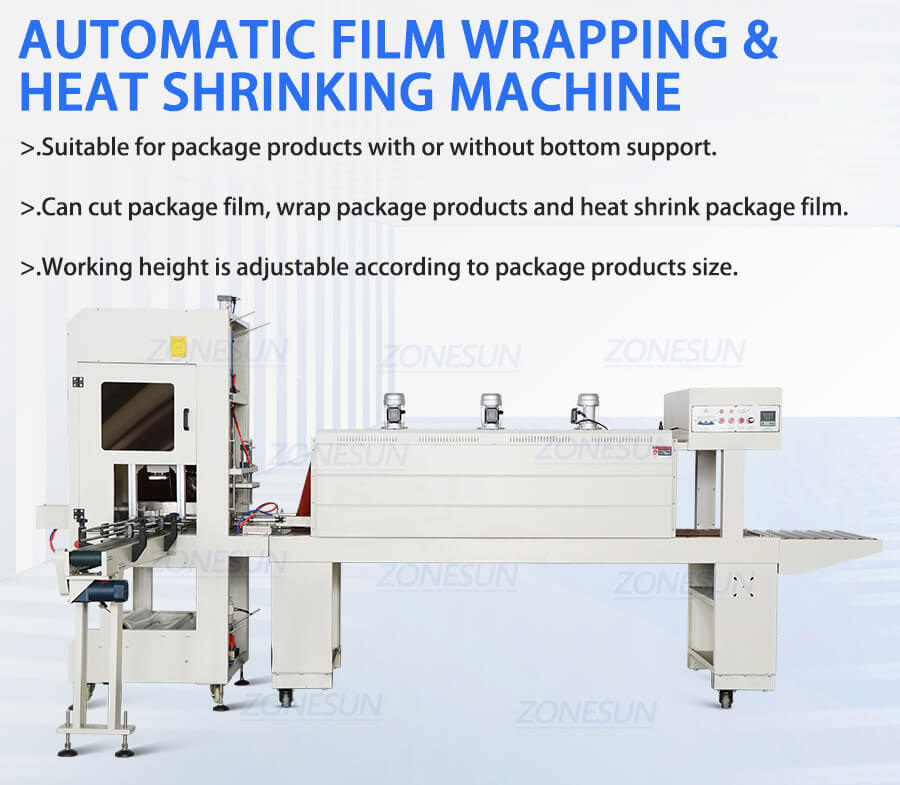

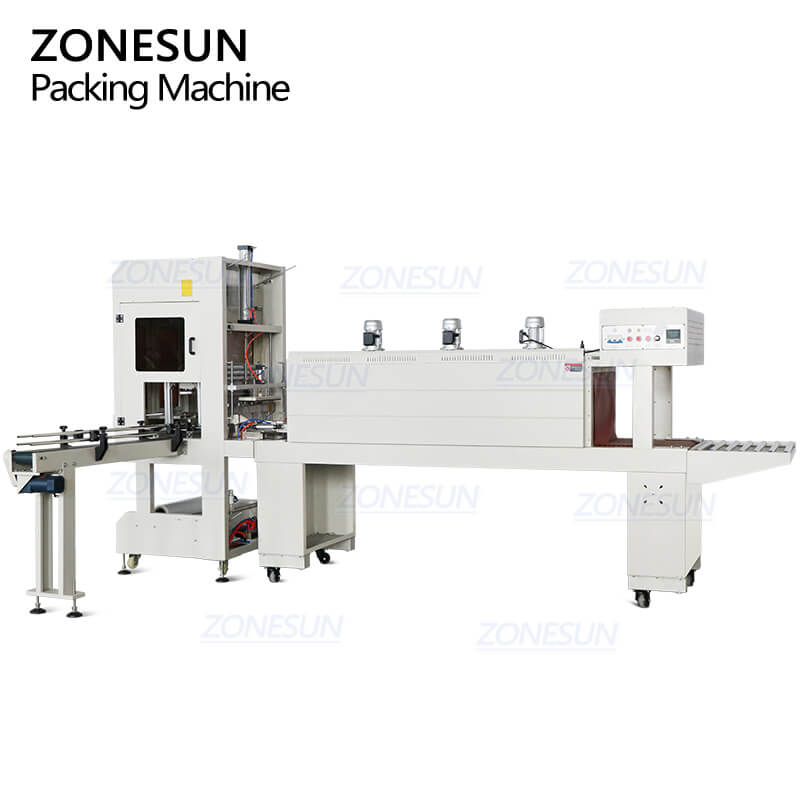

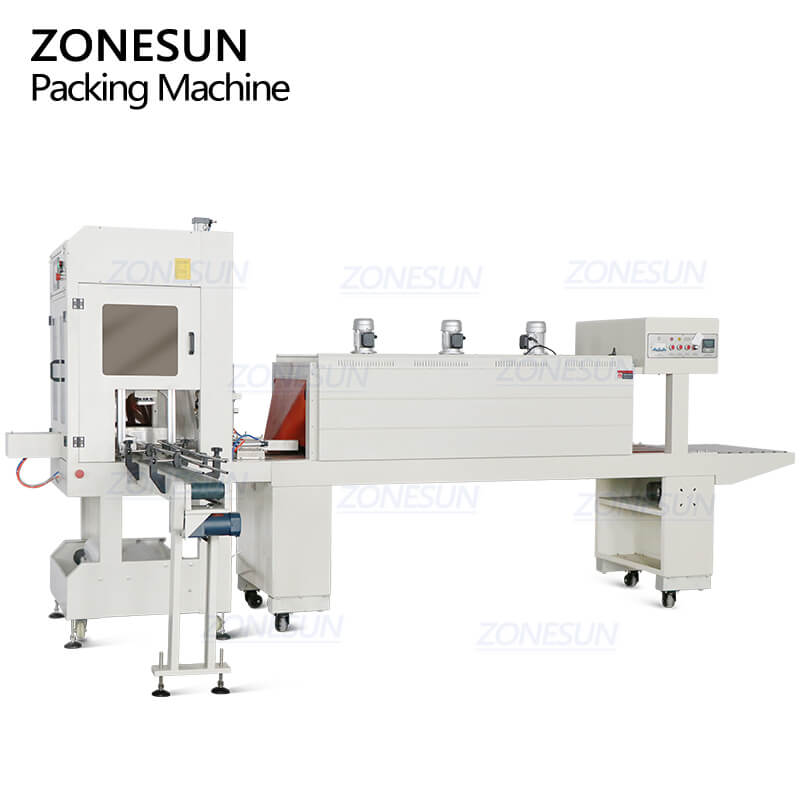

Automatic Film Cutting Shrink Packing Machine
These automatic shrink wrapping machines are ideal for heat-shrinking cans, mineral water bottles, beer bottles, glass bottles, and other beverage containers. They ensure a perfect packaging effect for your items.
Share to
Product Description:
These automatic shrink wrapping machines are ideal for heat-shrinking cans, mineral water bottles, beer bottles, glass bottles, and other beverage containers. They ensure a perfect packaging effect for your items.
Product Parameters:
Film Wrapping Machine
|
Model
|
ZS-QZD7040S
|
|||
|
voltage
|
220-240V 50-60Hz
|
|||
|
Power
|
2kw
|
|||
|
Packing speed
|
0-6 Packs/ min(based on products)
|
|||
|
Working pressure
|
4-6 kg/cm³
|
|||
|
Bottle size
|
Diameter:60-120mm Height:100-330mm
|
|||
|
Max package size
|
420*(120*n)*330mm
|
|||
|
Min package size
|
240*120*100mm
|
|||
|
Conveying load
|
20kg
|
|||
|
Conveyor length
|
1.5m
|
|||
|
Film width/thickness
|
Max 560mm/0.03-0.25mm
|
|||
|
Suitable for shrink film
|
Only PE
|
|||
|
Machine size
|
About 2150*1200*2020mm
|
|||
|
Machine weight
|
About 350kg
|
|||
Heat Shrinking Machine
|
Machine Model
|
ZS-BSPN6040
|
|
Voltage
|
380V 50-60HZ
|
|
Power
|
21KW
|
|
Tunnel Size
|
About 1800*600*400mm
|
|
Conveying Speed
|
0-15m/min
|
|
Transport Load
|
＜35kg
|
|
Suitable Film
|
PVC/POF/PE
|
|
Machine Size
|
About 2800*910*1400mm
|
|
Package Size
|
About 2880*930*1500mm
|
|
Net Weight/Gross Weight
|
About 207/350kg
|
Product Details:

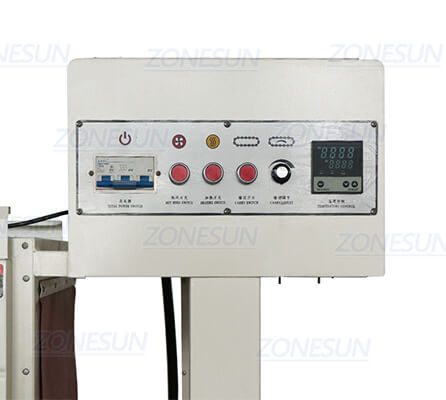

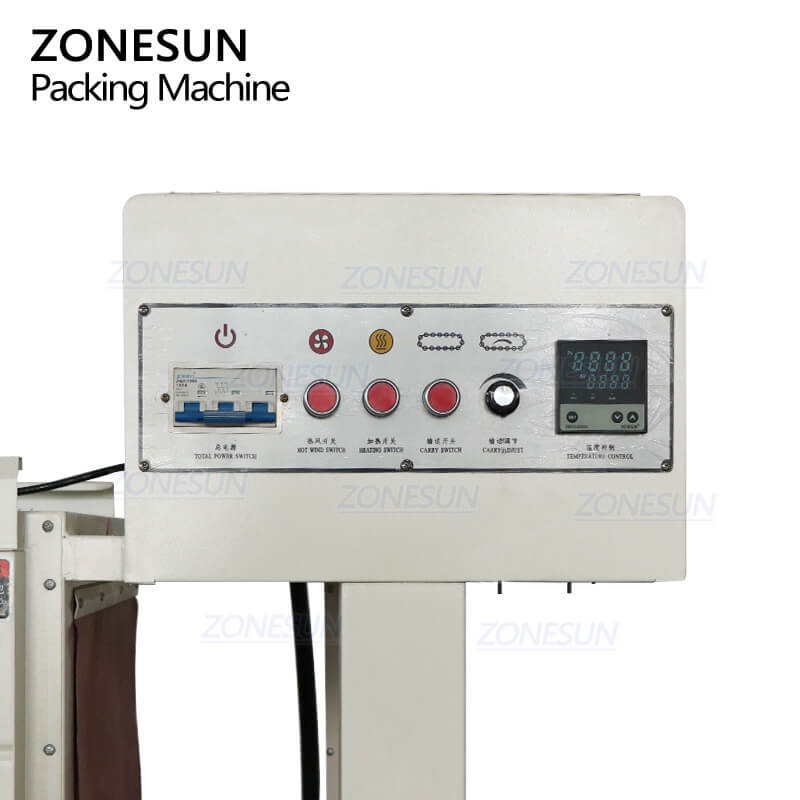

Simple control panel is more convenient to adjust the working parameter like heating temperature and time.The leakage protection device can ensure the safety operation.

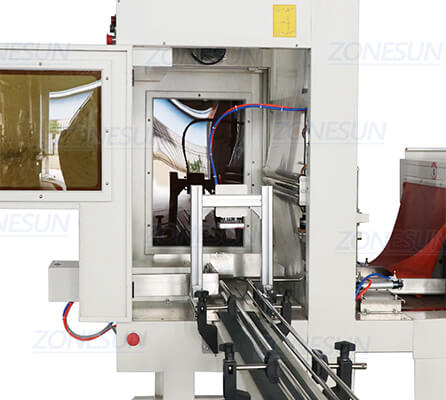

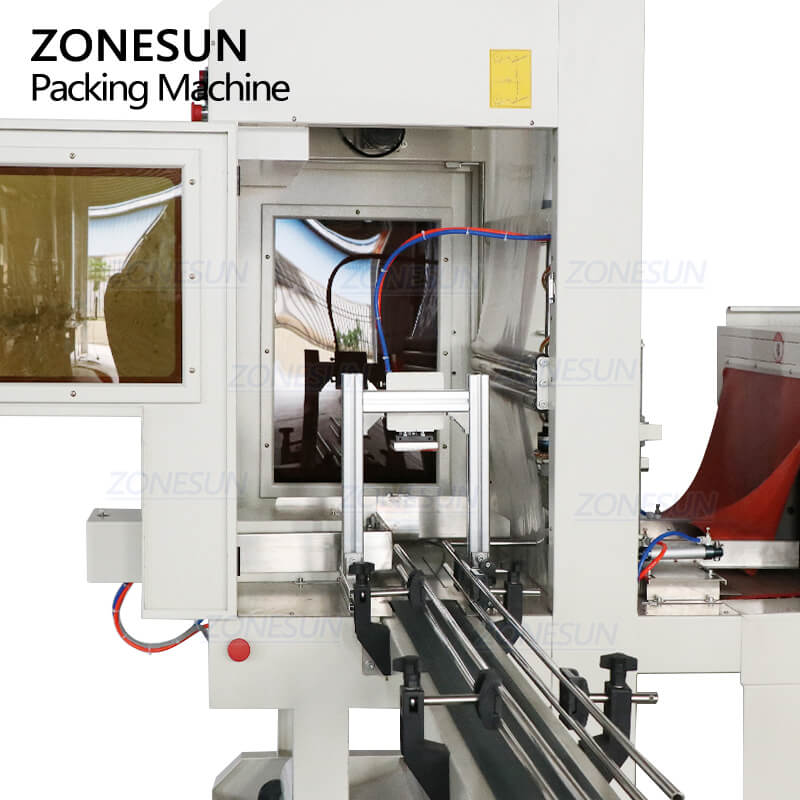

The film cutting and wrapping are integrated, and the items are packaged to have a beautiful appearance, cleanliness, dust-proof and moisture-proof, easy to handle and store, greatly reduce product loss, and have the advantage of packaging cost.

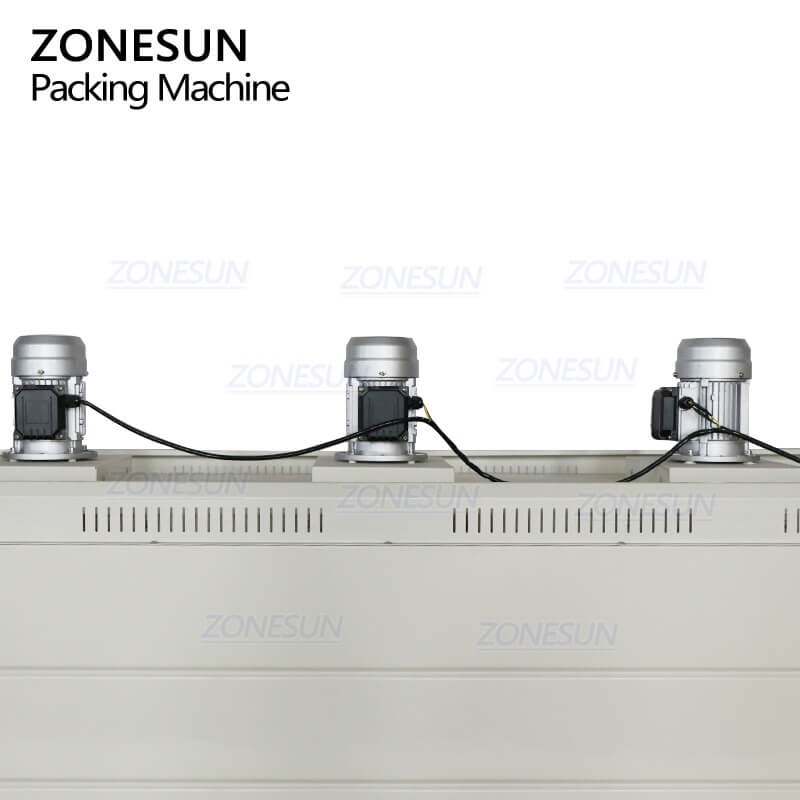

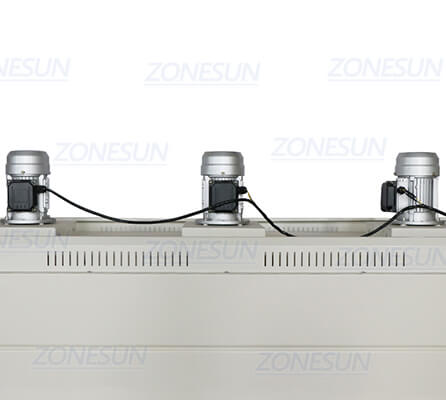

The high-power circulating motor has strong wind power, and the shrink furnace forms a good wind circulation system. The shrink film is heated more evenly, and the shrinkage effect is better and outstanding.

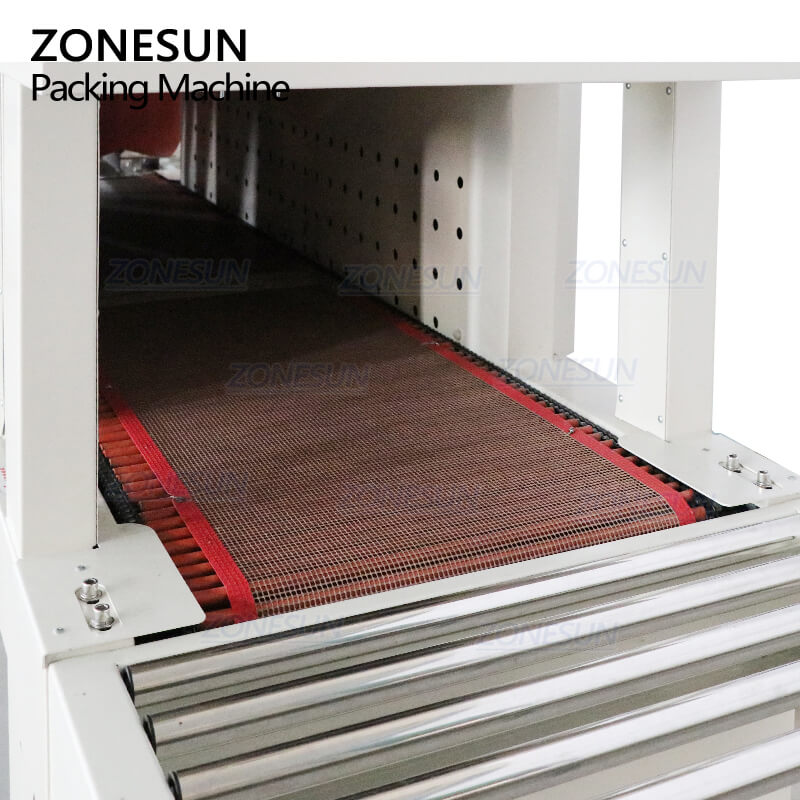

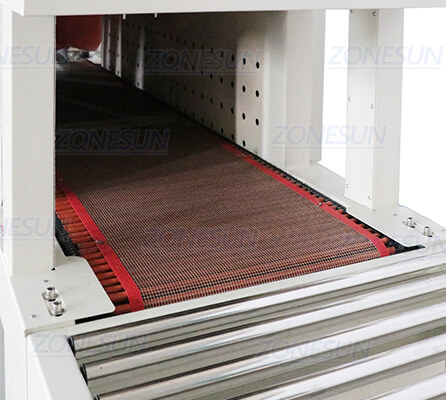

The upgraded version of the conveyor belt transport the goods more smoothly, effectively improves the package quality and work efficiency.
