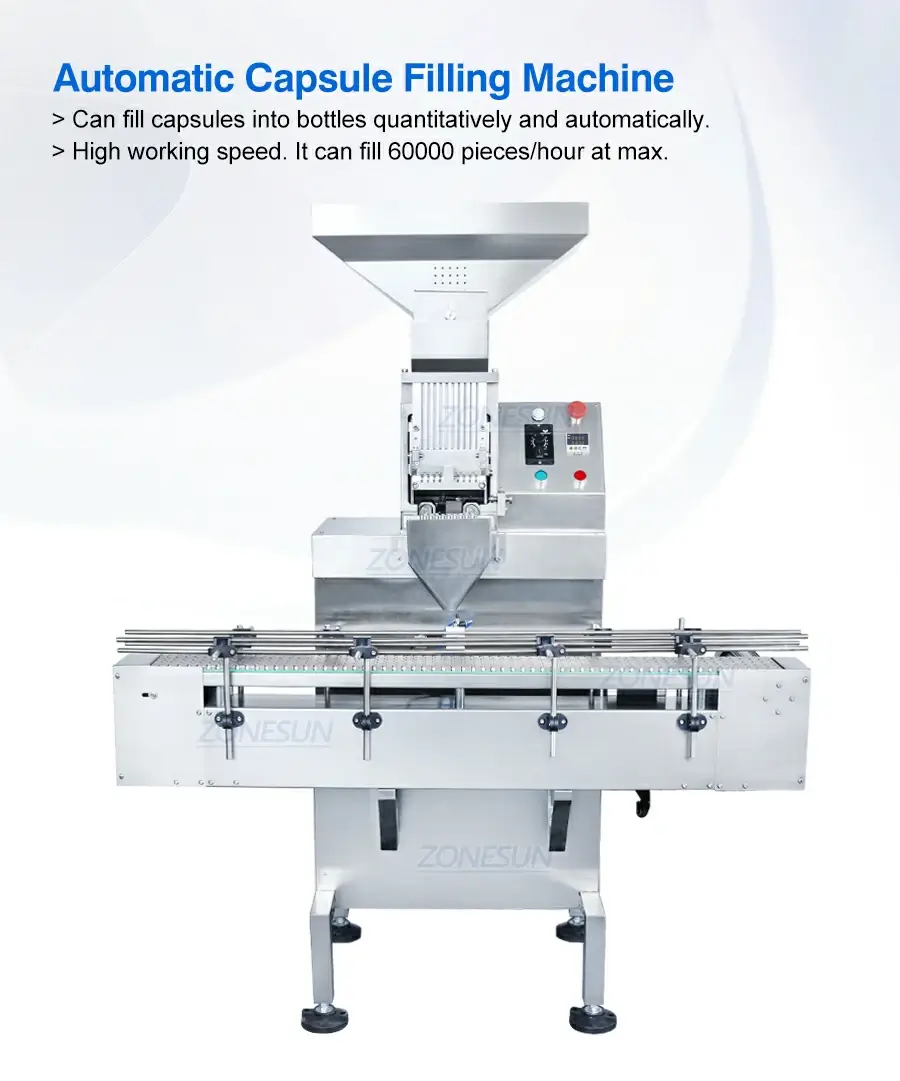

Capsule Filling Machine
This tablet counting and filling machine adopts advanced vibration and multi-channel feeder,computer control,dynamic scan counting,transfer the bottle automatically,system can test automatically.The machine With Error alarm,it also has the automatic stop function and other advanced technology.This machine designed with GMP standard,which is suitable for tablet or capsule counting and filling in pharmaceutical or food business.
Share to
Description:
This tablet counting and filling machine adopts advanced vibration and multi-channel feeder,computer control,dynamic scan counting,transfer the bottle automatically,system can test automatically.The machine With Error alarm,it also has the automatic stop function and other advanced technology.This machine designed with GMP standardwhich is suitable for tablet or capsule counting and filling in pharmaceutical or food business.
Parameter:
| Model | ZS-JF60 |
| Voltage | 110V/60Hz 220/50Hz |
| Power | 1.2kw |
| Feeding Plate | Can be customized |
| Working Speed | 20000-60000pcs/hour |
| Applicable Bottle Height | ≤10cm |
| Applicable Bottle Diameter | ≤115mm |
| Conveyor Size | 115mm(W)*123.5mm(L) |
| Size Of Feeding Hopper | About 550*310*330mm |
| Size Of Discharge Hopper | About 164*96*180mm |
| Machine Size | About 1370*470*1670mm |
| Package Size | About 1470*805*1610mm |
| Net Weight/Gross Weight | About 100kg/206kg |
