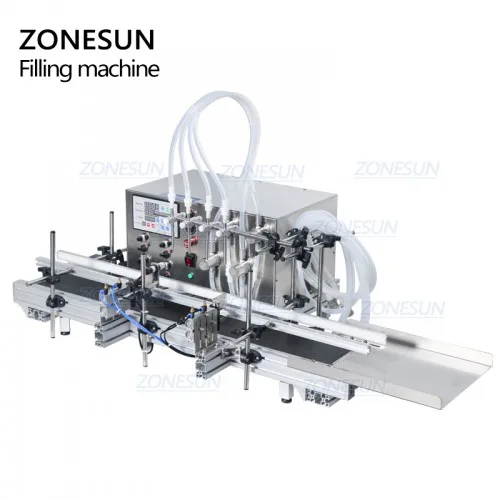

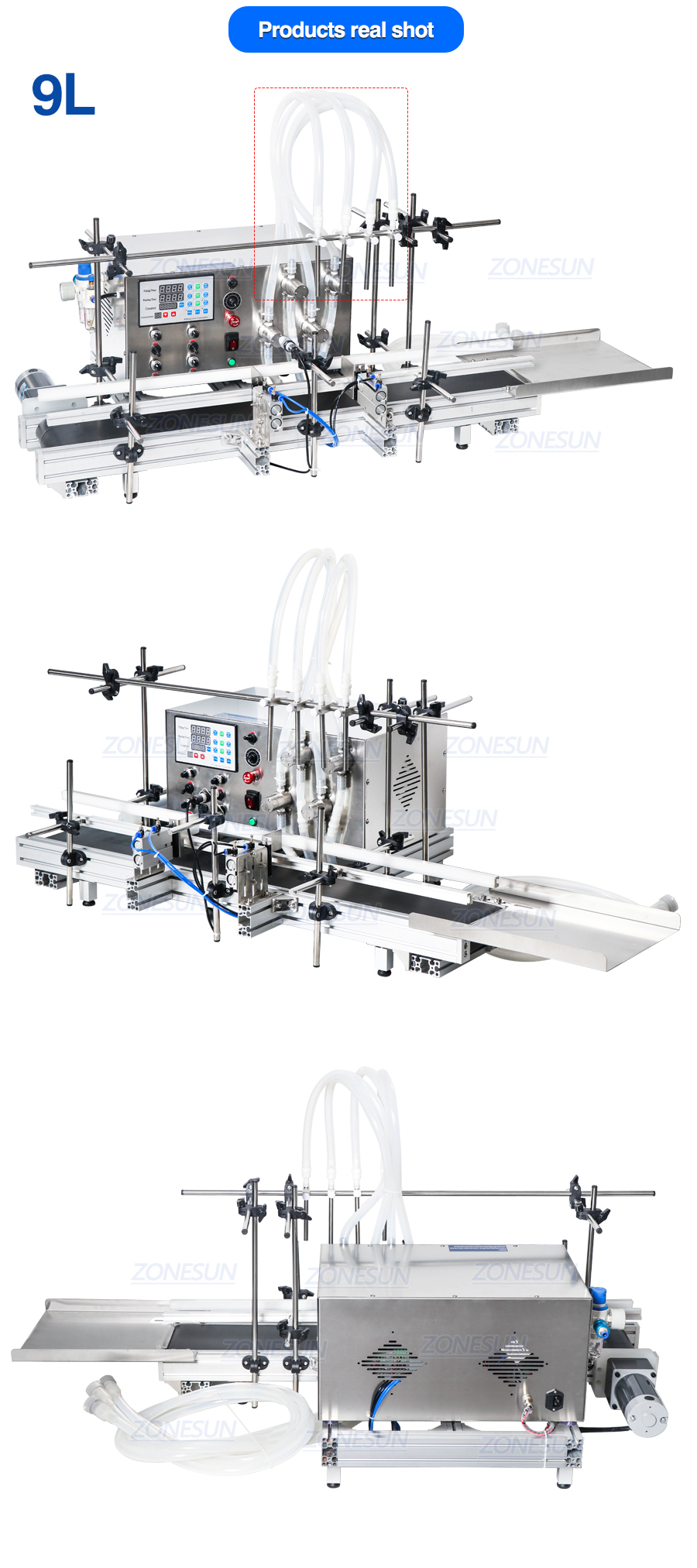

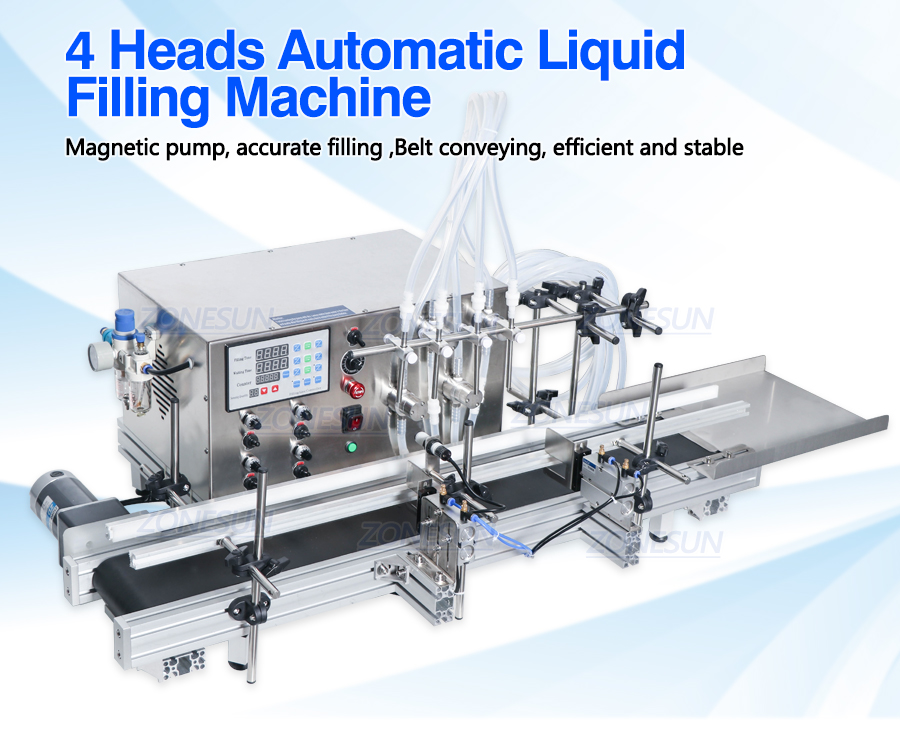

ZONESUN Automatic Magnetic Pump Liquid Filling Machine

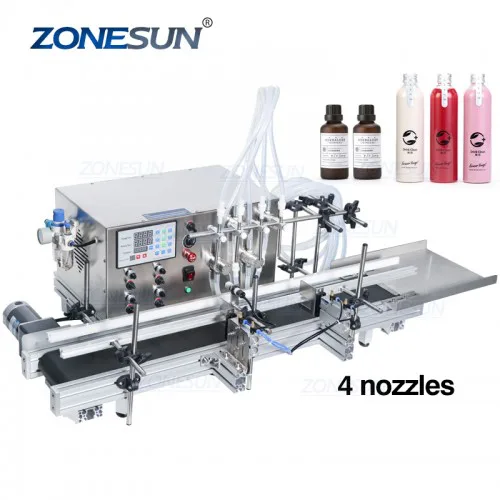

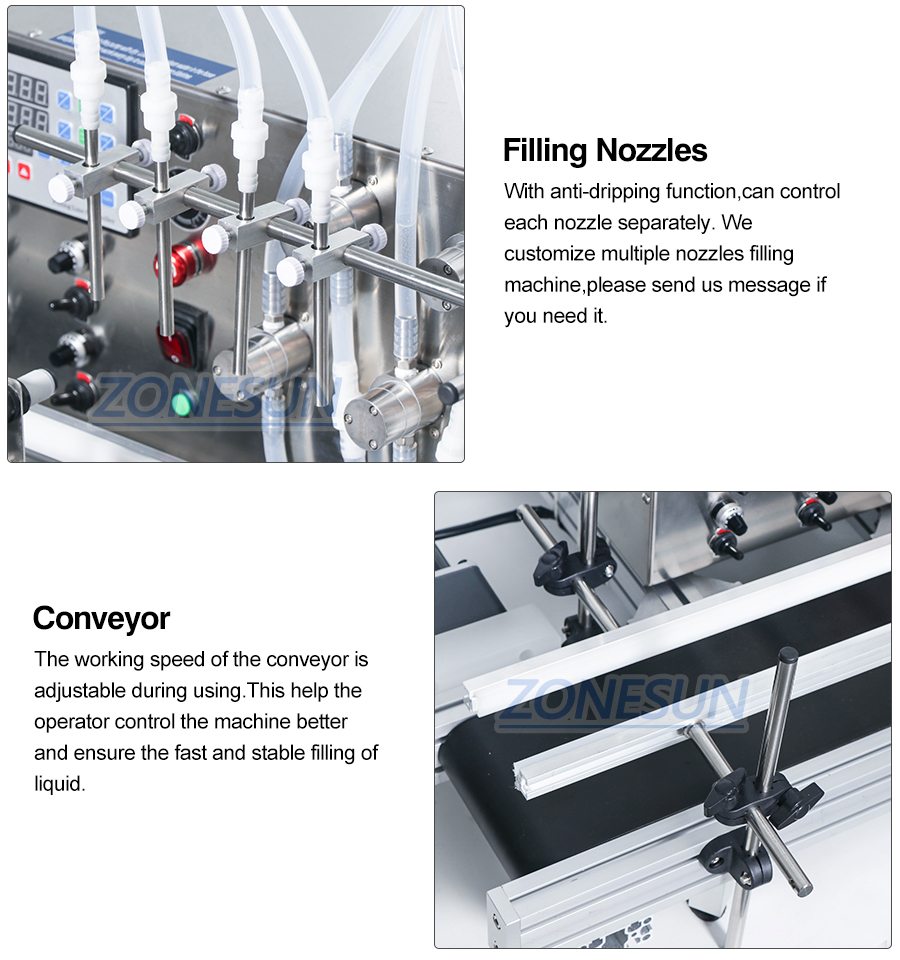

This machine is equipped with a magnetic pump which can help you fill liquid accurately.This machine is with conveyor and it has the similar function with the full automatic filling machine.Additionally,there are several nozzles and customers can control each nozzle separately if they need this.

Share to

Description:

Desktopfullautomaticmachineisveryefficientwithhighcostperformance.Itiswidelyusedinmedicine,dailychemicalandotherindustriessuchasessentialoils,perfumes,juiceliquidetc.Machinewithmagneticpumpisgoodchoiceforlowviscouscorr,alittlefoamyliquid.316stainlesssteelpumpcanuseforveryhightemperatureliquidfill.

Application:

It is suitable for various corrosive,low viscosity and non-particulate liquids, such as:various chemicals (medicine oil, medicinal liquor, alcohol, eye drops, syrup), chemicals(solvent, acetone), oil (edible oil, essential oil) ), cosmetics (toner, makeup remover,spray), food (100 degree high temperature, such as milk, soy milk), beverage (juice, fruit wine), seasoning (soy sauce vinegar) and other non-particulate liquid; high and low foam liquid ( Care solution, detergent)

Machine model	ZS-DTMP4A	ZS-DTMP4B
Power supply	110/220V 50-60HZ
Maximum flow velocity	5500ml/min (Each nozzle and base on water)	9000ml/min (Each nozzle and base on water)
Working speed	20-30 bottles/min (based on 50-1000ml filing volume)	20-40 bottles/min (based on 50-1000ml filling volume)
Air pressure	0.3-0.4MPa
Filling accuracy	≤±1% (For water)
Diameter of Flling Nozzle	6/8mm
Delay Range	0.01-999.9s
Count Range	1-99999 Times
Filling Volume	3-1000ml(220V)3- 500ml(110V)
Size of air compressor connector	OD8mm
Bottle height	<220mm(Can be customized,max height 300mm)
Package Size	About 1110650420mm	About 1110650420mm
Gross weight	About 50.5kg	About 51.5kg

FAQ:

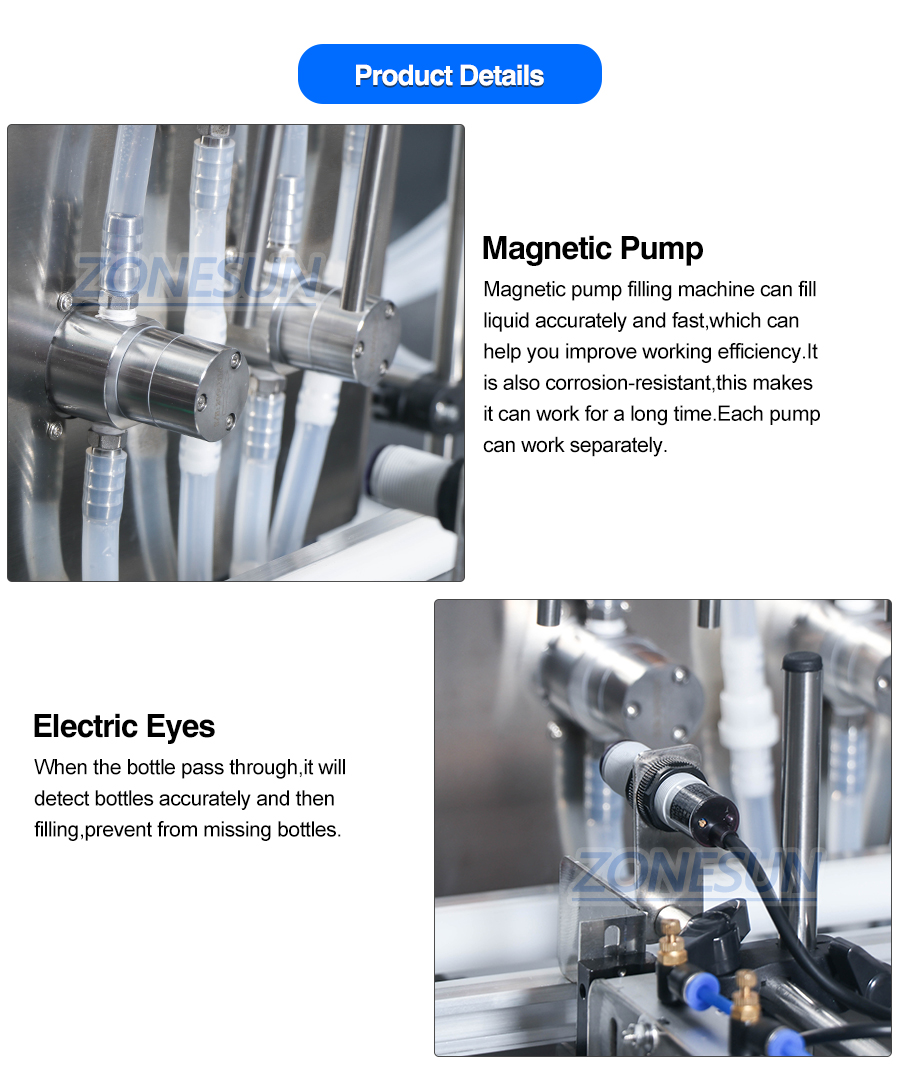

Q:What is the advantage of the magnetic pump?
A:Can be filled with various corrosive low viscosity non-granular liquids, such as: various agents (medicine oil, wine, alcohol, eye drops), chemicals (solvent, acetone), oils (edible oil, essential oil), cosmetics (toner) , makeup remover, spray), food (can withstand 100 degrees of high temperature, such as milk, soy milk), beverages, seasonings and other non-granular liquids; high and low foaming liquids (care liquids, detergents…) high filling accuracy, suitable for For laboratory use.

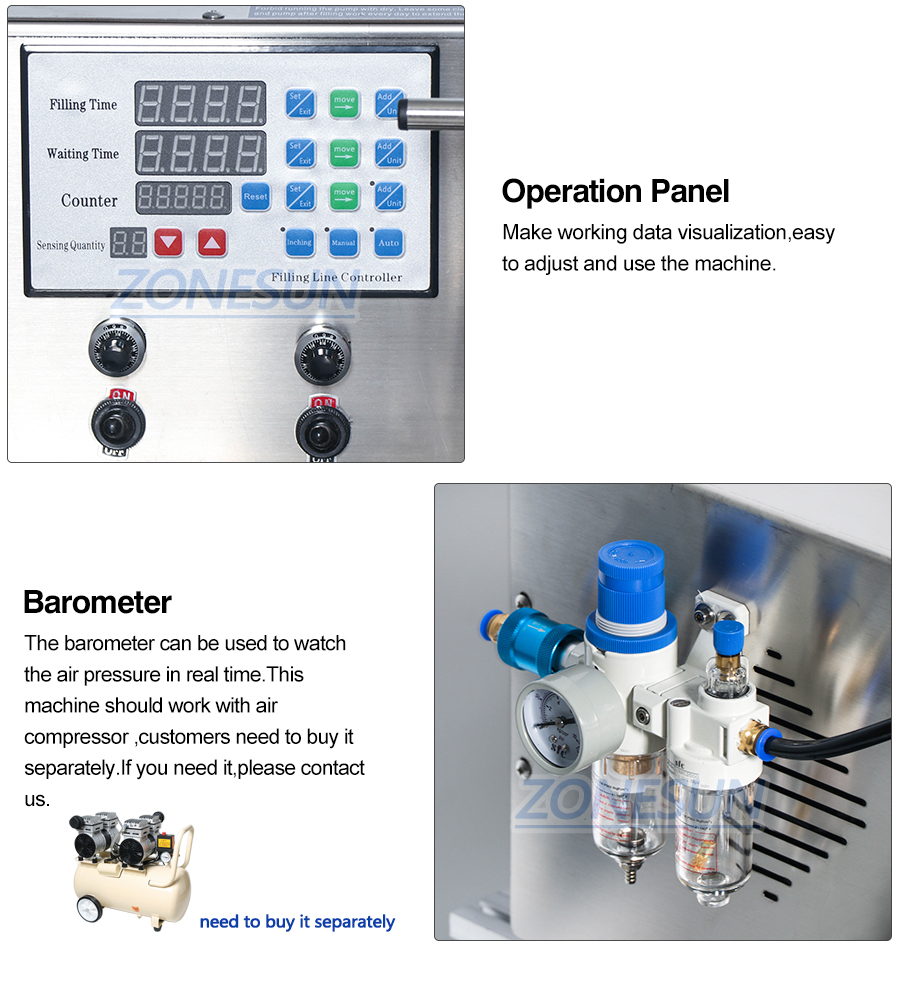

Q:Is this machine is driven by airDo you offer the air compressor?
A:This machine is driven by electricity and air.And yes,we can offer the air compressor if you need one.
