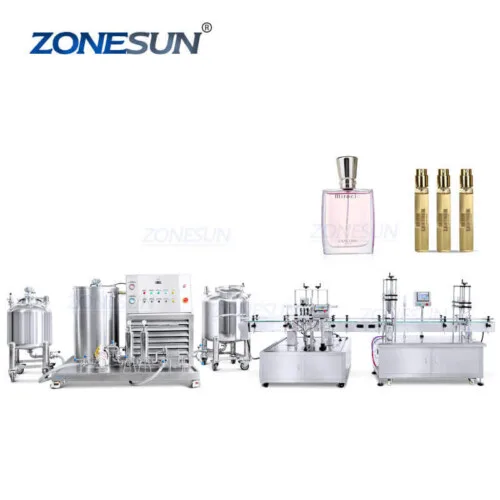

Automatic Perfume Production Line

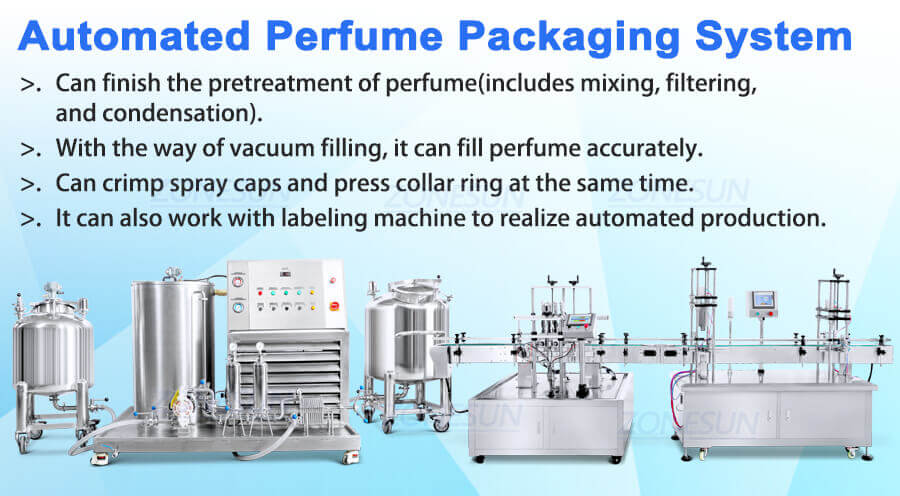

This packaging system can be used for the pretreatment of perfume(includes mixing,filtering,condensation)and producing(like filling perfume into bottles,crimping spray bottles).
Share to
Description:
This packaging system can be used for the pretreatment of perfume(includes mixing,filtering,condensation)and producing(like filling perfume into bottles,crimping spray bottles).
Mixing Tanks
| Machine Capacity | 20L/50L/100L/200L/300L/500L/800L/1000L/1500L/2000L/3000L/4000L/5000L |
| Rotating Speed | 40r/min(Can be customized for 0–80r/min) |
| Tank Material | 304/316 stainless steel |
| Extra Function | Emulsfying/Explosion/Vacuum / Heating/ Weighing and so on |

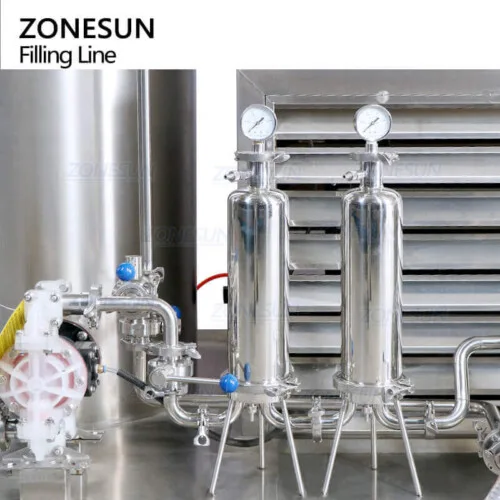

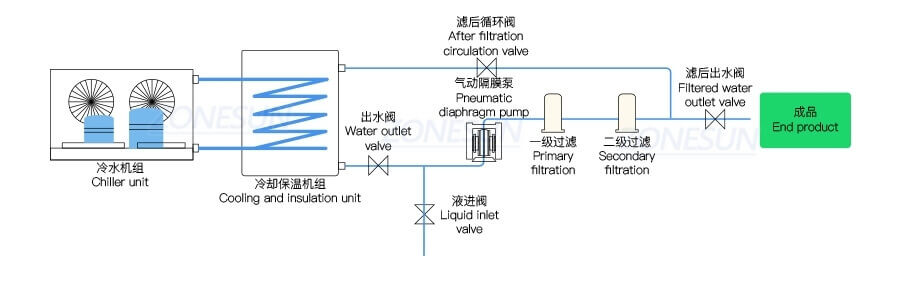

Filtering Machine
| Machine Model | ZS-PF100 | ZS-PF200 | ZS-PF300 | ZS-PF500 | ZS-PF1000 | ||
| Volume | 100L | 200L | 300L | 300L | 500L | 500L | 1000L |
| Specification | 2P | 3P | 3P | 5P | 5P | 10P | 10P |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Power | 1.5KW | 2.2KW | 2.2KW | 3.75KW | 3.75KW | 7.5KW | 7.5KW |
| Refrigeration Temperature | -5–15℃ | -5–15℃ | -5–15℃ | -5–15℃ | -5–15℃ | -5–15℃ | -5–15℃ |
| Refrigerating Fluid | R22 | R22 | R22 | R22 | R22 | R22 | R22 |
| Air Pressure | 0.5-0.6MPa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa |
| Filter Pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa |
| Filter Accuracy | 0.2um | 0.2um | 0.2um | 0.2um | 0.2um | 0.2um | 0.2um |

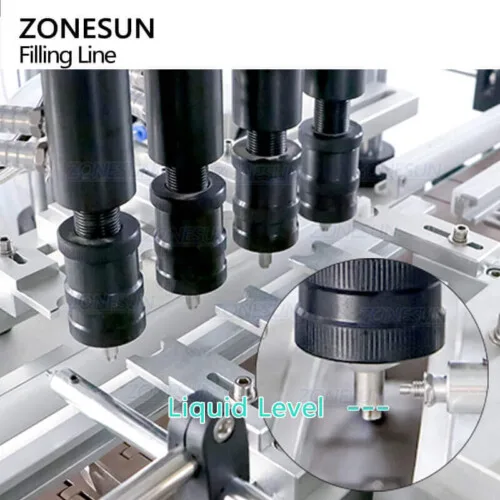

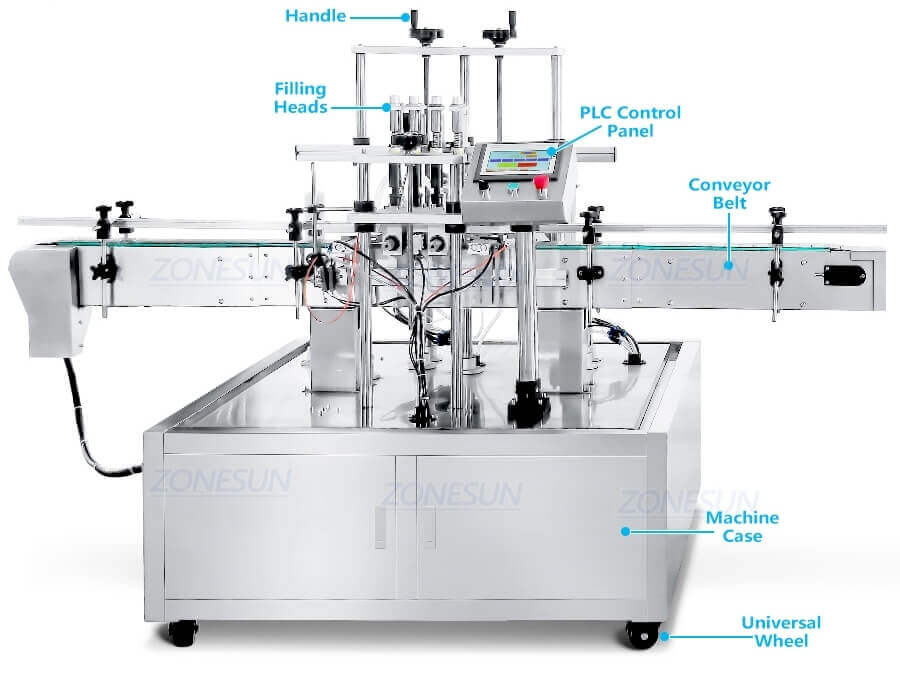

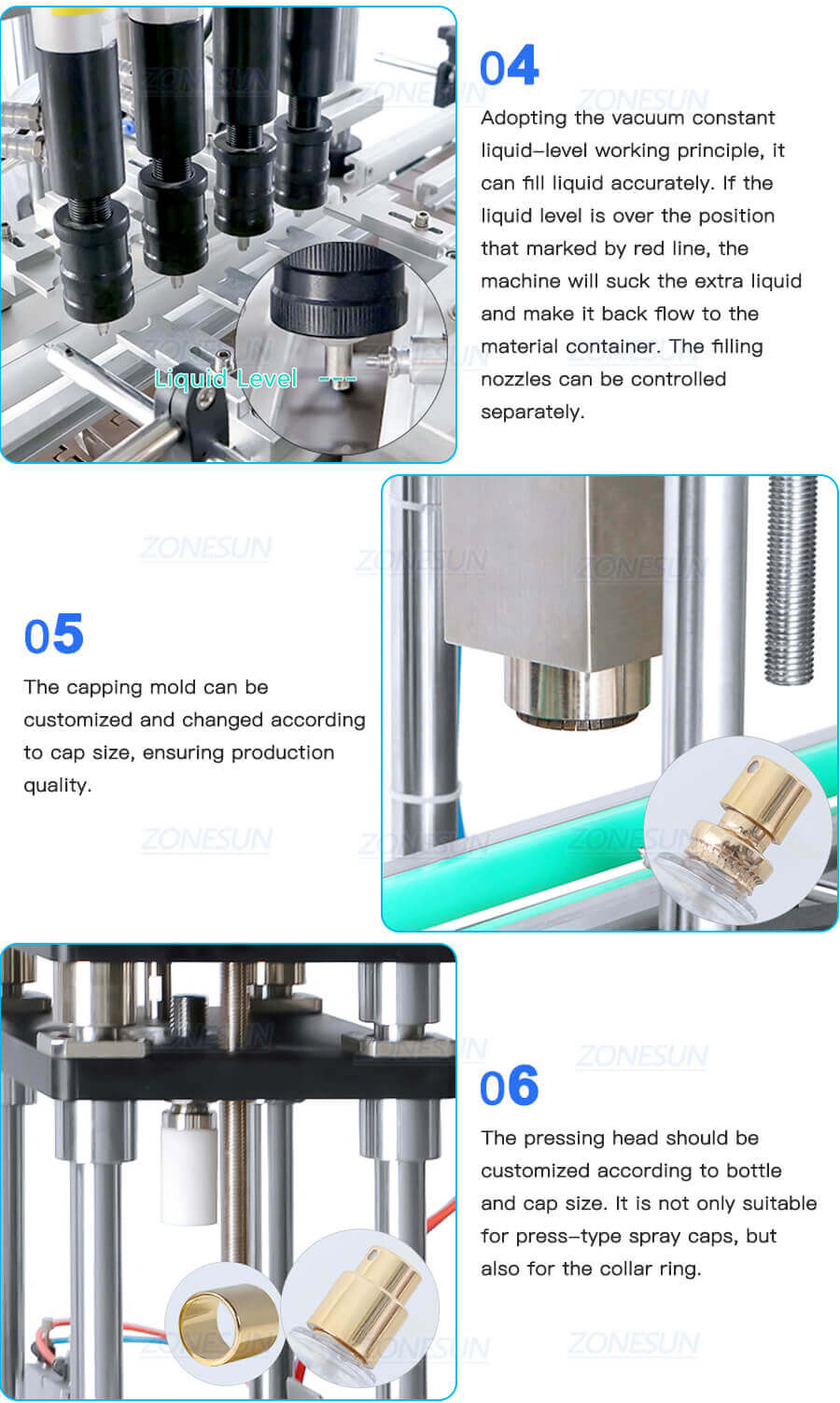

Filling Machine
| Model | ZS-YTZL4A |
| Filling Head | 4 Heads |
| Air Pressure | 0.5-0.8MPa |
| LiquidLevel Accuracy | ±1mm |
| Viscosity Range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working Speed | 20-40 bottles/min(depending on filling volume) |
| Bottle Height | ≤250mm |
| Bottle Opening Size | ≤φ4.5mm-φ28mm |
| Adjustable Liquid Level (from the bottle mouth) | 15-50mm |
| Pumping Rate | 5.5L/S |
| Machine Size | About 1500*1150*1530mm |
| Package Size | About 1660*1310*1670mm |
| Net Weight/Gross Weight | About 278kg/339kg |

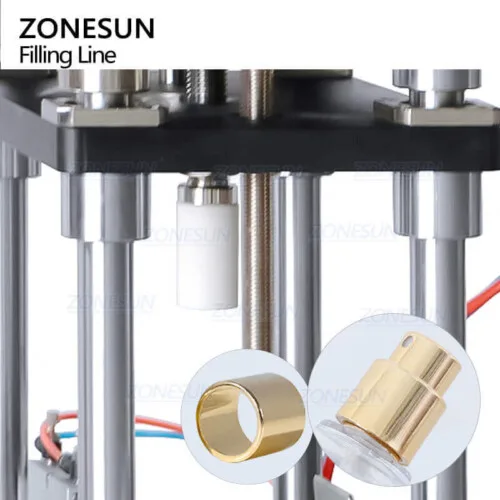

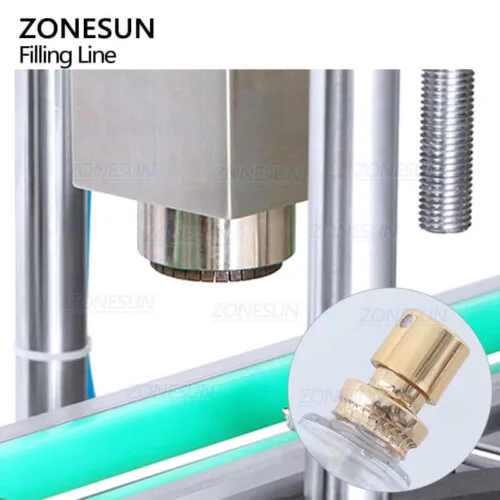

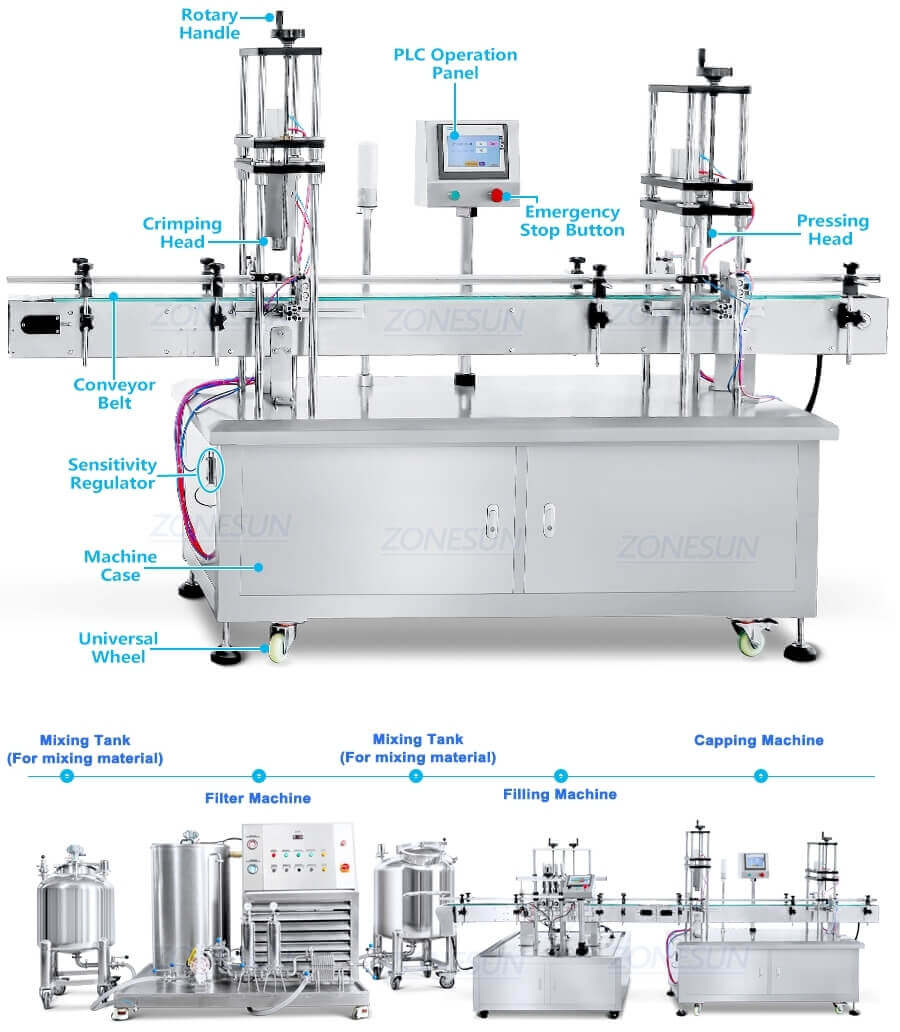

Capping Machine
| Machine Model | ZS-YG11U |
| Voltage | 220V/110V 50-60Hz |
| Power | 1.5kW |
| Capping Speed | About 20bottles/min(depending on bottle and cap size) |
| Suitable Bottle Height | 50-200mm |
| Bottle Cap Diameter | 15-22mm |
| Bottle Mouth Diameter | 14-20mm |
| Suitable Bottle Diameter | 40-110mm |
| Machine Size | About 2600*760*1700mm(L*W*H) |
| Machine Weight | About 300kg |
