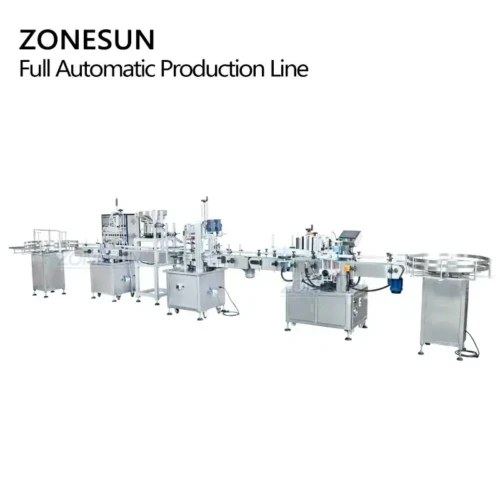

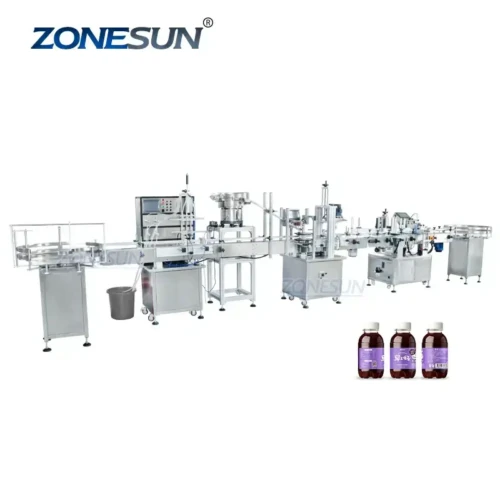

Cosmetic Liquid Automatic Production Line

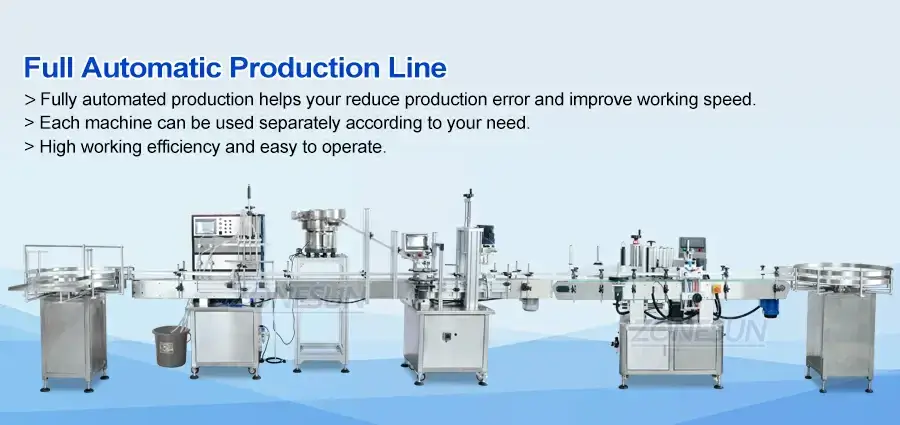

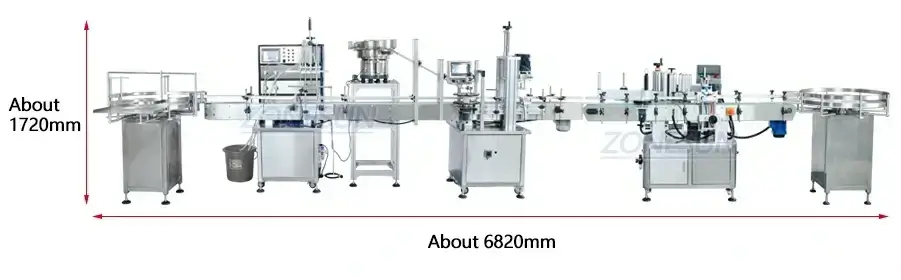

Our automatic filling production line consists of bottle turntable, automatic filling machine,capping machine labeling machine and bottle sorting machine,which is suitable for automatic bottle packaging of various liquids(we also have the filling machine for paste).Our filling line is widely used in cosmetics,chemicals fields.Professionally customized machines for your production.
Share to
Description:
Our automatic filling production line consists of bottle turntable,automatic filling machine,capping machine labeling machine and bottle sorting machine,which is suitable for automatic bottle packaging of various liquids(we also have the filling machine for paste).Our filling line is widely used in cosmetics,chemicals fields.Professionally customized machines for your production.

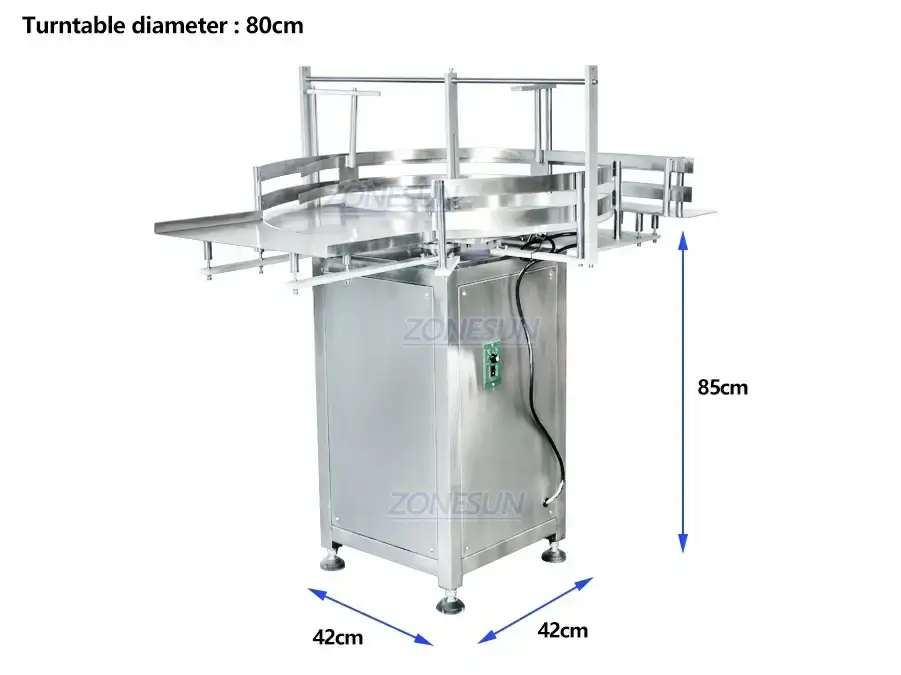

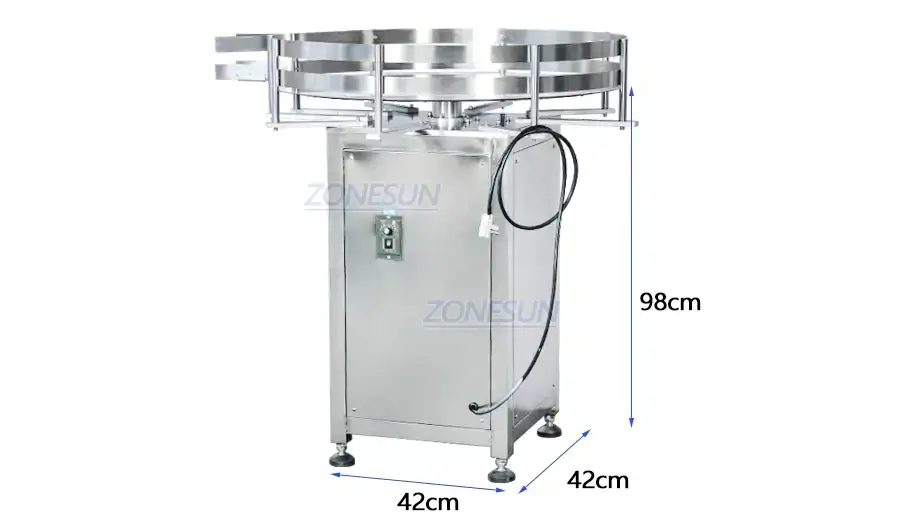

>Bottle Turntable
| Model | ZS-LP800Z | ZS-LP1000Z |
| Turntable Diameter | 800mm | 1000mm |
| Suitable Bottle Diameter | 20-100mm | |
| Suitable Bottle Height | 30-320mm | |
| Working Speed | 40-60 bottles/min(depends on bottle size) | |
| Motor Power | 50W | |
| Power Supply | 220/110v 50-60HZ | |
| Net weight | About 50kg | About 135kg |
| Package size | About 115*110*132cm | About 135*131.5*123.5cm |
| Gross weight | About 65kg | About 180kg |

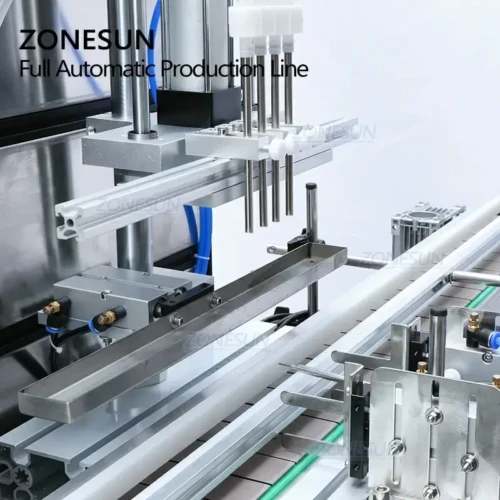

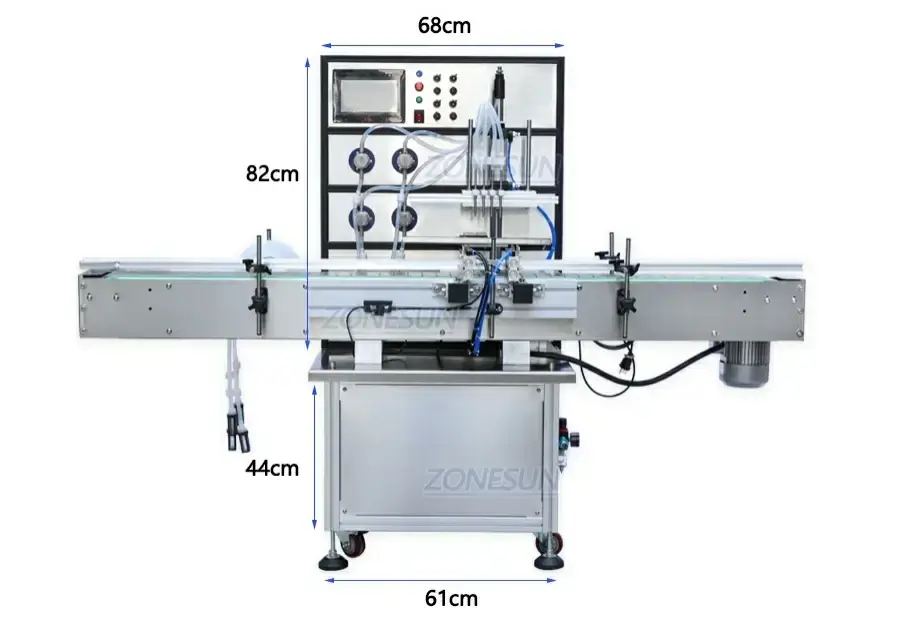

>Filling Machine
| Container size | φ20-160mm H30-300mm | ||
| Max flow rate | 6000ml/min | 7500ml/min | 12000ml/min |
| Material of pump | 316stainless steel | ||
| Flling accuracy |
≤100ml deviation≤±1ml
> 100ml deviation≤±1% ( based on water)
|
||
| Flling speed | 20-50pcs/min | 25-60pcs/min | 40-65pcs/min |
| (depending on bottles and flling liquid) | |||
| Power supply | 220V-50HZ/110V-60HZ | ||
| The whole machine power | 2000W | ||
| Packing weight | About 150kg | ||
| Packing size | About 2000*820*1580mm | ||
| Size of air compressor connector | OD8mm | ||

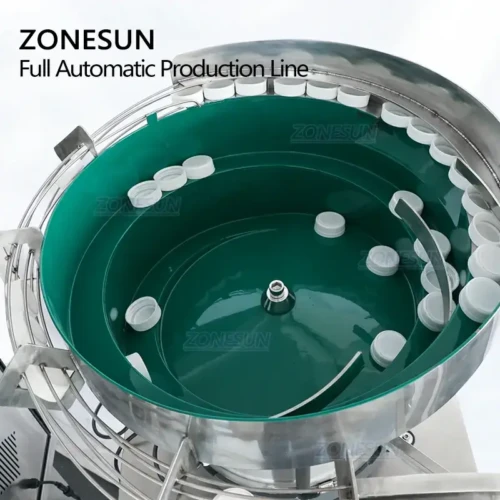

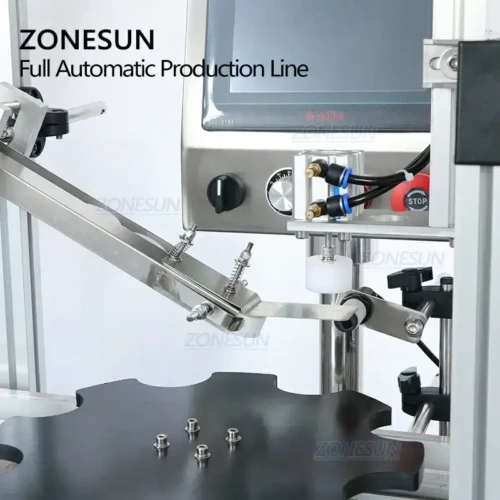

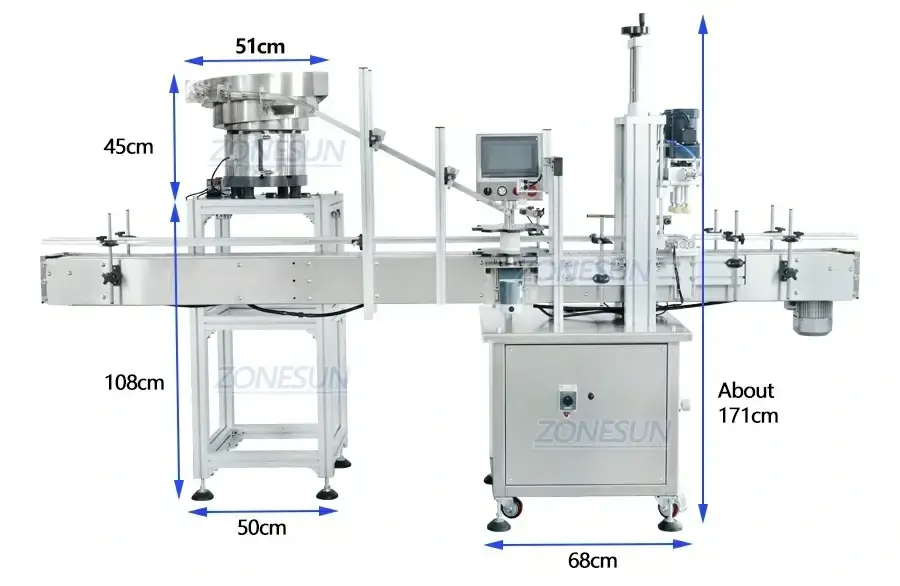

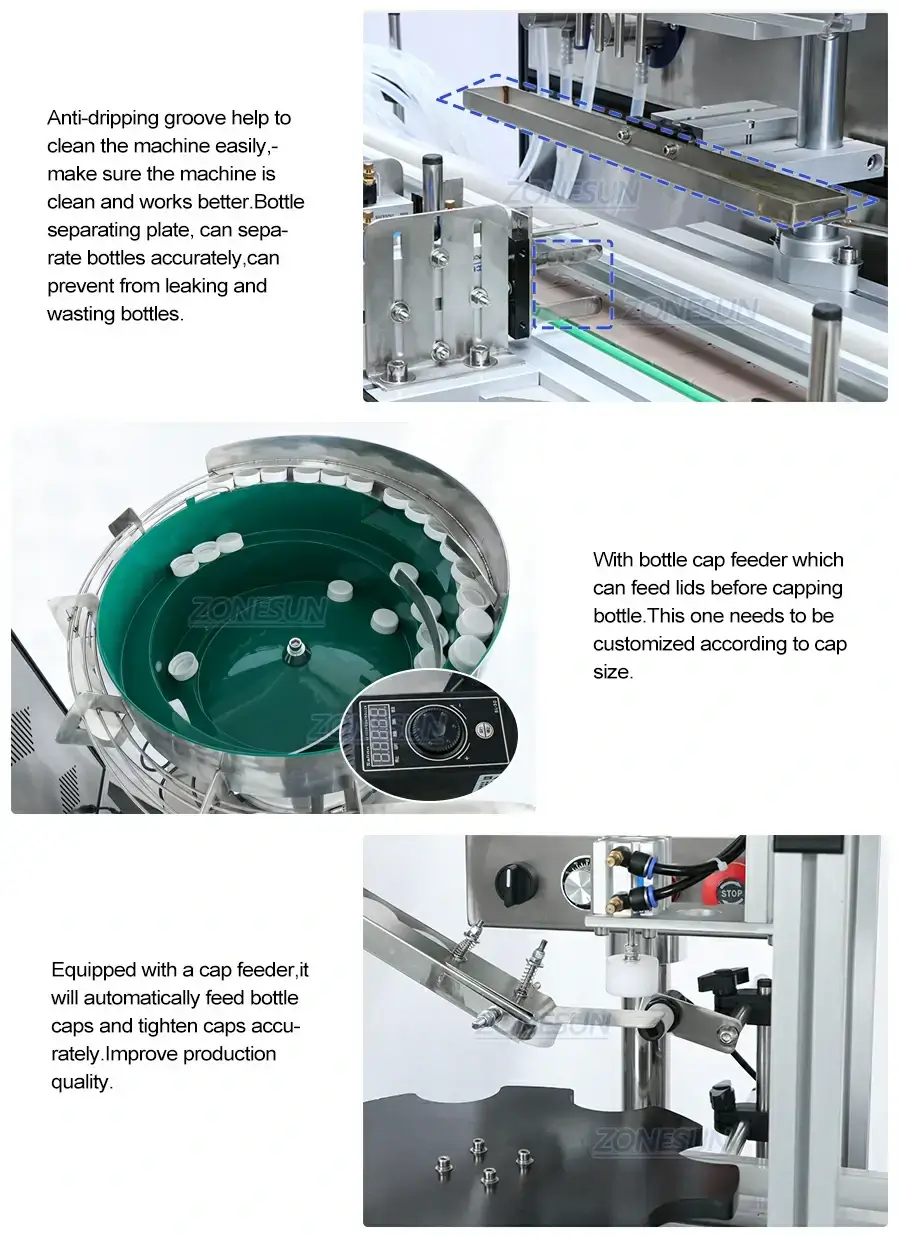

>Capping Machine
| Machine model | ZS-XG16 |
| Bottle height | 30-300mm |
| Cap diameter | 18-70mm |
| Bottle diameter | 20-160mm |
| Working speed |
20-60 bottles / minute
(depending on bottle and cap size and shape)
|
| Working voltage | AC220V/110v 50-60HZ |
| Working pressure | 0.4-0.6MPa |
| Dimension | About 1930x740x1600mm |
| Packing size | About 2000x820x1760mm |
| Packing weight | About 150KG |

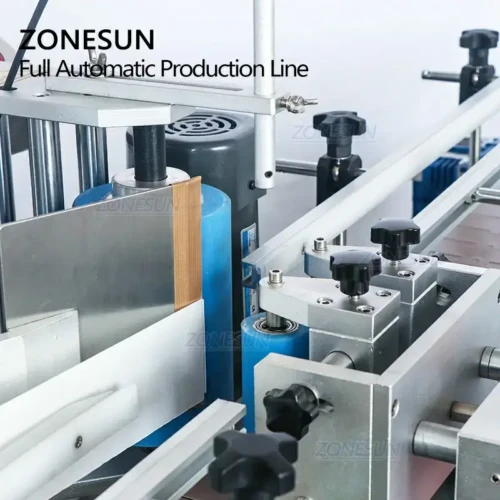

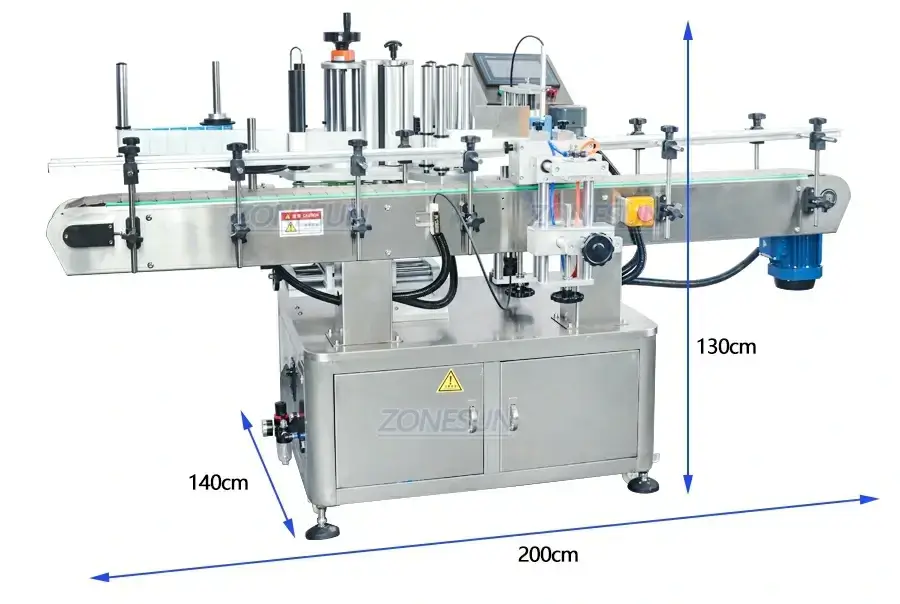

>Labeling Machine
| Model | ZS-TB260 Labeling Machine |
| Power supply | AC220V 5OHz/60Hz 1500W |
| Labeling capacity | 25-50PCS /min(depends on bottle size) |
| Labeling accuracy | ±1.0mm |
| Suitable Bottle Diameter | φ30-100mm |
| Label size | (L)15-200mm (H)15-150mm |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Conveyor Size | 1950(L)*100mm(W) |
| Machine size | About (L)2000*(W)1400*(H)1300(mm) |
| Packing Size | About 2120x940x1500mm |
>Bottle Sorting Machine
| Bottle specifications | Square bottle/round bottle |
| Conveying speed | 0-20 revolutions per minute(adjustable) |
| Voltage | 200V 50Hz(110v can be customized) |
| Power supply | 50W |
| Turntable diameter | 800 mm Available |
| Package size | About 1050*1000*1130mm |
| Net weight | About 63kg |
| Gross weight | About 73kg |
