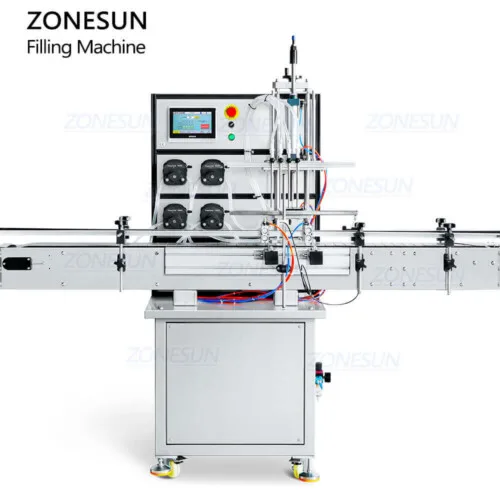

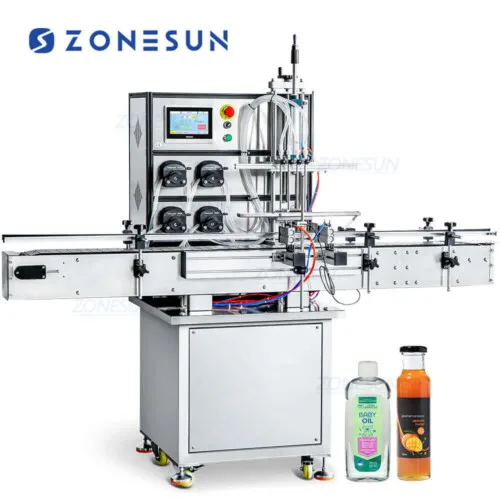

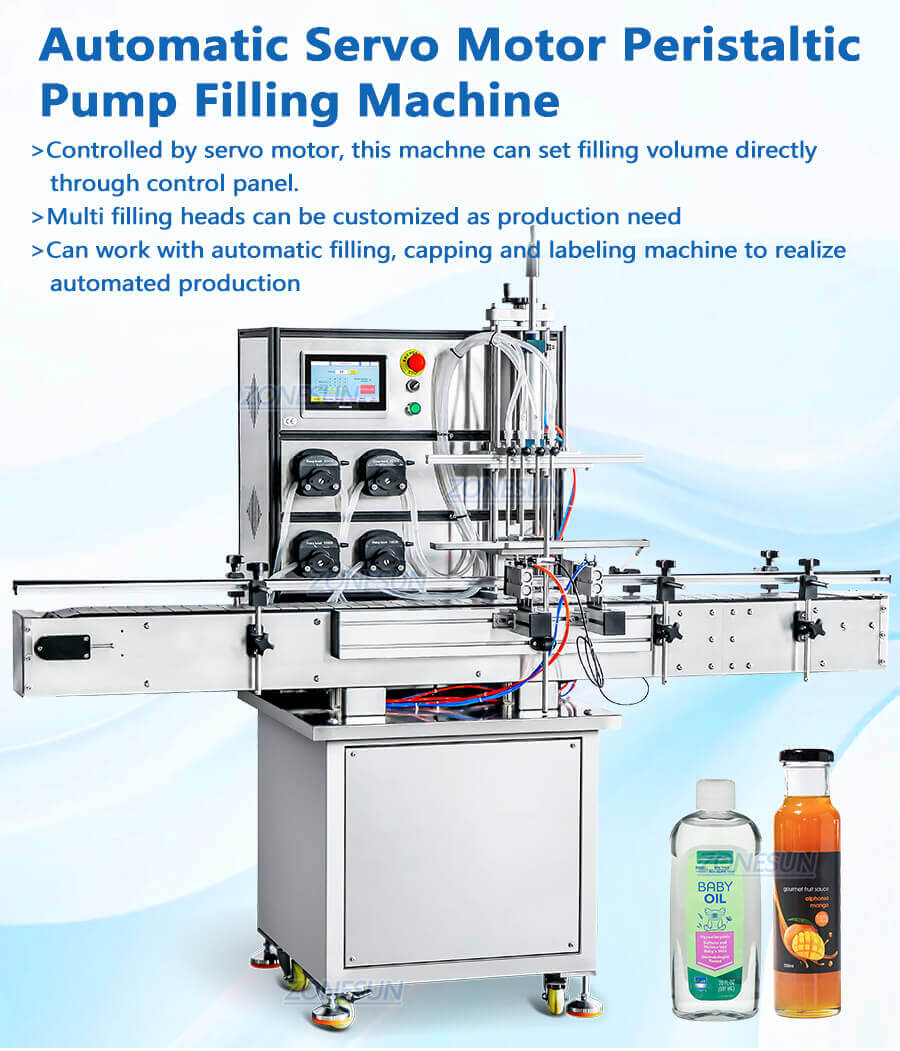

Automatic Servo Motor Peristaltic Pump Filling Machine
Powered by a servo motor, this machine allows for direct volume control via the touch panel. It eliminates the need for time setting, making operation more convenient. Customizable multi-filling heads are available to suit production needs. Ideal for packaging essential oils, skin toners, perfumes, and energy drinks.
Share to
Product Description:
Powered by a servo motor, this machine allows for direct volume control via the touch panel. It eliminates the need for time setting, making operation more convenient. Customizable multi-filling heads are available to suit production needs. Ideal for packaging essential oils, skin toners, perfumes, and energy drinks.
Product Parameters:
| Machine model | ZS-SVPP80C |
| Voltage | 110/220V 50-60HZ 2KW |
| Filling pump | Peristaltic pump |
| Max flow rate | 2.4L/min*4 |
| Container size | φ20-100mm H50-300mm |
| Recommend filling range | About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.) |
| Working capacity | About 10-20BPM(based on 100ml water, this depends on filling range and filling material) |
| Size of air compressor connector | OD8mm |

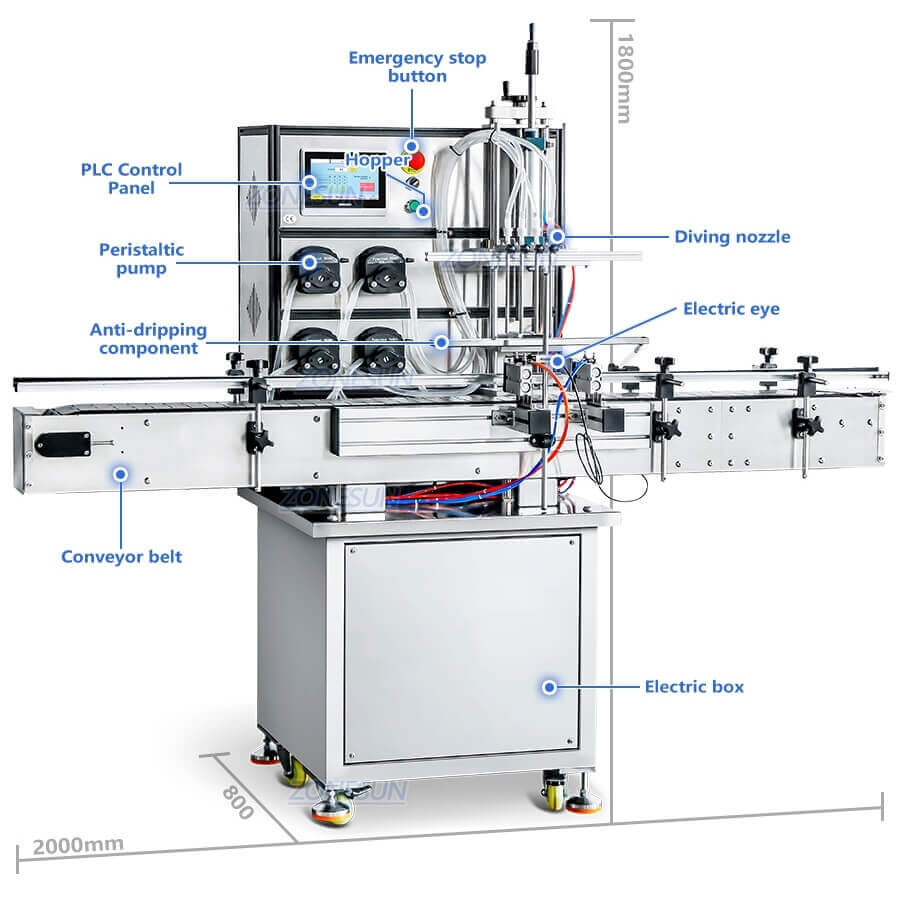

| Machine size | About 2000*800*1800mm |
| Package size | About 2070*800*1740mm |
| Package weight | About 251kg |
Product Details:

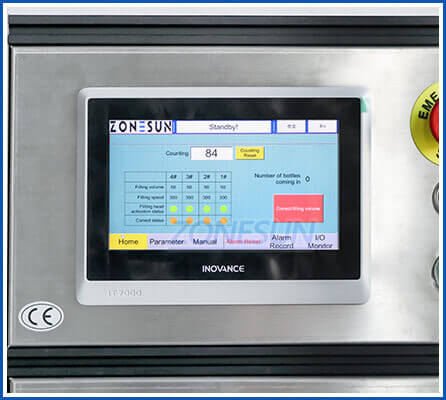

The touch control screen replaces the traditional button control panel, allowing you to directly set the filling volume. This customizable interface streamlines machine operation and supports different languages as per your requirements.

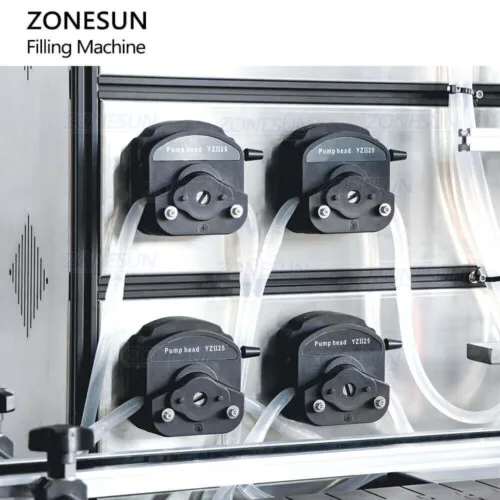

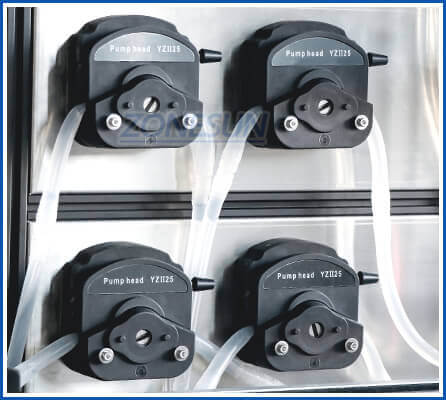

The machine is equipped with a peristaltic pump, ensuring that the filling material only passes through the hose, thus maintaining packaging quality. Additionally, the hose is easily interchangeable for filling different liquids.

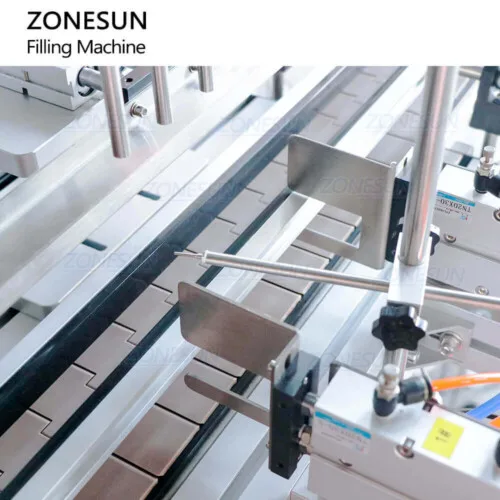

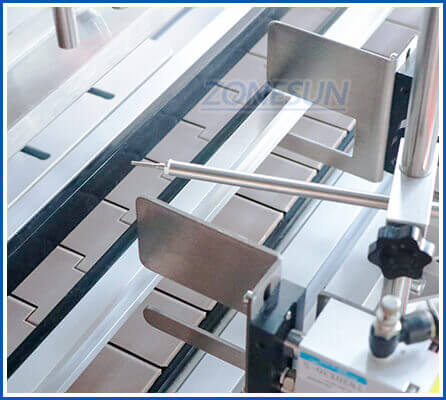

The electric eye can detect the passing bottles and relay the signal to the system, ensuring the automated filling process. The position can be adjusted to accommodate different bottle sizes, enhancing working accuracy.

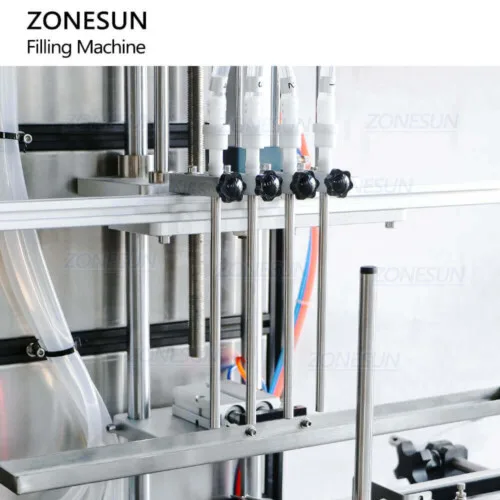

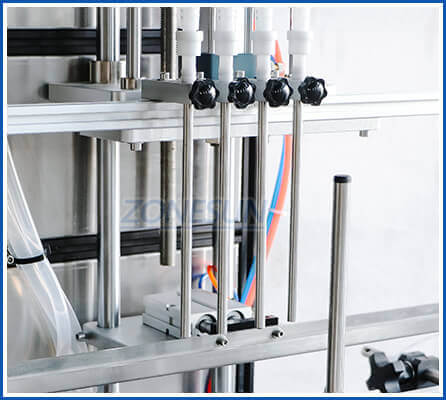

The diving nozzle is included, allowing for liquid to be filled from the bottom of bottles. This prevents splashing and is ideal for foamy liquids.

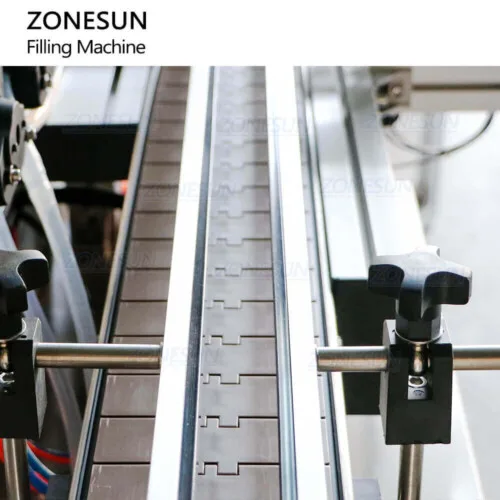

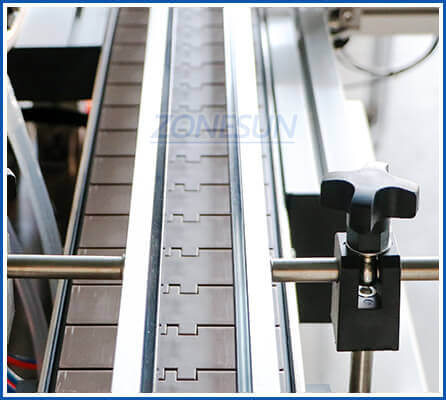

The chain conveyor boasts a larger weight capacity, ensuring smooth and swift bottle transportation. We can customize the length and width to suit your production needs.
