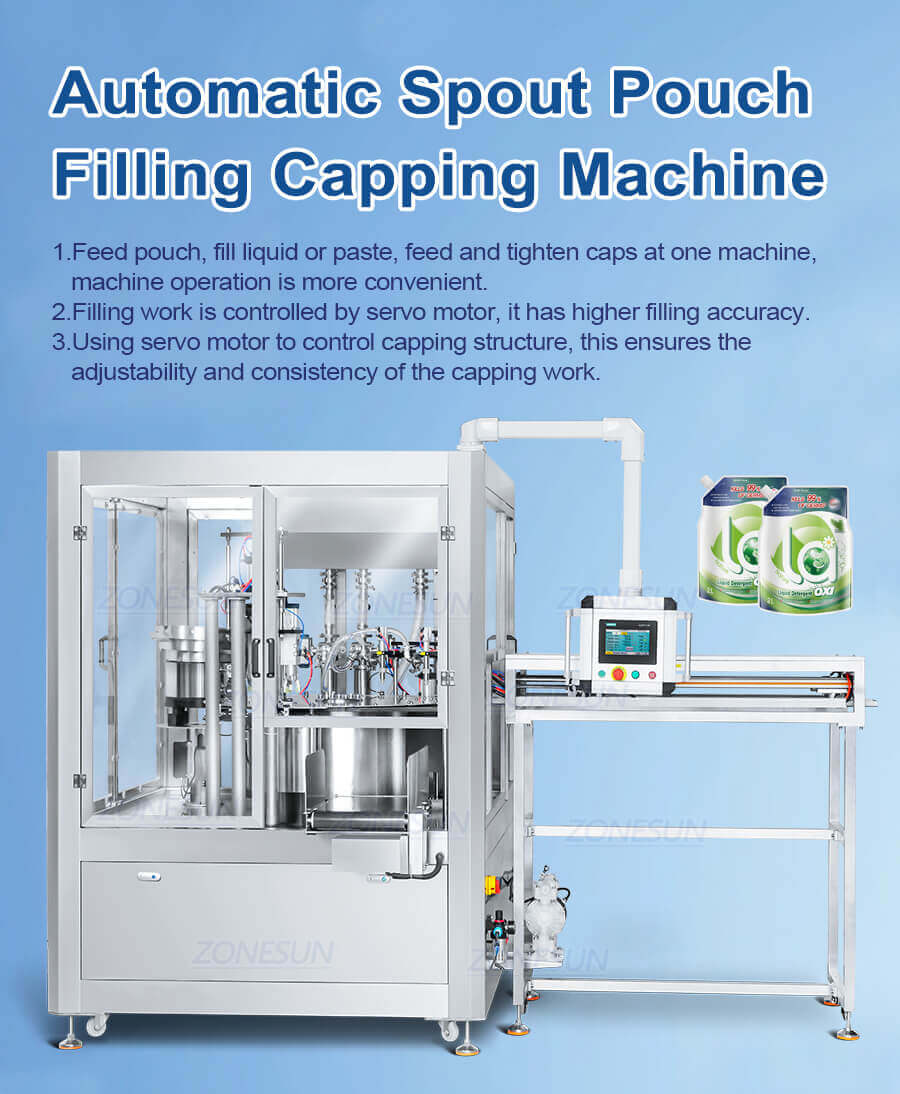

Automatic Spout Pouch Filling Capping Machine

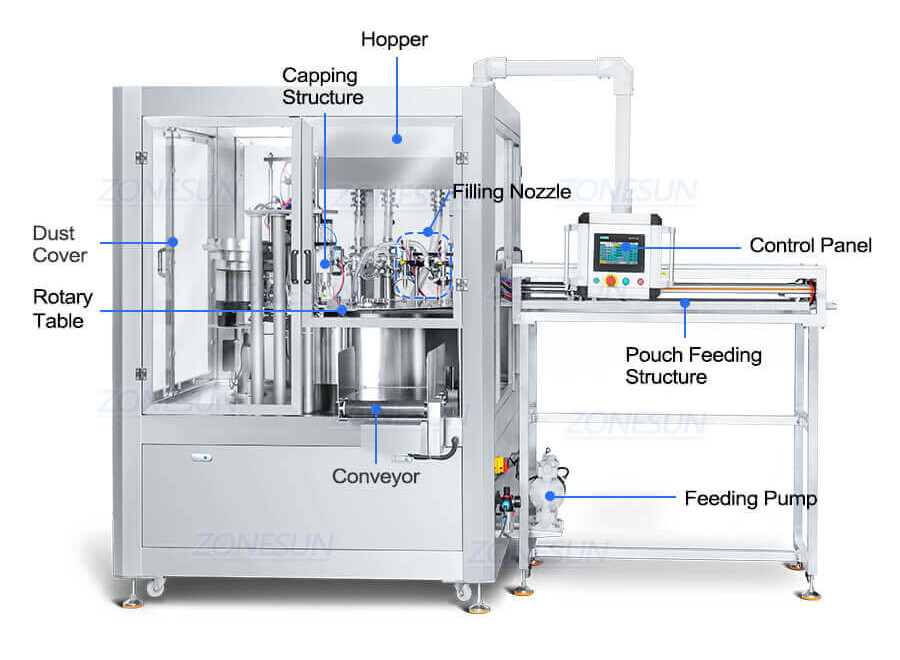

This is a spout pouch packaging machine.It can automatically fill liquid or paste into pouch and seal them.Designed with 2 heads for filling, components which are in contact with the material are can be customized with food-grade 316L stainless steel.It adopts a rotary worktable,which is compact and space-saving.This machine is commonly used for packaging ready-to-drink beverages,such as juice,jam,and liquid jelly.
Share to
Description:
This is a spout pouch packaging machine.It can automatically fill liquid or paste into pouch and seal them.Designed with 2 heads for filling, components which are in contact with the material are can be customized with food-grade 316L stainless steel.It adopts a rotary worktable,which is compact and space-saving.This machine is commonly used for packaging ready-to-drink beverages,such as juice,jam,and liquid jelly.
| Machine Model | ZS-AFC12 |
| Voltage | 220V/110V 50-60Hz |
| Power | 3kW |
| Filling Range | 10-1000ml(Can be customized) |
| Production Capacity | About 1200-1500 BPH (based on filling volume) |
| Filling Accuracy | ±1% |
| Hopper Capacity | 40L(Can be customized) |
| Suitable Cap Diameter | Can be customized |
| Suitable Pouch Size | Can be customized |
| Air Pressure | 0.5-0.7MPa |
| Air Consumption | 0.7m³/min |
| Machine Weight | About 1000kg |
| Machine Size | About 3150*1850*2300mm(L*W*H) |
