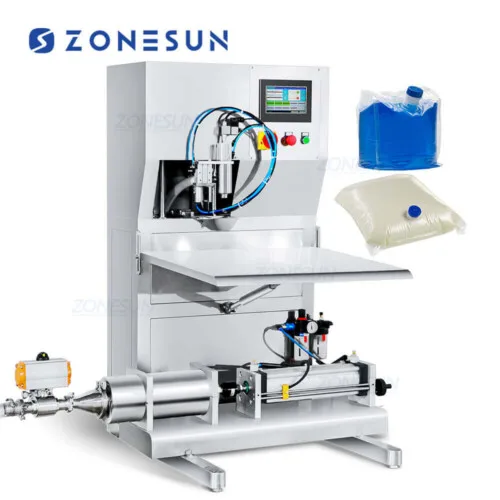

Bag In Box Filling Machine
A Bag-in-Box (BiB) filling machine is a piece of equipment used to fill bags (usually made of plastic) with liquid products such as wine, water, juice, oil, milk, etc., and then place them into a box.Nitrogen filling or air extraction system can be customized as production need.
Share to
Product Description:
A Bag-in-Box (BiB) filling machine is a piece of equipment used to fill bags (usually made of plastic) with liquid products such as wine, water, juice, oil, milk, etc., and then place them into a box.Nitrogen filling or air extraction system can be customized as production need.
Product Parameters:
| Machine model | ZS-BIB01 |
| Power supply | AC220V 50-60HZ 100W |
| Air pressure | 0.6m³/min. 0.6-0.8 Mpa |
| Filling range | 1-25L(based on filling material and filling volume) |
| Error range | ±1%(based on filling material and filling volume) |
| Production speed | 230 bags/hour (based on 3L filling volume) |
| Filling Pump | Piston Pump |
| Filling Head | Single Head( 2 heads can be customized ) |
| Machine size | About 1350*980*1420 mm(L*W*H) |
| Machine weight | About 110 Kg |
| Package size | About 1200*1040*1490mm(L*W*H) |
| Package weight | About 166kg |

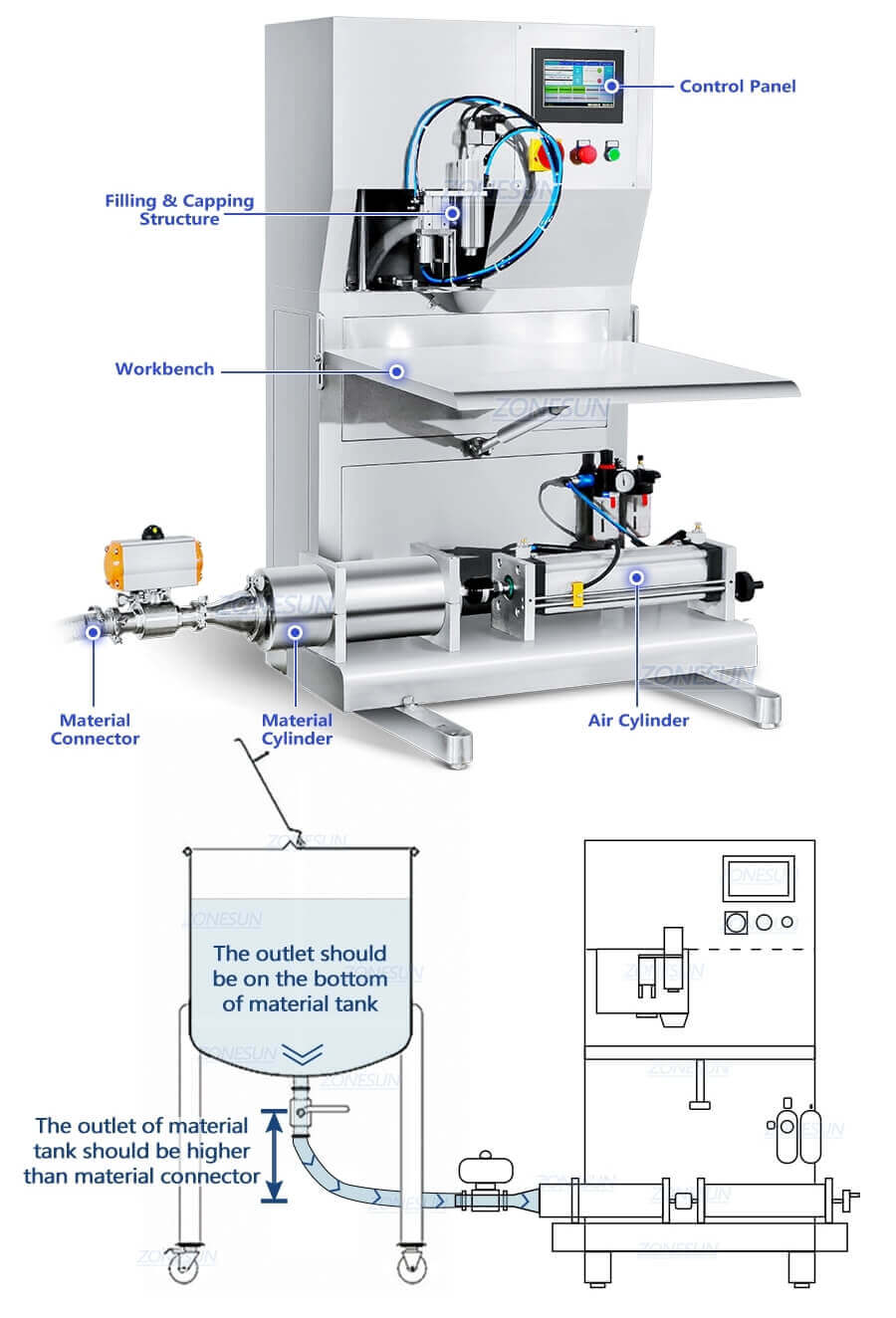

Product Details:

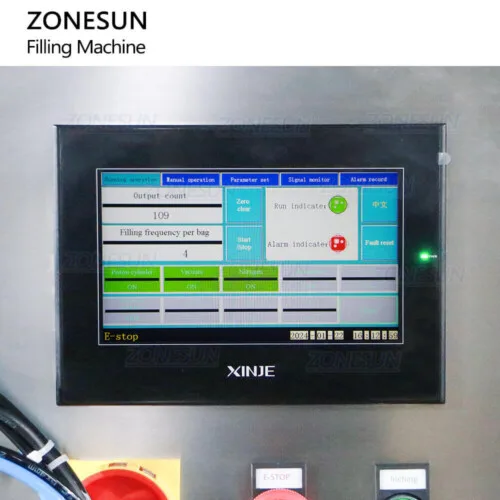

The machine is equipped with a PLC touch screen control panel, which offers a customizable interface for simplified operation. We can also customize the operation language as per your requirements.

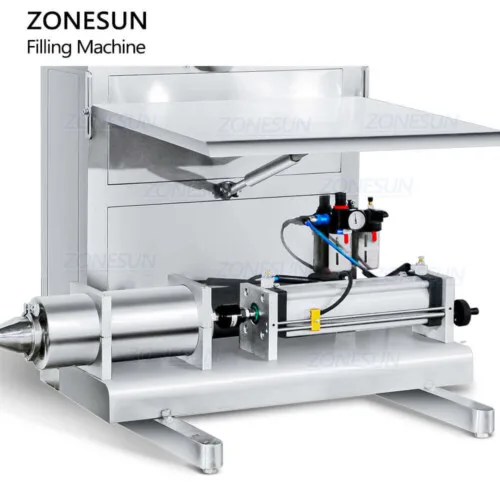

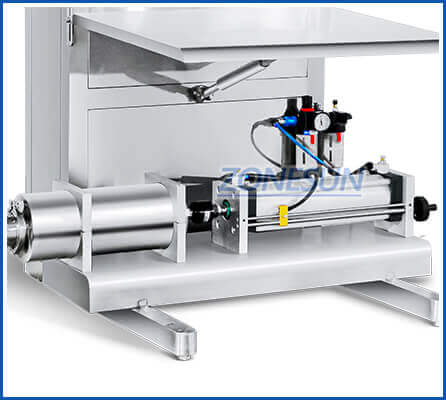

The piston pump-driven controlled filling system is highly effective for thicker liquids and pastes, offering faster packaging speeds. We can customize the filling range as per your specific requirements.

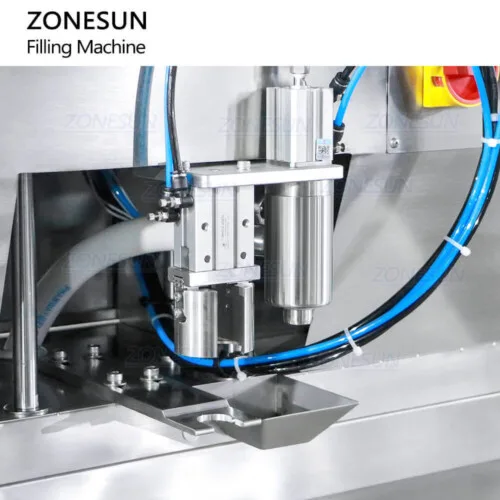

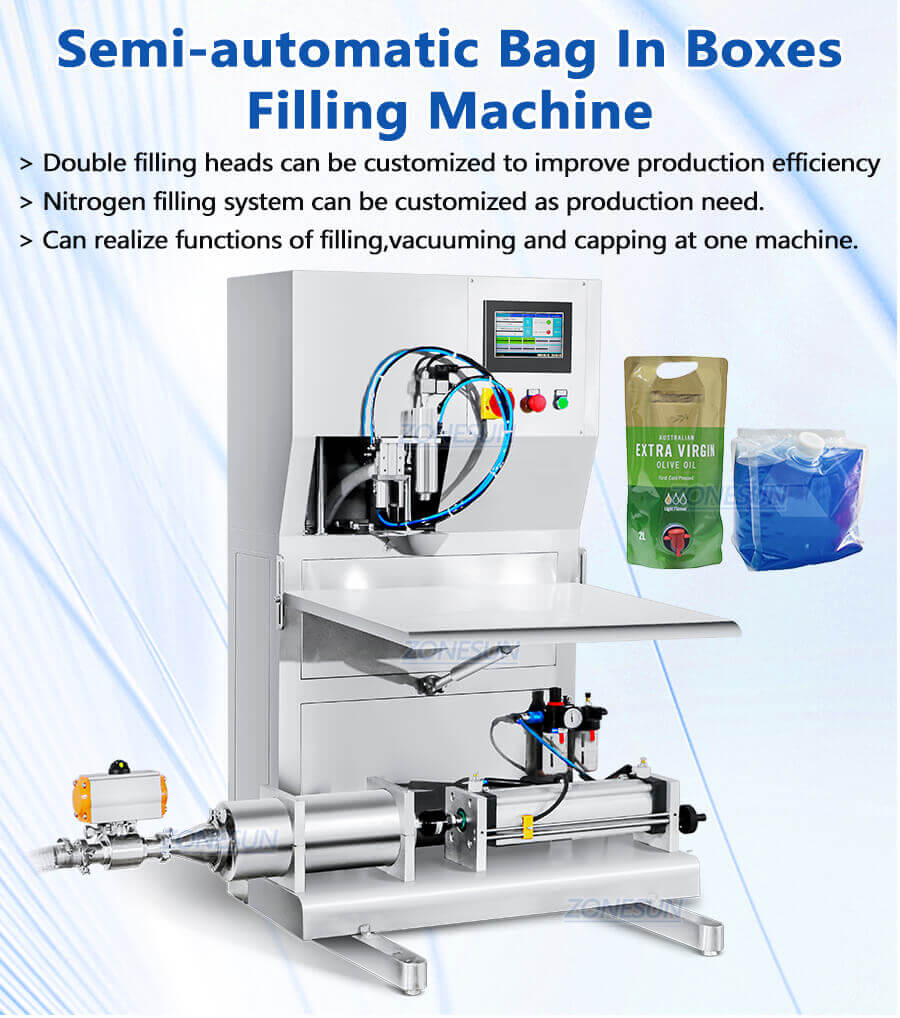

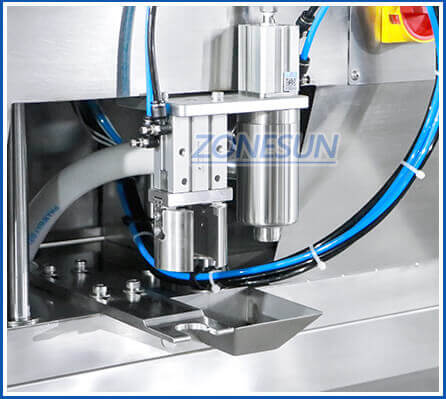

We can customize the machine with double filling heads to enhance packaging efficiency. It can perform filling, vacuuming, and capping functions, making it more compact and space-saving.

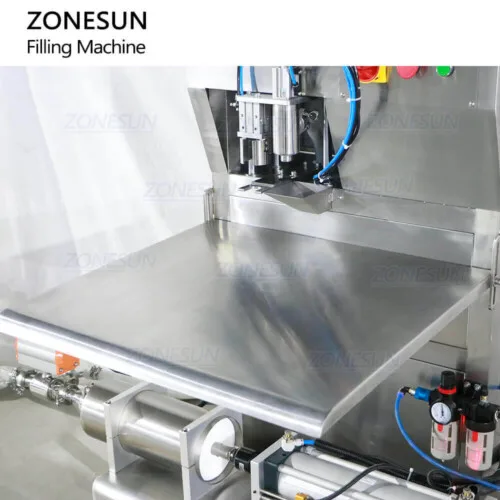

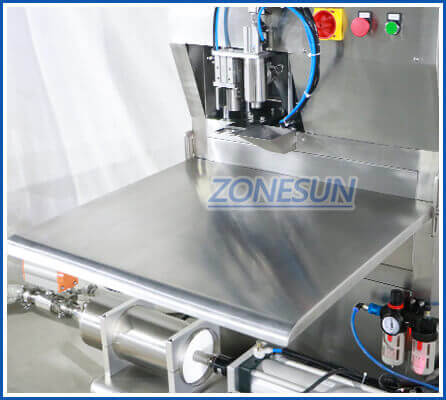

The larger workbench provides increased stability when placing products during filling and capping, ensuring packaging quality and reducing labor requirements.
