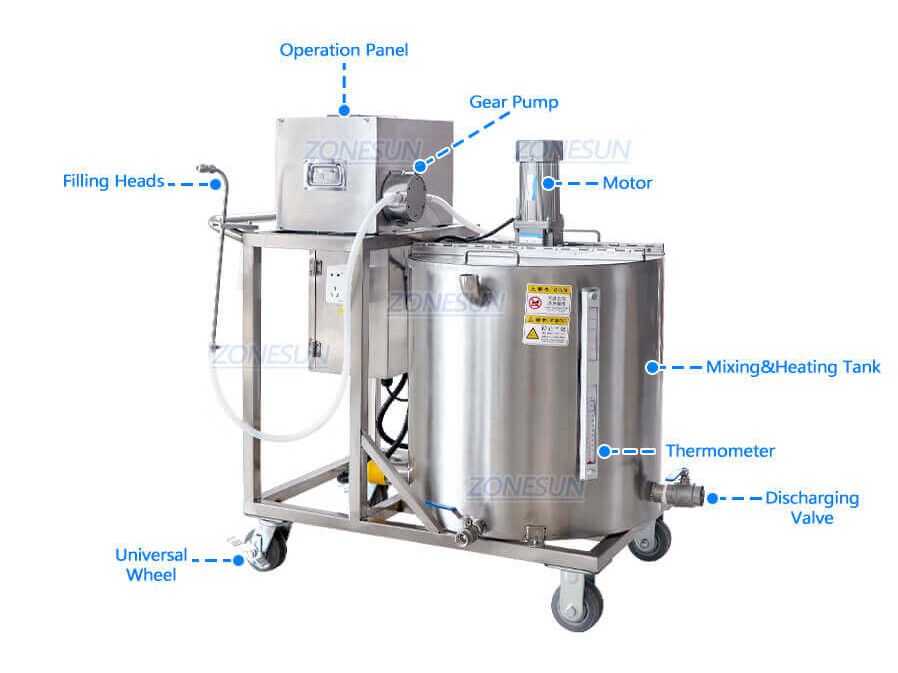

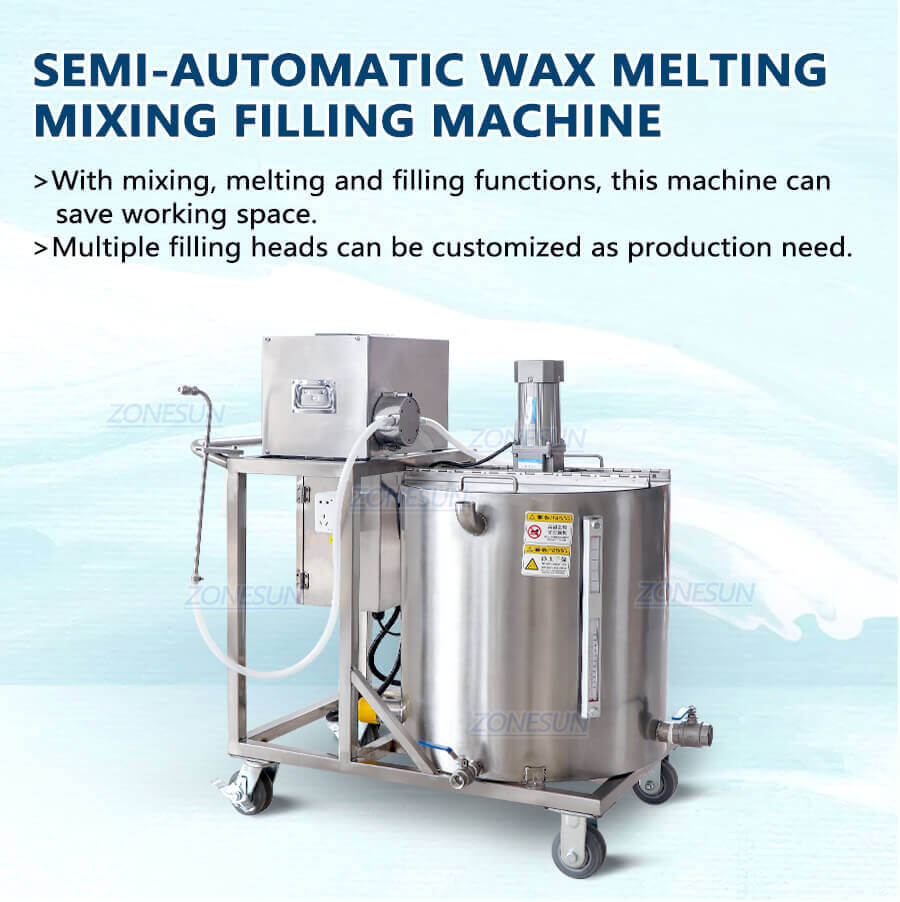

Candle Filling Machine
This semi automatic filling machine is designed for melting,mixing wax and filling them into mold or containers.The 304 Stainless Steel gear pump ensures the filling accuracy and production quality.This machine is suitable for wax like scented candle.The filling speed,temperature can be adjusted according to operation need.
Share to
Description:
This semi automatic filling machine is designed for melting,mixing wax and filling them into mold or containers.The 304 Stainless Steel gear pump ensures the filling accuracy and production quality.This machine is suitable for wax like scented candle.The filling speed,temperature can be adjusted according to operation need.
Parameter:
|
Machine Model
|
ZS-GTCD
|
|||
|
Machine Voltage
|
110V/220V 50-60HZ
|
|||
|
Machine Powder
|
350W(Filling Machine)+6500W(Heating Tank)
|
|||
|
Tank Size
|
60L
|
|||
|
Machine Pump
|
304 Stainless Steel Gear Pump
|
|||
|
Heating Temperature
|
0-90℃
(When setting the temperature, it cannot exceed 100℃)
|
|||
|
Working Speed
|
900pcs/h for 100g
|
|||
|
Max Flow Rate
|
4L/min
|
|||
|
Machine Size
|
About 850*1030*580mm
|
|||
|
Machine Weight
|
About 85.5kg
|
|||
