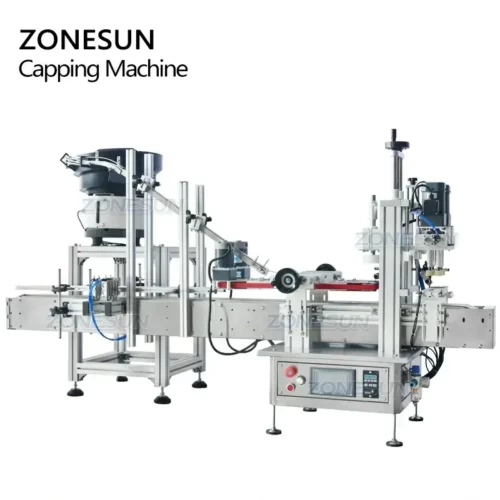

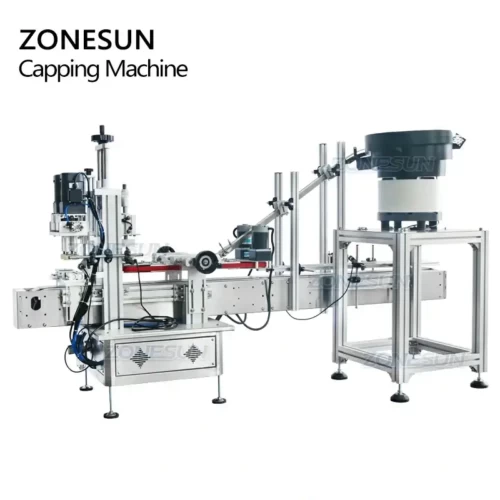

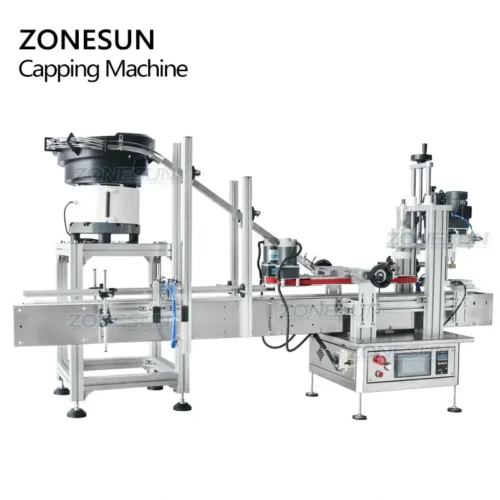

Capping Machine With Vibratory Bowl

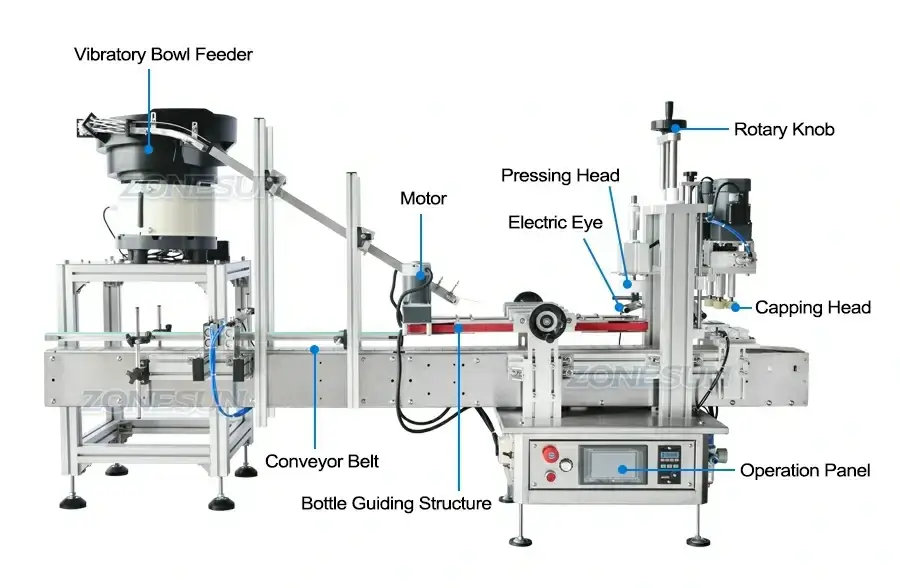

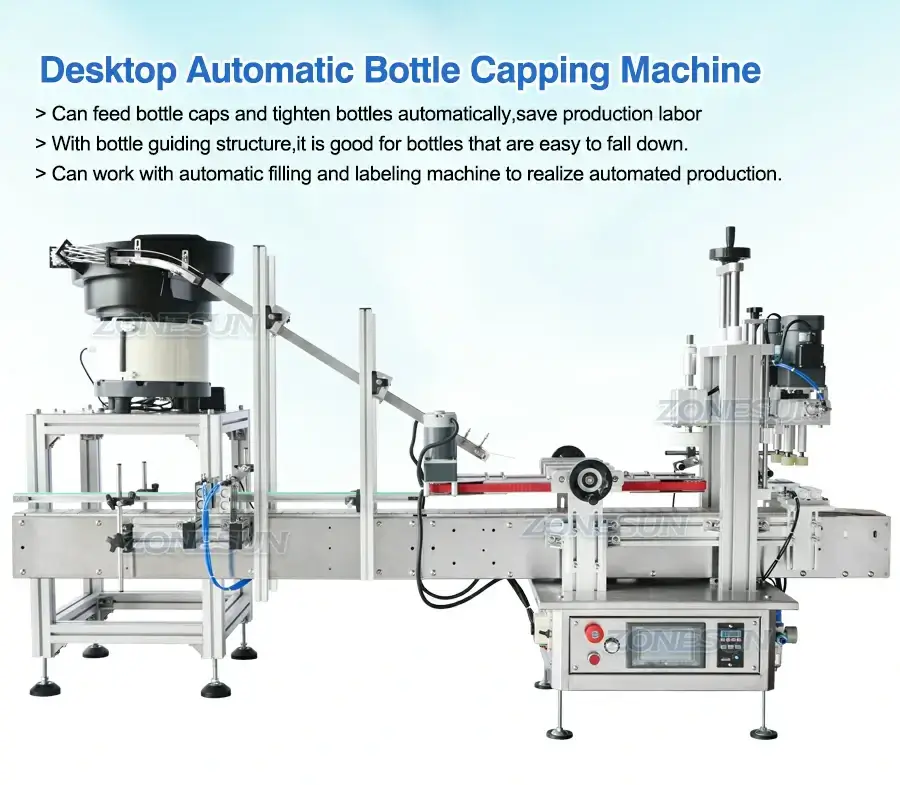

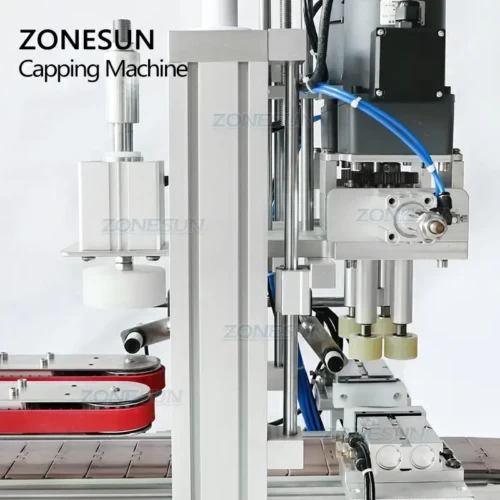

This tabletop automatic capping machine tighten bottle caps by screwing 4 rubber wheels.This kinds of capping method makes it has wider application range.It is suitable for spray bottles,dropper bottles etc.It is equipped with vibratory bowl,which can arrange bottle caps and feed bottle caps automatically,helps you save labor.
Share to
Description:

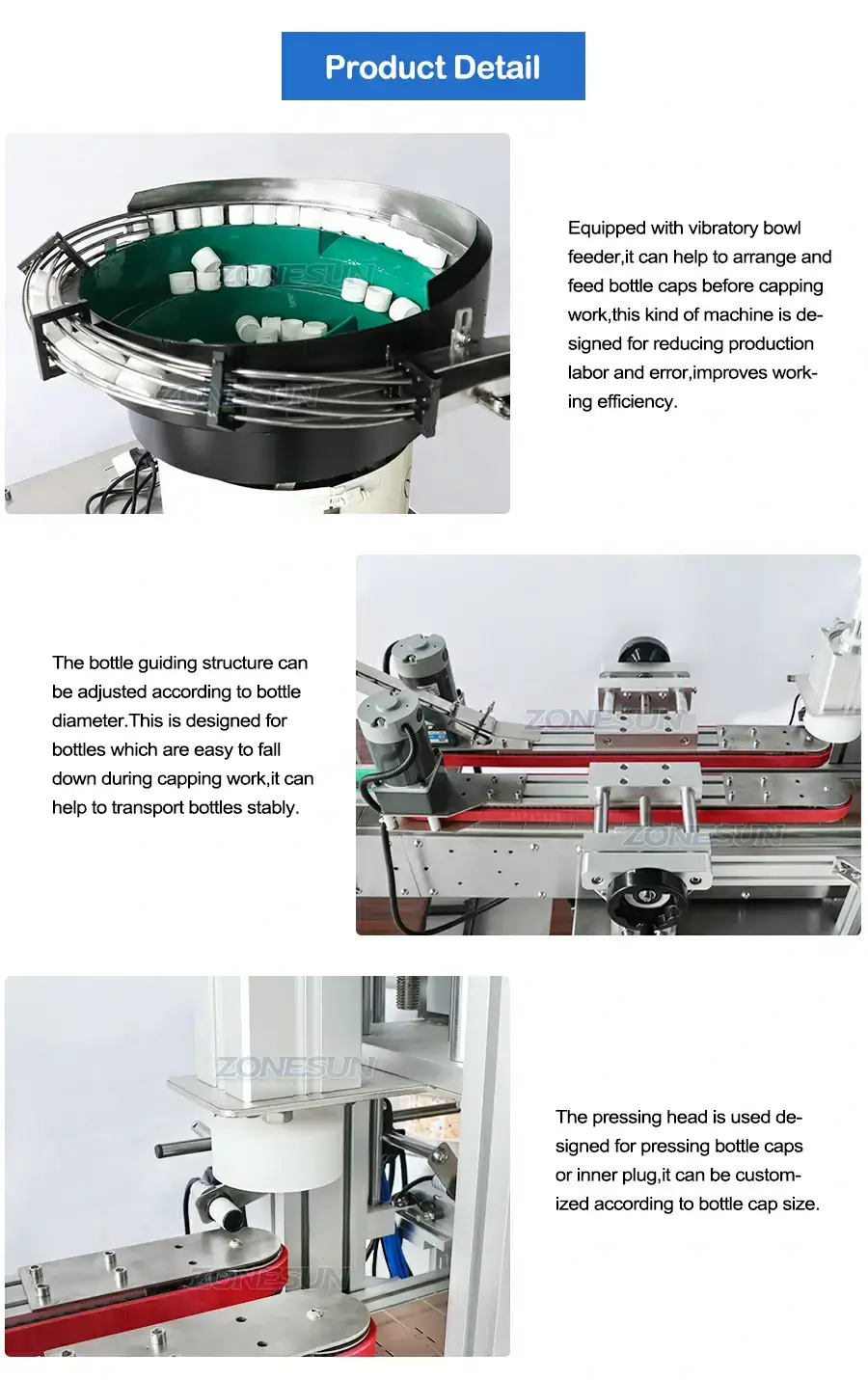

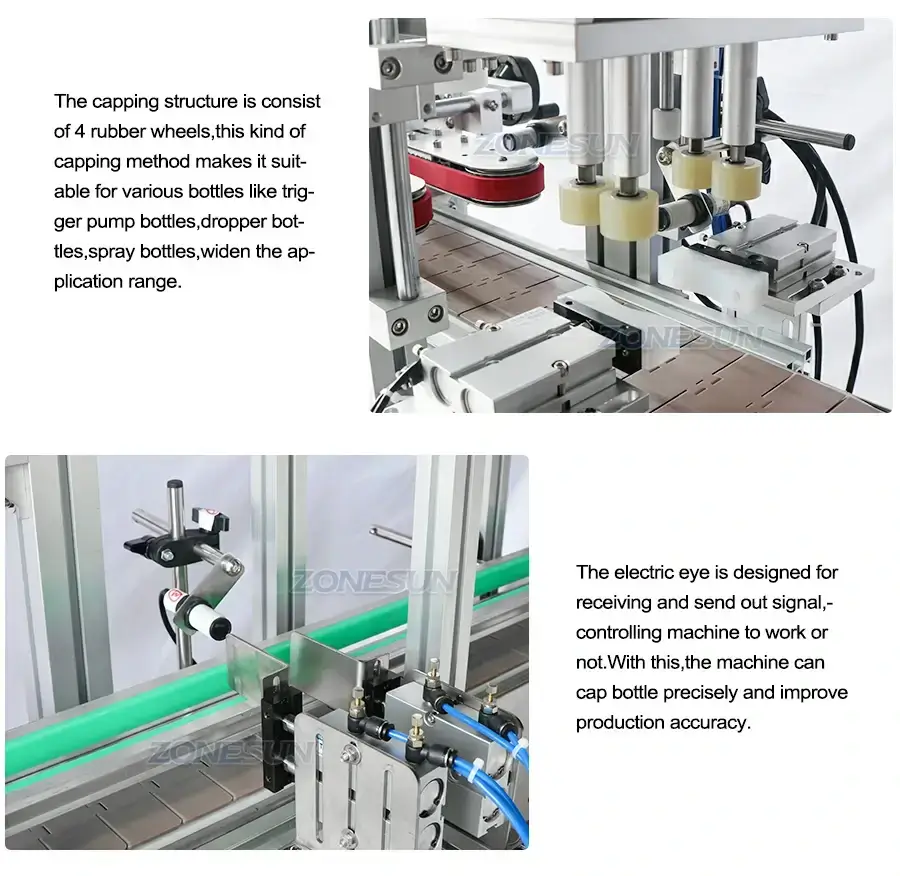

This tabletop automatic capping machine tighten bottle caps by screwing 4 rubber wheels.This kinds of capping method makes it has wider application range.It is suitable for spray bottles,dropper bottles etc.It is equipped with vibratory bowl,which can arrange bottle caps and feed bottle caps automatically,helps you save labor.
Parameter:
| Model | ZS-XG1870P |
| Bottle height | 60-270mm |
| Cap Diameter | 18-70mm |
| Working speed | 20-40 bottles/minute(depending on bottle and caps) |
| Conveyor length | 1117mm |
| Working voltage | AC220V/110V 50-60HZ |
| Working pressure | 0.4-0.6 MPa |
| Size Of air compressor connector | OD 8mm |
| Dimension |
About 2100*580*1200mm(Machine)
About 500*500*1180mm(Vibratory Bowl)
|
| Packing size |
About 1140*615*1105mm(Machine)
About 1165*680*710mm(Vibratory Bowl)
|
| Net weight/Gross weight |
About 85kg(Machine)+About 88kg(Vibratory Bowl)
About 114kg(Machine)+About 116kg(Vibratory Bowl)
|
