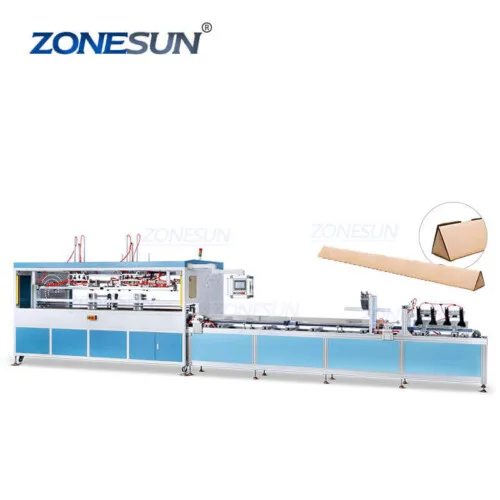

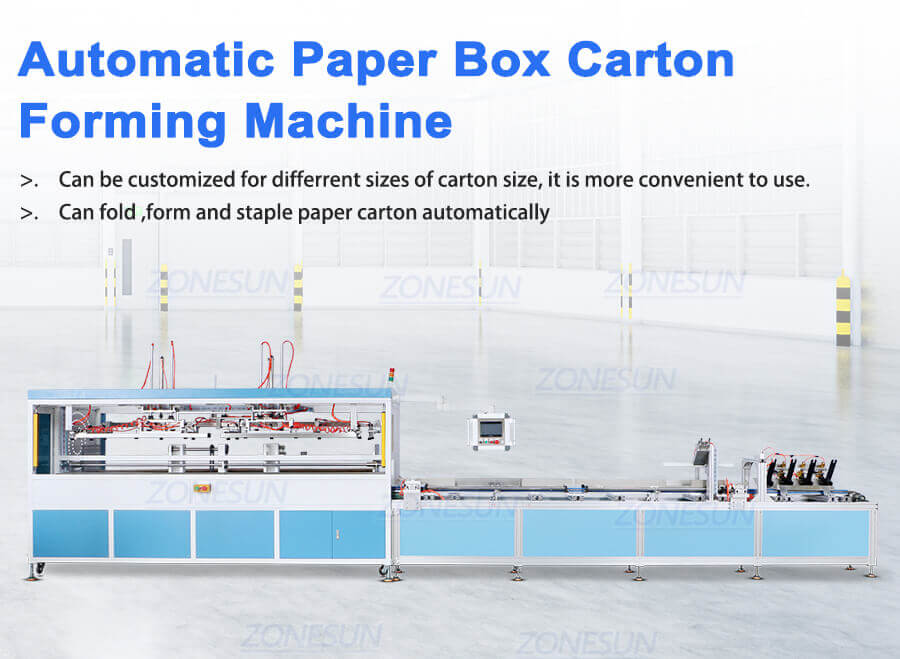

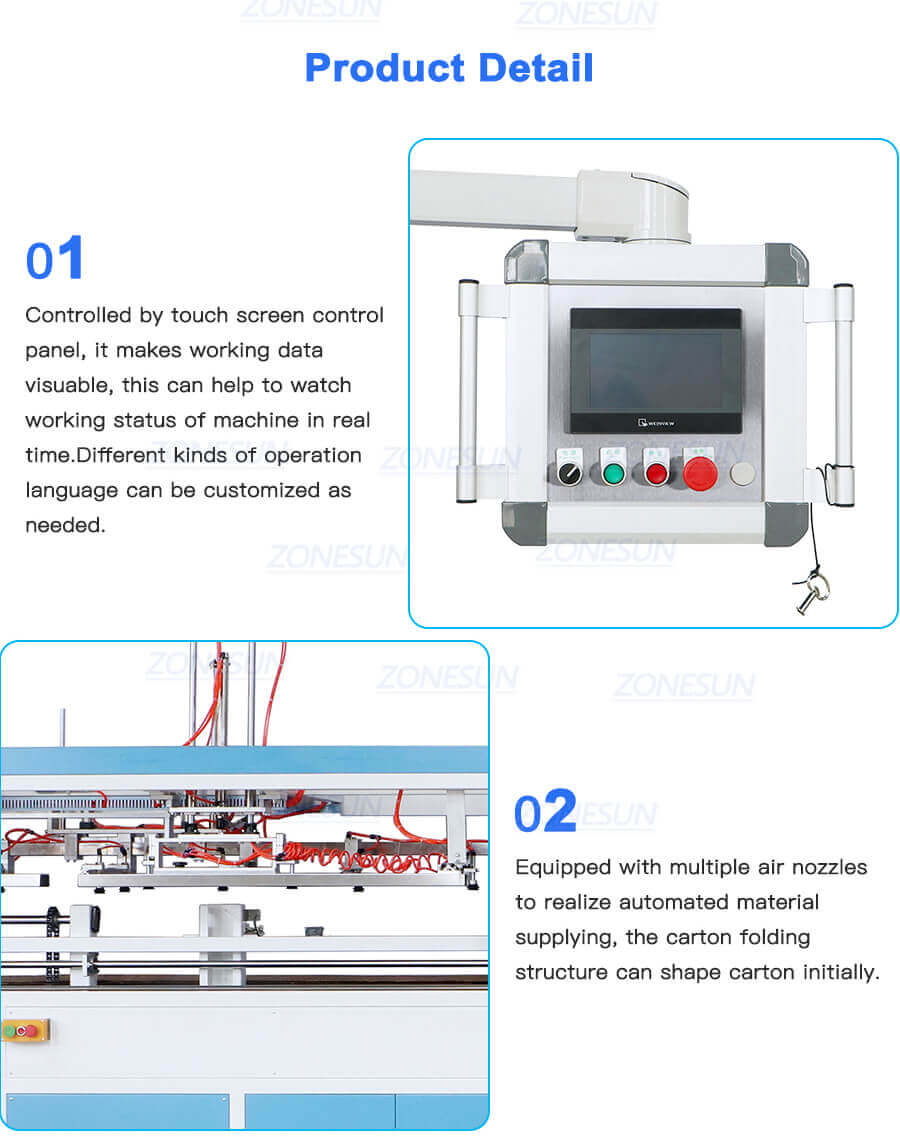

Carton Forming Machine

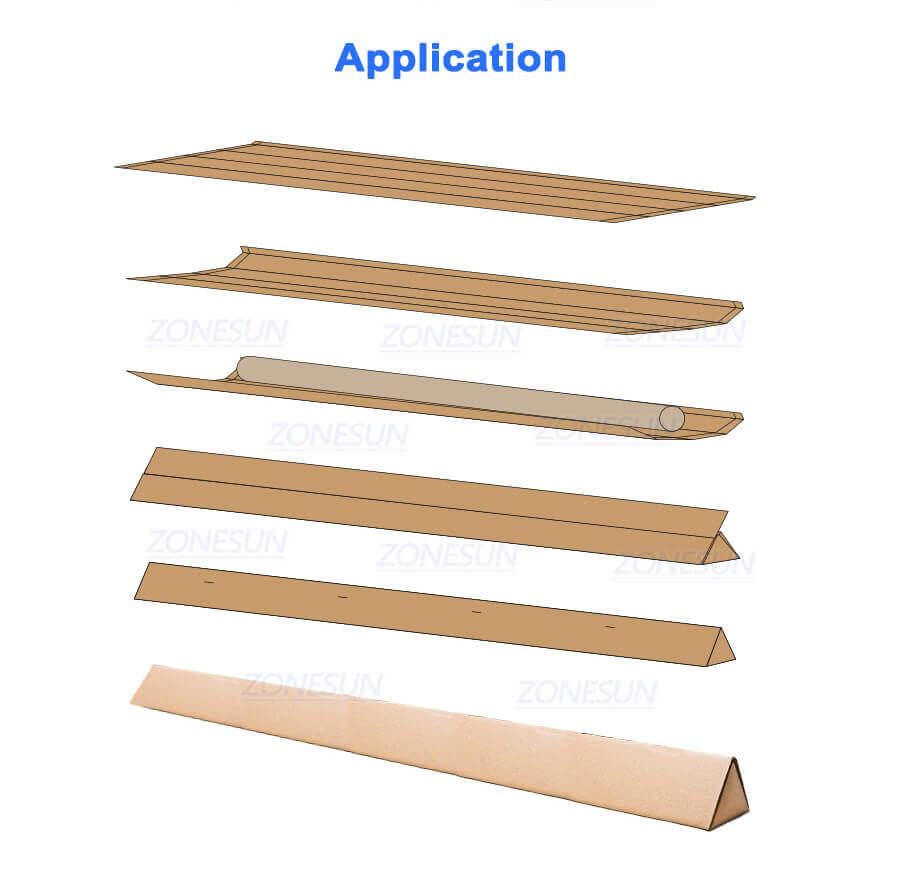

This machine is to automatically fold the unformed paper into shape.No other consumables are required,saving labor costs.The cost of this and various consumables improves efficiency,and can be customized for different sizes of cartons.This machine is suitable for packaging umbrellas,hardware accessories and other strip products.
Share to
Description:
This machine is to automatically fold the unformed paper into shape.No other consumables are required,saving labor costs.The cost of this and various consumables improves efficiency,and can be customized for different sizes of cartons.This machine is suitable for packaging umbrellas,hardware accessories and other strip products.
Parameter:
| Machine model | ZS-BFM1 |
| Voltage power | 220V 2000W |
| Control voltage | DC24V |
| Air pressure | 0.6MPa |
| Air consumption | 600L/min |

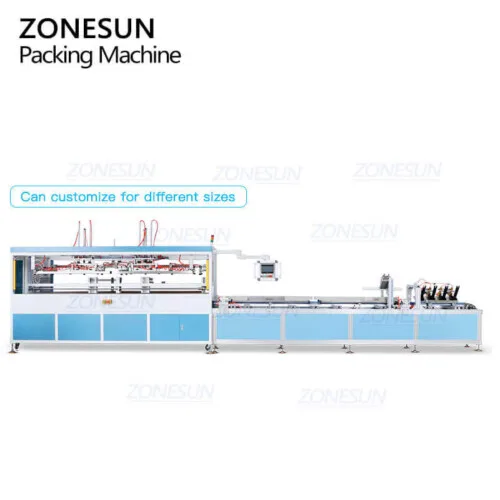

| Applicable carton size | customized |
| Folding box speed | 0-8/min |
| Paper sheet storage capacity | 20-40 pieces (based on 2mm thickess carboard) |
| Error range between cartons | ±0.2% |
| Carton thickness | single-layer corrugated paper≥2mm |
| Carton strength | 1370KPa |
| Machine size | About 7000*2000*2300mm(L*W*H) |
| Machine weight | About 1100kg (refer to the actual product) |
