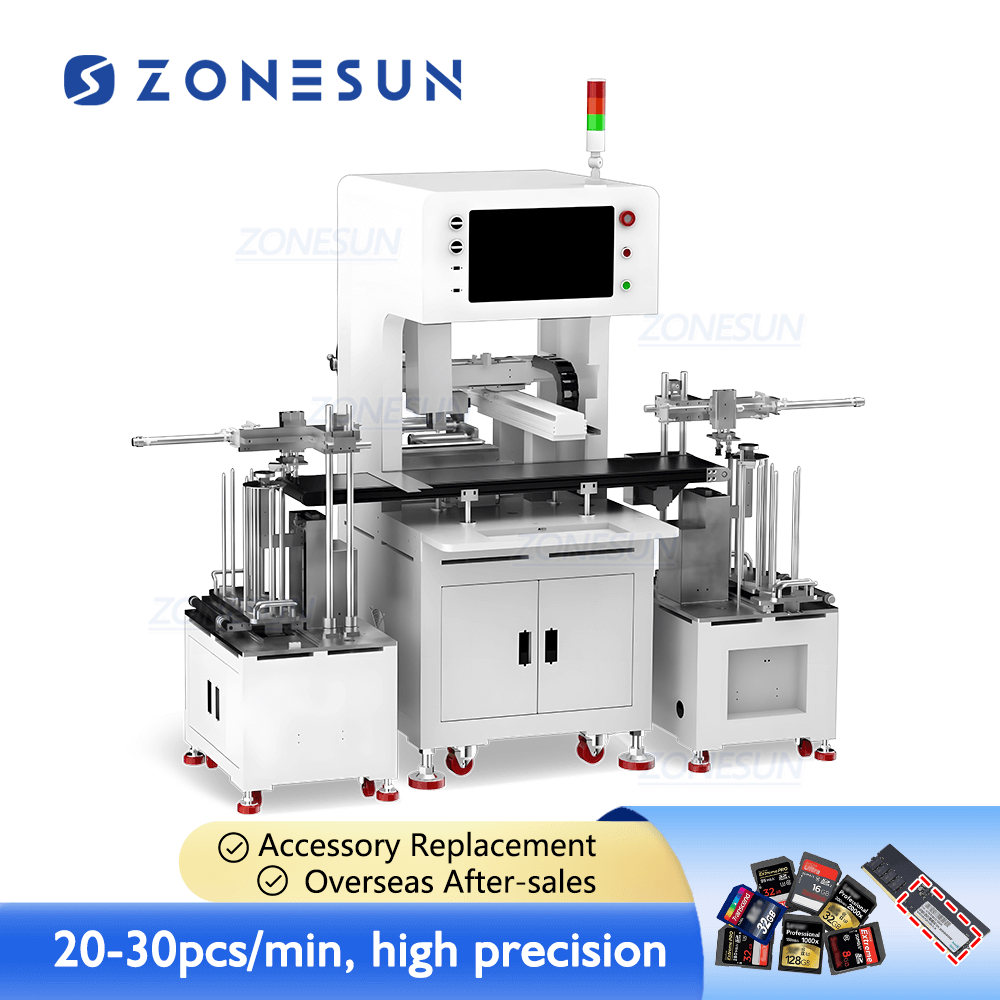

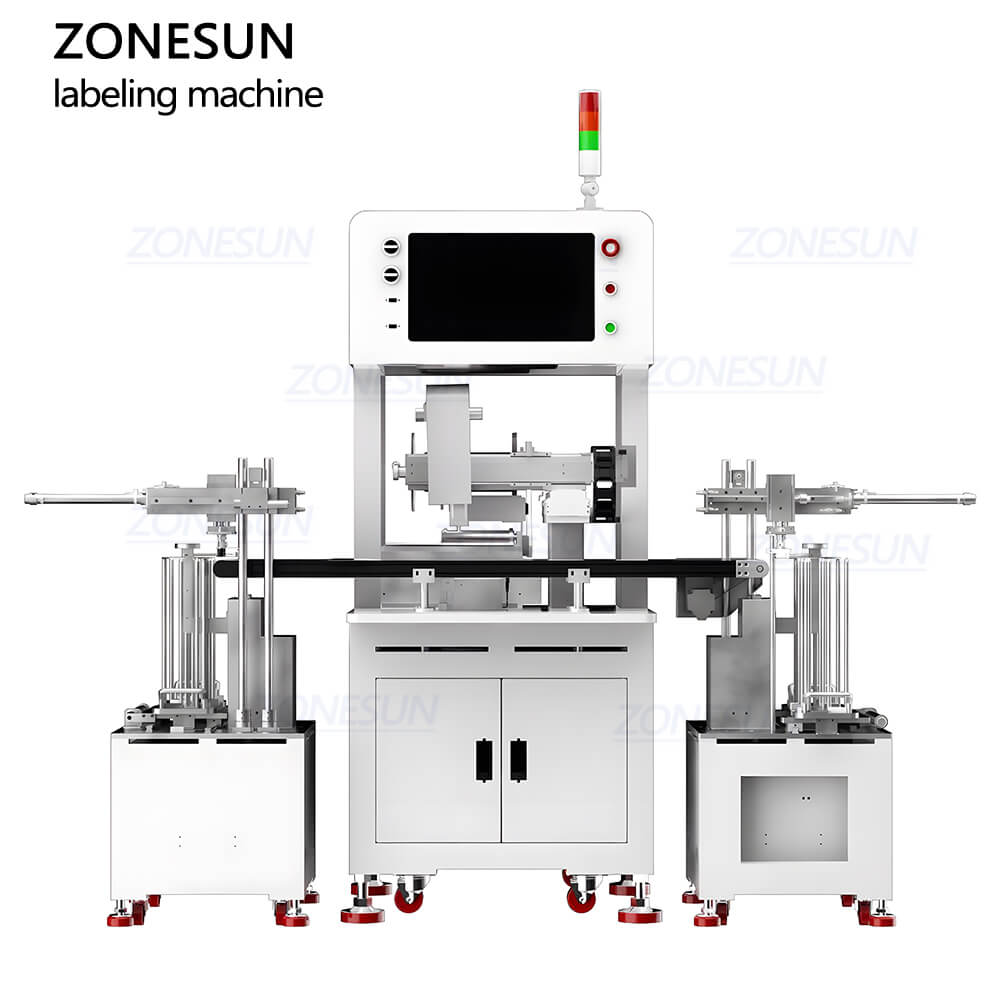

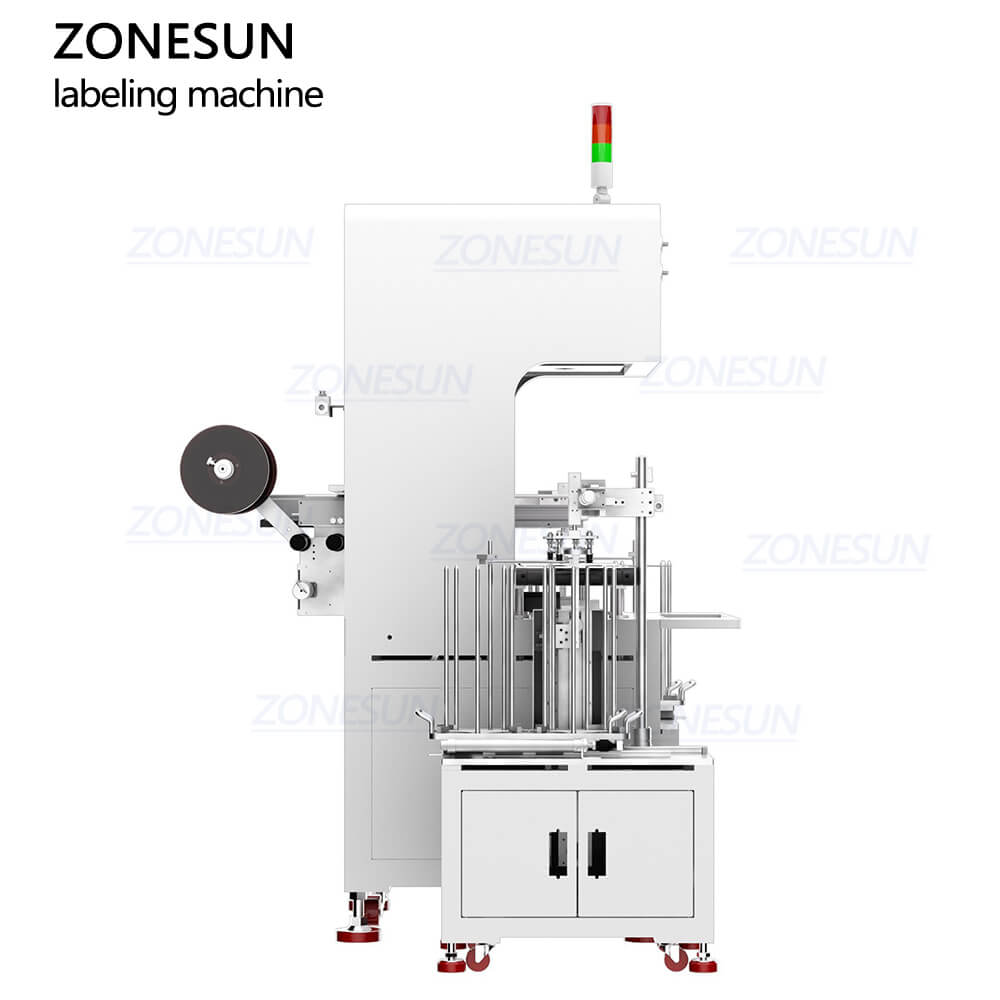

CCD Vision Inspection Flat Labeling Machine
The Visual Inspection Labeling Machine with Feeder and Accumulator is a comprehensive solution for automated labeling of flat objects, designed for high-volume production lines. This machine features an integrated feeder system to automatically feed products into the labeling area, followed by a vision inspection system that accurately identifies the product’s position and orientation. The labeling head then precisely applies labels to the specified location. Finally, an accumulator system collects the labeled products, ensuring a smooth and efficient workflow.
Share to
Product Description:
The Visual Inspection Labeling Machine with Feeder and Accumulator is a comprehensive solution for automated labeling of flat objects, designed for high-volume production lines. This machine features an integrated feeder system to automatically feed products into the labeling area, followed by a vision inspection system that accurately identifies the product’s position and orientation. The labeling head then precisely applies labels to the specified location. Finally, an accumulator system collects the labeled products, ensuring a smooth and efficient workflow.
Product Parameters:
|
Model
|
ZS-STB1
|
|
Capacity
|
20~30 pieces/min
|
|
Qualified rate
|
≥99.5%
|
|
Label specifications
|
L20-180mm/W 22-104mm
|
|
Label diameter
|
Max 265mm(76mm Reel Core)
|
|
Labeling accuracy
|
士1mm
|
|

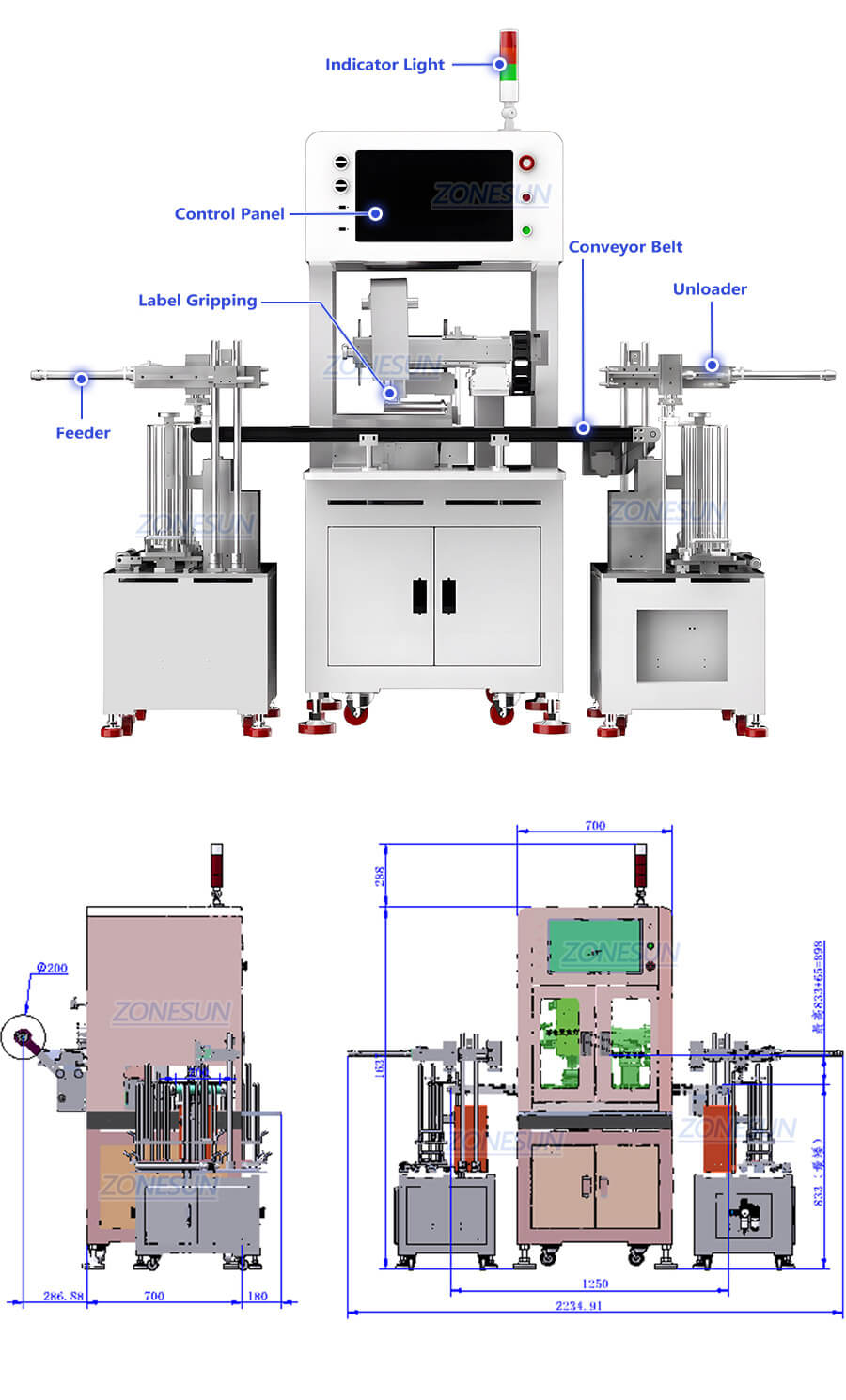

Overall dimensions
|
About 700*700*1700mm
|
|
Overall weight
|
About 350kg
|
|
Power supply
|
AC100-240V-5A,50_60Hz
|
|
Method of pasting labels
|
Real time printing of labels
|
|
Print resolution
|
203/305/609Dpi 203/305/609
|
Product Details:

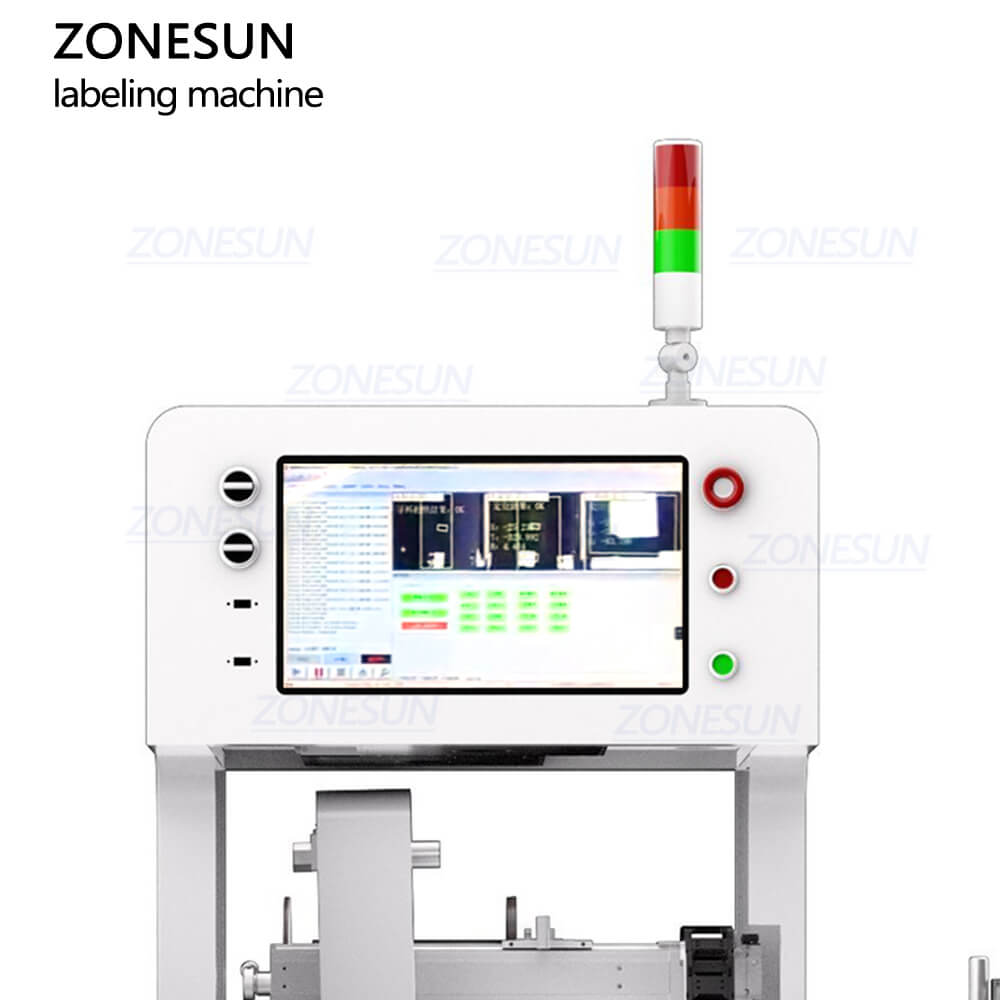

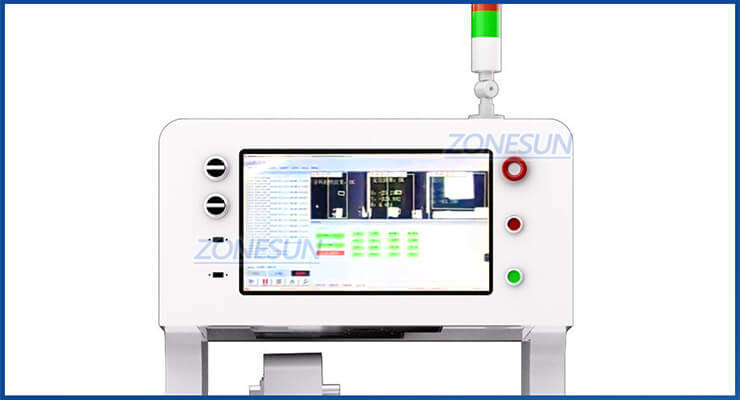

Control Panel
User-friendly interface for easy operation, allowing operators to set parameters, monitor the labeling process and make adjustments in real-time.

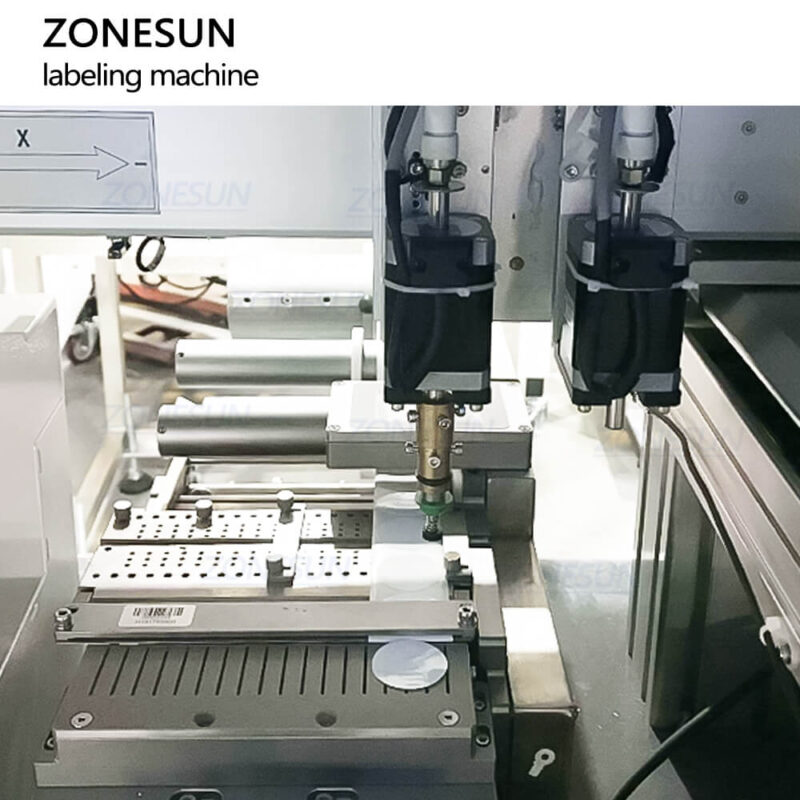

Label Gripping
Advanced label grabbing mechanism ensures precise and secure handling of labels, minimizing waste and ensuring accurate placement on products.

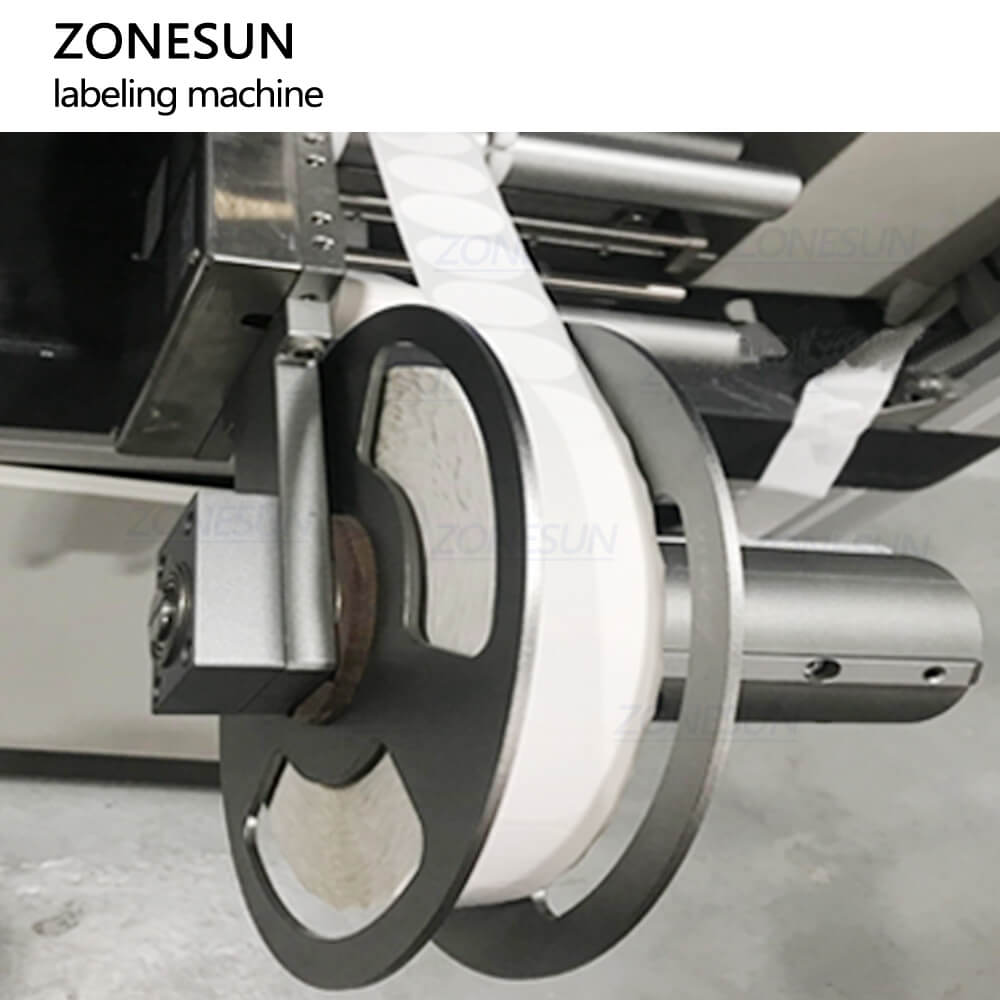

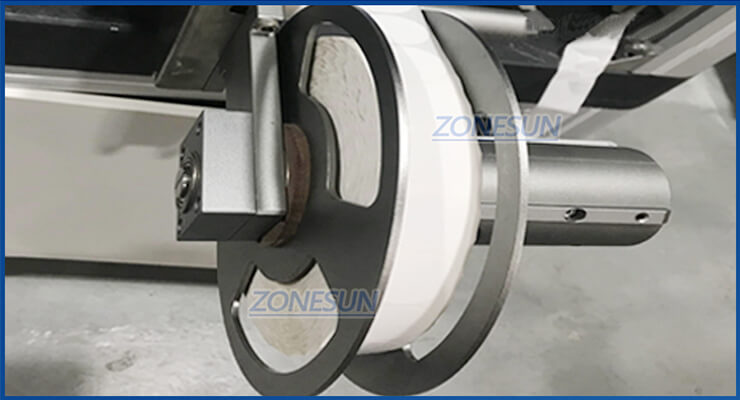

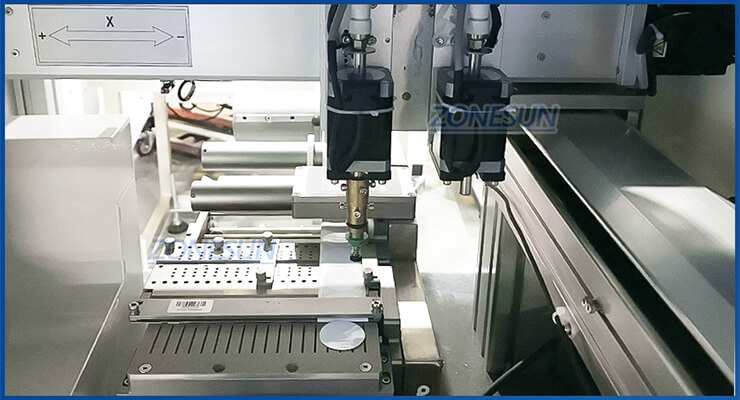

Label Device
Efficient label application system that applies labels evenly and consistently, maintaining high quality across all products.
Fixing Position
Holds products securely in place during labeling, ensuring accuracy and preventing movement that could cause misalignment.

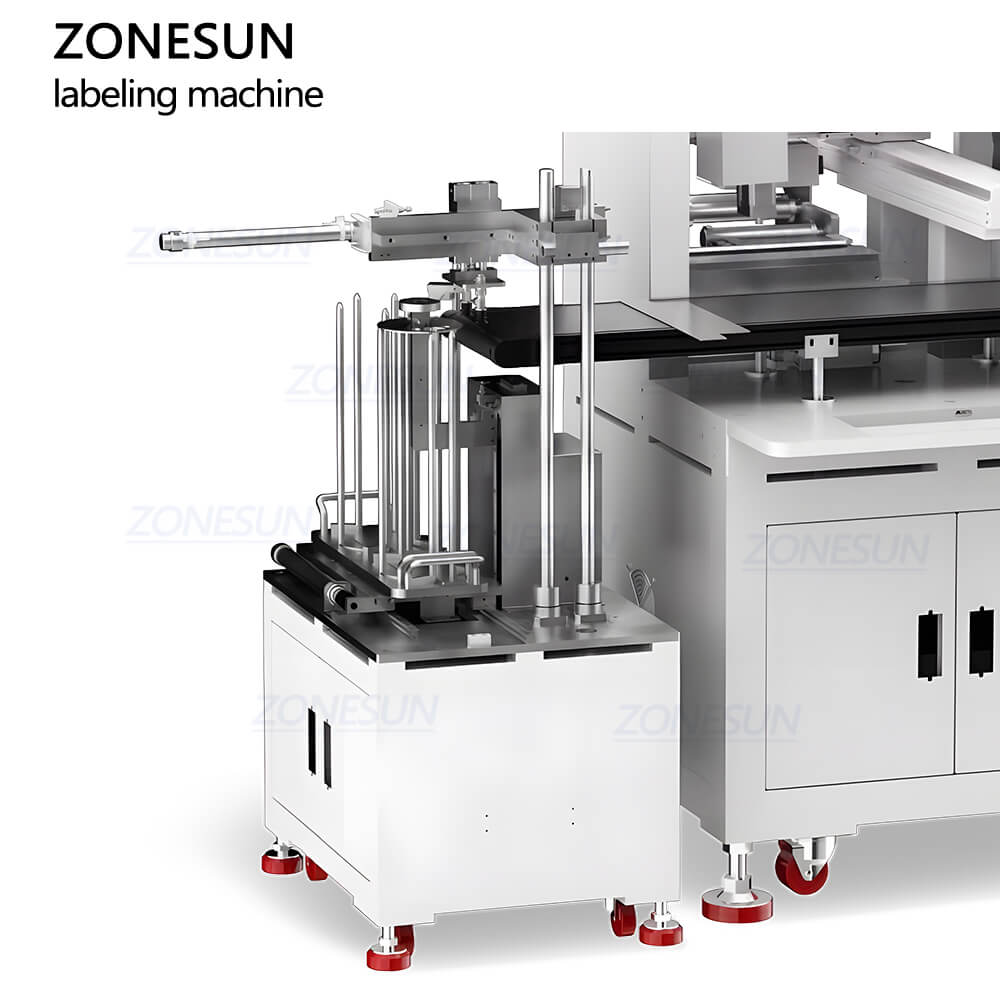

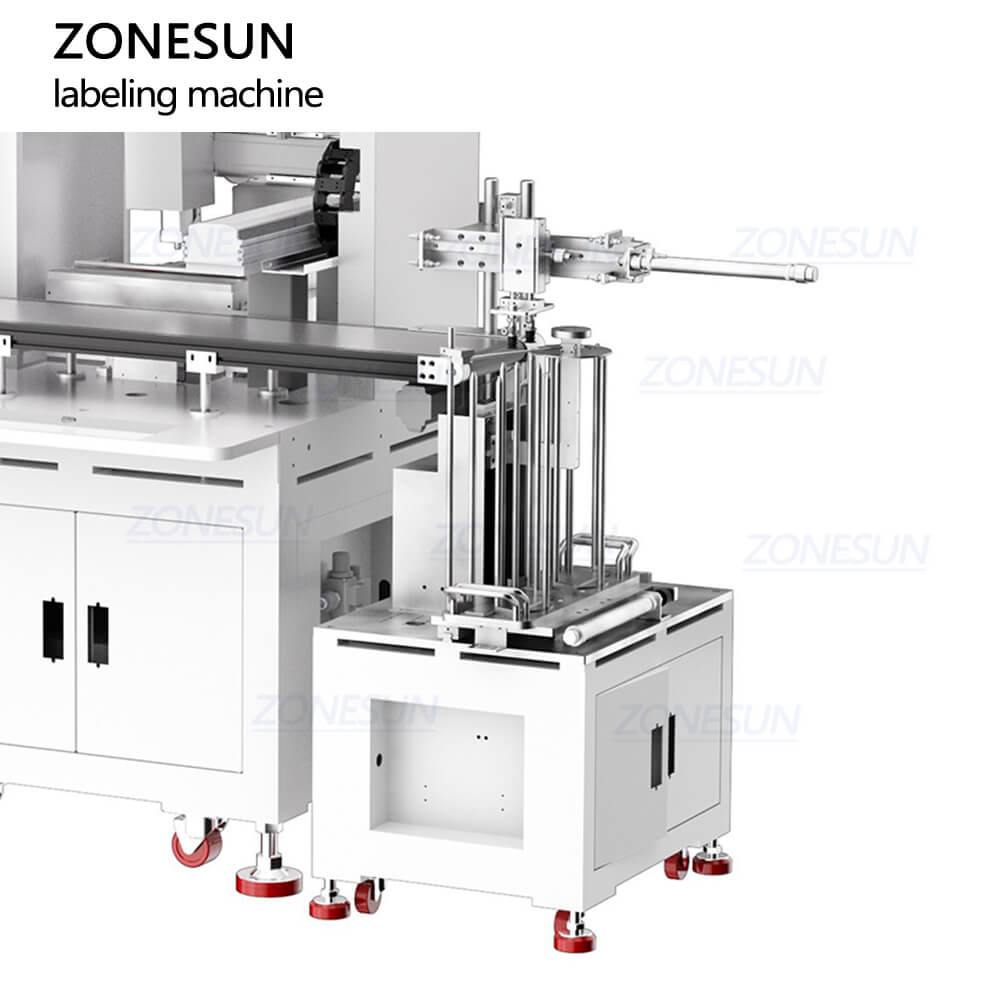

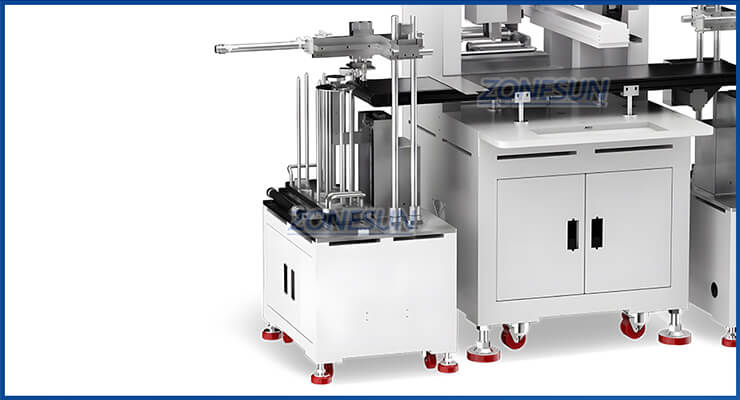

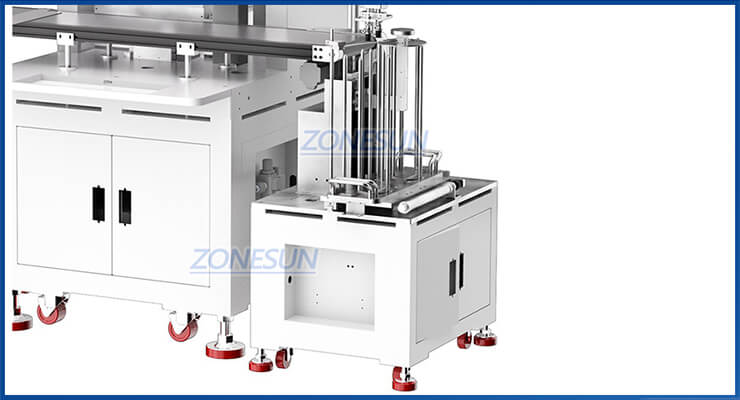

Collection Device
Automatically gathers labeled products after they pass through the labeling station.
