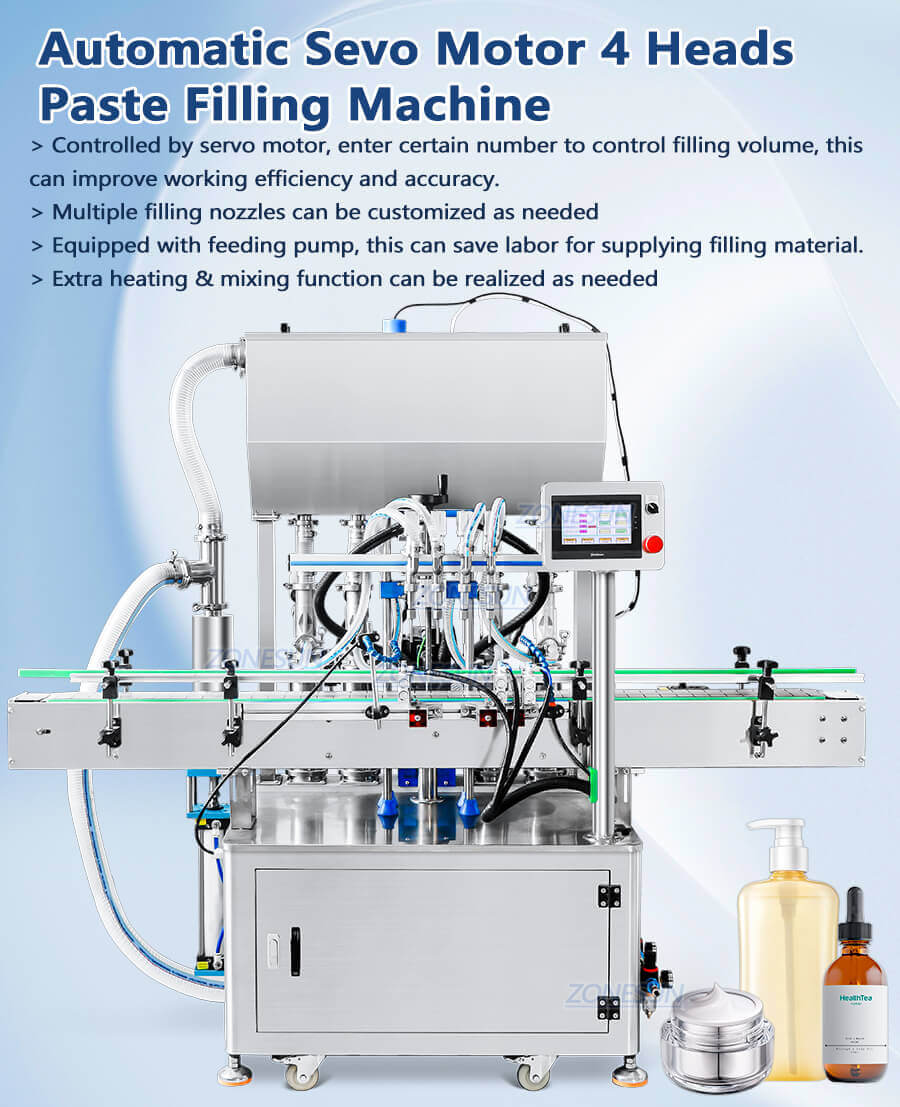

Cosmetic Filling Machine
Share to
Product Parameter:
| Machine model | ZS-YT4T-4PX |
| Voltage | 110/220V 50-60HZ 1KW |
| Filling range | 10-180ml/30-500ml/100-1000ml |
| Working speed | About 30-50bottles/min |
| Filling pump | Piston pump |
| Air pressure | 0.6-0.8MPa |
| Filling accuracy | ±1% |
| Filling Nozzle | 4(can be customized) |
| Machine size | About 2000*800*1800mm |
| Machine weight | About 200kg |
| Packaging size | About 2070*960*2010mm(100-1000ml) |
| Packaging weight | About 392kg(100-1000ml) |

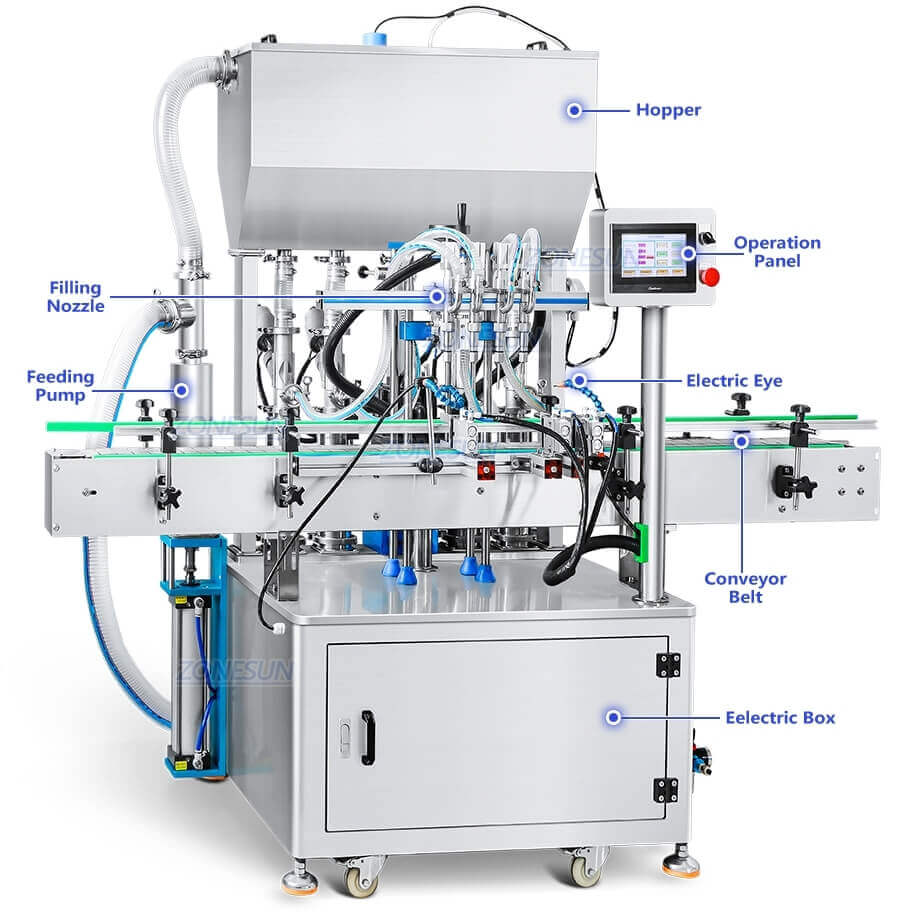

Product Details:

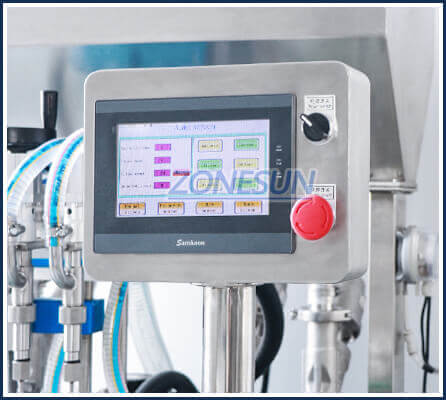

The touch screen control panel can be tailored to different languages for seamless operation. Real-time visual data aids in quick machine adjustments.

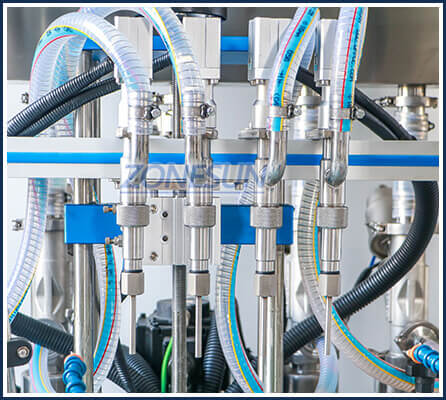

The filling nozzle’s position can be adjusted based on bottle size. Additionally, we can customize multiple nozzles to significantly enhance production efficiency.

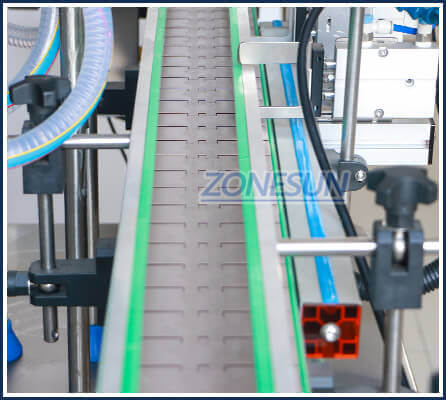

The chain conveyor, crafted from high-quality conveyor belt, boasts a larger weight capacity, enabling faster and smoother bottle transport. We can customize the width and length to suit your operational needs.

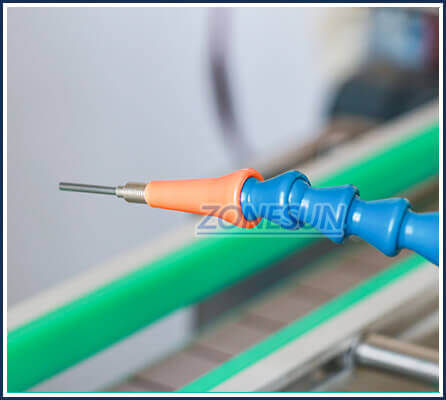

The machine is equipped with a high-quality electric eye that detects passing bottles and initiates the process, ensuring smooth automated production and preventing missed bottles.
The feeding pump, equipped with a liquid level sensing device, ensures timely supply of filling material. This not only saves labor but also boosts work efficiency.

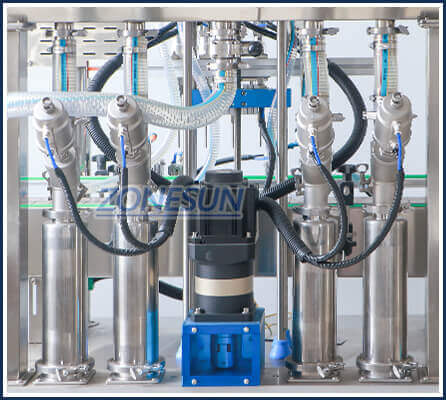

The filling process is driven by a servo motor, ensuring accuracy. A robust piston pump facilitates faster and smoother filling, with various piston pump options available to suit production requirements.
