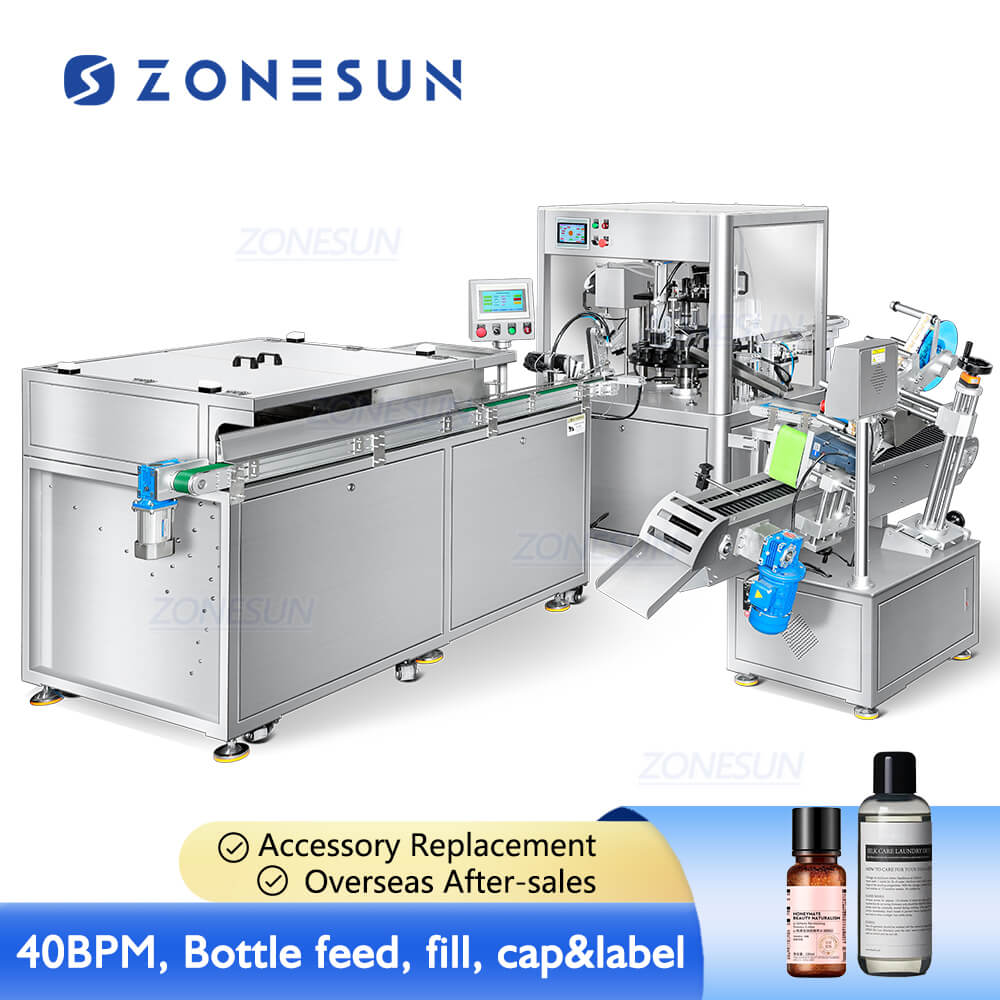

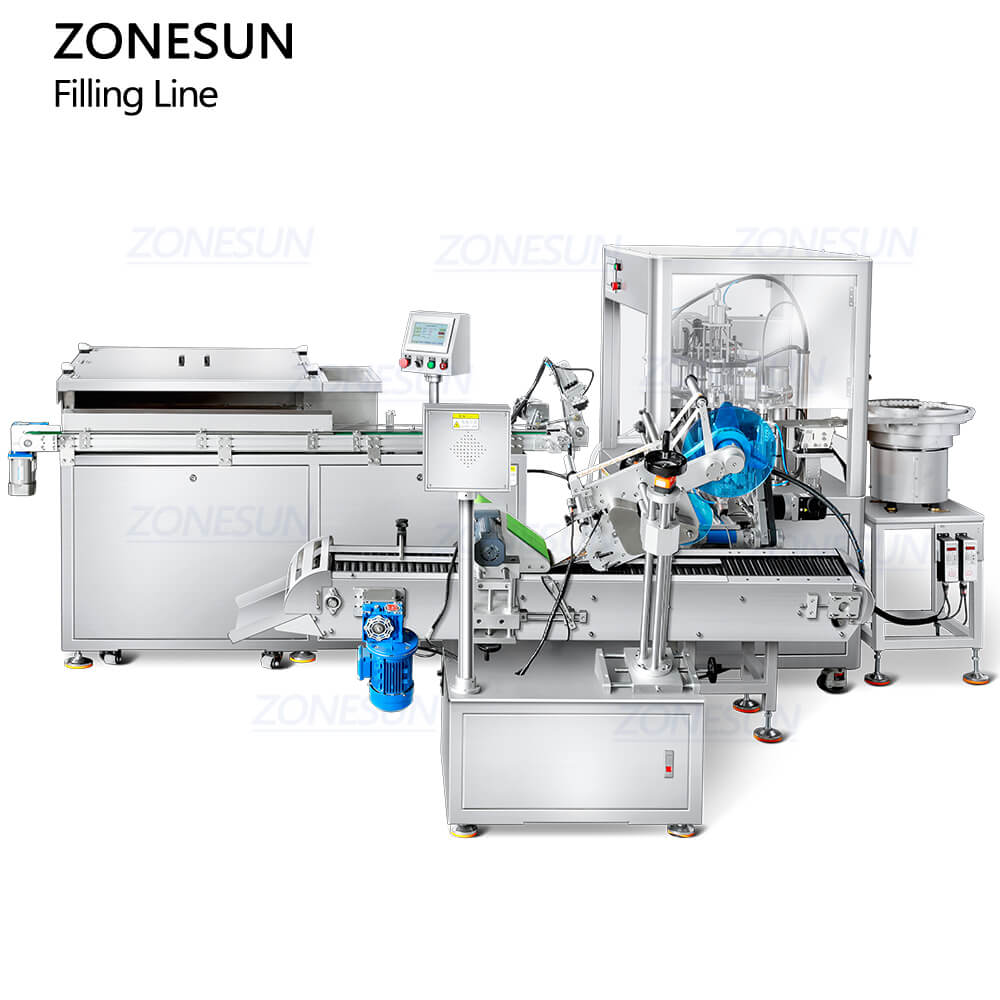

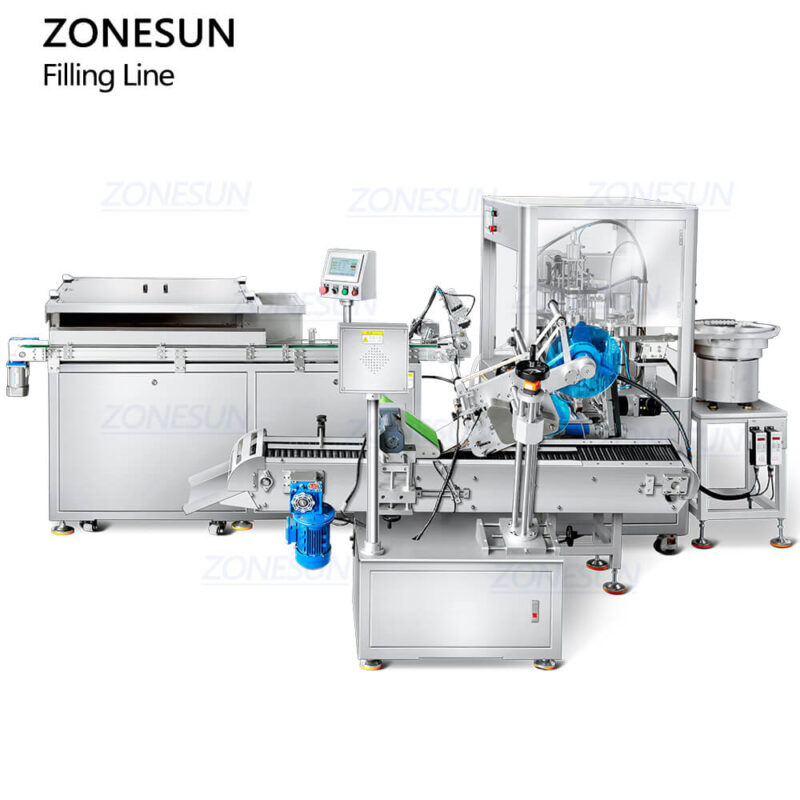

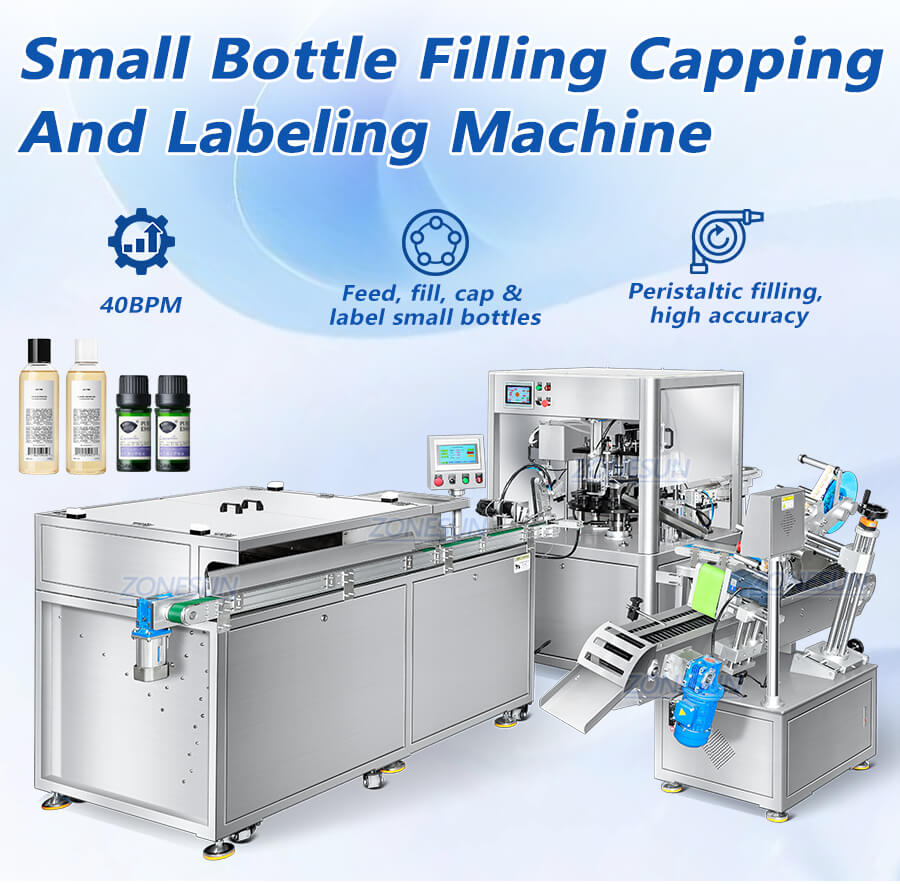

Cosmetic Small Bottle Filling Capping And Labeling Machine
Share to
Product Parameters:

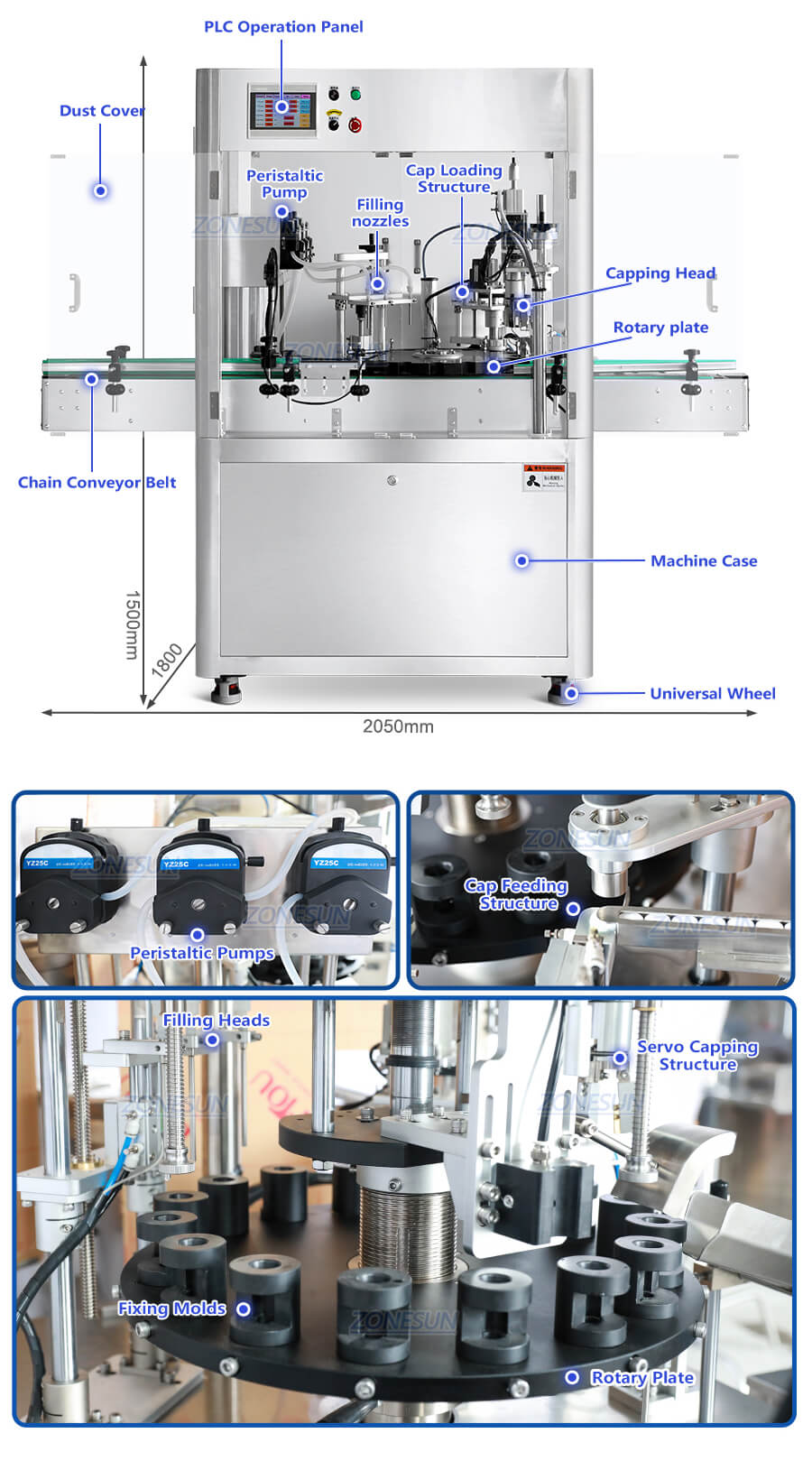

>Filling Capping Machine
| Machine Model | ZS-AFC28 |
| Voltage | 220V/110V 50-60Hz |
| Power | About 3kW |
| Production Speed | About 40 bottles/min(depending on bottle size and filling materials) |
| Filling Range | 10-100ml (Can be customized) |
| Filling Pump | Peristaltic Pump |
| Max Flow Rate | 6L/min(based on water) |
| Suitable Bottle Size | Can be customized |
| Bottle Cap Size | Can be customized |
| Air Pressure | 0.5-0.7MPa |
| Machine Size | About 2050*1800*1500mm |

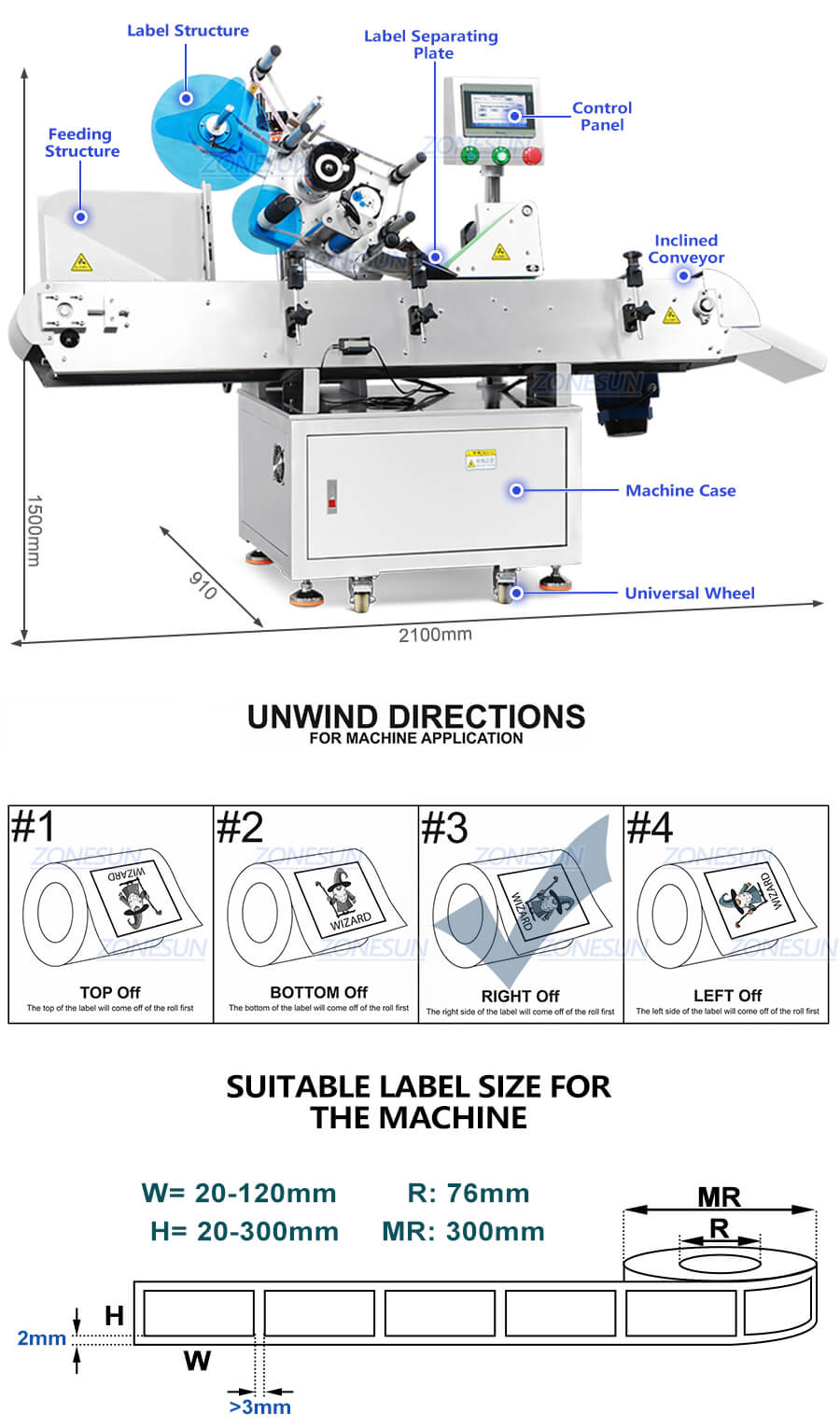

>Labeling Machine
| Machine Model | ZS-TB823 |
| Power Supply | 110/220V 50-60HZ |
| Working Speed | 100-300 bottles/min |
| Labeling Accuracy | ±1mm |
| Suitable Labeling Object | Φ10-30mm |
| Suitable Label Size | 20-300mm(L)*20-120mm(W) |
| Label Roll OD | Φ300mm |
| Label Roll ID | Φ76mm |
| Machine Size | About 2100*910*1500mm |
Product Details:

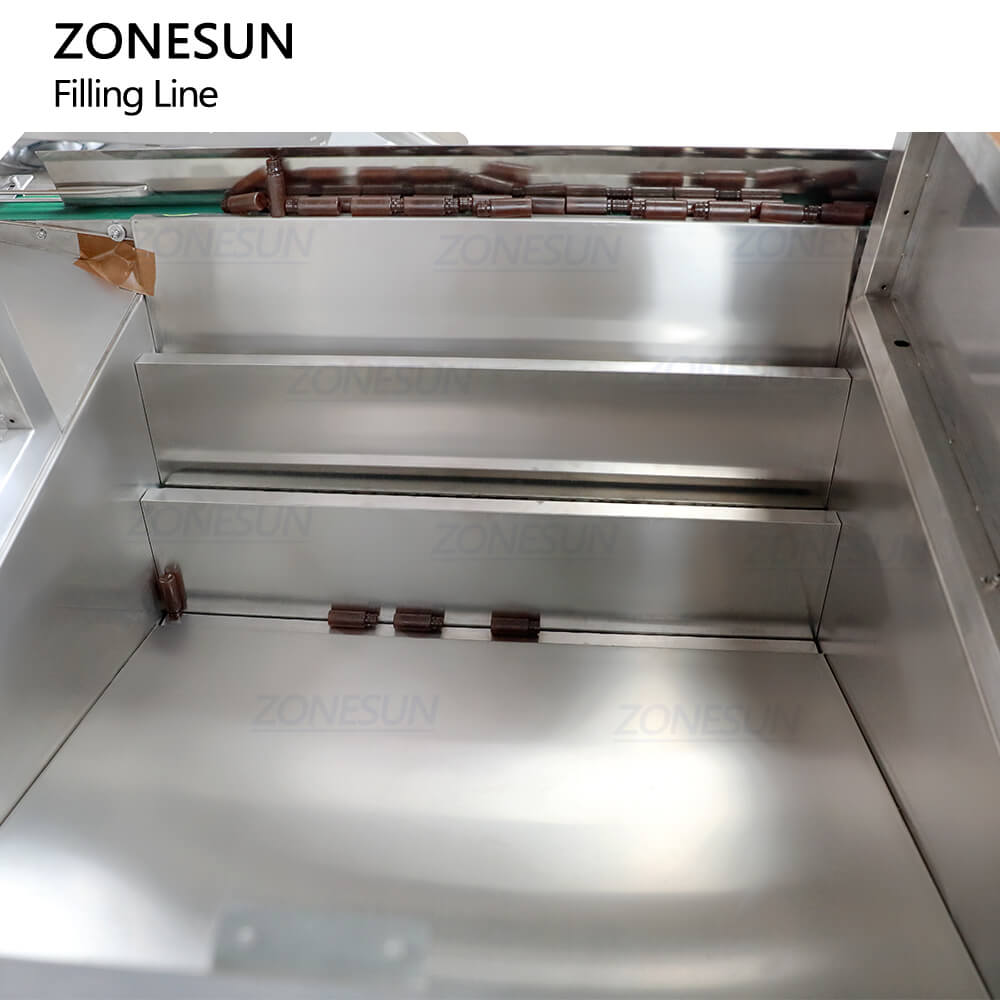

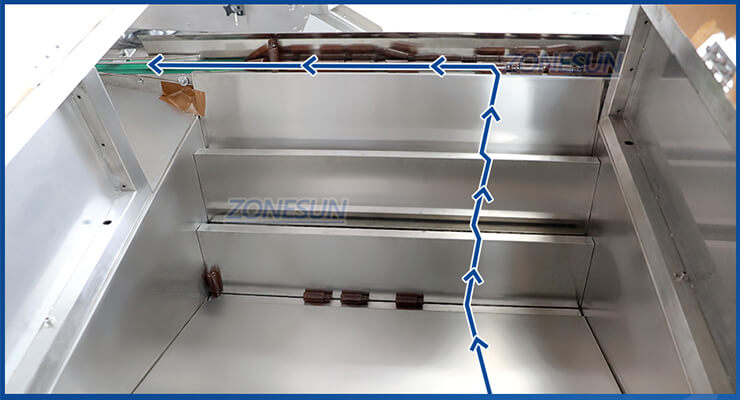

Bottle Unscrambling Machine
It can arrange bottles in order and feed them to filling area. The machine is customized as your bottle size.

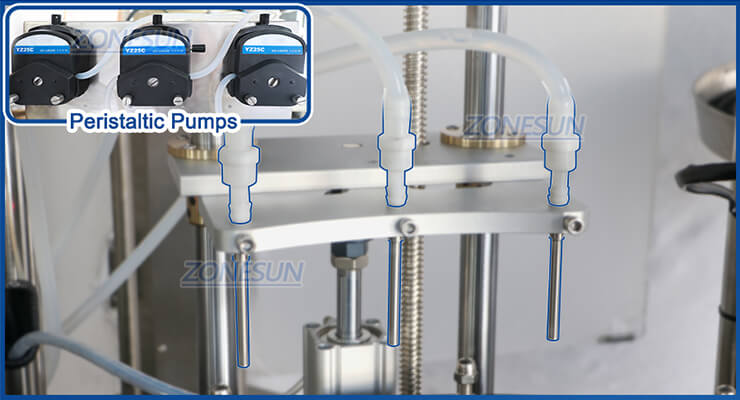

3 Filling Heads
Peristaltic pumps make liquid only pass through hoses, ensuring its cleanliness. The quantity of filling heads can be customized.

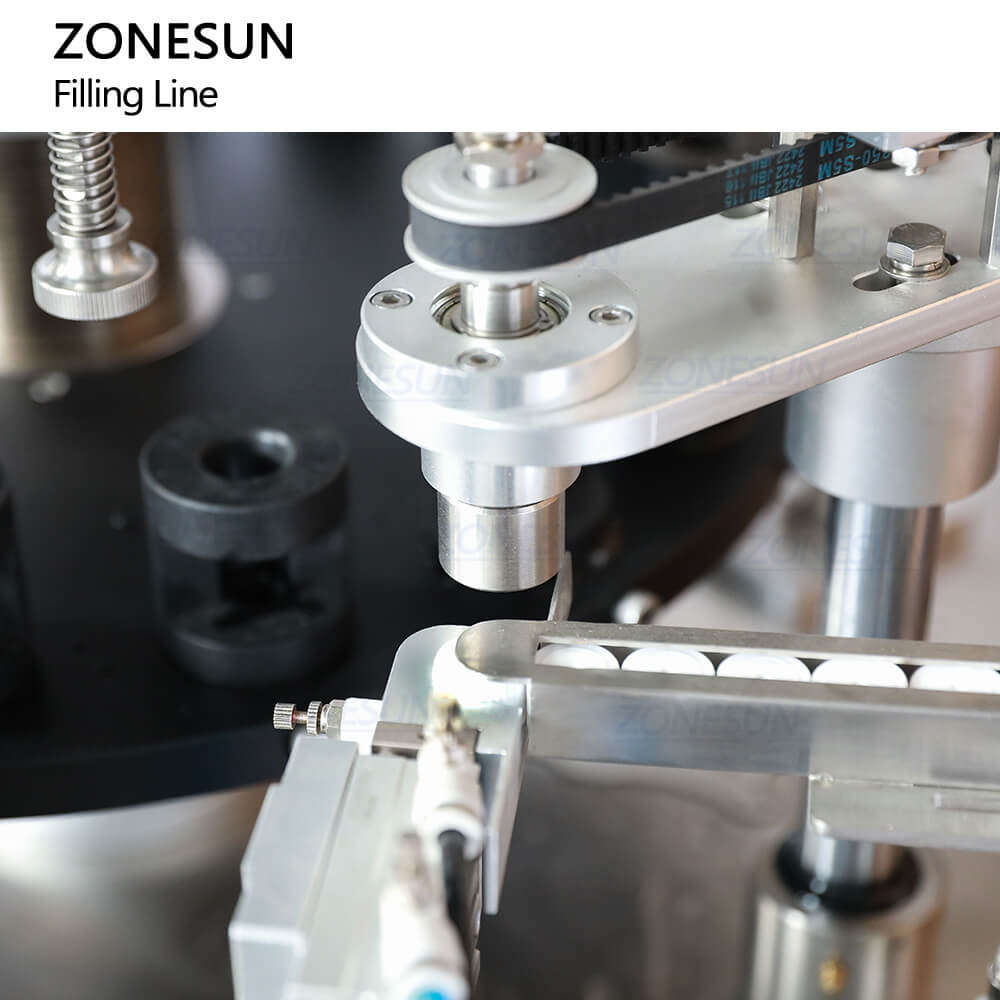

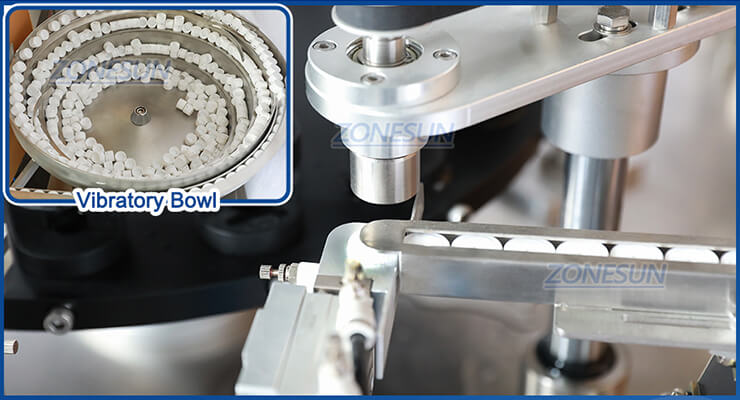

Cap Feeding Structure
It can pick up and feed caps to bottles, saving labor. The cap feeding structure is customized as your cap size.

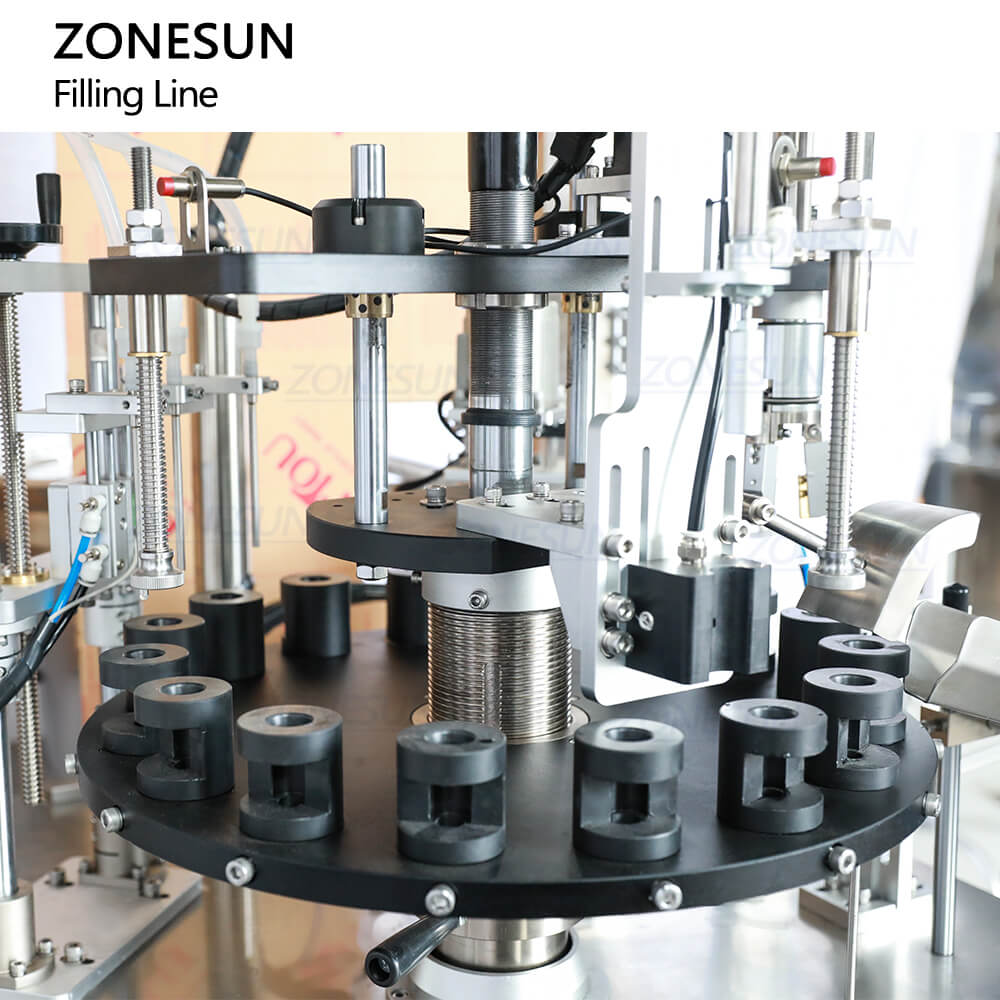

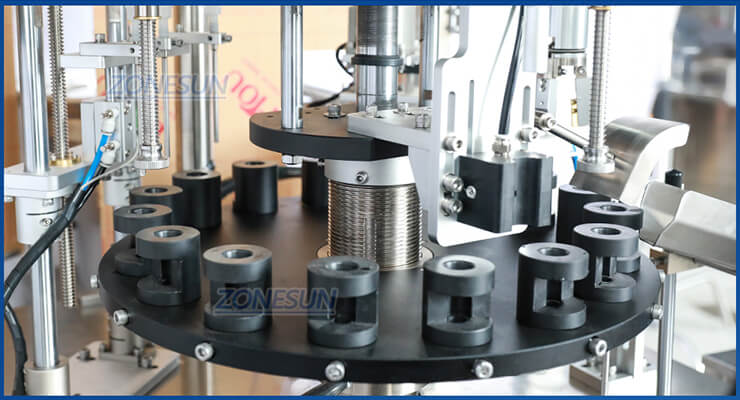

Rotary Design
Filling, cap loading and capping are combined at one machine. It adopts cam control system, which can pack 40BPM.

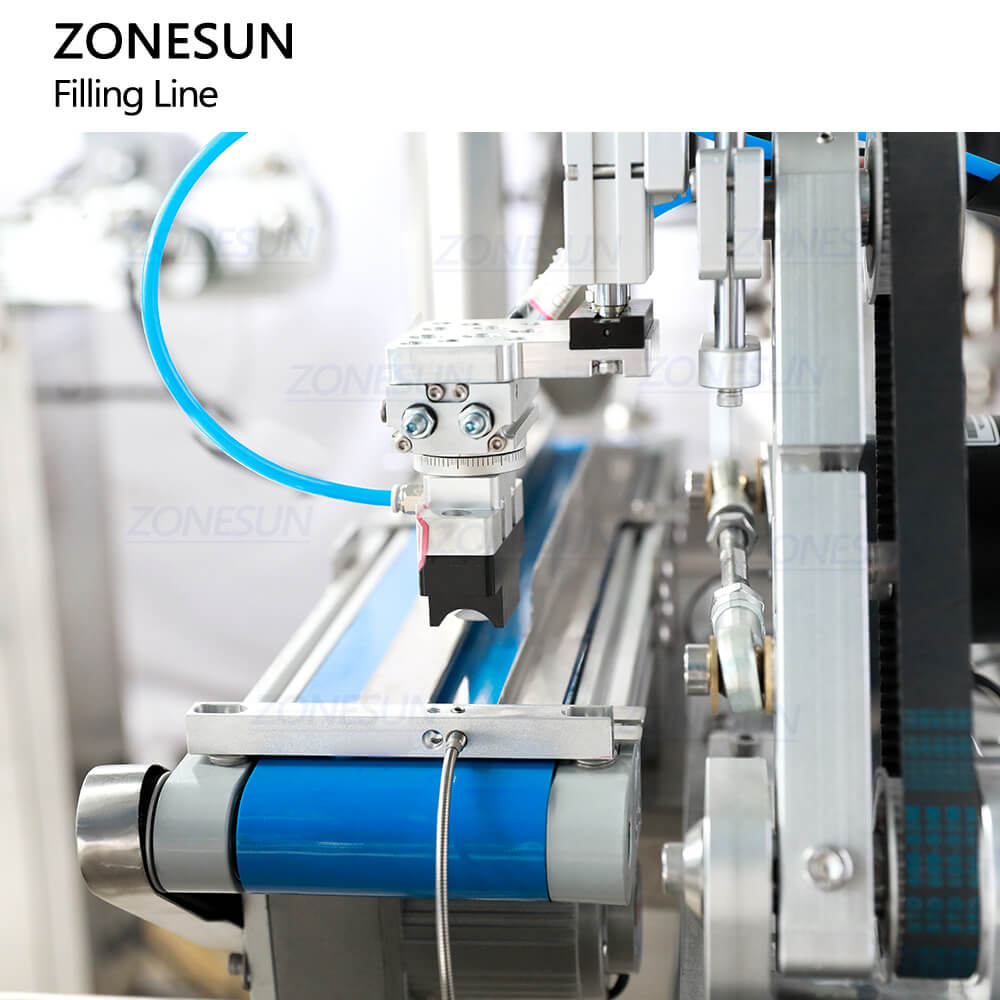

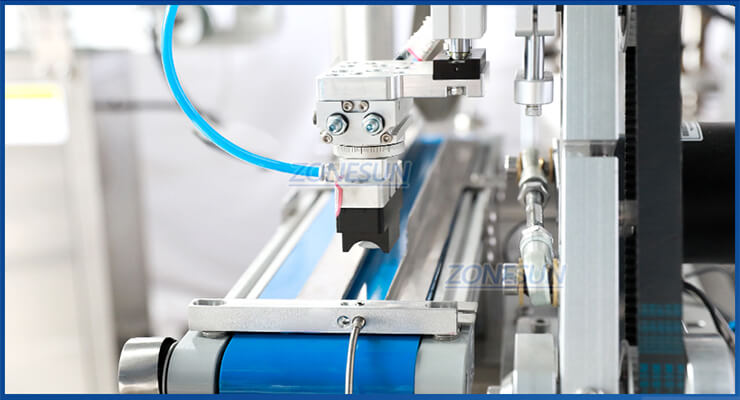

Bottle Orientating Structure
Can pick up bottles, make them in same direction and place them to conveyor of labeling machine automatically.

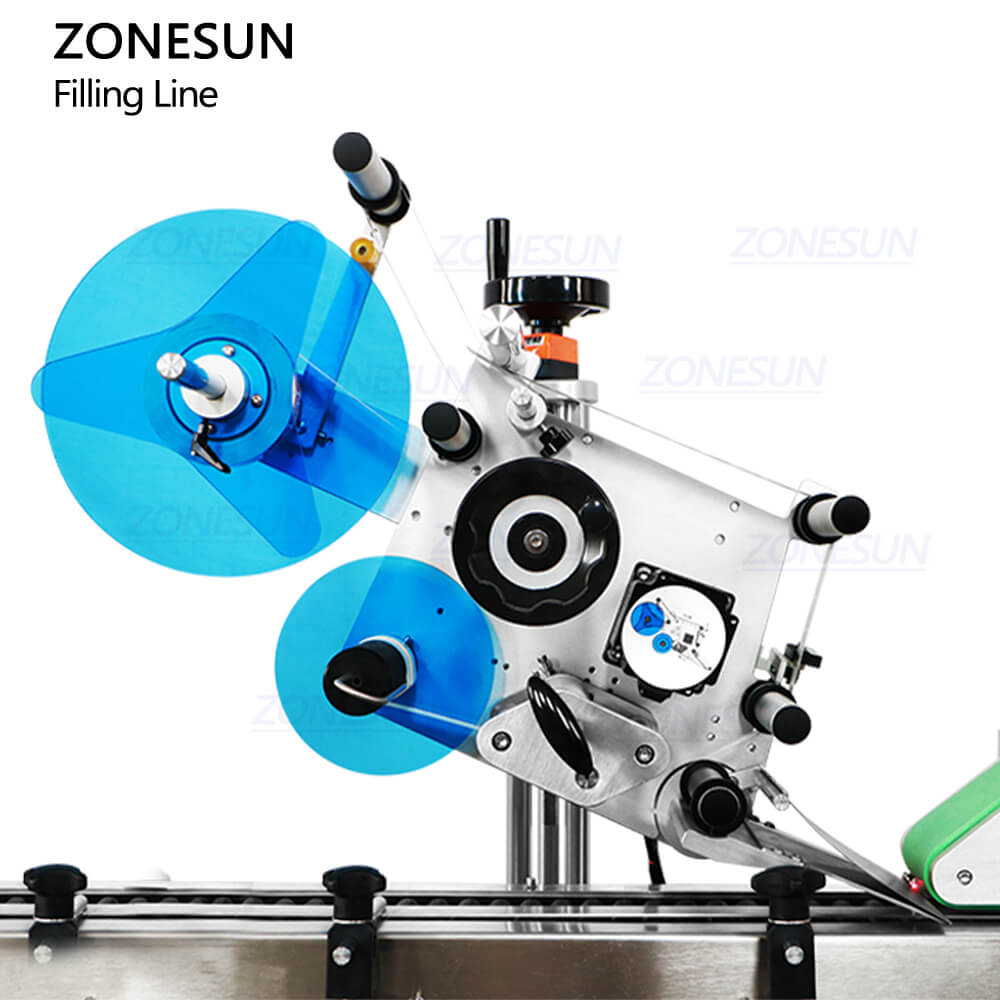

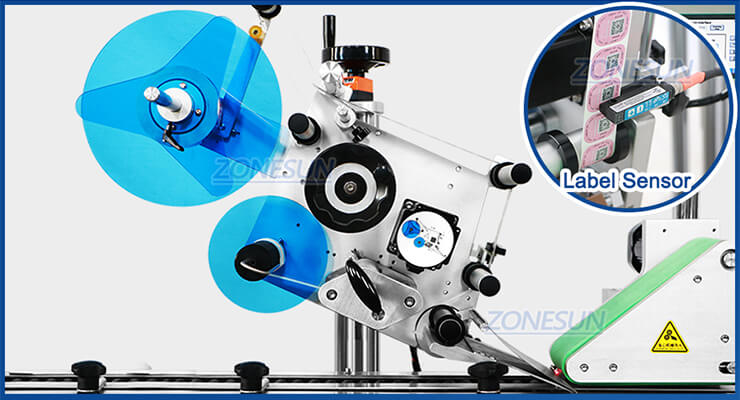

Labeling Structure
Suitable for semi-circle or full-circle labeling on small-diameter bottles. It can be equipped with date coder if needed.
