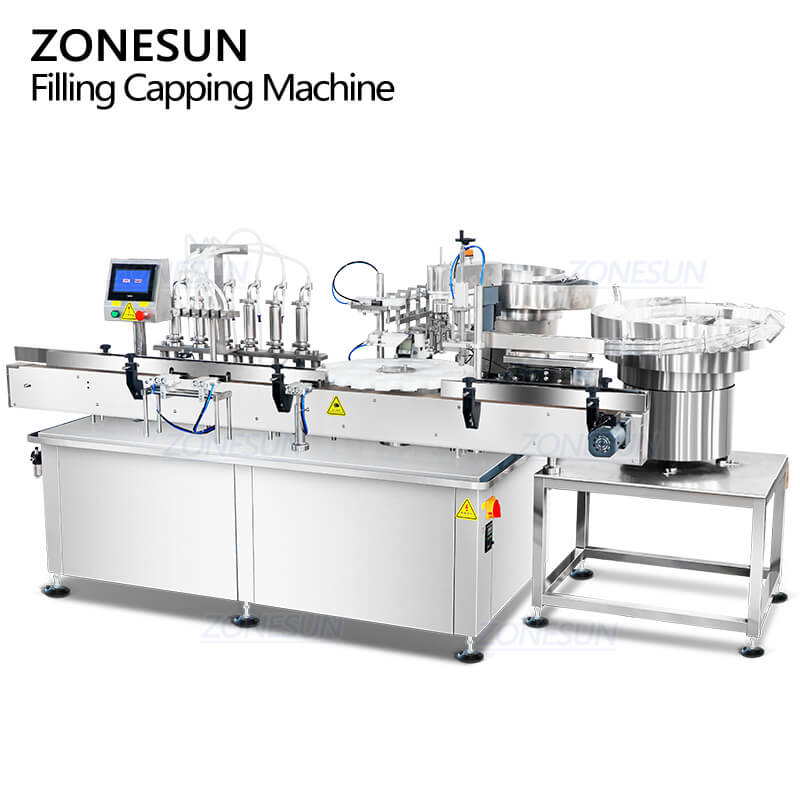

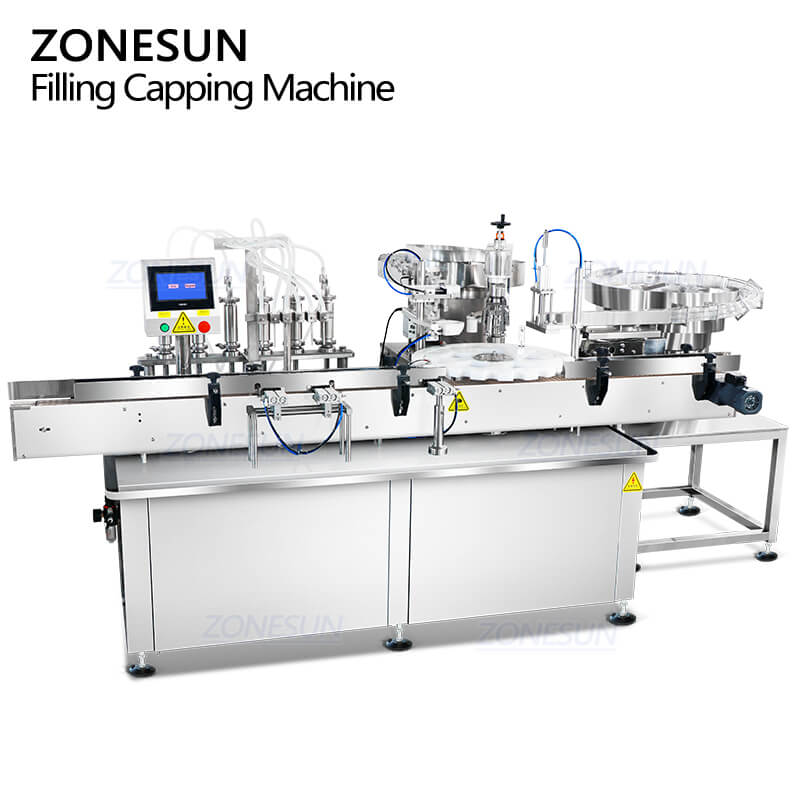

Cosmetic Spray Bottles Filling Capping Machine

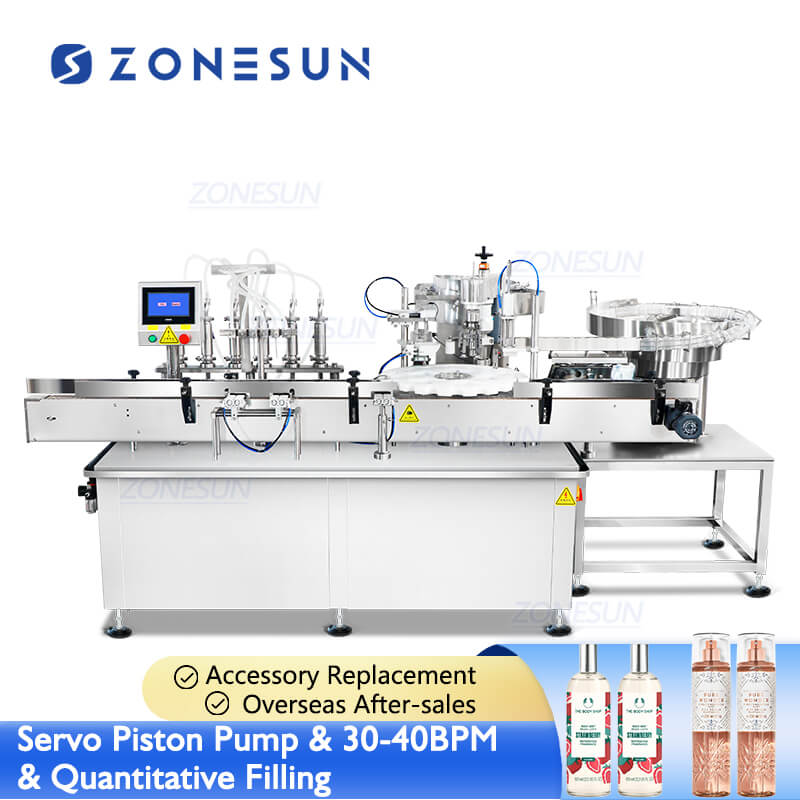

This filling capping machine is equipped servo piston pump to control quantitative filling, it is controlled by cam system and can reach 30-40BPM. This packaging machine is suitable for smalle scale production of body mist, perfume etc.
Share to
Product Description:
This filling capping machine is equipped servo piston pump to control quantitative filling, it is controlled by cam system and can reach 30-40BPM. This packaging machine is suitable for smalle scale production of body mist, perfume etc.
Product Parameters:
| Machine model | ZS-AFC46 |
| Machine voltage | 110/220V 50-60HZ 3KW |
| Filling range | 100ml (Customizable) |
| Working capacity | 30-40BPM |
| Filling pump | Servo Piston Pump |
| Quantity of filling nozzle | 6 |
| Filling accuracy | ±1% |
| Suitable bottle size | Customizable |
| Suitable cap size | Customizable |

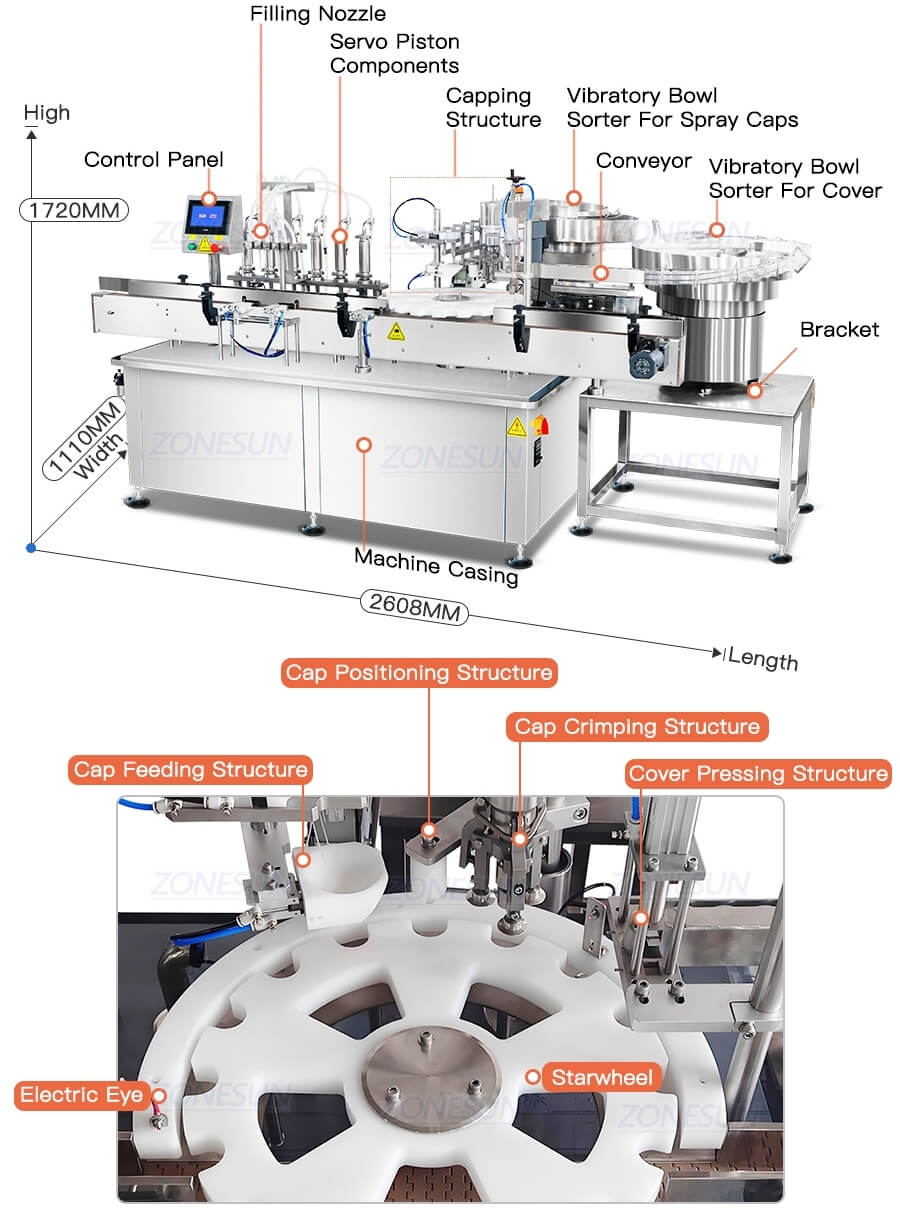

| Machine size | About 2608*1769*1448mm(L*W*H) |
| Machine weight | About 600kg |
| Package size | About 2760*1110*1720mm(Main Machine) +1550*1560*900(Vibratory Bowl Sorter) |
| Package weight | About 945kg(Main Machine)+330kg(Vibratory Bowl Sorter) |
Product Details:

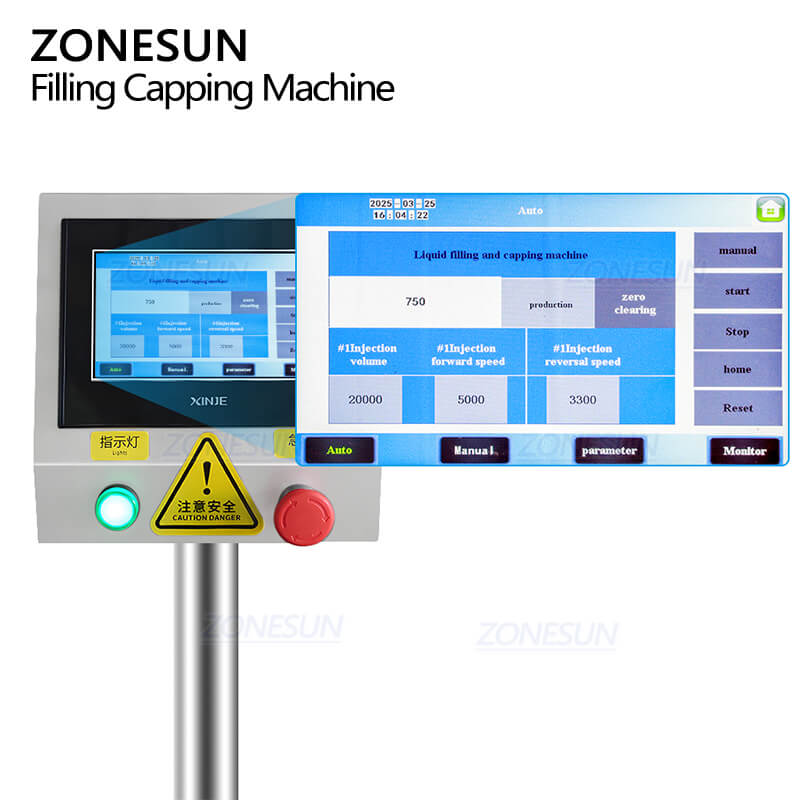

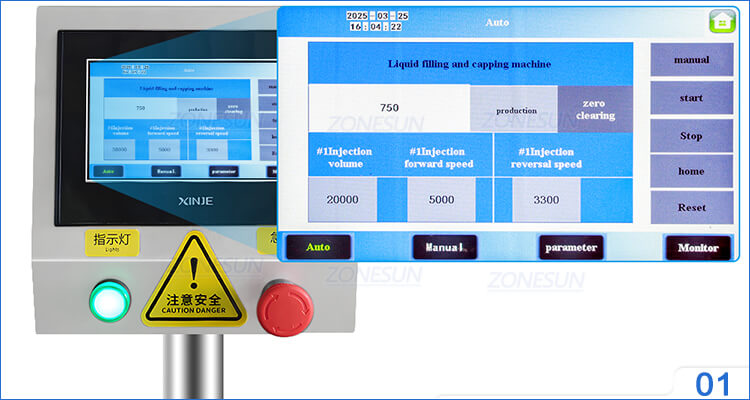

Touch Screen Control Panel
User-friendly human-machine interface for easy operation and real-time adjustments.

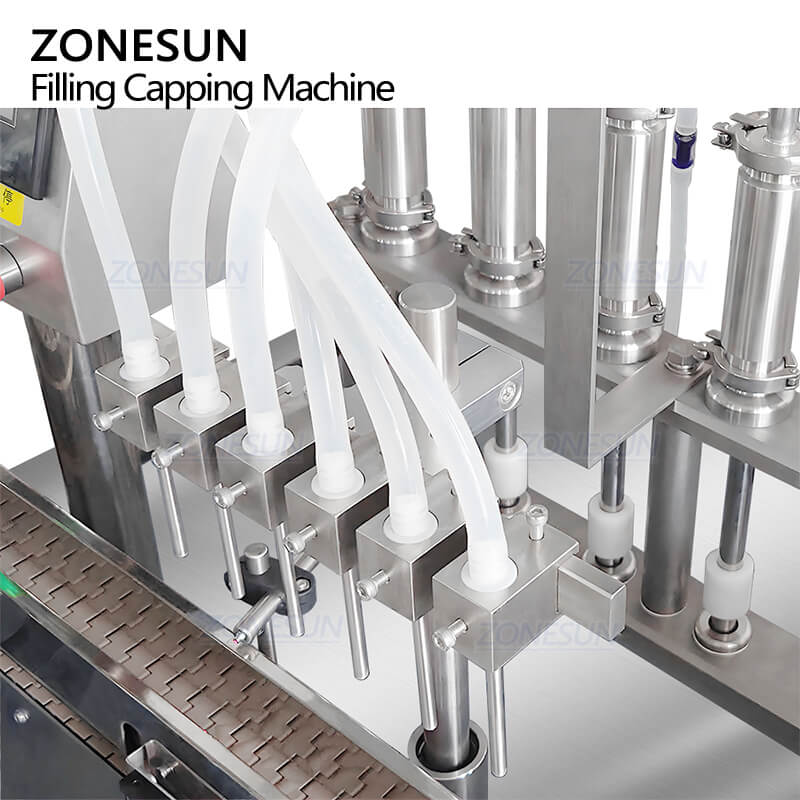

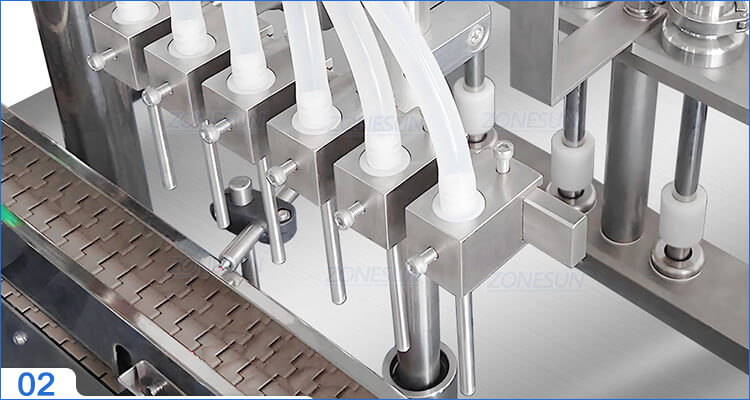

Quantitative filling
Servo piston pump, it can dispense a precise, pre-set amount of liquid into each bottle.

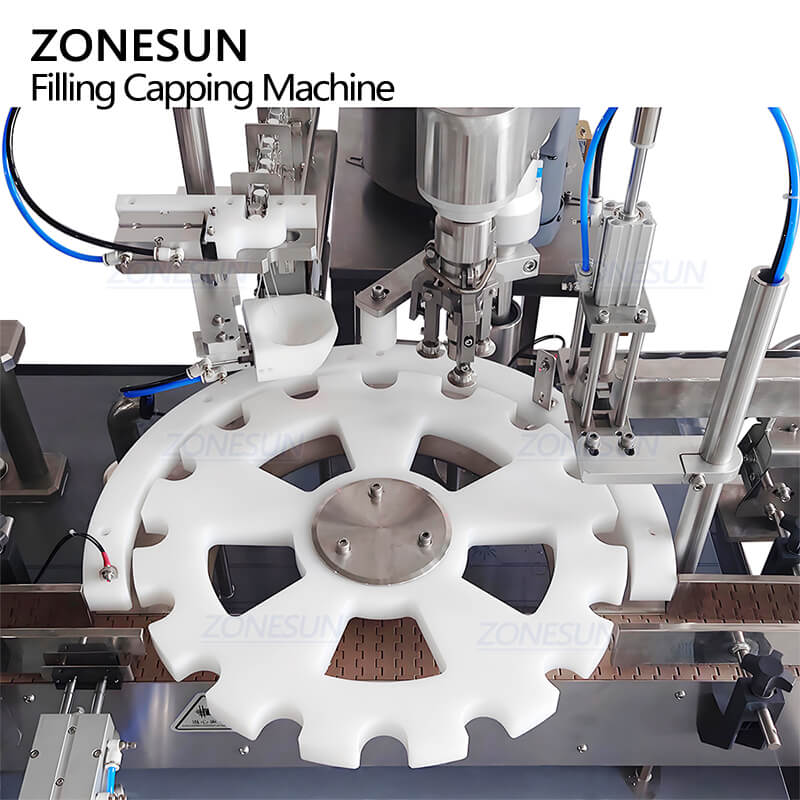

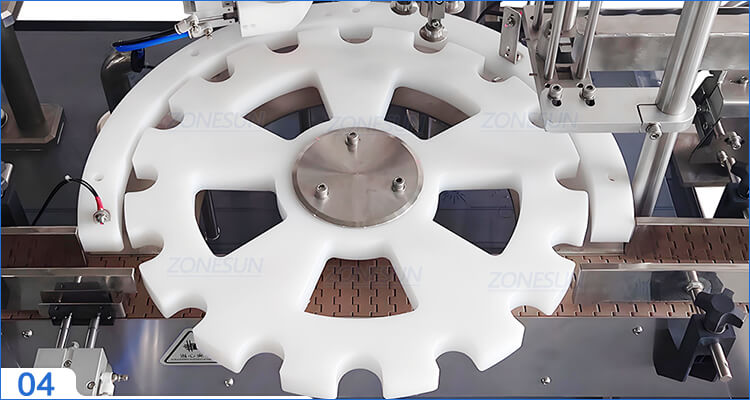

Cam system
Controls the machine’s movement, achieving a speed of 30 to 40 bottles per minute.
Multi-Functional Operation

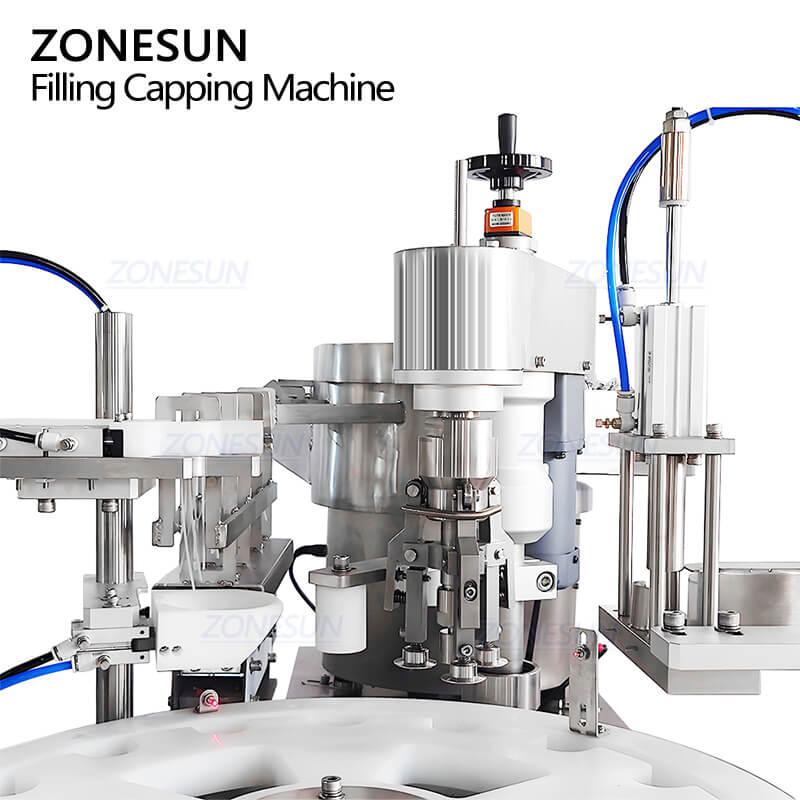

Capable of filling liquid, feeding spray caps, crimping caps, and pressing covers simultaneously, increasing efficiency.

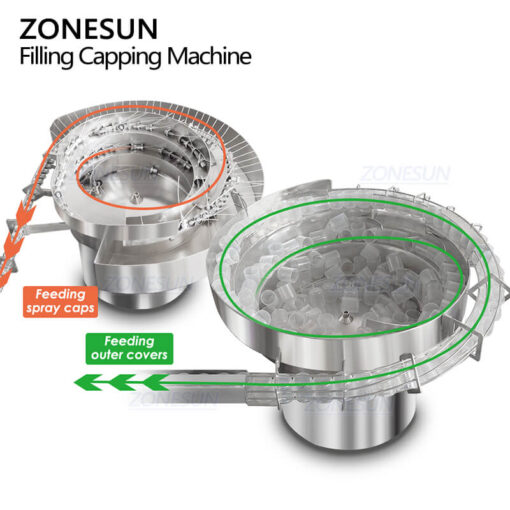

Vibratory Bowl Sorter
Feed bottle caps in time, it is customizable as production need.
