Cosmetic Spray Filling Line

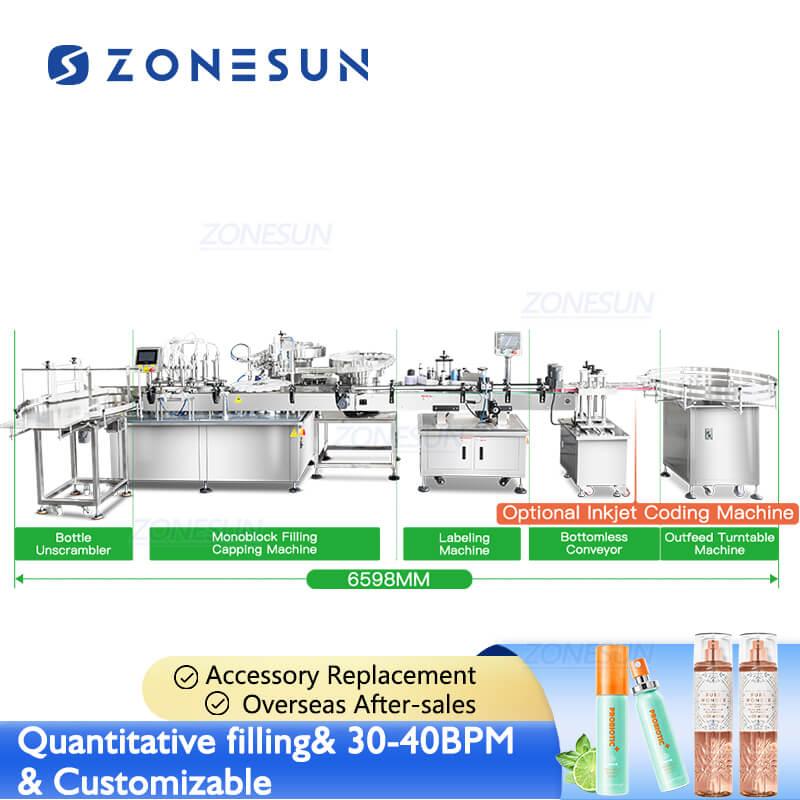

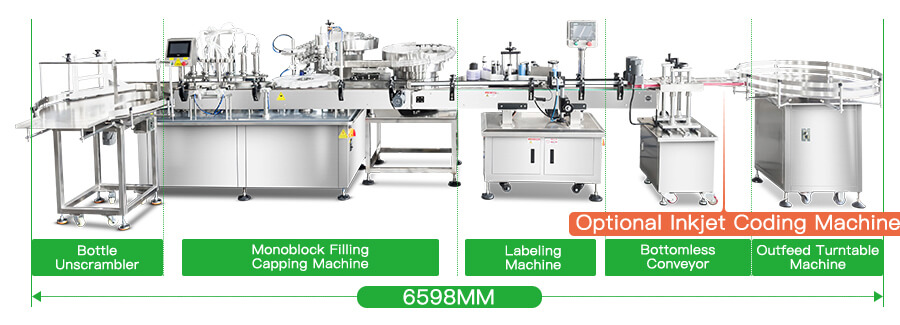

This filling line is consist of monoblock spray filling capping machine, round bottle labeling machine, bottomless conveyor, bottle turntable machine and optional inkjet coding machine.It is suitable for small scale production of body mist, perfume etc.
Share to
Product Description:
This filling line is consist of monoblock spray filling capping machine, round bottle labeling machine, bottomless conveyor, bottle turntable machine and optional inkjet coding machine.It is suitable for small scale production of body mist, perfume etc.
Product Parameters:
Monoblock Filling Capping Machine
| Machine model | ZS-AFC46 |
| Machine voltage | 110/220V 50-60HZ 3KW |
| Filling range | 100ml (Customizable) |
| Working capacity | 30-40BPM |
| Filling pump | Servo Piston Pump |
| Quantity of filling nozzle | 6 |
| Filling accuracy | ±1% |
| Suitable bottle size | Customizable |
| Suitable cap size | Customizable |
| Machine size | About 2608*1769*1448mm(L*W*H) |
| Machine weight | About 600kg |
| Package size | About 2760*1110*1720mm(Main Machine) About 1550*1560*900(Vibratory Bowl Sorter) |
| Package weight | About 945kg(Main Machine) About 330kg(Vibratory Bowl Sorter) |
Labeling Machine
| Model | ZS-TB260R |
| Power supply | AC220V 50Hz/60Hz 1000 W |
| Labeling capacity(bottles/min) | 25-50 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0 mm |
| Suitable Bottle Size | Φ=30-100 mm H=30-200mm |
| Label size(mm) | (L)20-300 mm* (H)12-130 mm(Can be customized) |
| Roll inside diameter(mm) | Φ76mm |
| Roll outside diameter(mm) | Φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About (L)2000*(W)820*(H)1380(mm) |
| Machine weight | About 180kg |
| Packing Size | About (L)2100*(W) 890*(H)1520(mm) |
| Package weight | About 250 kg |
Bottomless Conveyor
| Machine model | ZS-JP1 |
| Voltage | 220V 260W |
| Working speed | 0-60 bottles/min(based on bottle sizes) |
| Adjustable working height | 500mm |
| Conveyor length | 830mm |
| Machine size | About 560*520*1200mm |
| Machine weight | About 86kg |
| Package size | About 810*720*1330mm |
| Package weight | About 120kg |
Outfeed Turntable Machine
| Machine model | ZS-SP800S |
| Voltage | 220V 50Hz (110V can be customized) |
| Power supply | 200W |
| Bottle specifications | Square bottle/round bottle |
| Conveying speed | 0-20 revolutions per minute(adjustable) |
| Turntable diameter | 800mm (Customizable) |
| Dimensions | About 550*550*990mm |
| Package size | About 1050*1000*1130mm |
| Net weight/Gross weight | About 93kg/120kg |
Product Details:

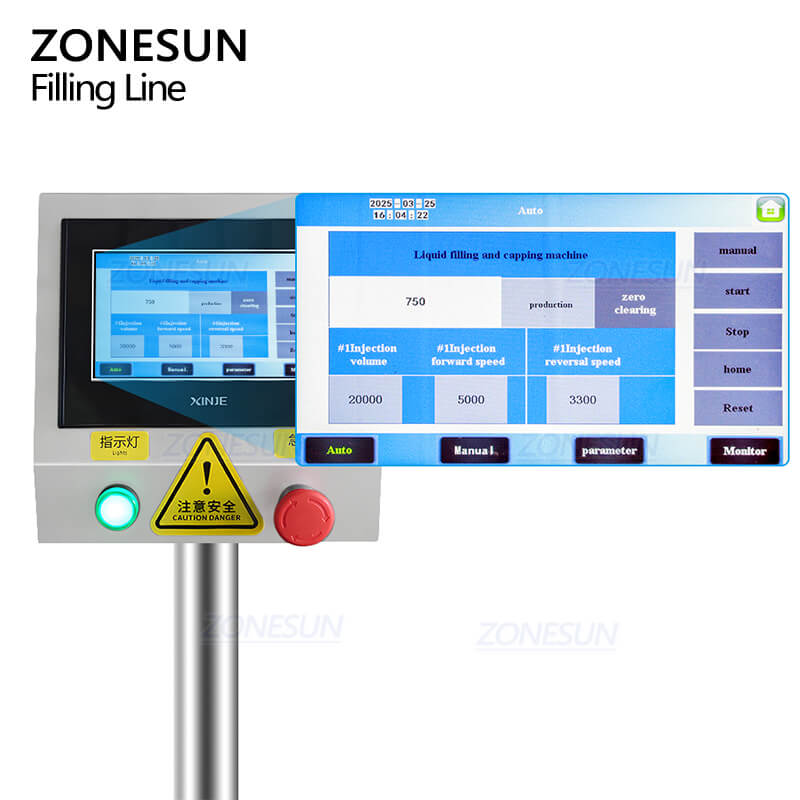

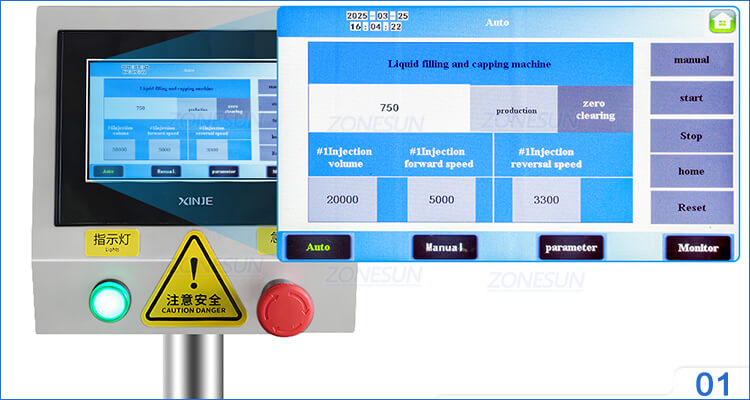

Touch Screen Control Panel
Shows parameter setting more intuitively, easy to debug machine.

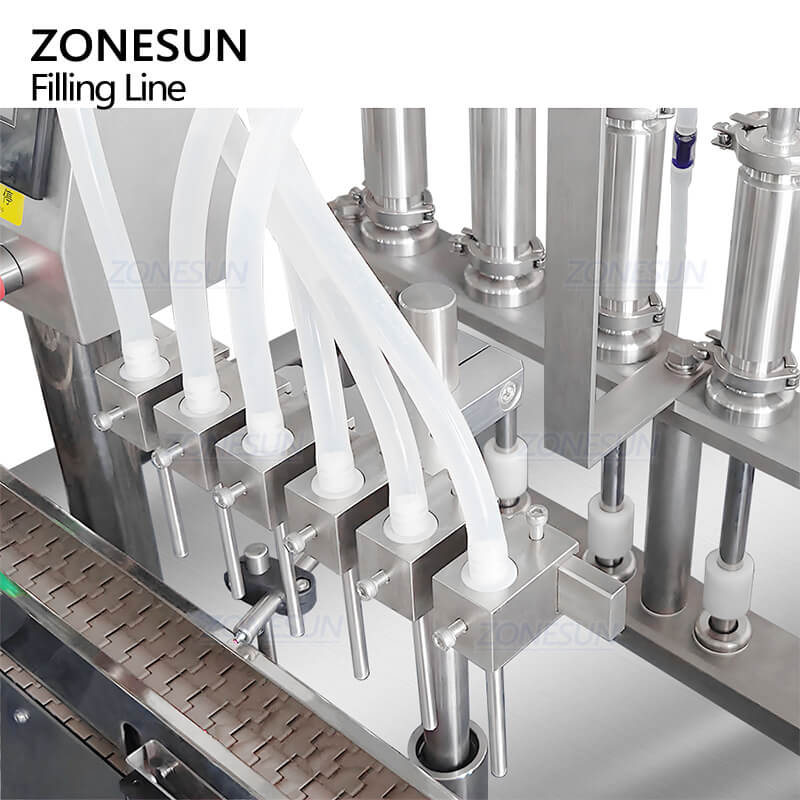

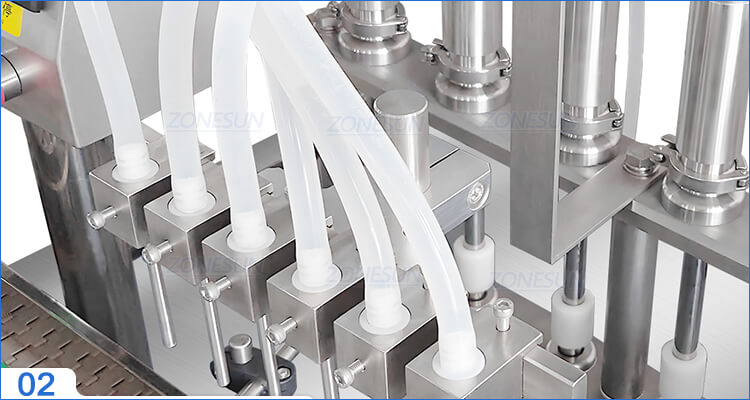

Quantitative filling
Servo piston pump, it can dispense a precise, pre-set amount of liquid into each bottle.

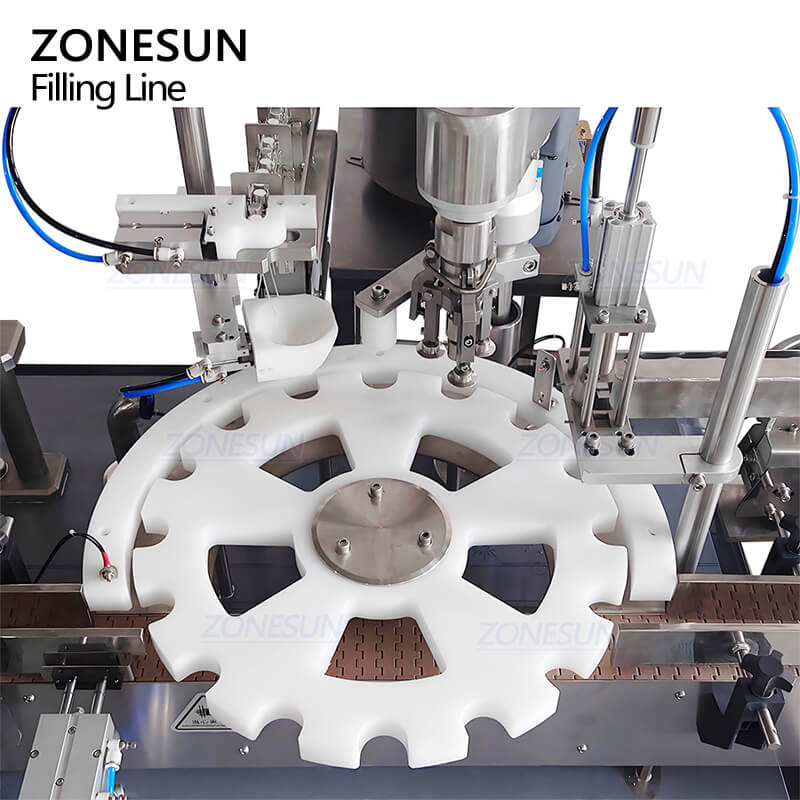

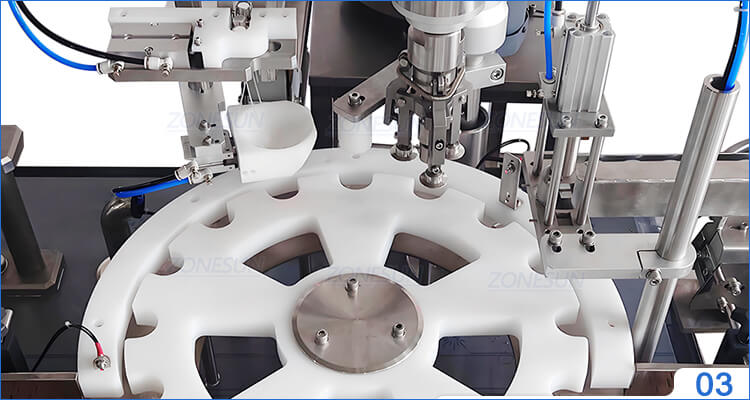

Multi-Functional Operation
Capable of filling liquid, feeding spray caps, crimping caps, and pressing covers simultaneously, increasing efficiency.

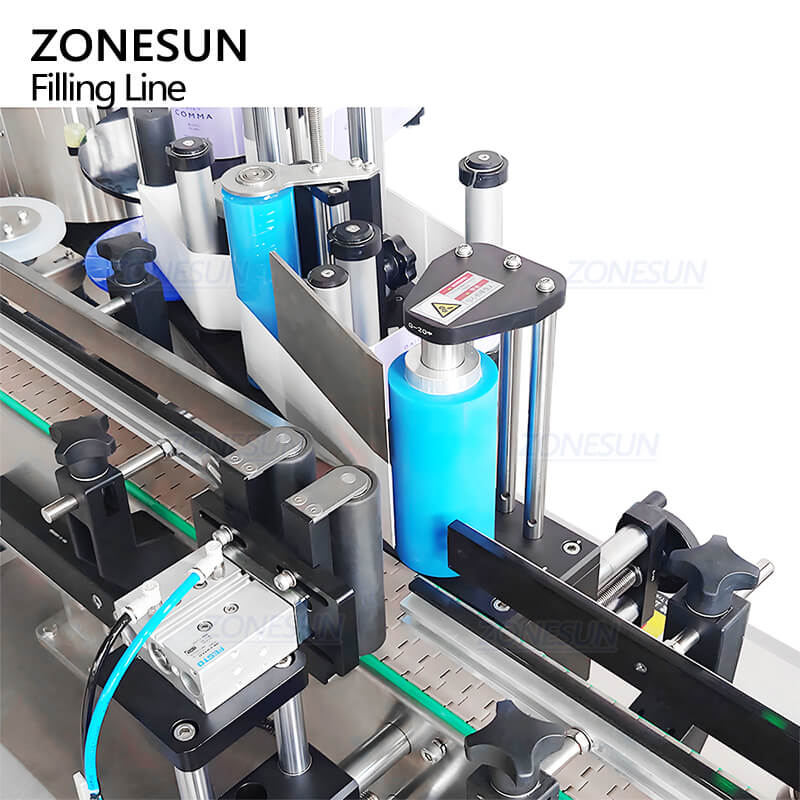

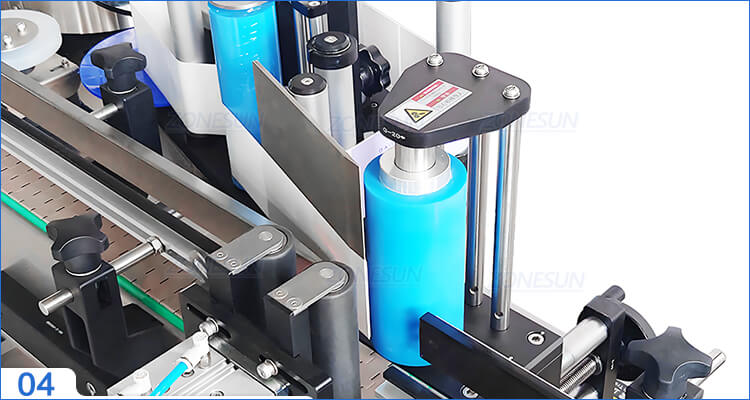

Labeling Structure
Three roller bar finish labeling work, it suits single side, double sides and wrap-around labeling, can reach 20-50BPM.

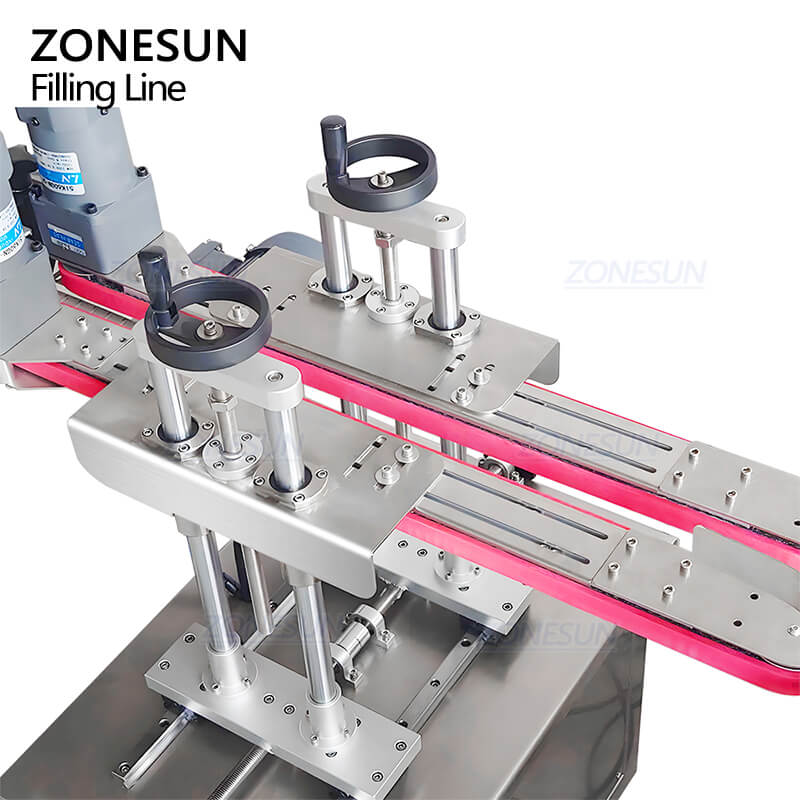

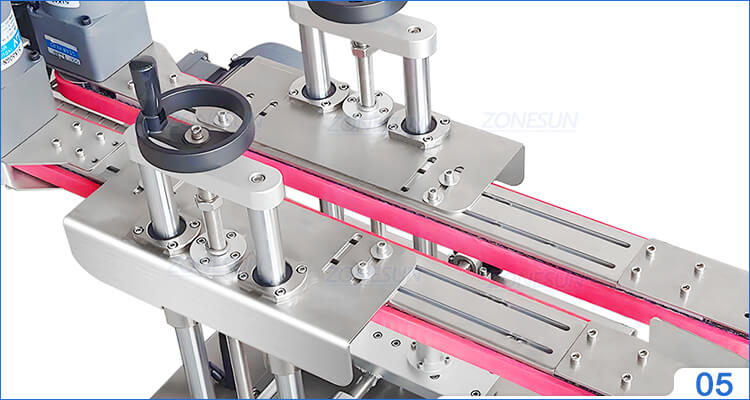

Bottomless Conveyor
Can pass bottles and regularly work with optional inkjet coding machine to realize complete packaging work.

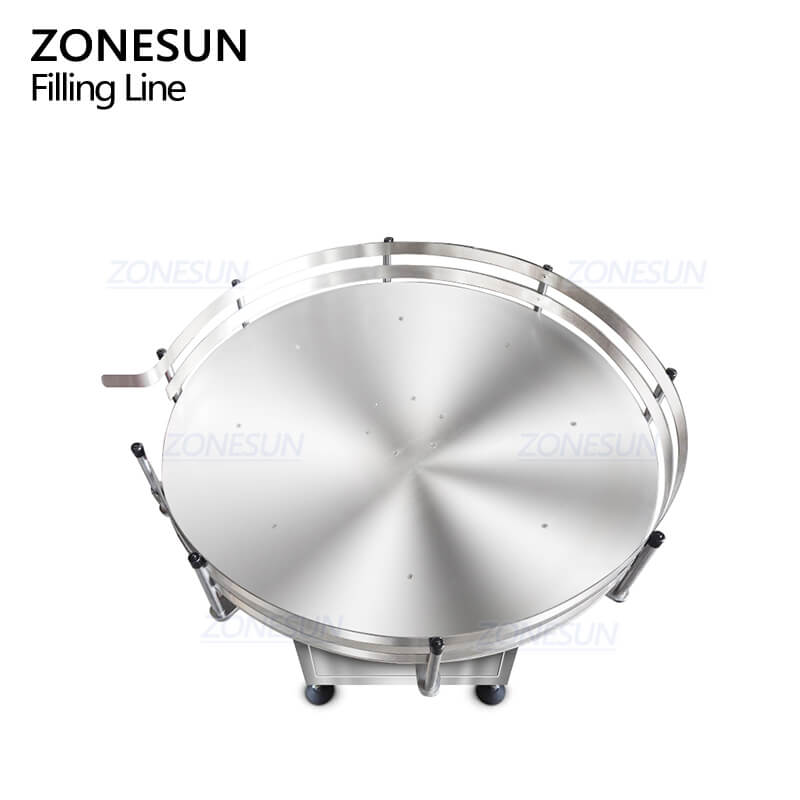

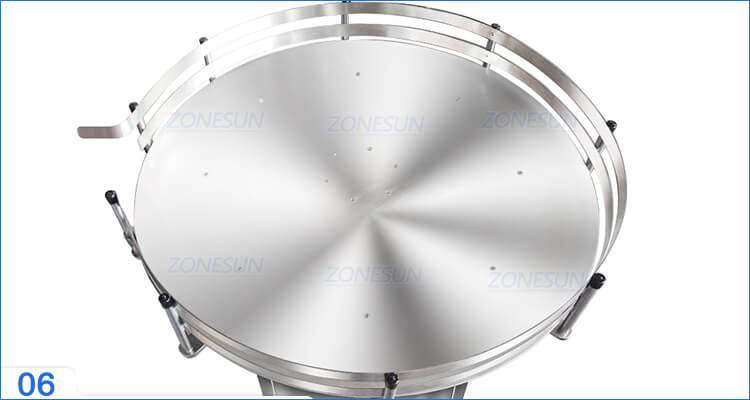

Bottle Turntable
Size of turntable machine is customizable based on production, saves working labor.
