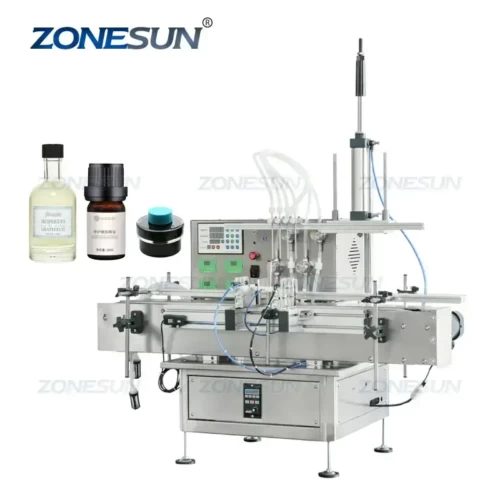

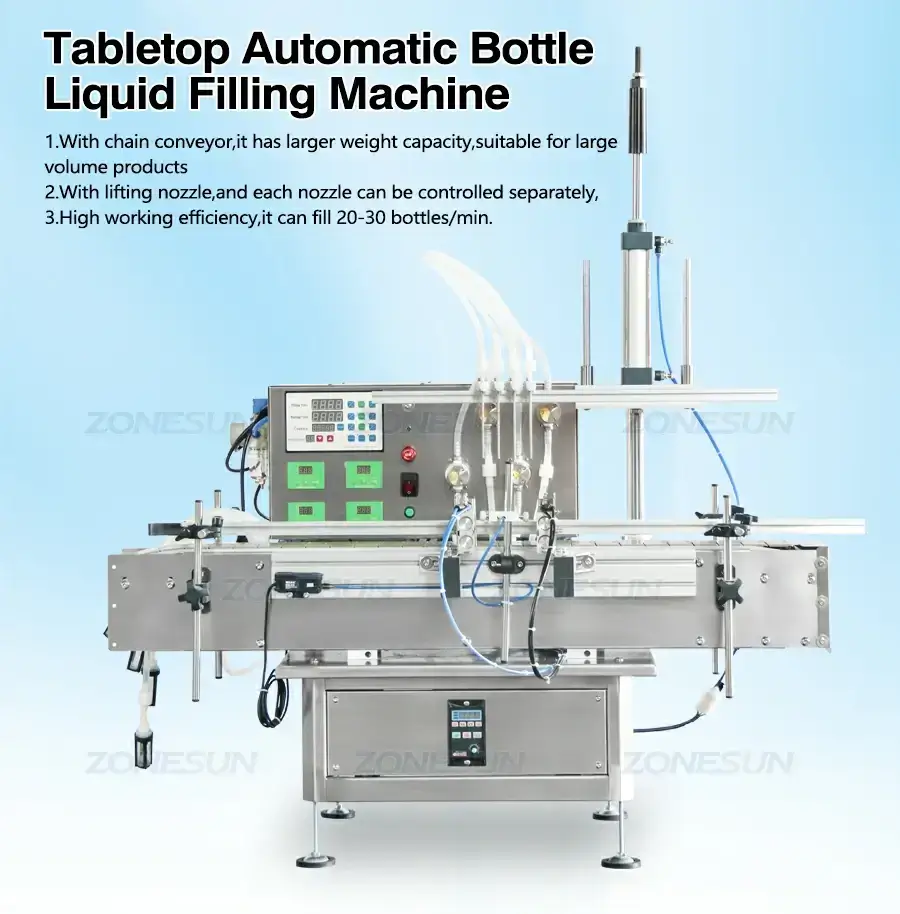

Desktop Magnetic Pump Filling Machine

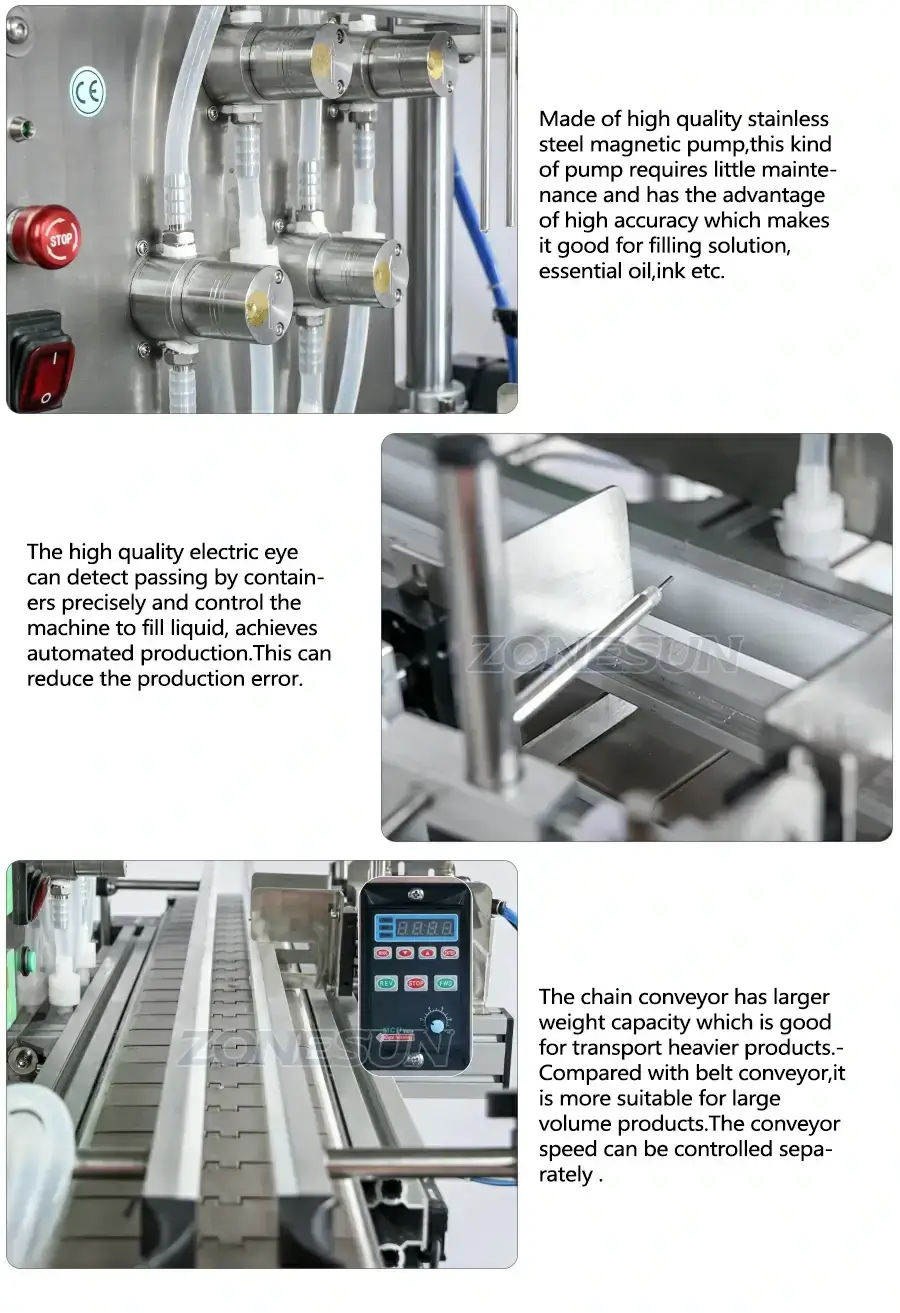

This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt,this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.The magnetic pump filling machine is high precision that it can be used to fill essential oil,solution,eye drops,inks,perfume etc.
Share to
Description:
This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt,this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.The magnetic pump filling machine is high precision that it can be used to fill essential oil,solution,eye drops,inks,perfume etc.
Parameter:
| Machine model | ZS-DTMP4AL |
| Power supply | 110/220V 50-60HZ 300W |
| Maximum flow velocity |
6000ml/min
(Each nozzle and base on water)
|
| Working speed | 20-30 bottles/min |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤±1% (For water) |

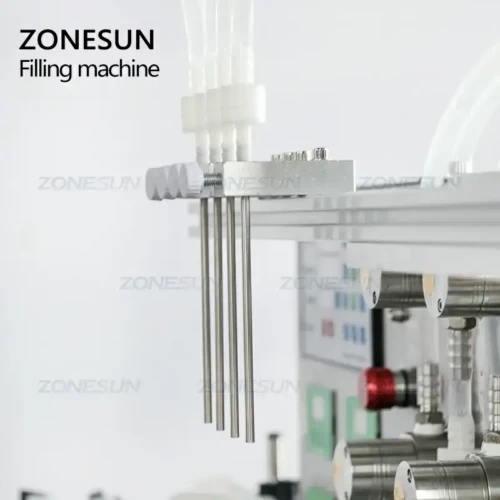

| Diameter of filling nozzle | 6/8mm |
| Delay range | 0.01-999.9s |
| Count range | 1-99999 Times |
| Filling volume | 3-1000ml |
| Size of air compressor connector | OD8mm |
| Machine size | About 1100*580*1110mm |
| Package size | About1140*650*840mm |
| Net weight/Gross weight | About 74kg/90kg |
