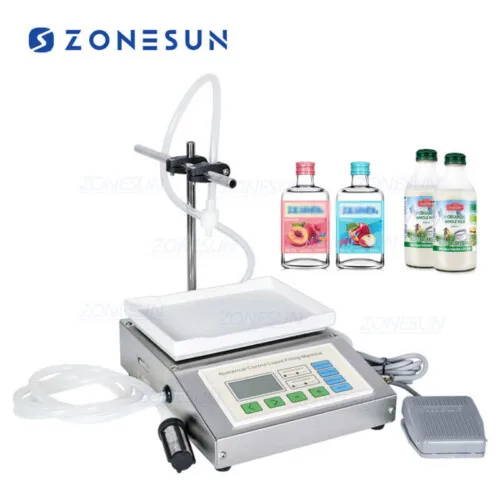

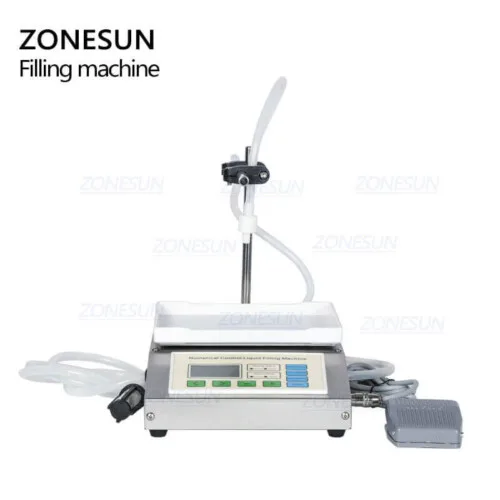

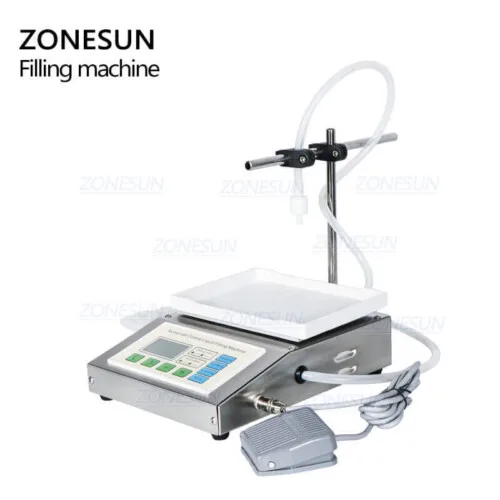

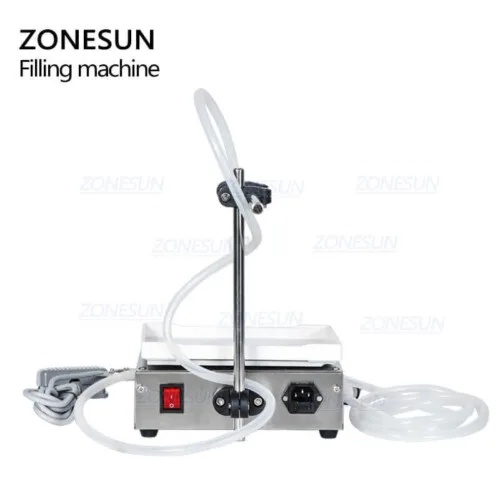

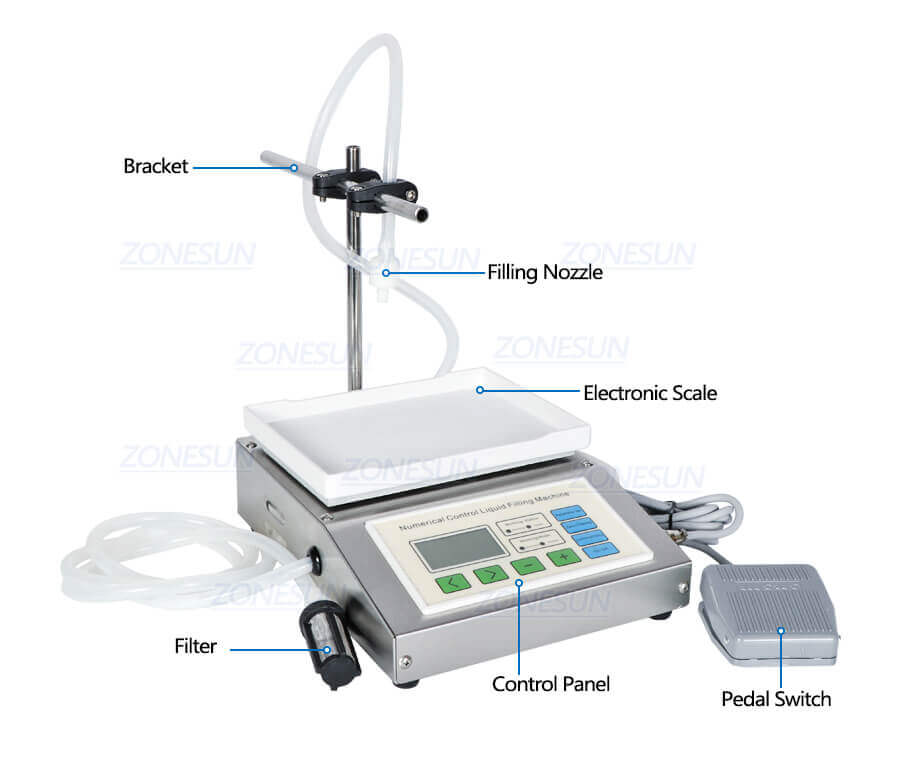

Diaphragm Pump Weighing Filling Machine

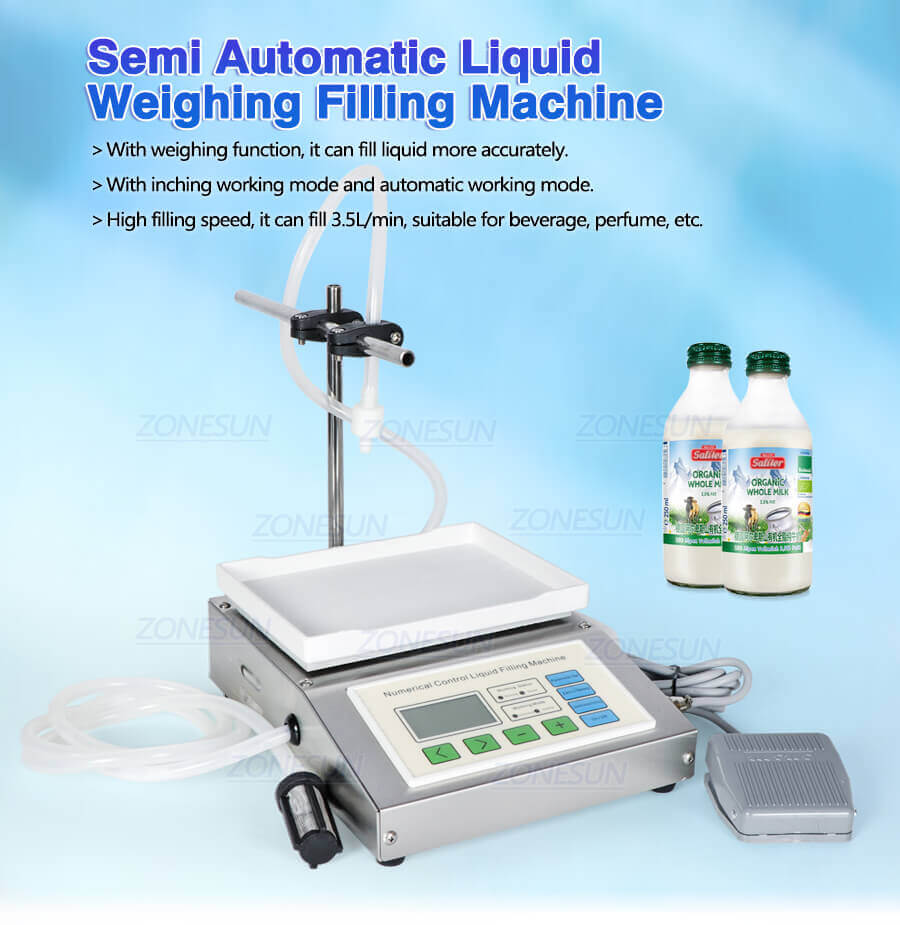

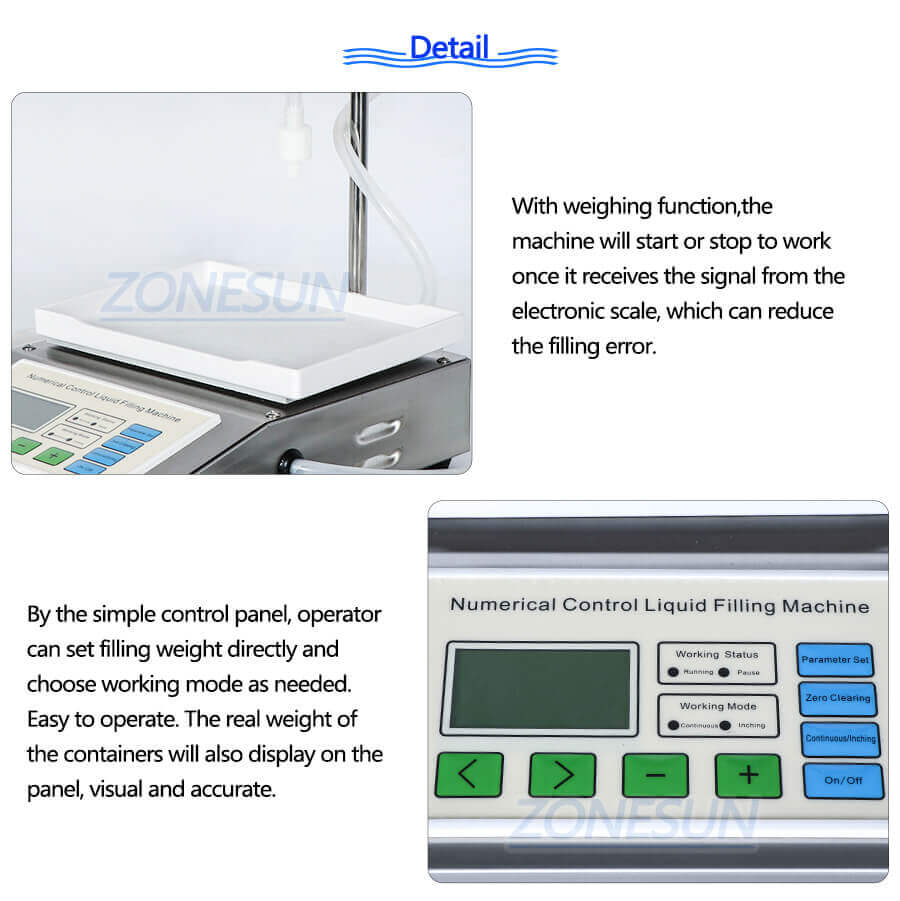

This light-type weighing filling machine is suitable for filling low-viscosity liquid that is without particle, such as essential oil, perfume, juice, water, etc. With weighing function, it can fill liquid more accurately. It can be widely used in food, cosmetic, daily chemical industries.
Share to
Product Description:
This light-type weighing filling machine is suitable for filling low-viscosity liquid that is without particle, such as essential oil, perfume, juice, water, etc. With weighing function, it can fill liquid more accurately. It can be widely used in food, cosmetic, daily chemical industries.
Product Parameters:
| Machine Model | ZS-DP611W |
| Machine Power | 220V/110V 50-60Hz 35W |
| Machine Pump | Diaphragm Pump |
| Max Flow Rate | 3.5L/min |
| Filling Range | 30mL-3.5L |
| Weighing Range | 30g-5kg |

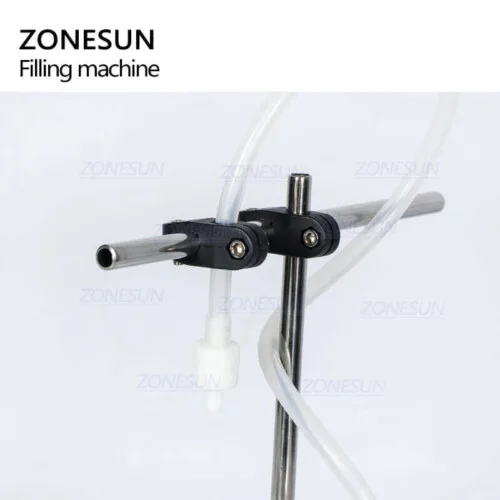

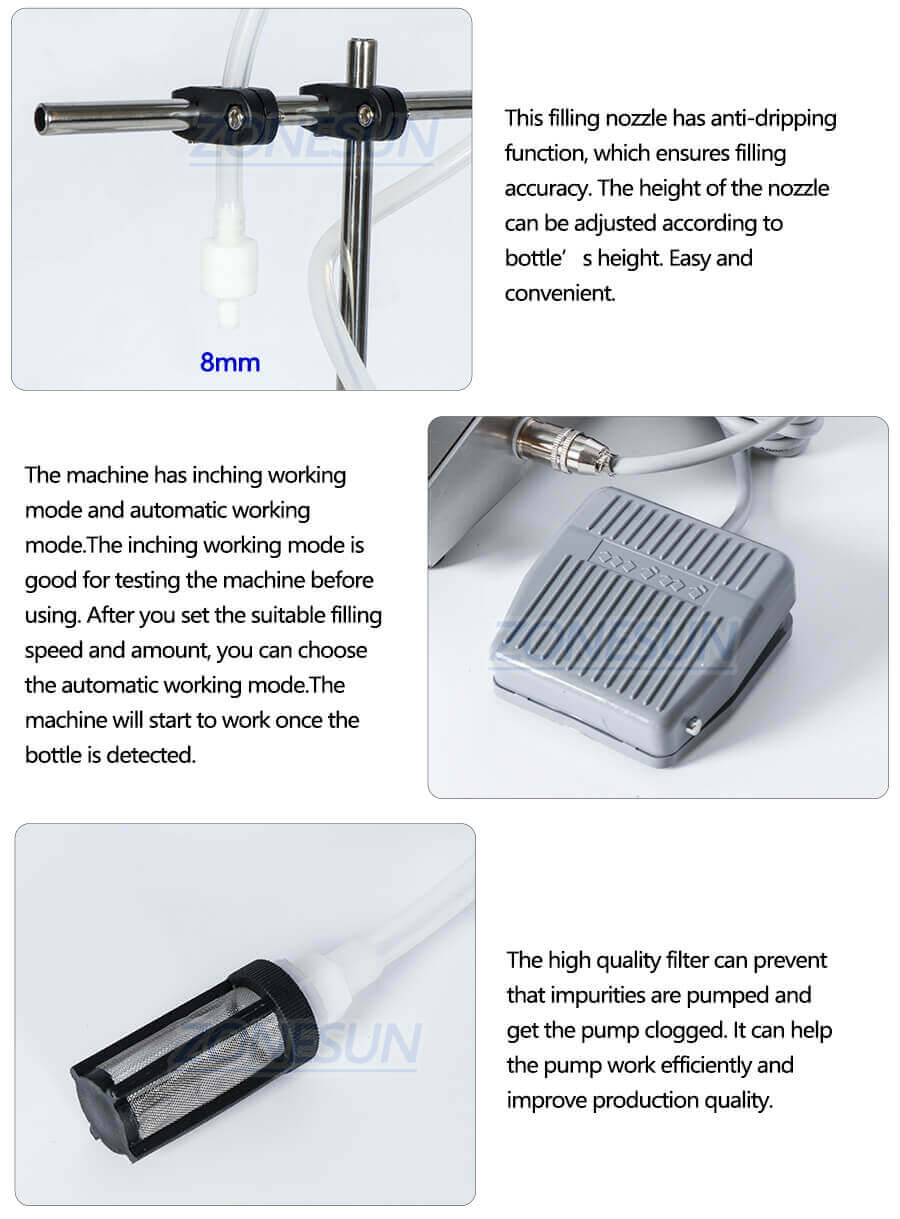

| Filling Nozzle Diameter | 8mm |
| Hose Diameter | 6mm(ID)/10mm(OD) |
| Hose Length | 1.7m(inlet)/1.4m(outlet) |
| Repetitive Error | ±1g |
| Liquid Temperature | <52℃ |
| Machine Size | 220mm*286mm*95mm |
| Machine Weight | 3kg |
| Package Size | 340mm*330mm*140mm |
| Package Weight | 3.5kg |
