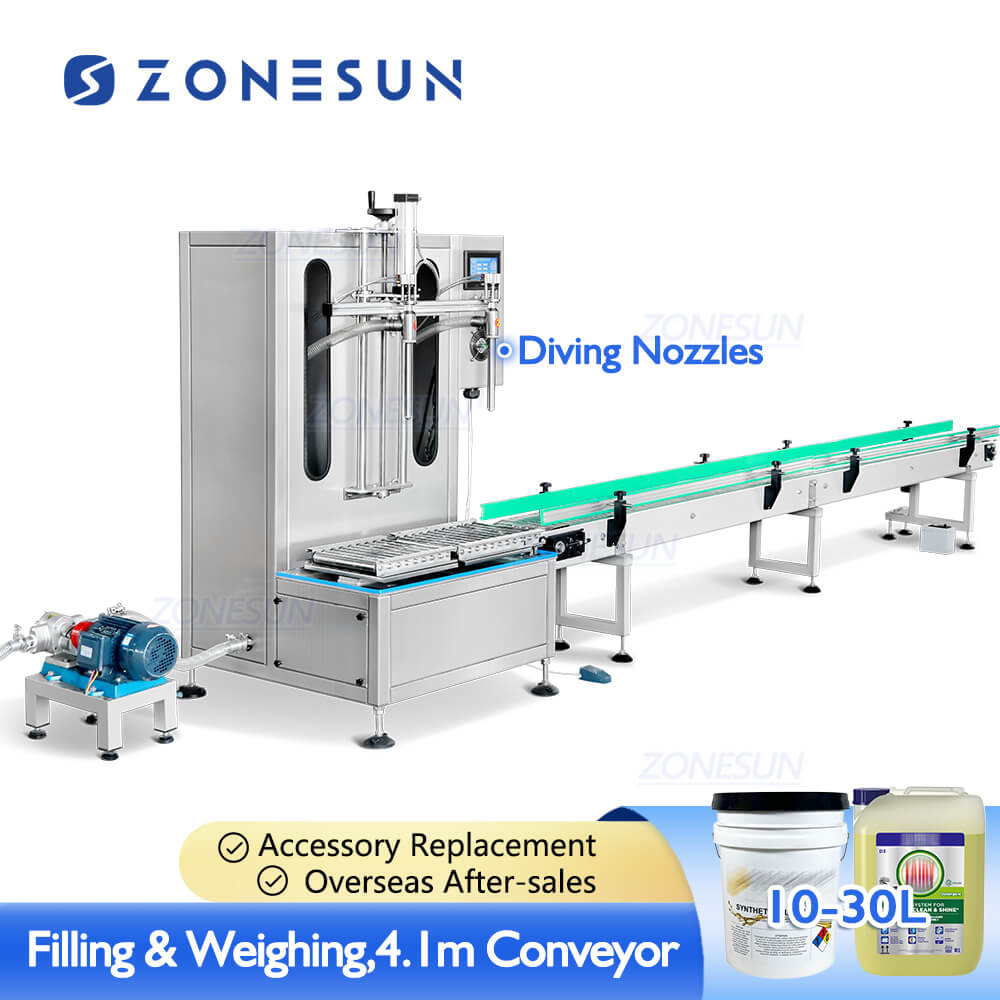

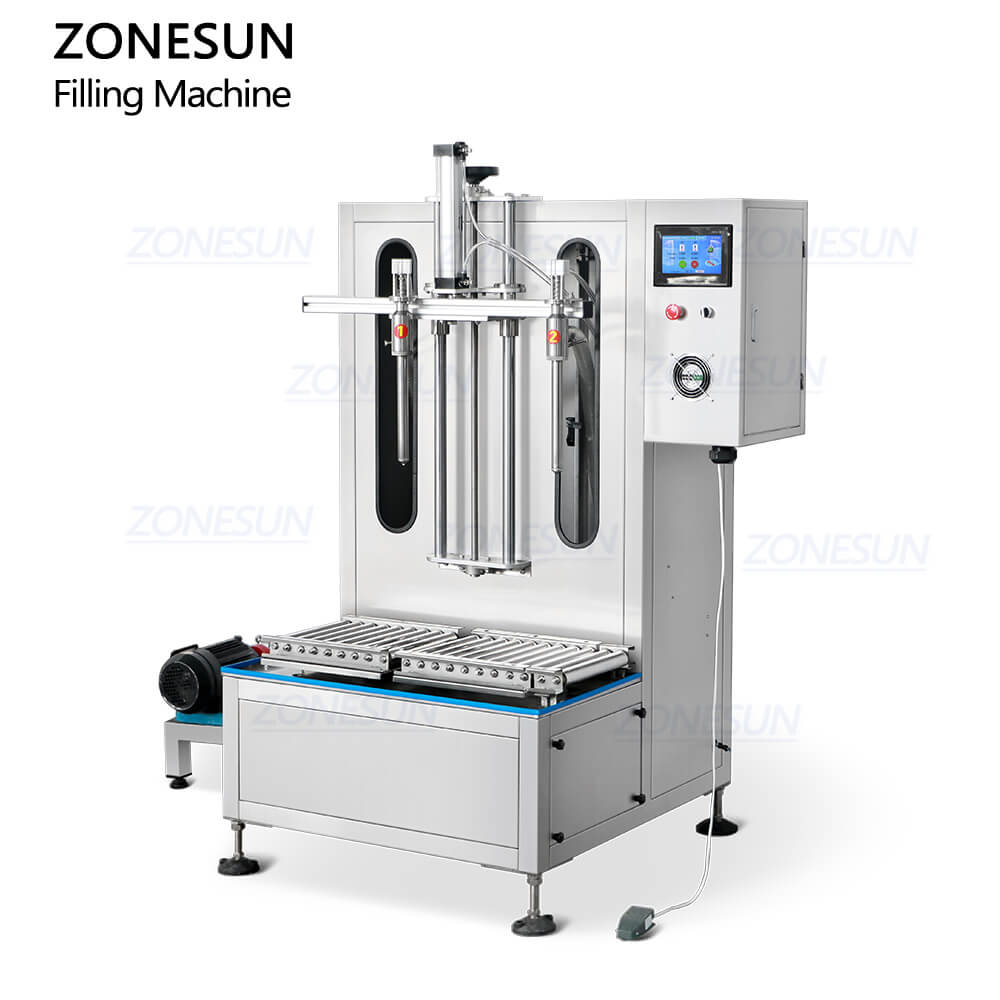

Double Diving Nozzle Weighing Filling Machine
Equipped with diving nozzles to ensures accurate filling of foamy lqiuid. This semi-automatic filling machine has function of weighing, it suits large filling volume, the conveyor belt can help to transport containers to next working production process.
Share to
Product Description:
Equipped with diving nozzles to ensures accurate filling of foamy lqiuid. This semi-automatic filling machine has function of weighing, it suits large filling volume, the conveyor belt can help to transport containers to next working production process.
Product Parameters:
| Machine model | ZS-GTW2S |
| Machine voltage | 380V 50HZ |
| Filling range | 5L-30L(can be customized) |
| Filling speed | 100-120 BPH(based on filling volume) |
| Filling accuracy | ± 0.5% |
| Feeding pump | Gear pump |
| Air pressure | 0.5-0.7MPa |
| Max weighing range | 50kg |
| Filling heads quantity | 2 diving nozzles |
| Conveyor length | About 4100*610*650mm |
| Machine size | About 1160*940*1800mm |
| Packaging size | About 1110*1110*1730mm |
Product Details:

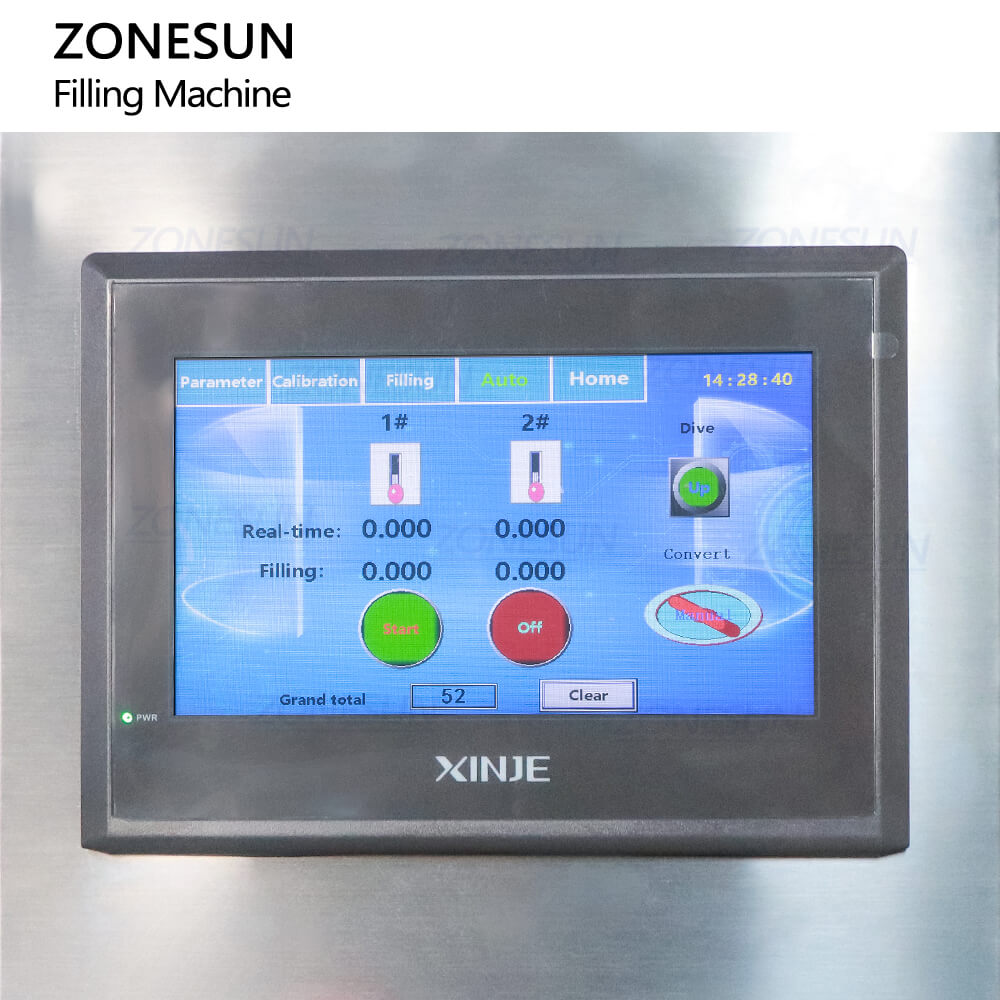

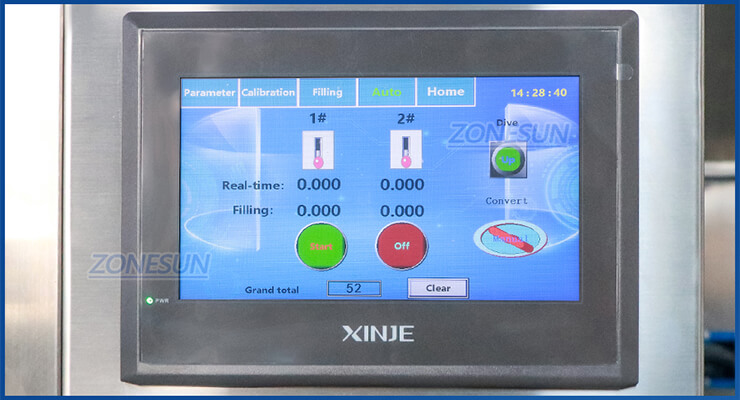

Control Panel
Touch screen control panel simplifies machine operation, multi languages are customizable based on production need.

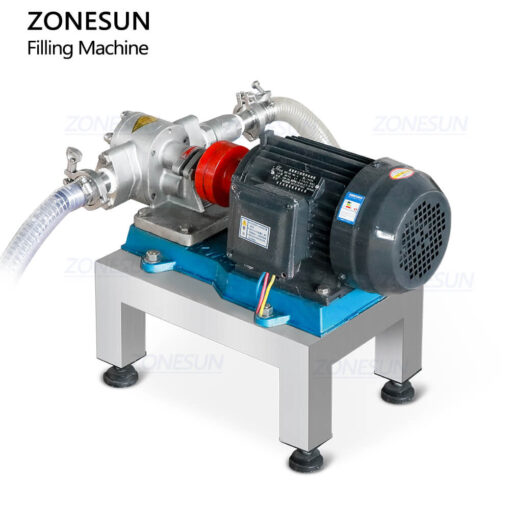

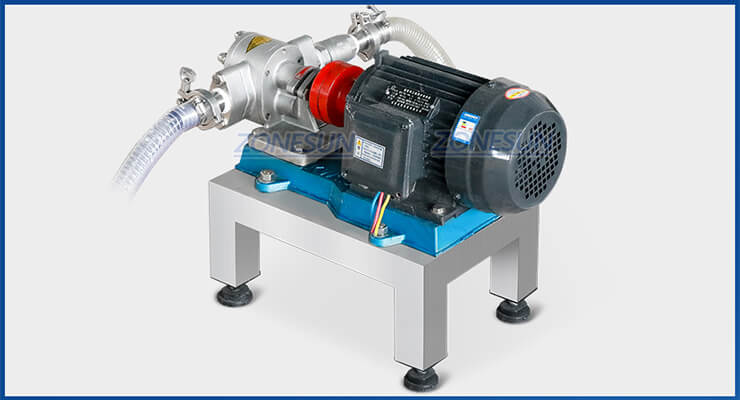

Gear Feeding Pump
Equipped with gear feeding pump to supply filling material in time, it suitable liquid includes detergent, cooking oil, antifreezing solution etc.

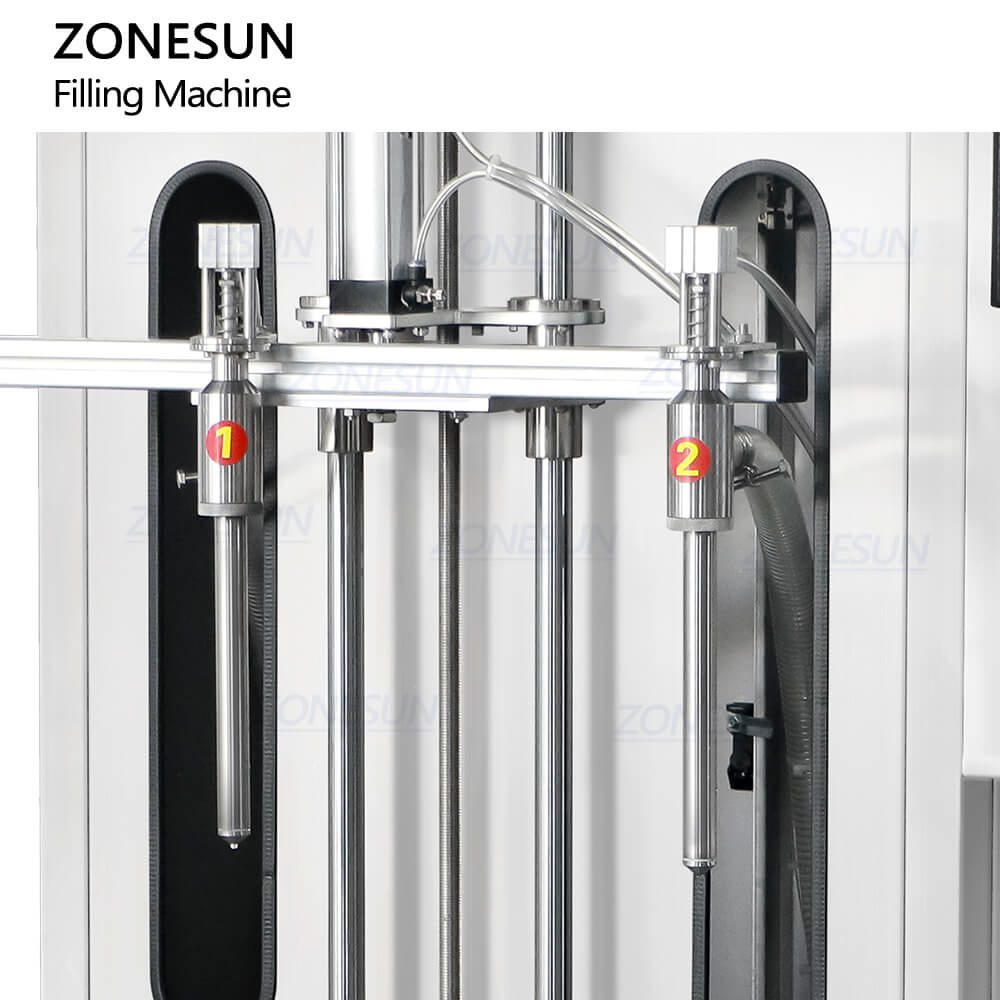

Diving Filling Nozzles
Use air cylinder to control filling nozzle go up and down automatically, it suits foamy liquid.

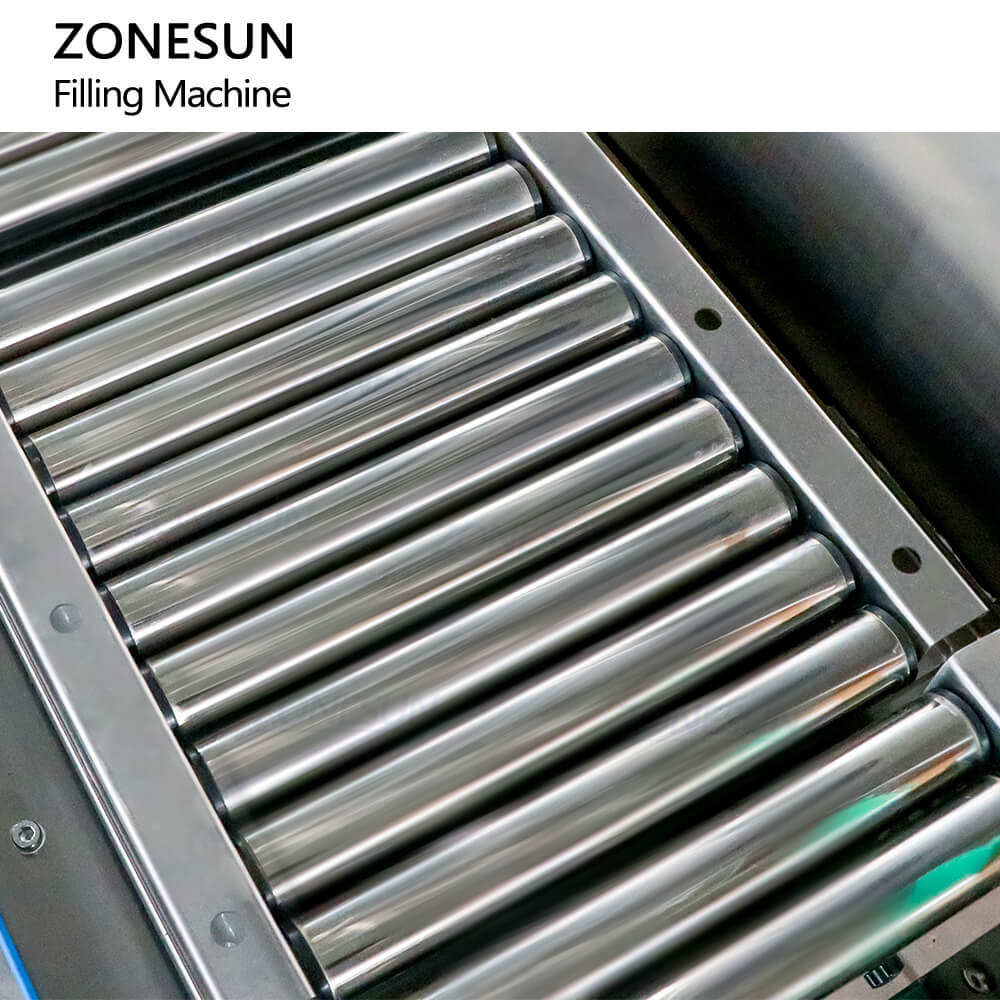

Weighing Scale
Equipped with weighing scale, suitable for large filling volume(5L-30L), easier to debug machine.

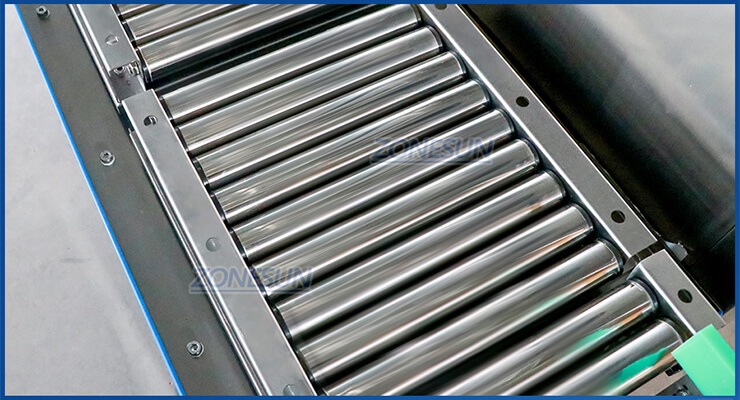

Conveyor Belt
Can intergrate with conveyor to transport container to next production process, saves working labor.
