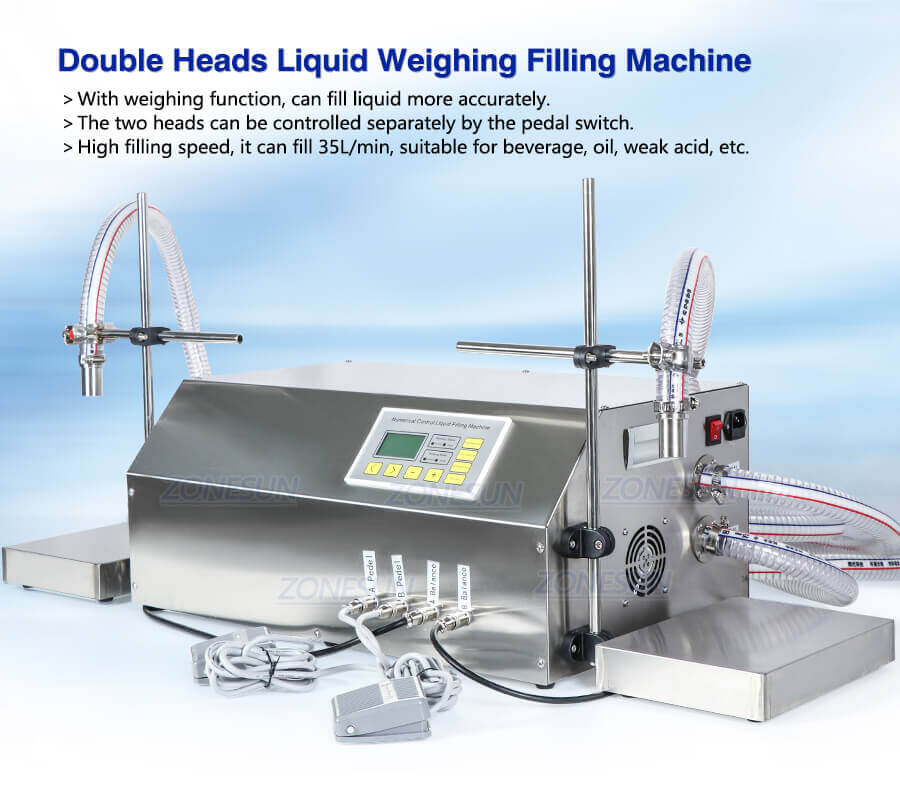

Double Head Diaphragm Pump Weighing Fillinng Machine
This semi automatic weighing filling machine is suitable for liquid which is without particles, like milk, cooking oil, essential oil, shampoo, etc. Each nozzle can fill 35L/min, improving working efficiency. With weighing function, it can fill liquid precisely. The machine can be widely used in cosmetic, medicine, beverage, daily chemical industries.
Share to
Product Description:
This semi automatic weighing filling machine is suitable for liquid which is without particles, like milk, cooking oil, essential oil, shampoo, etc. Each nozzle can fill 35L/min, improving working efficiency. With weighing function, it can fill liquid precisely. The machine can be widely used in cosmetic, medicine, beverage, daily chemical industries.
Product Parameters:
| Machine Model | ZS-DP432W |
| Machine Power | 220V/110V 50-60Hz 1100W |
| Machine Pump | Diaphragm Pump |
| Max Flow Rate | 35L/min*2 |
| Filling Range | 150g-100kg |
| Weighing Range | 150g-100kg |
| Filling Error | ±10g |
| Filling Nozzle Diameter | 19mm/25mm |
| Hose Diameter | 19mm(ID)/25mm(OD) & 25mm(ID)/32mm(OD) |
| Hose Length | 3m(inlet)/1m(outlet) |
| Liquid Temperature | <50℃ |
| Max Suction Distance | 4m |
| Max Head of Delivery | 4m |
| Memory Function out of Power | Available |
| Weighing Device Size | About 250mm*180mm*42mm |
| Machine Size | About 600mm*370mm*250mm(L*W*H) |
| Package Size |
About 700*430*320mm(machine)
About 300*290*160mm(weighing device)
|
| Net weight/Gross weight | About 28kg/30kg |
