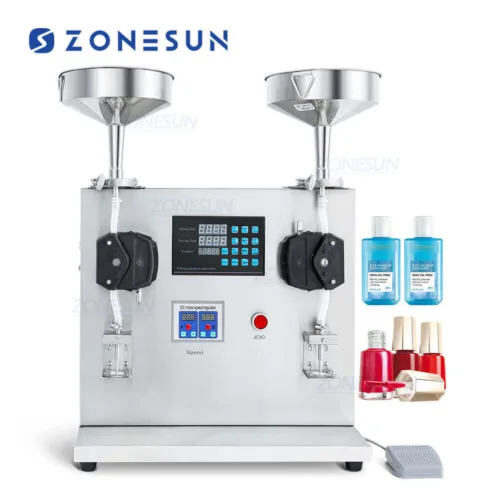

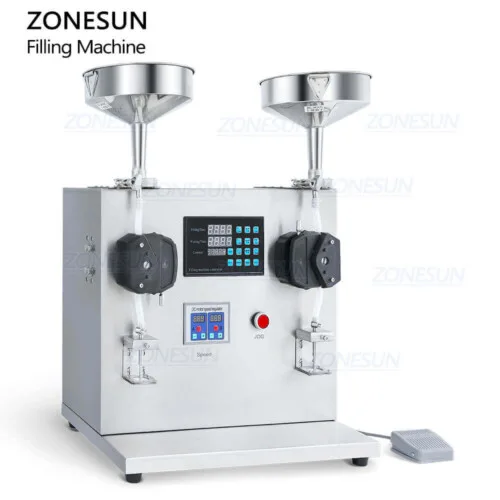

Double Head Nail Polish Filling Machine
This semi-automatic filling machine operates on the principle of gravity, which aids in the transportation of liquid or paste materials such as honey, nail polish, glue, oil, and oral solutions. It is equipped with a peristaltic pump that ensures the liquid is filled without passing through the pump, maintaining production quality.
Share to
Product Description:
This semi-automatic filling machine operates on the principle of gravity, which aids in the transportation of liquid or paste materials such as honey, nail polish, glue, oil, and oral solutions. It is equipped with a peristaltic pump that ensures the liquid is filled without passing through the pump, maintaining production quality.
Product Parameters:
| Machine Model | ZS-NP2 |
| Machine Power | AC 220V/110V 50-60Hz 150W |
| Machine Pump | Peristaltic Pump |
| Max Flow Rate | 1800ml/min*2(based on water) |
| Filling Speed | 6-30 bottles/min(depend on bottle size and liquid) |
| Filling Accuracy | ±1% |
| Suitable Bottle Height | ≤90mm |
| Diameter of Filling Nozzle | OD 5mm |
| Machine Size | About 480*350*610mm |
| Machine Weight | About 14.5kg |
| Package Size | About 670*470*390mm |
| Package Weight | About 24kg |
Product Details:

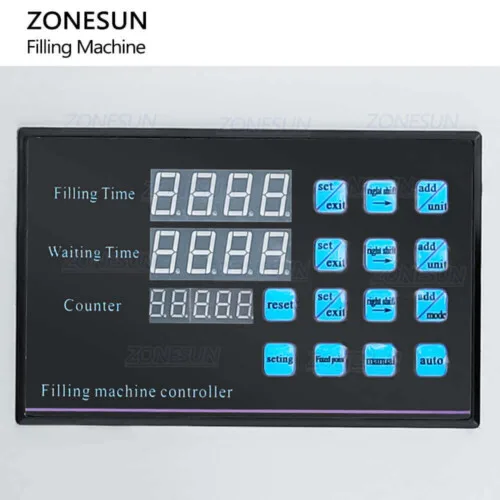

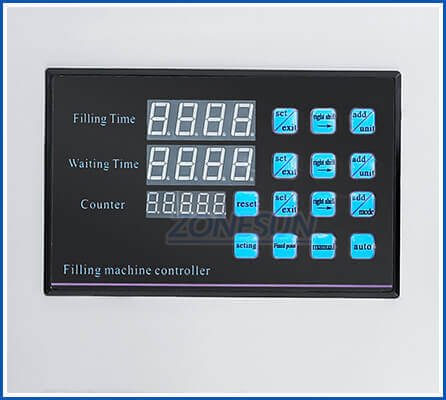

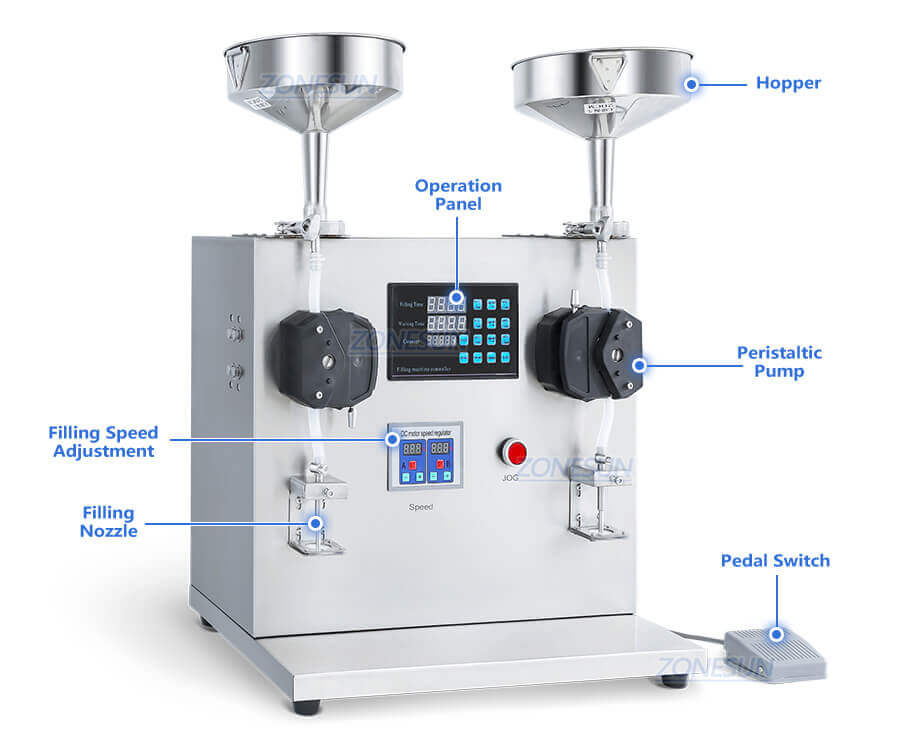

This machine is designed with a user-friendly control panel that allows for easy adjustment of working parameters. It also features a counting function that calculates production quantities during operation.

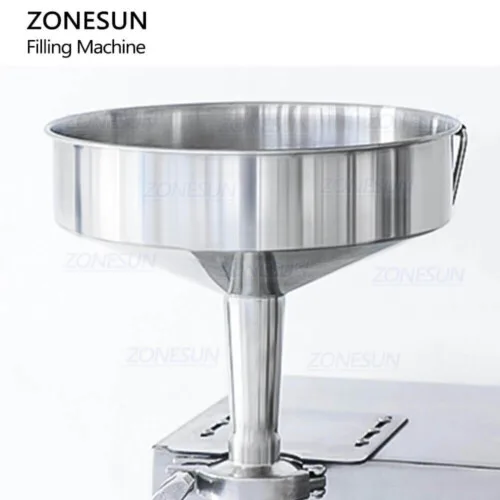

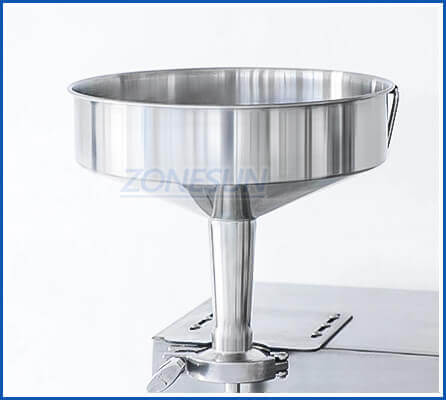

The stainless steel hopper facilitates smooth pouring of filling material, allowing for faster transportation.

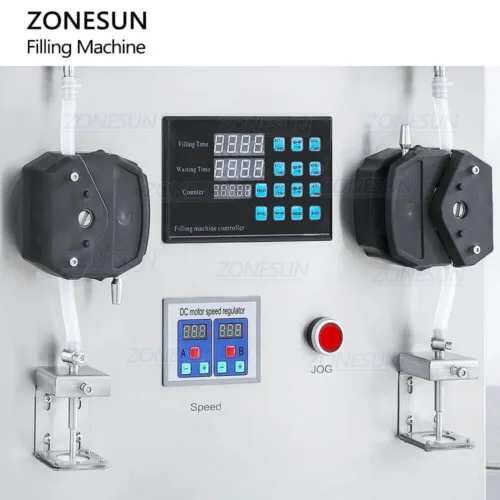

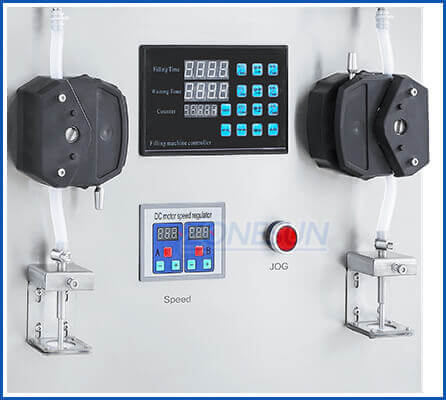

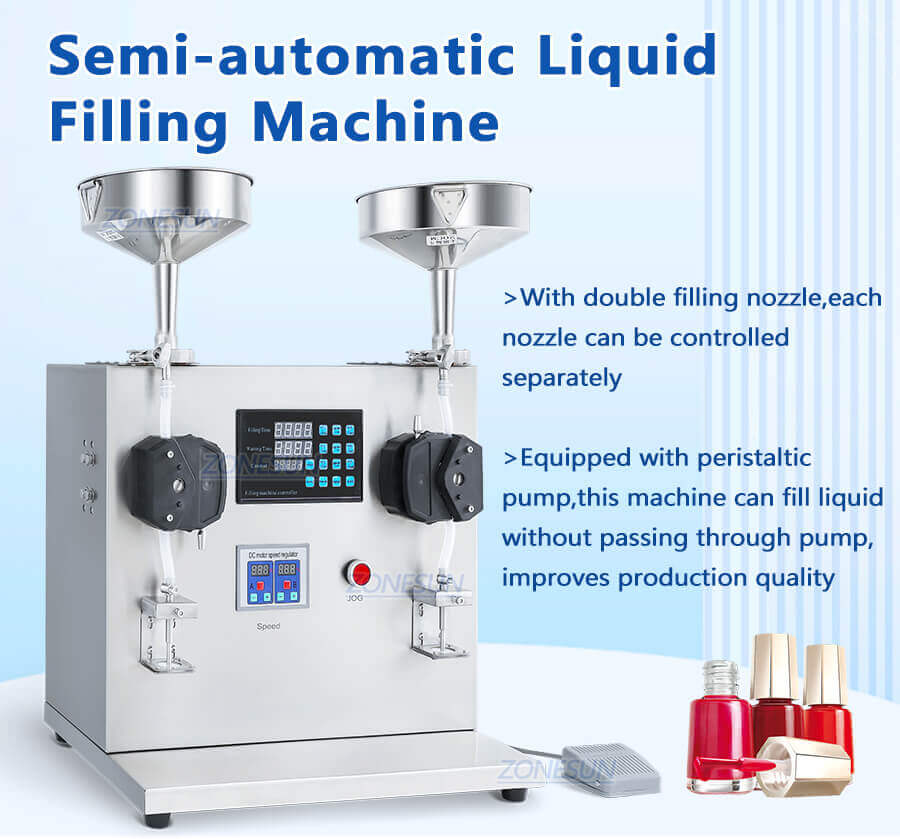

The machine features two separate filling nozzles, each controlled by a distinct peristaltic pump. This allows for independent control and ensures that the liquid doesn’t pass through the pump during operation, thereby enhancing production quality.

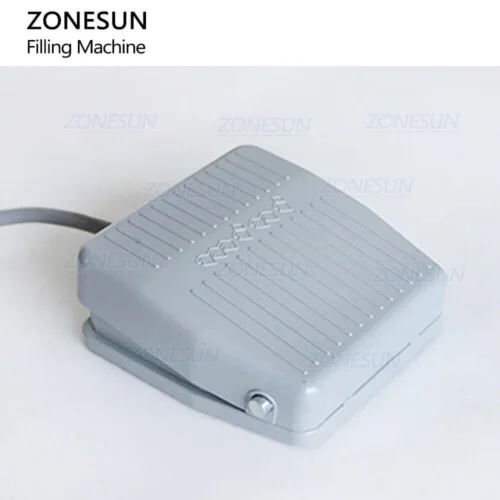

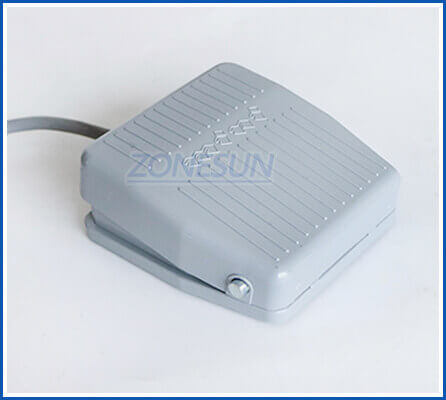

The machine can function either automatically or be operated through a pedal switch. Utilizing the pedal switch during testing or adjustments can minimize operational errors.
