Double Head Peristaltic Pump Weighing Filling Machine

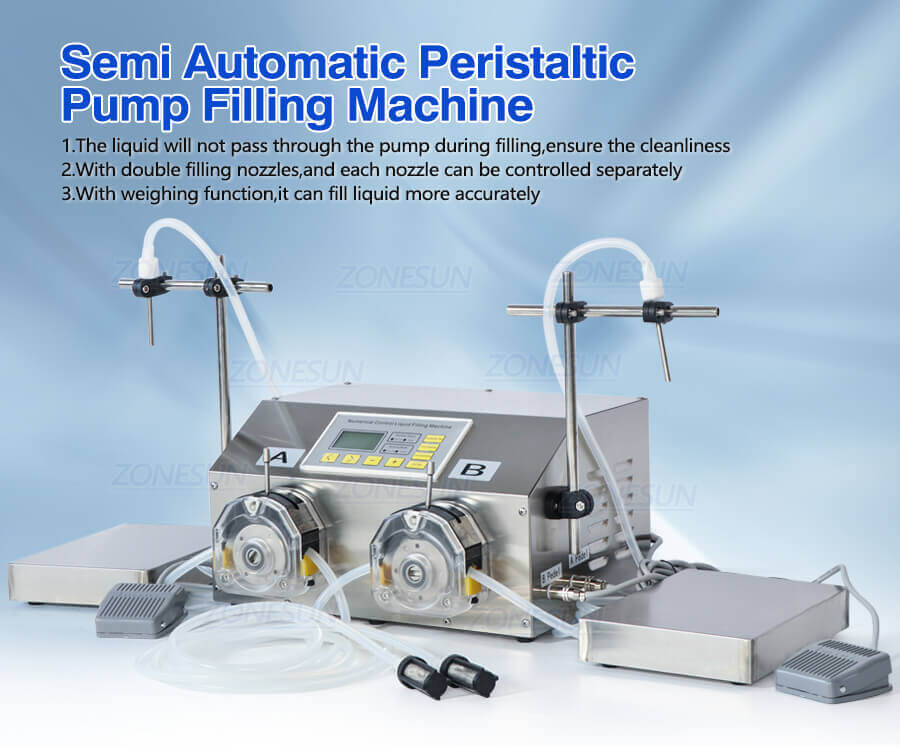

This machine control the micro computer to fill liquid and once the filling volume reach the set amount, the machine will stop to fill liquid. It is designed with the peristaltic pump, the liquid will not pass through the pump during filling, ensure the cleanliness. The weighing function can make it fills liquid more accurately. This machine is suitable for ink, water, essential oil, perfume etc.
Share to
Product Description:

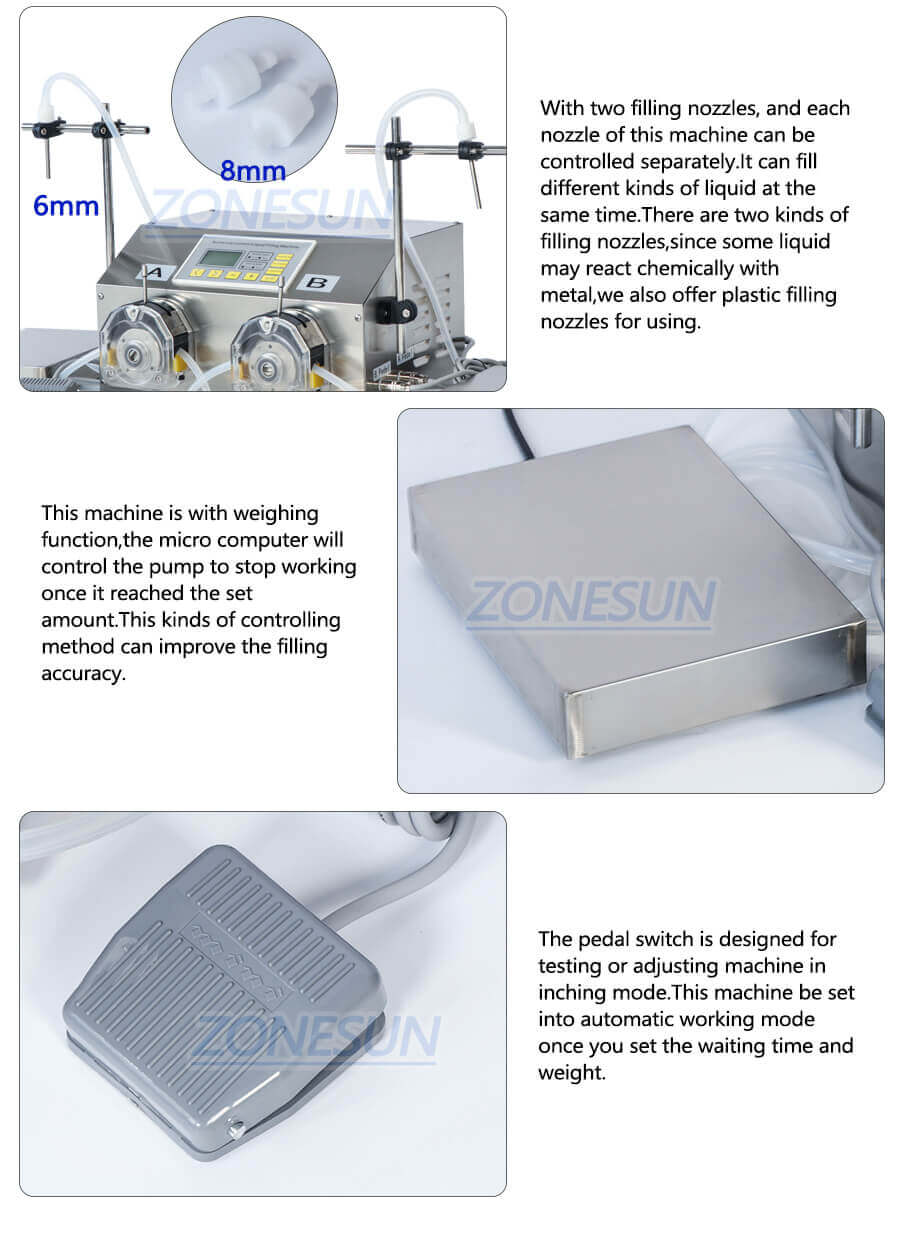

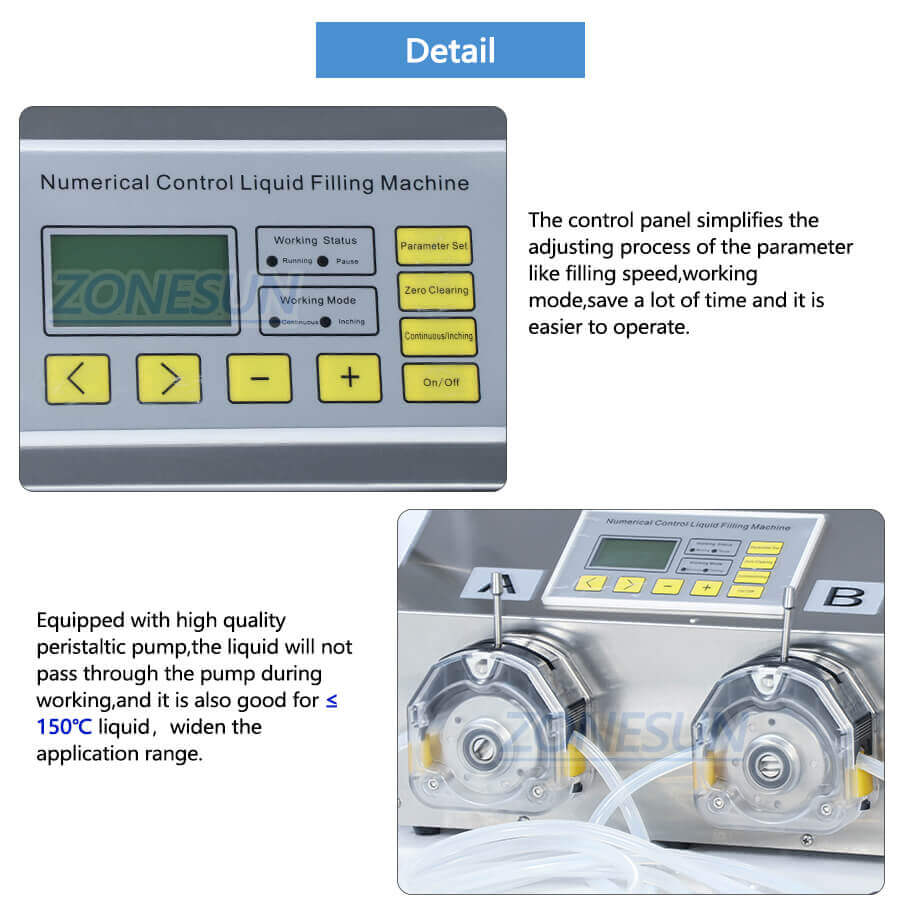

This machine control the micro computer to fill liquid and once the filling volume reach the set amount, the machine will stop to fill liquid. It is designed with the peristaltic pump, the liquid will not pass through the pump during filling, ensure the cleanliness. The weighing function can make it fills liquid more accurately. This machine is suitable for ink, water, essential oil, perfume etc.
Product Parameters:
| Machine Model | ZS-PP532W |
| Machine Power | 220V/110V 100W*2 |
| Pump | Peristaltic Pump |
| Max Flow Rate | 6L/min *2 |
| Filling Range | 30ml-6L *2 |
| Weighing Range | 30g-10kg |
| Filling Error | ±1g |
| Hose Diameter | 6.4mm(ID) /9.4mm(OD) |
| Hose Length | 2m(inlet) /1m(outlet) |
| Filling Nozzle Diameter | 6mm /8mm |
| Liquid Temperature | <150℃ |
|
Max Suction Distance
|
4m
|
| Max Head of Delivery | 4m |
| Suitable Liquid | ink,water,essential oil,perfume etc |

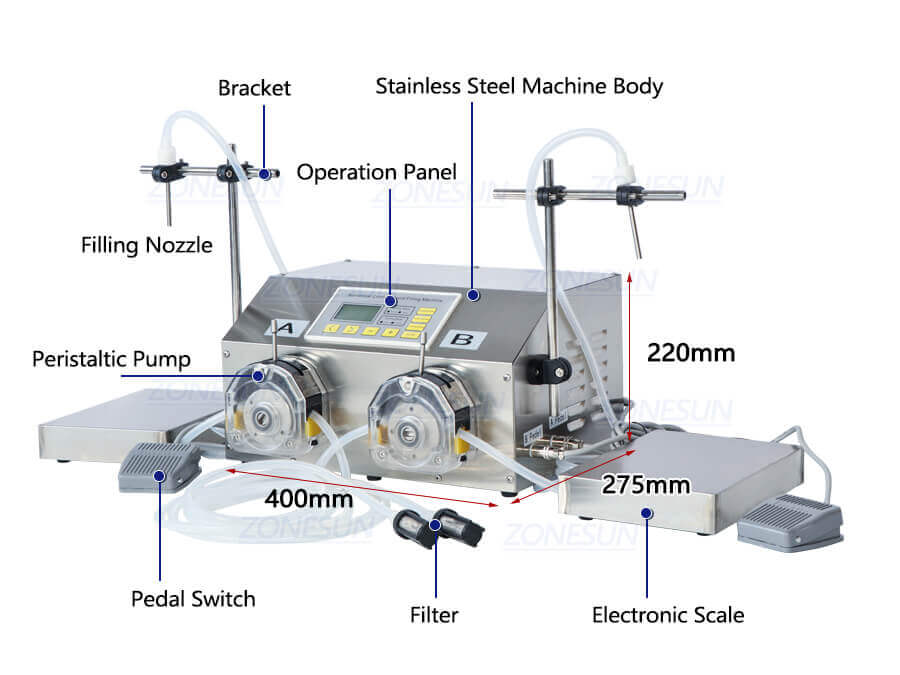

| Machine Size | About 400*275*220mm |
| Machine Weight | About 14kg |
| Package Size | 560*400*280mm(machine)+300*290*160mm(electronic scale) |
| Package Weight | About 15kg |
