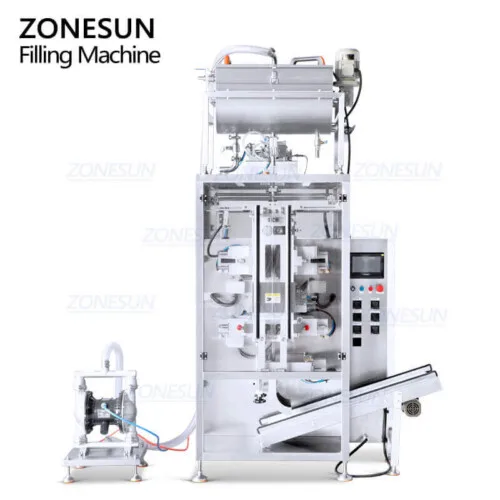

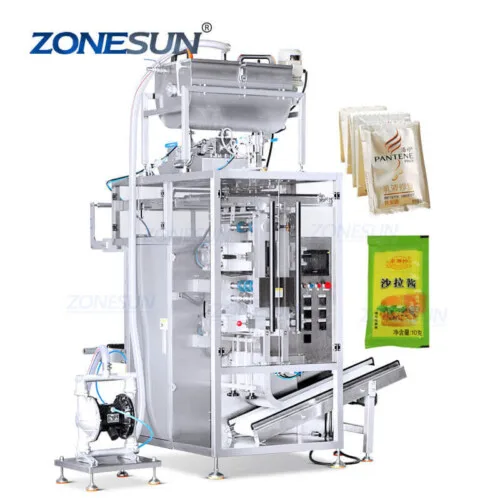

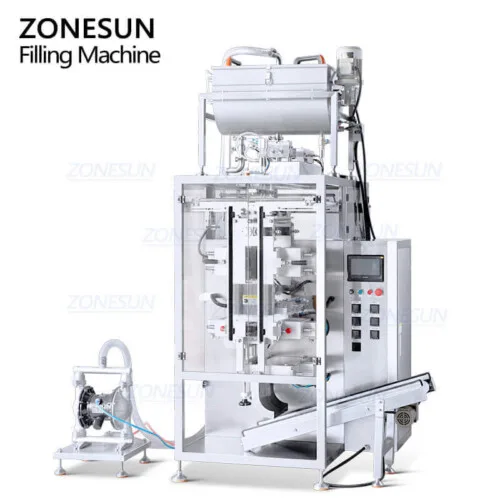

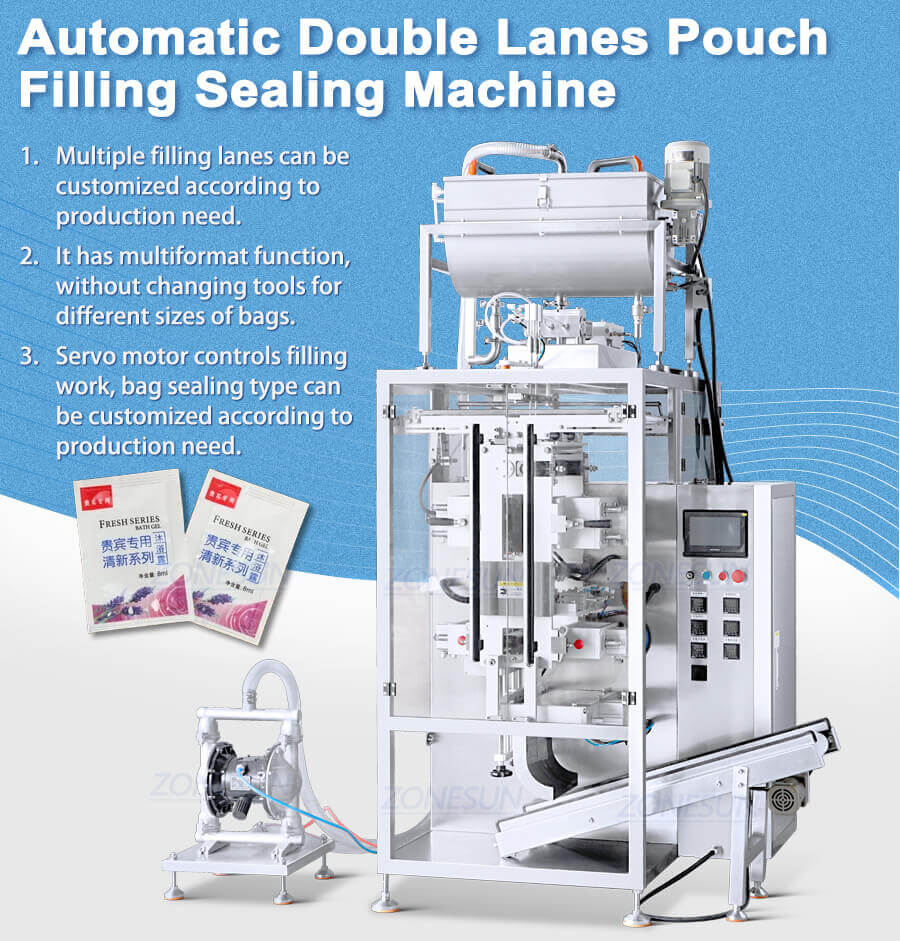

Double Lane Paste Sachet filling sealing machine

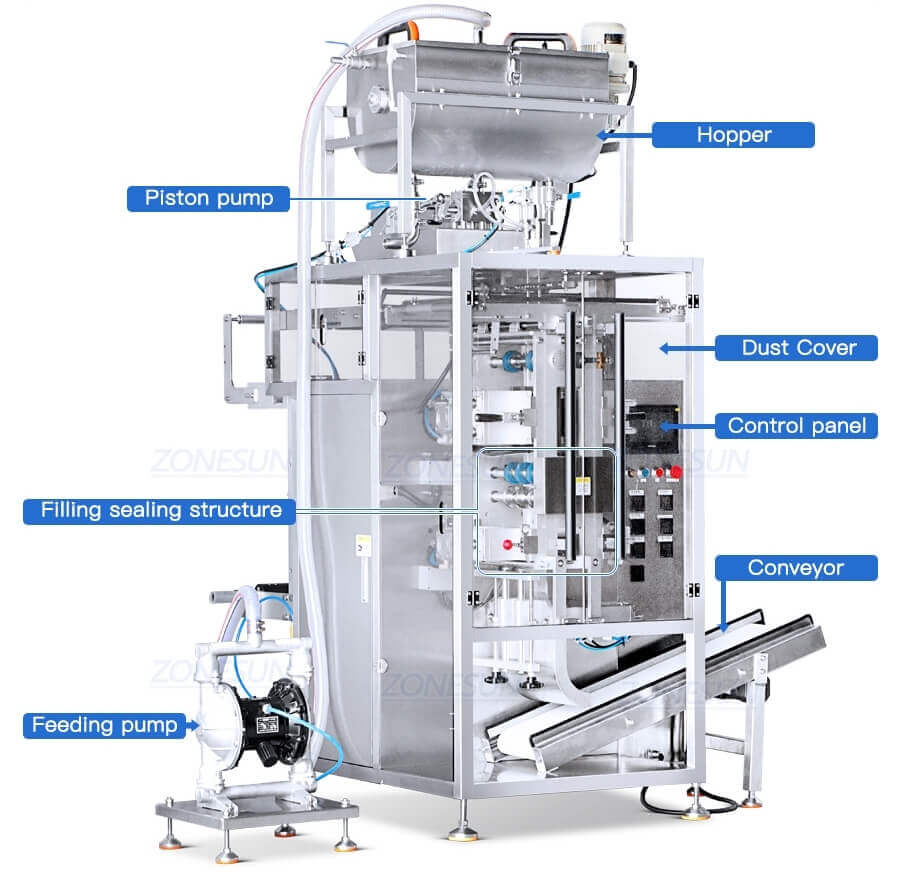

This servo motor VFFS packing machine can automatically finish filling material supplying, bag making, filling, sealing and date coding.Double lanes machine design improves working capacity, the sealing type can be customized according to production need.It is suitable for packaging shampoo, sauce, honey, fruit jam and ketchup.
Share to
Description:
This servo motor VFFS packing machine can automatically finish filling material supplying, bag making, filling, sealing and date coding.Double lanes machine design improves working capacity, the sealing type can be customized according to production need.It is suitable for packaging shampoo, sauce, honey, fruit jam and ketchup.
| Machine model | ZS-FS500Y-2 |
| Machine voltage | 110/220V 50-60HZ 7KW |
| Suitable film | OPP/CPP/OPP/CE/MST/PE/PET/PE |
| Filling range | Customized |

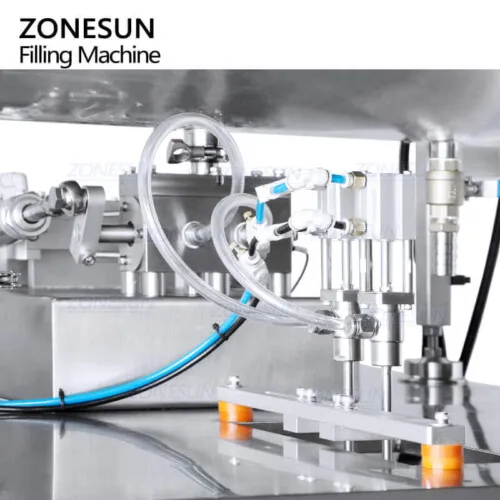

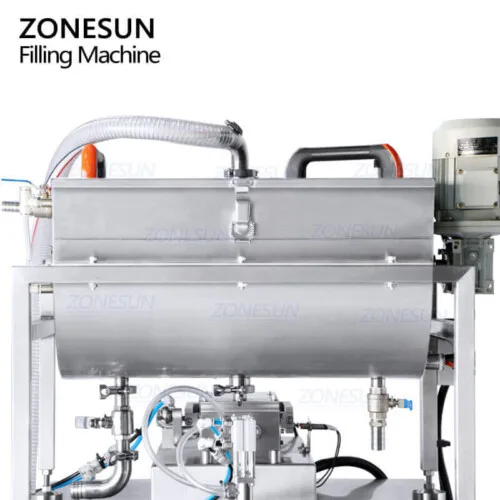

| Filling pump | Piston pump(filling) Diaphragm pump(feeding pump) |
| Lanes quantity | 2(can be customized) |
| Film thickness | 0.05-0.09mm |

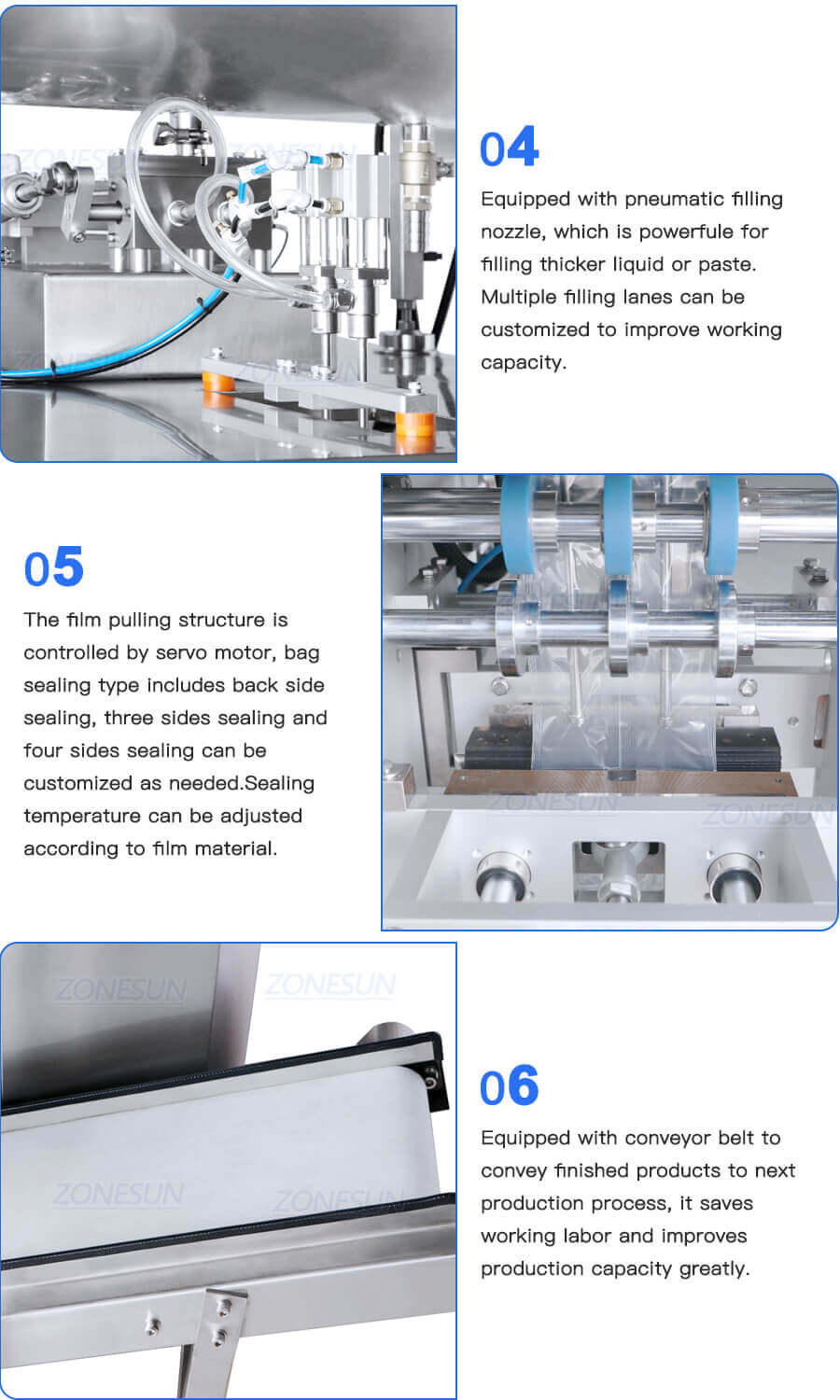

| Sealing type | 4 sides sealing(can be customized) |
| Film width | 280-500mm |
| Film roll size | ID=75mm OD≤320mm |
| Finished Bag size(single lane) | 35-60mm(W)*35-160mm(L) |
| Working speed | 30-35 bags/min*2 |
| Machine size | About 1700*1350*2350mm(L*W*H) |
| Machine weight | About 350kg |
