Product Parameters:
| Machine Model | ZS-TB822T |
| Voltage | 220V/110V 50-60HZ |
| Power | 4500W |
| Labeling Speed | About 20-30pcs/min(depending on product and label size) |
| Labeling Accuracy | ±1mm |
| Suitable Bottle Size | Diameter: φ25mm-φ100mm* Height: 25mm-300mm |
| Label Size | Width: 20mm-290mm* Height: 20mm-160mm |
| Label Roll Inner Diameter | Φ76mm |
| Label Roll Outer Diameter | ≤300mm |

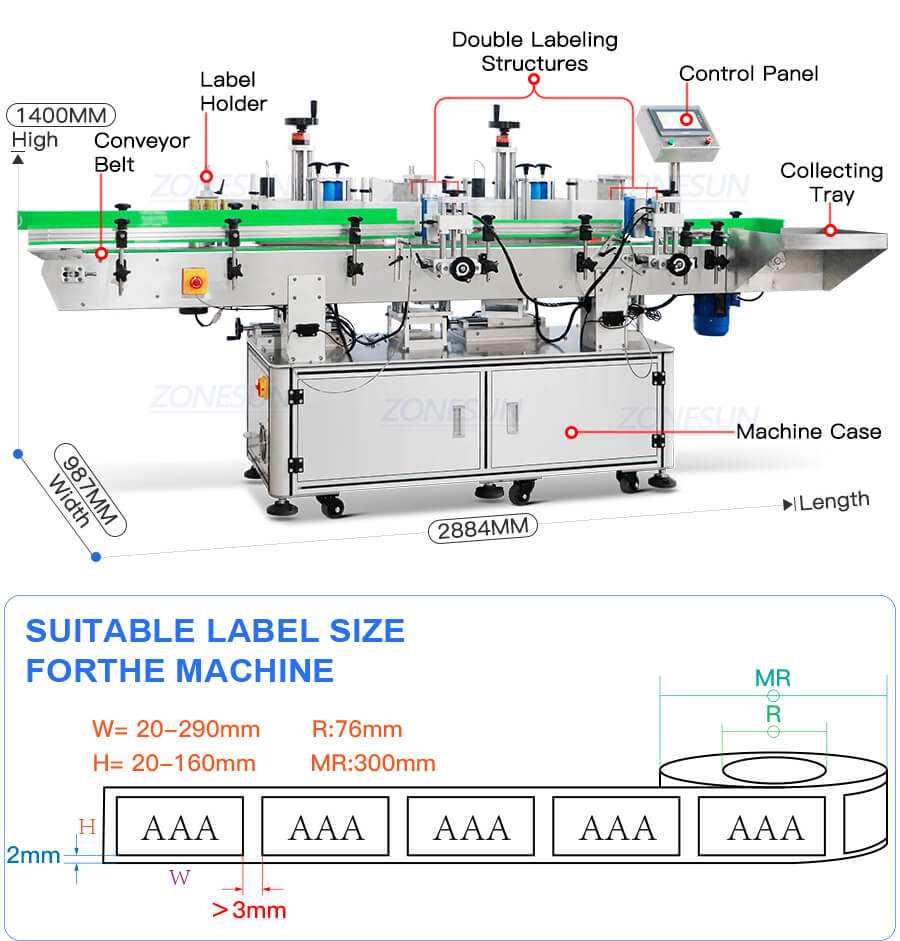

| Machine Size | About 2844*987*1400mm/ About 112*38.9*55.1 inch |
Product Details:

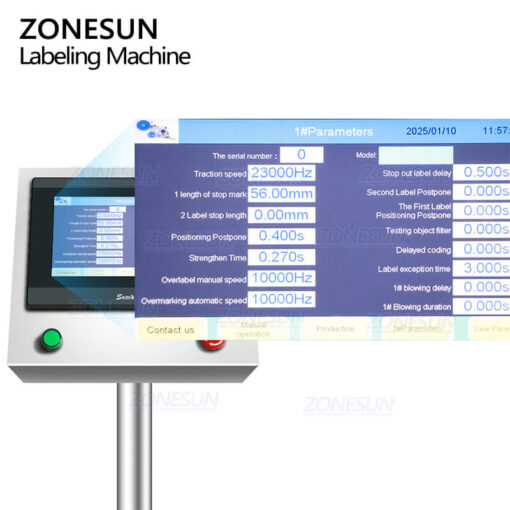

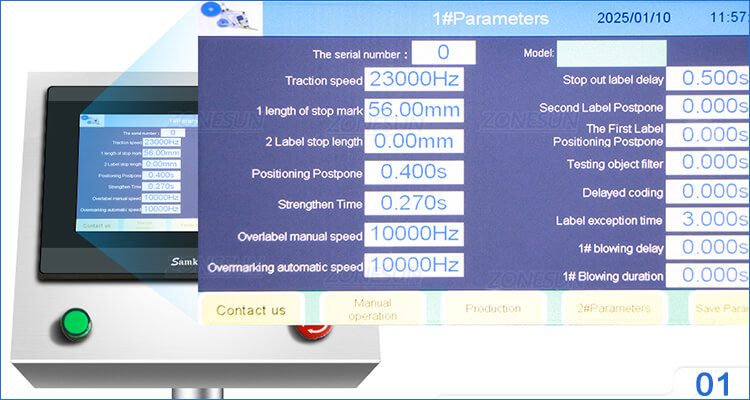

Control Panel
Touchscreen panel makes it easier to set technical parameters. The language of panel can be customized.

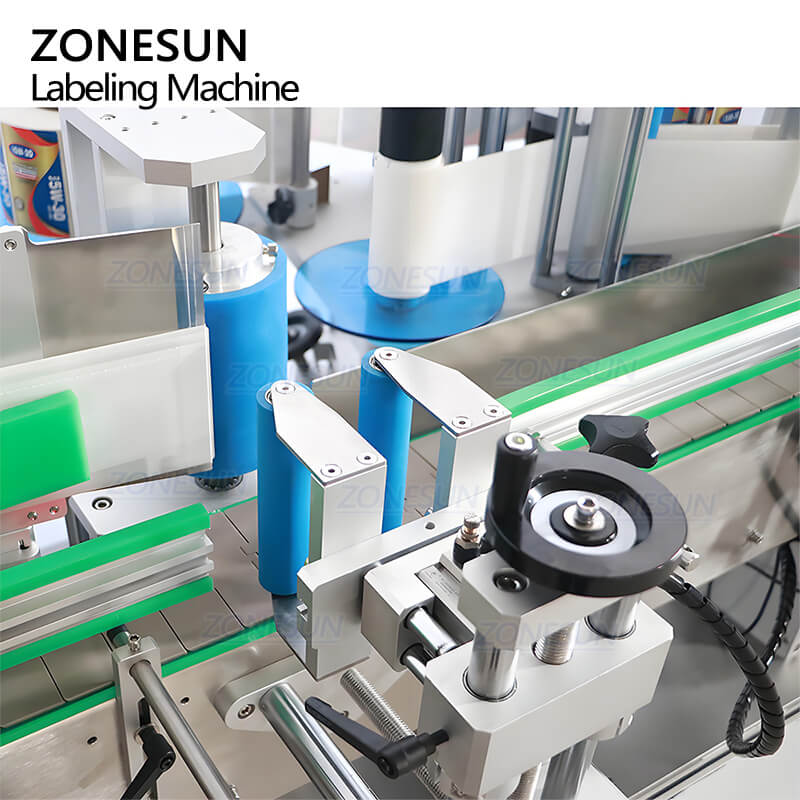

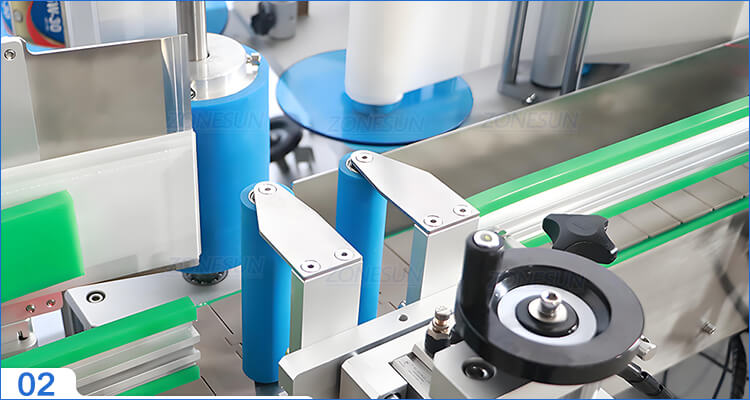

Labeling Structure

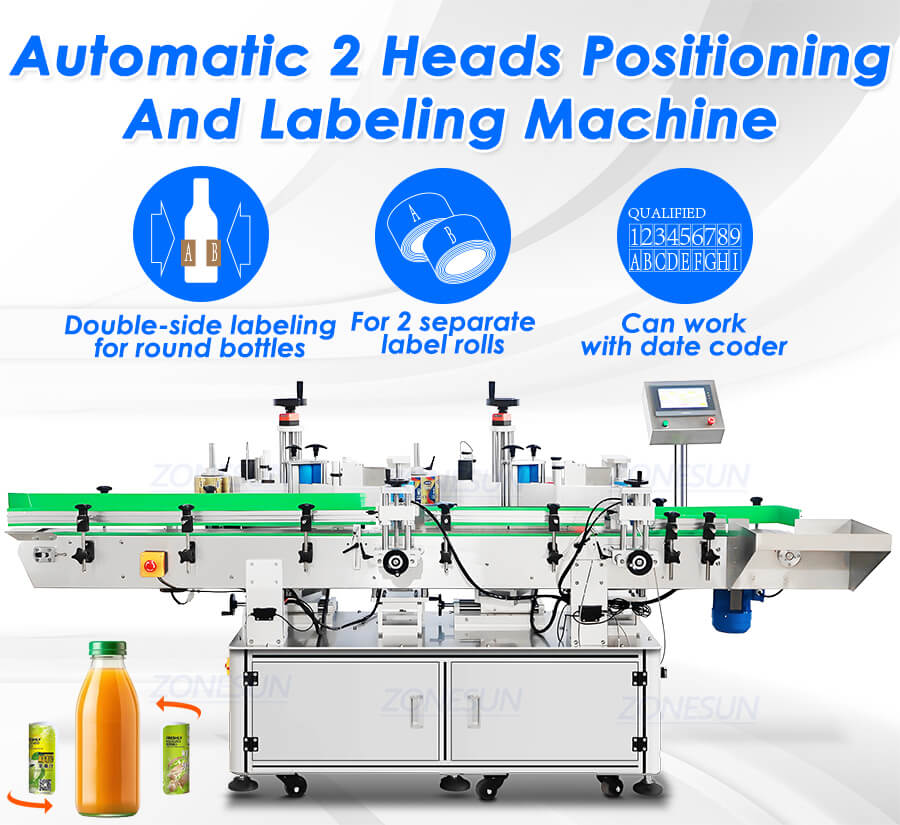

Suitable for single-side, double-side or wrap around labeling on round bottles.

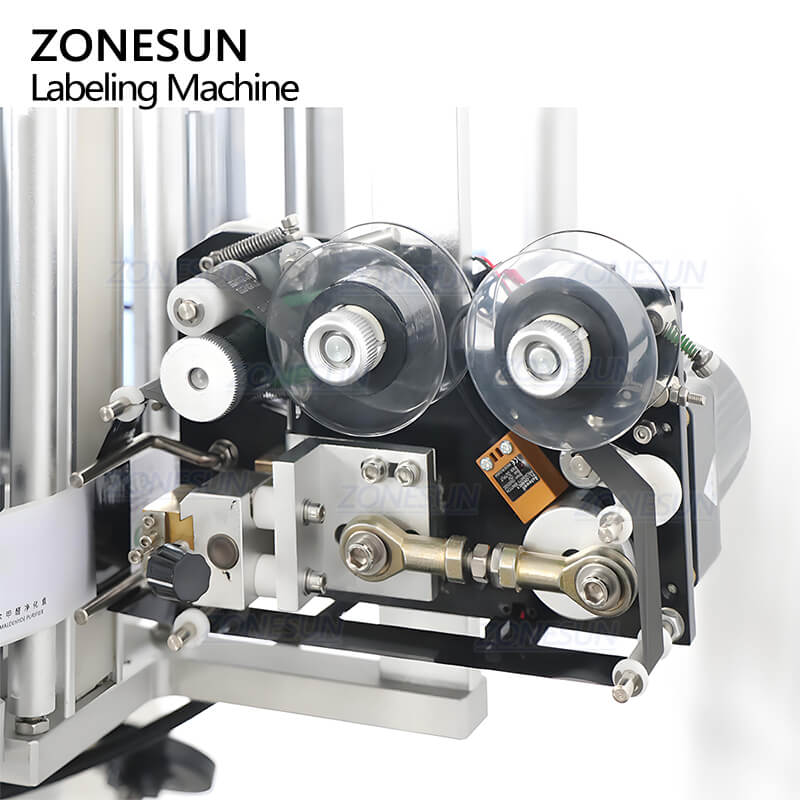

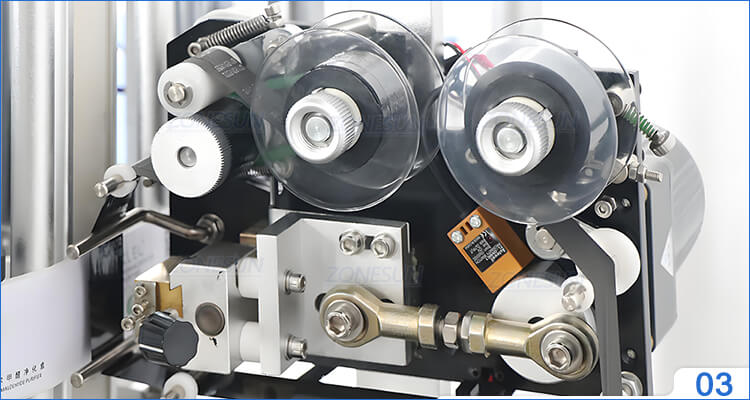

Date Coder
This machine can be equipped with date coder to print date or batch. Please contact us if you need it.

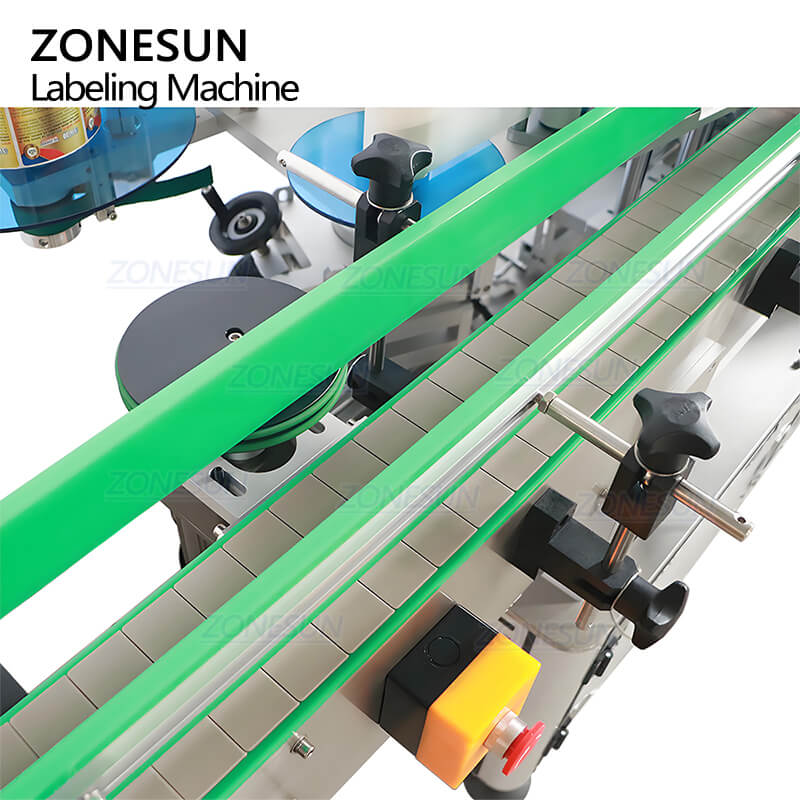

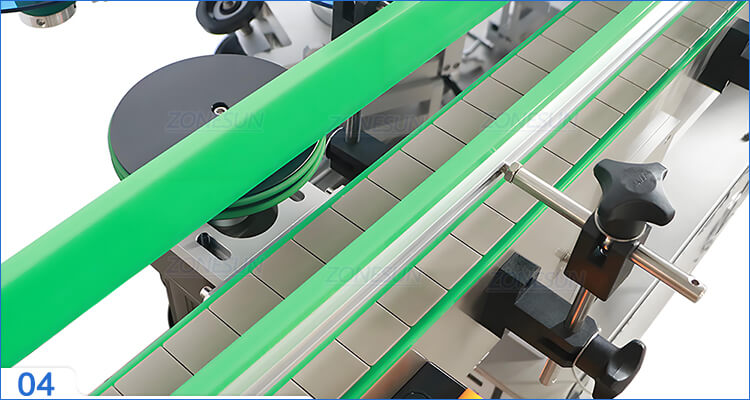

Chain Conveyor
The length and width of conveyor can be customized as your production need.

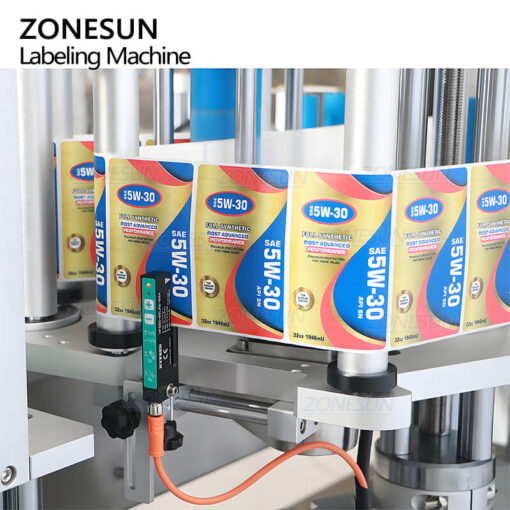

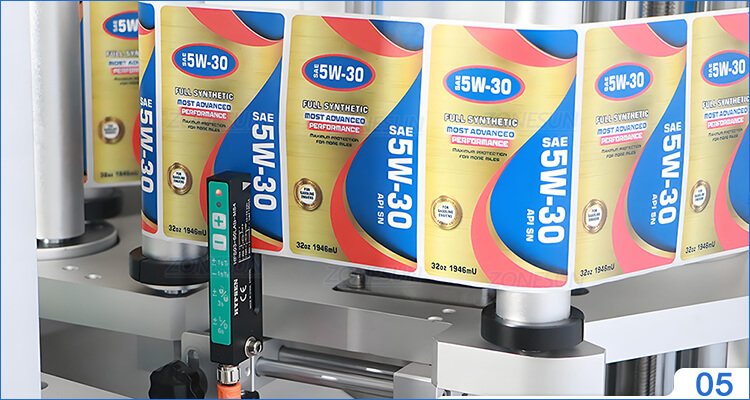

Label Sensor
Can detect labels and control it to output labels accurately. It can be customized for transparent labels.
