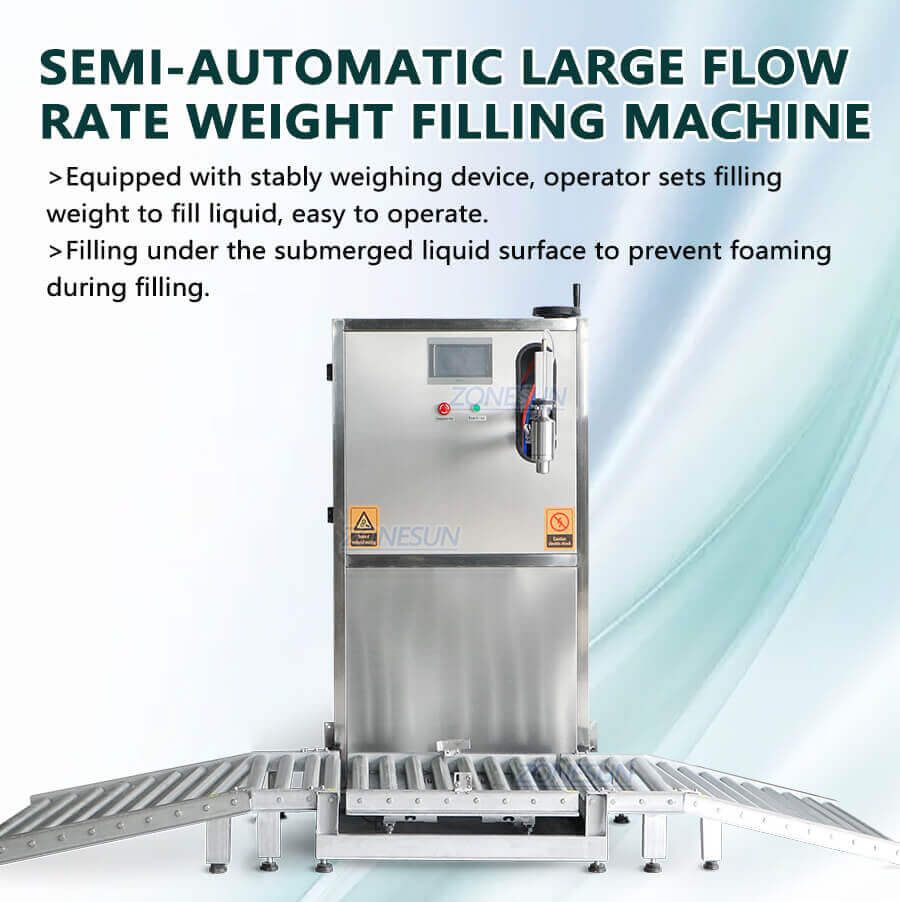

Drum Weighing Filling Machine

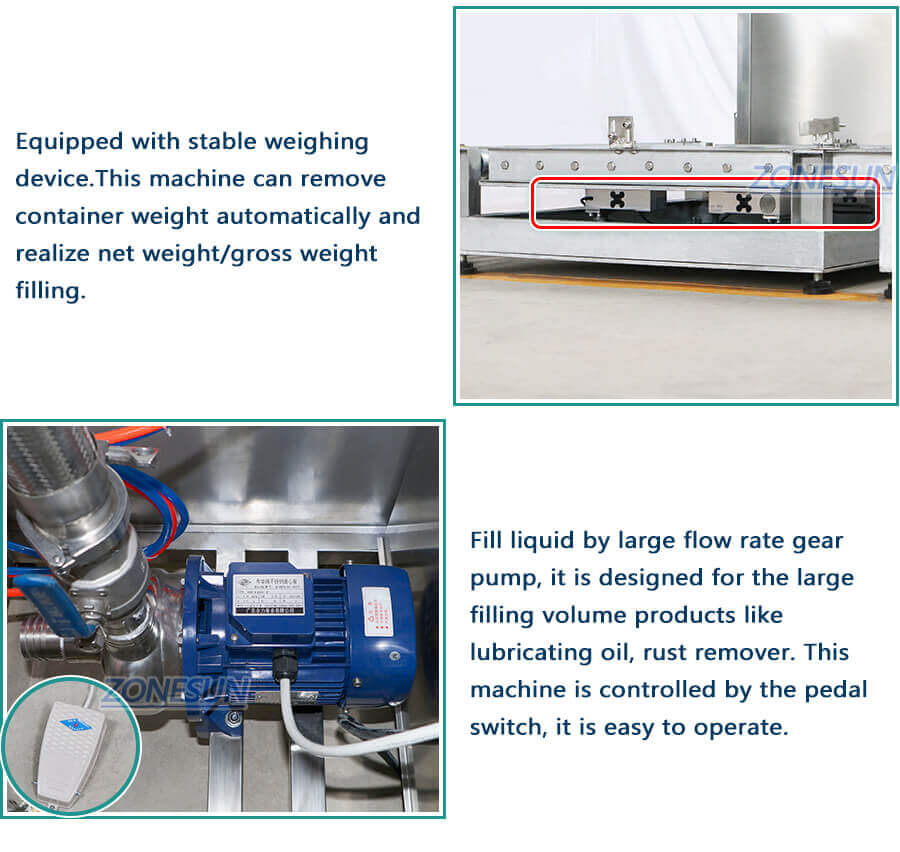

This filling machine fills liquid by controlling the filling weight,it is equipped with the gear pump and suitable for filling large volume like rust remover.It is suitable for daily chemical industries.
Share to
Description:
This filling machine fills liquid by controlling the filling weight,it is equipped with the gear pump and suitable for filling large volume like rust remover.It is suitable for daily chemical industries.
Parameter:
| Model | ZS-YTW250L |
| Voltage | 380V 50HZ |
| Power | 11.5kw |
| Filling Pump | Gear Pump |
| Number of filling heads | 1 |
| Filling range | 100-250L |
| Conveyor length | 5m(can be customized) |
| Output | ≤45 barrels/hour (200L) |
| Required air source | 0.6MPa |
| Accuracy | ≤±0.2%(depends on fillingmaterial) |
| Machinesize | About 450*1000*1700mm |
| Package size | About 1360*1100*1840mm |
| Package weight | About 420kg |
