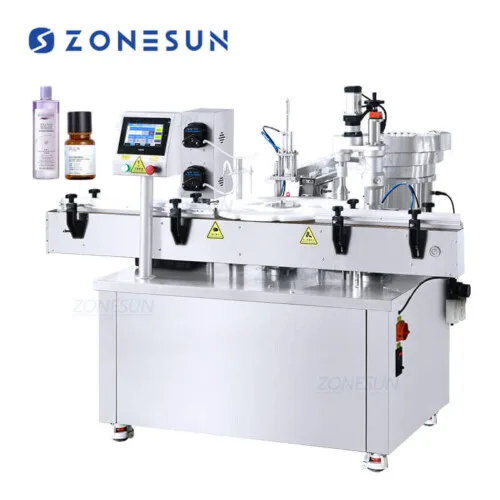

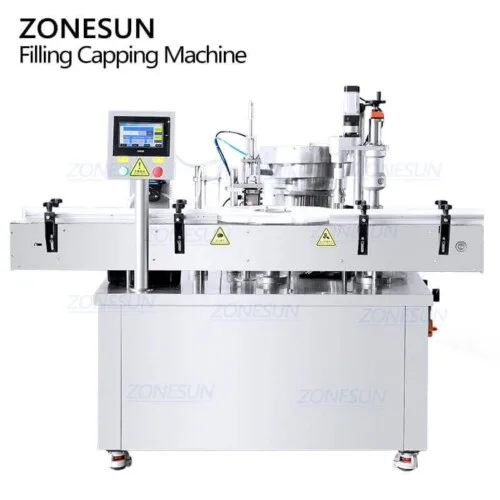

E-liquid Bottle Liquid Filling And Capping Machine

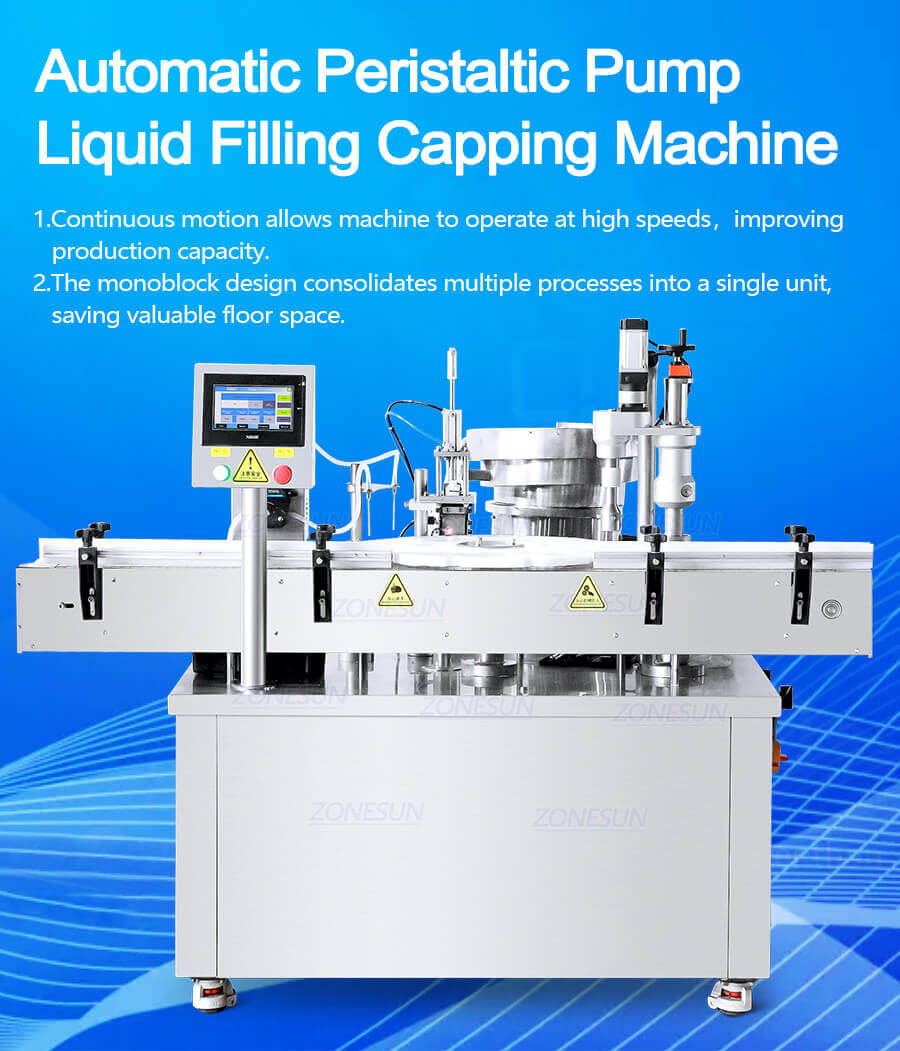

This filling capping machine employs cams, which are mechanical devices with specific profiles, to control the movement and positioning of components. It utilizes continuous motion technology, enabling it to operate at high speeds and increase throughput and productivity compared to intermittent motion machines. It is suitable for filling essential oils, eyedrops, and solvents.
Share to
Product Description:
This filling capping machine employs cams, which are mechanical devices with specific profiles, to control the movement and positioning of components. It utilizes continuous motion technology, enabling it to operate at high speeds and increase throughput and productivity compared to intermittent motion machines. It is suitable for filling essential oils, eyedrops, and solvents.
Product Parameters:
| Machine model | ZS-AFC32 |
| Voltage | 110/220V 50-60HZ |
| Filling pump | Peristaltic pump |
| Filling hose size | #17 |
| Filling nozzle quantity | 2 |
| Filling range | 10-60ml(Customized) |
| Filling accuracy | ±1% |
| Working capacity | About 30 BPM |
| Material of filling nozzle | SUS304 |
| Material of vibratory bowl sorter | SUS304 |
| Machine size | About 1800*1670*1450mm(L*W*H) |
| Package size | About 2490*960*1670mm(L*W*H) |
| Package weight | About 632kg |
Product Details:

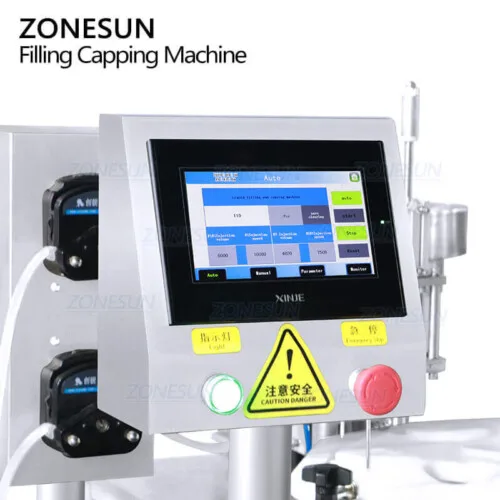

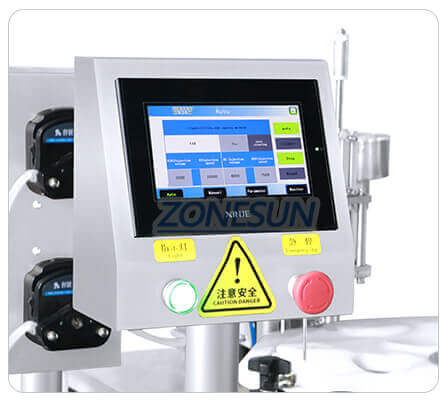

This machine boasts an intuitive touchscreen interface or control panel, ensuring easy operation and monitoring. You can conveniently adjust settings, track production metrics, and troubleshoot issues from the interface.

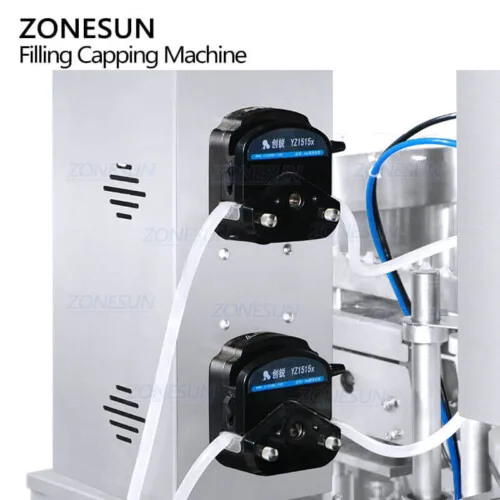

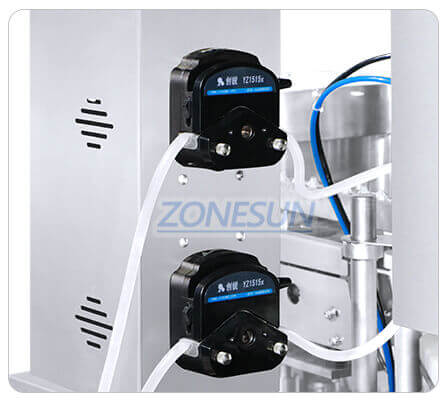

Peristaltic pumps employ a unique mechanism where the product remains within the tubing, never touching pump components. This design aids in preventing cross-contamination, ensuring product purity and integrity.

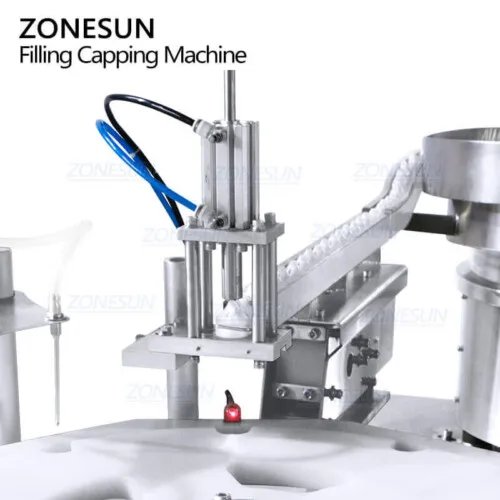

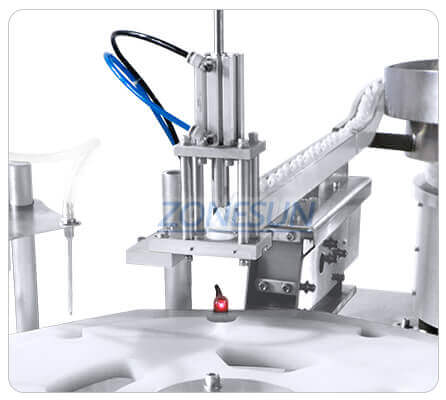

Each workstation is equipped with an electric sensor that detects passing bottles and initiates the machine’s automated operation. If no bottles are detected, the cap placing structure remains inactive, thereby preventing wastage of caps.

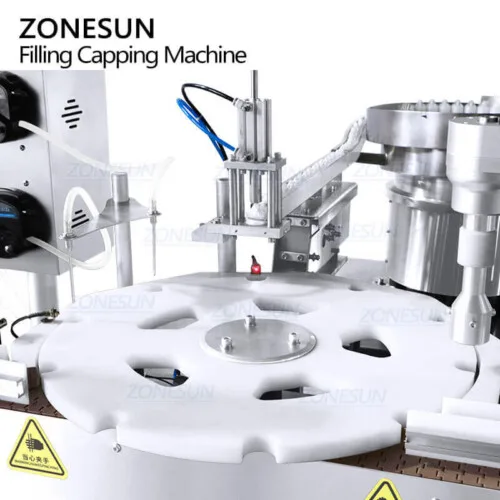

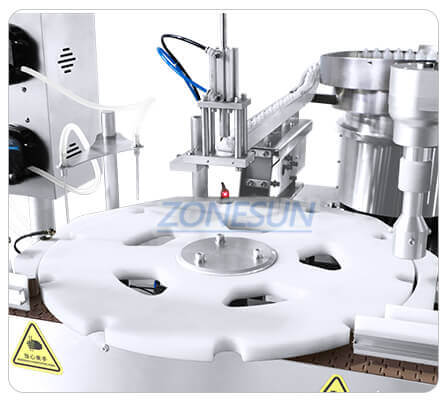

Starwheel mechanisms facilitate the seamless and accurate transfer of bottles between conveyor sections, ensuring smooth operation without jams or misalignment. They can be easily adjusted for different bottle sizes.

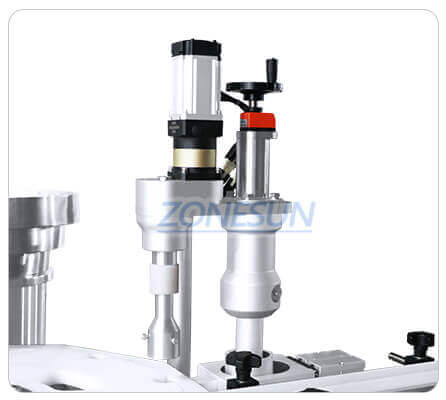

Servo motors provide precise control over cap tightening torque, ensuring accurate sealing to your desired specifications. This reduces the risk of over- or under-tightened caps.
