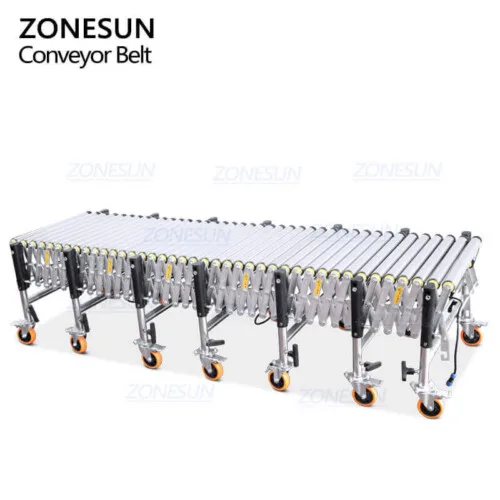

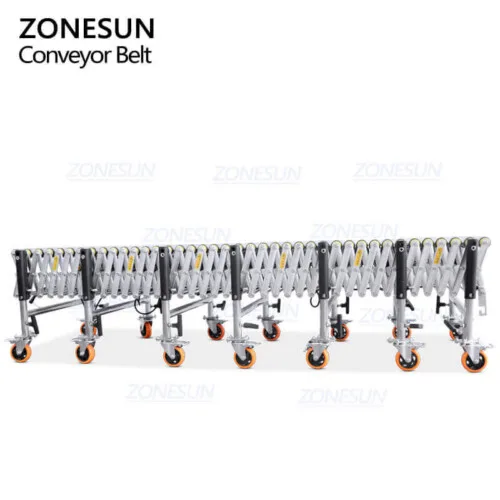

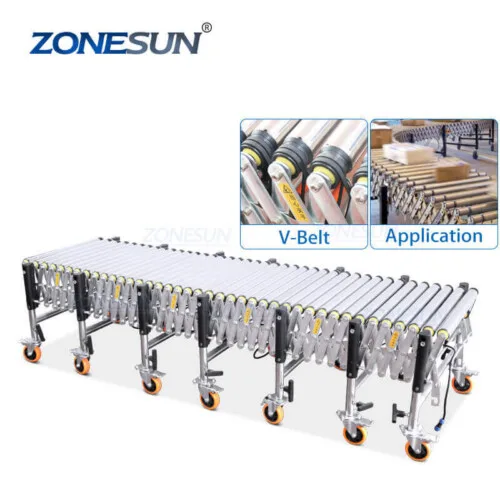

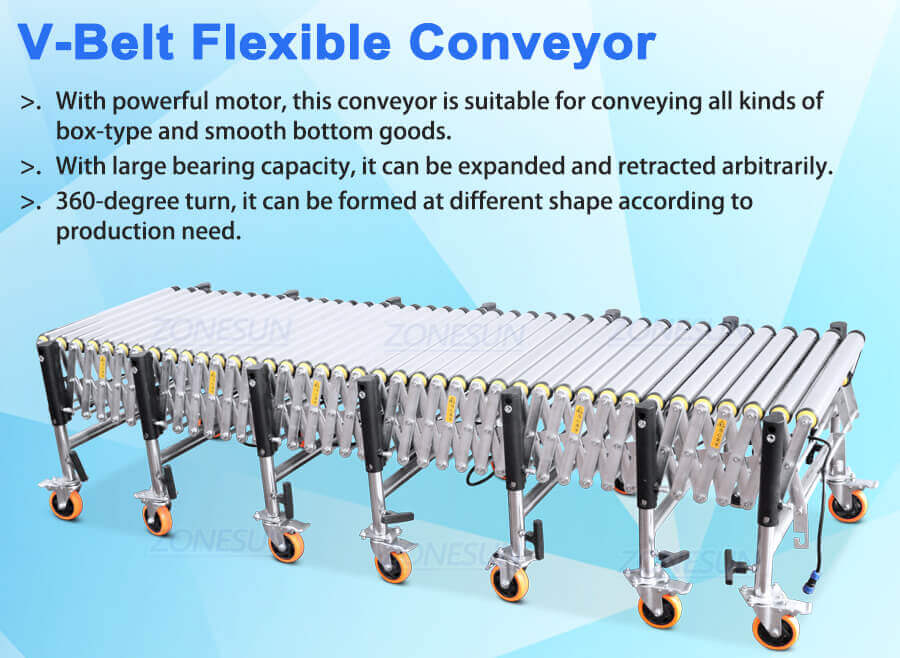

Electric Roller Flexible Conveyor
A flexible roller conveyor is a type of material handling system designed to transport items over a specified path using a series of rotating rollers. Unlike fixed, straight-line roller conveyors, a flexible roller conveyor has the ability to be curved, twisted, or adjusted in different directions, which allows for more versatile routing and repositioning based on changing requirements.
Share to
Description:
A flexible roller conveyor is a type of material handling system designed to transport items over a specified path using a series of rotating rollers. Unlike fixed, straight-line roller conveyors, a flexible roller conveyor has the ability to be curved, twisted, or adjusted in different directions, which allows for more versatile routing and repositioning based on changing requirements.
| Model | ZS-FCV500 | ZS-FCV600 | ZS-FCV800 |
| Roller Width | 500mm | 600mm | 800mm |
| Voltage | 110V/220V/380V | ||
| Length/Unit | Compacted: 680mm, Extended: 2m | ||
| Roller/Unit | φ=50mm, Thickness ≥1.5mm Zinced steel | ||
| Payload/Unit | 150kg | ||
| Motor/Unit | 120W*1 | ||
| Height | 550mm-820mm/750mm-1200mm/900mm-1500mm
(Other size can be customized as needed) |
||

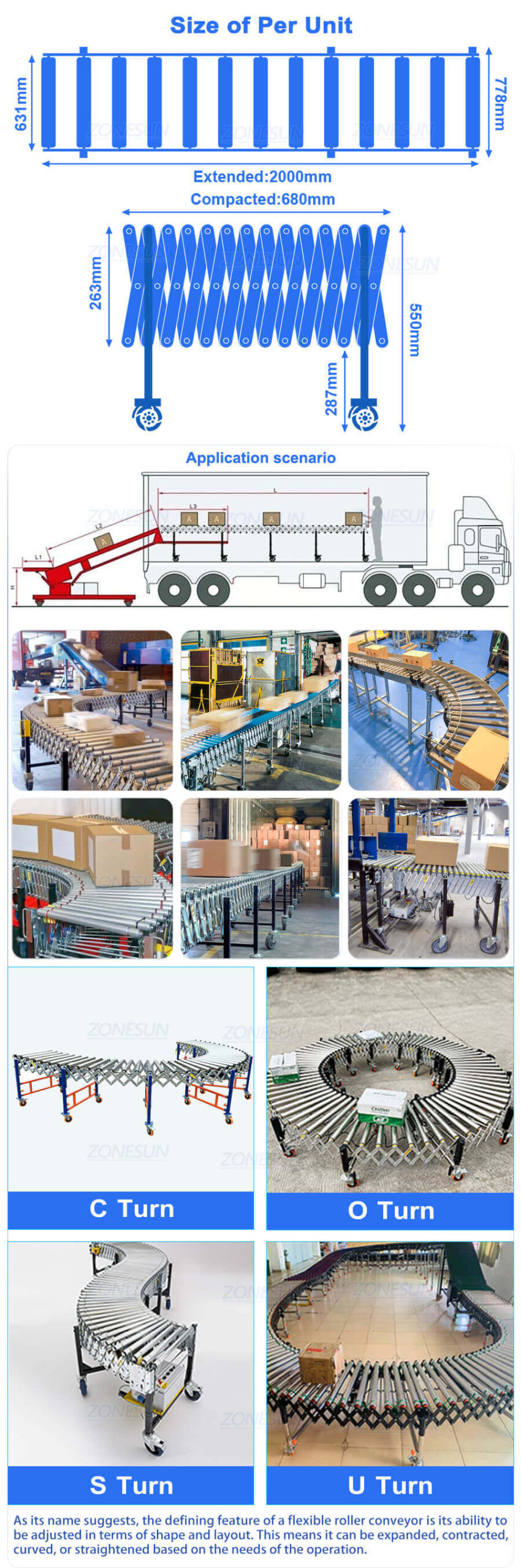

| Size/Unit | About 2000*778*550mm | ||
| Weight/Unit | 49kg | ||
| Other Parameter | |||
| 1.There are 13 rollers for per unit
2.Distance between roller and roller is about 100mm 3.If the conveyor belt needs to be formed at 90 degrees, we recommend purchasing 2 unitsof conveyor belts 4.If the conveyor belt needs to be formed at 180 degrees, we recommend purchasing 3unitsof conveyor belts |
|||
