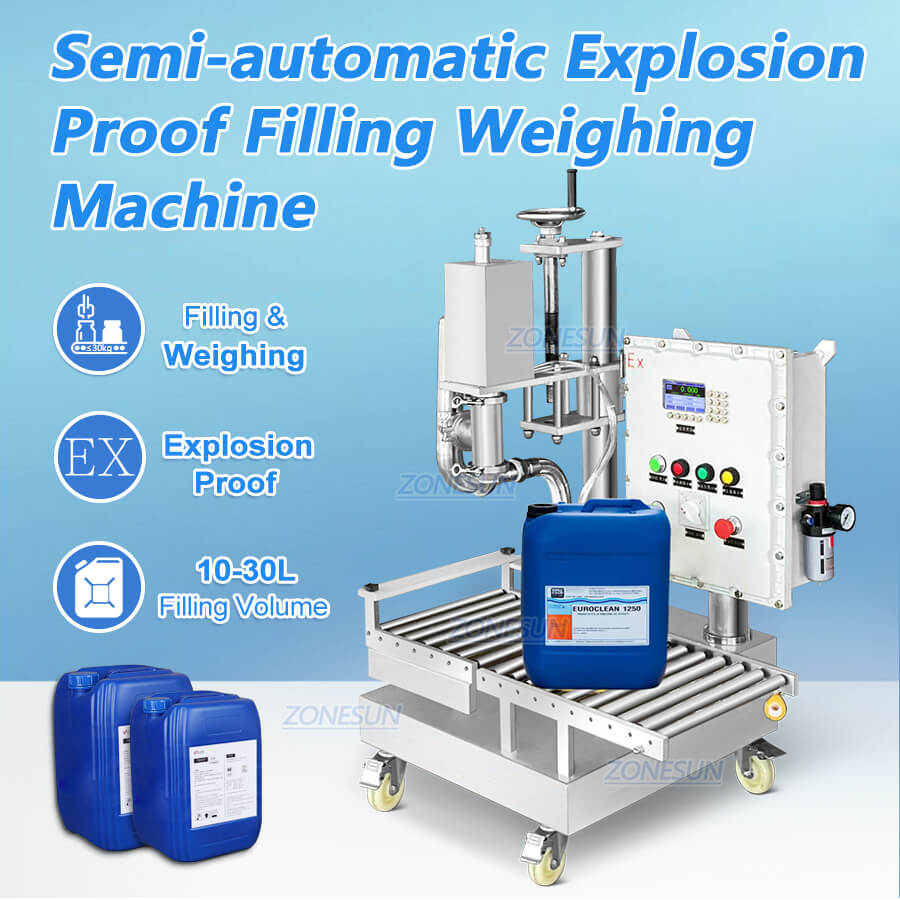

Explosion Proof Weighing Filling Machine
This filling weighing machine is designed for large volumes of flammable liquid products like thinners and white spirit. It features a compact design.
Share to
Product Description:
This filling weighing machine is designed for large volumes of flammable liquid products like thinners and white spirit. It features a compact design.
Product Parameters:
|
Machine model
|
ZS-YTEXW1
|
|
Machine voltage
|
110/220V 50-60HZ 100W
|
|
Filling range
|
10-30L
|
|
Working capacity
|
3-6 BPM(based on filling volume)
|
|
Filling accuracy
|
±1%
|
|
Air source
|
0.5MPa ± 0.1MPa
|
|
Air consumption
|
5m³/h
|
|
Weighing range
|
≤30kg
|
|

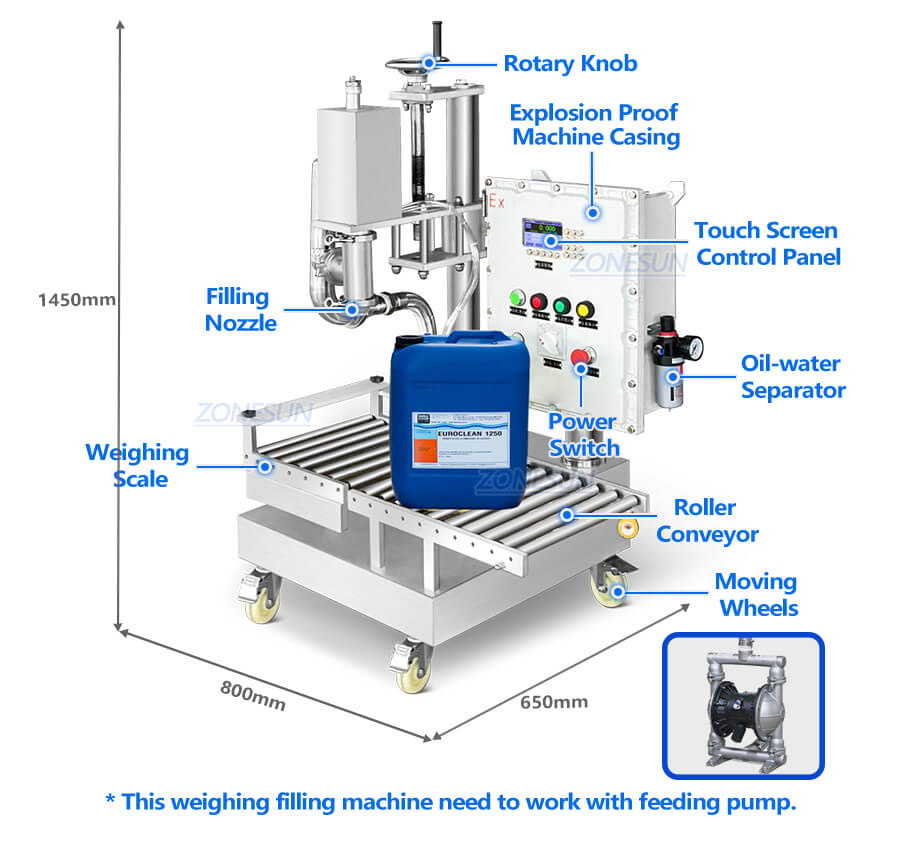

Machine dimension
|
About 800*650*1450mm
|
|
Machine weight
|
About 100kg
|
Product Details:

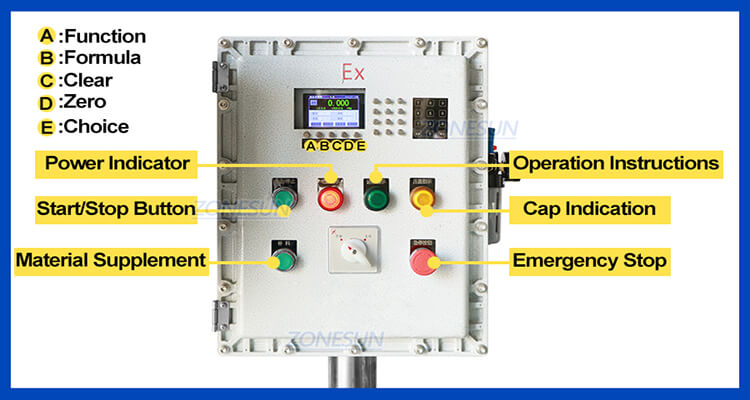

Explosion Proof Control Box
This is designed to contain any ignition within the box, preventing it from igniting the surrounding hazardous atmosphere.

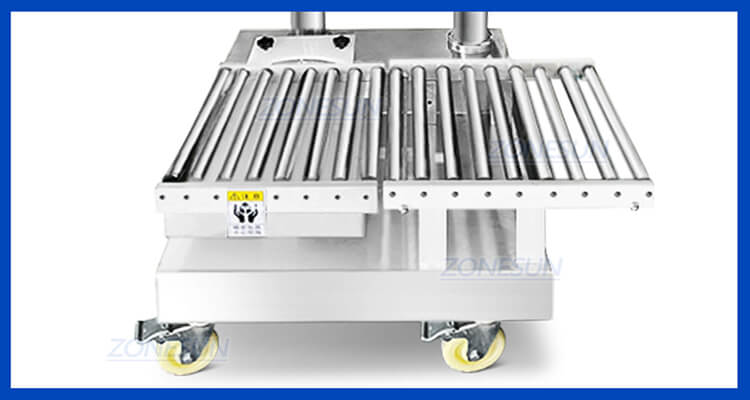

Weighing Scale
Accurate weighing, reducing errors and improving weight accuracy.

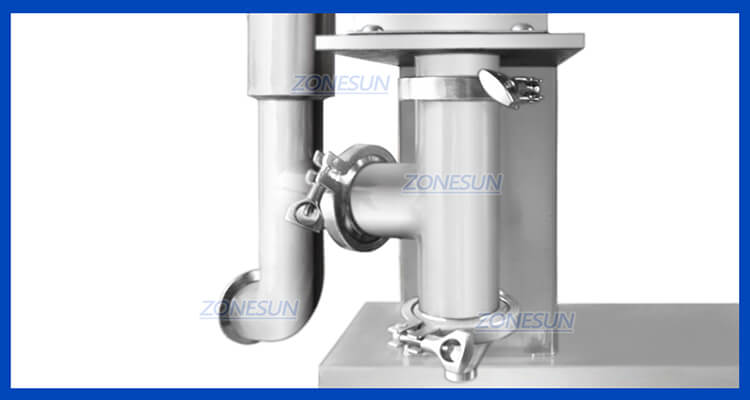

A spray-proof discharge outlet
Enables fast loading without jamming or clogging, thereby improving work efficiency.

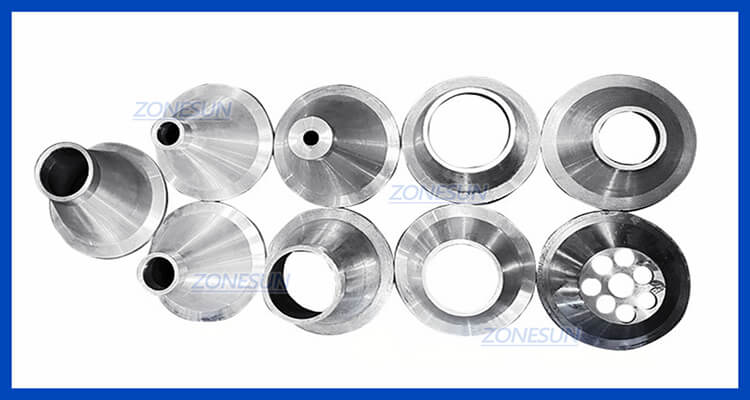

Multiple Filling Nozzles
Various filling nozzles can be optionally selected, ensures filling accuracy and working capacity.
