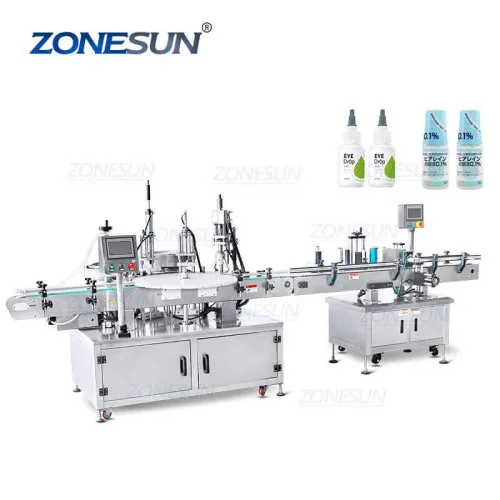

Eyedrop Filling Line

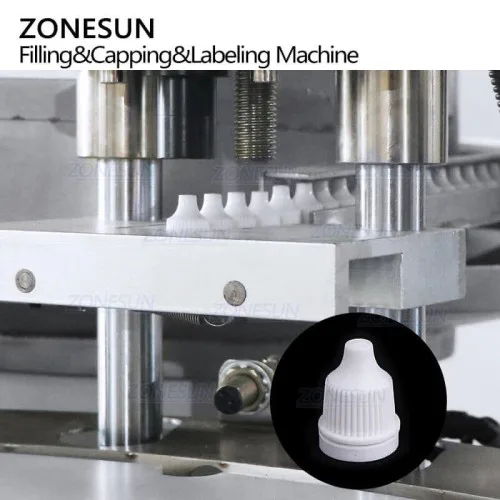

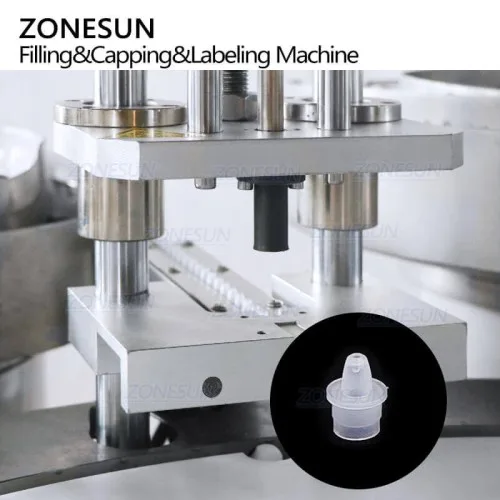

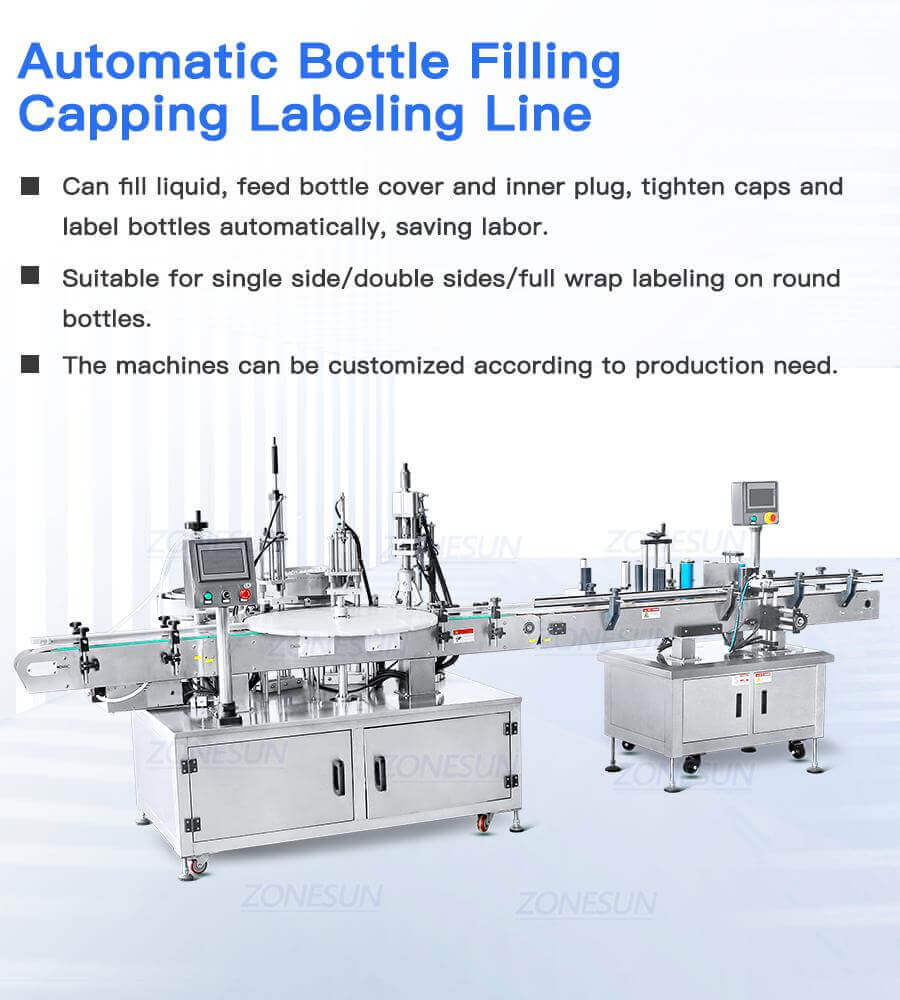

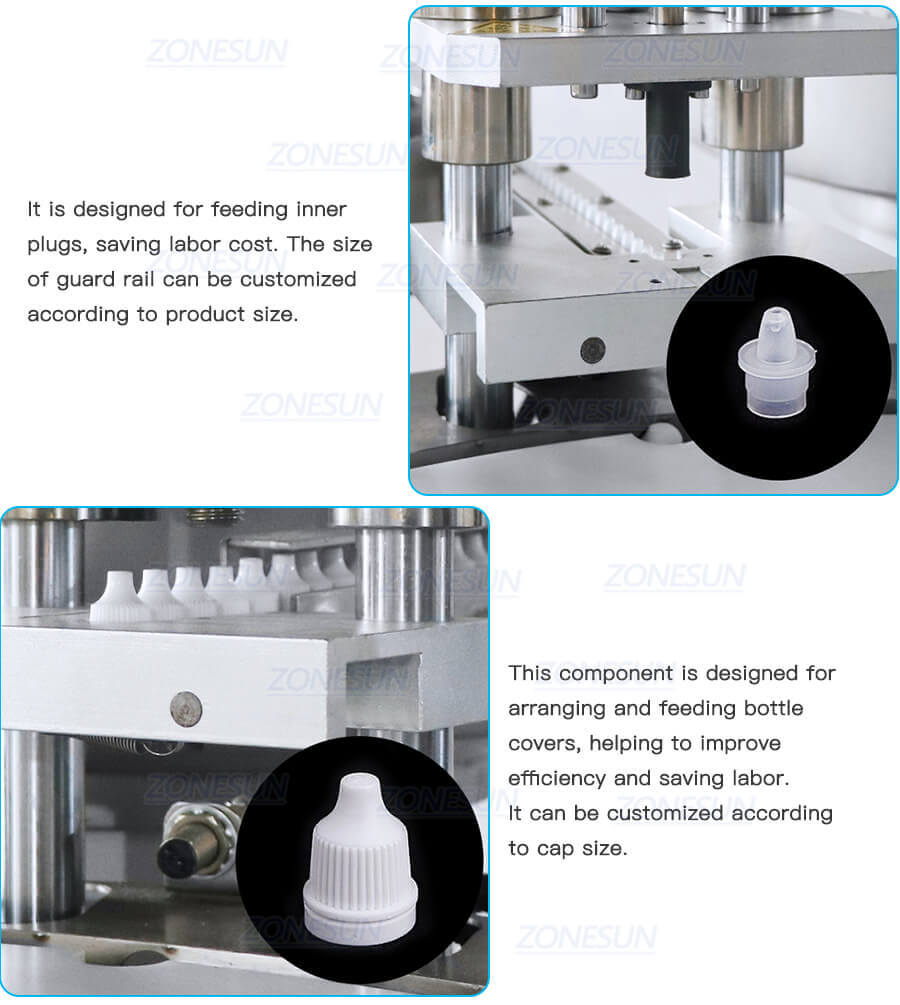

This automatic production line is designed with multiple function,it can arrange bottles,fill liquid,feed bottle plugs and caps,cap bottles and label stickers automatically.This is suitable for essential oil,eyedrops,skin toner etc.We can customize the machine and make it can work for different sizes of containers at the same time.
Share to
Description:
This automatic production line is designed with multiple function,it can arrange bottles,fill liquid,feed bottle plugs and caps,cap bottles and label stickers automatically.This is suitable for essential oil,eyedrops,skin toner etc.We can customize the machine and make it can work for different sizes of containers at the same time.

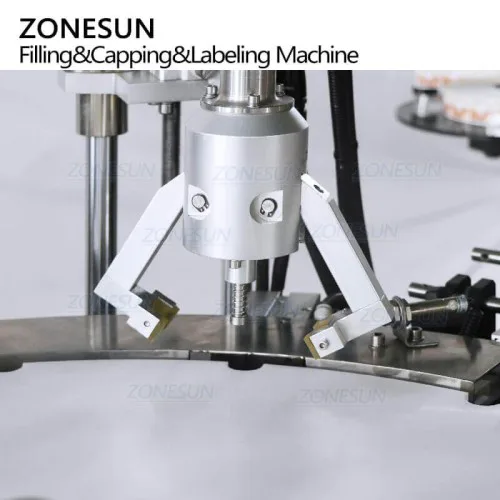

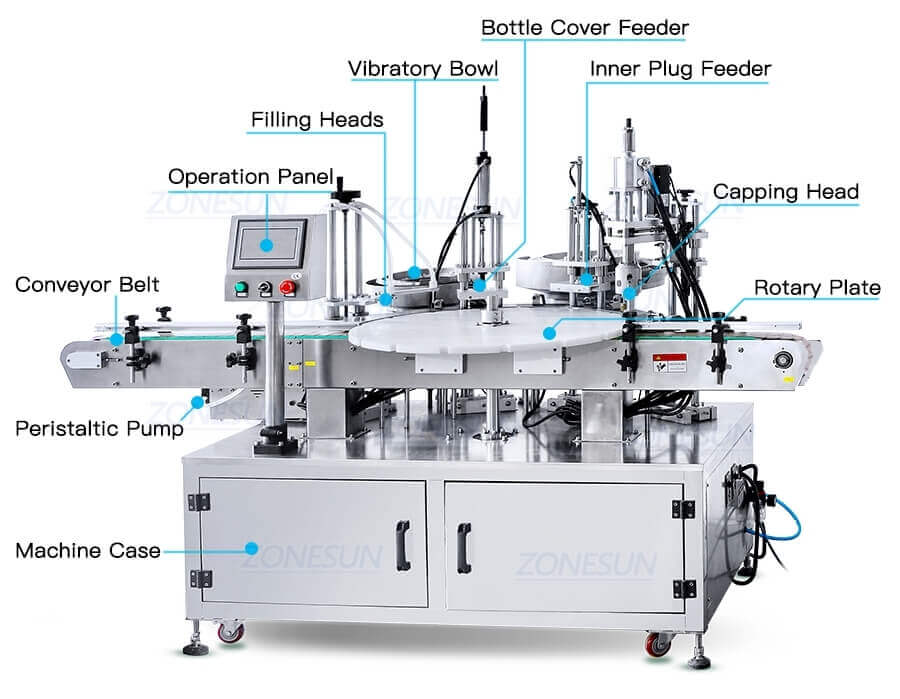

Rotary Filling Capping Machine:
| Machine Model | ZS-AFC13 |
| Voltage | 220V/110V 50-60Hz |
| Power | 1000W |

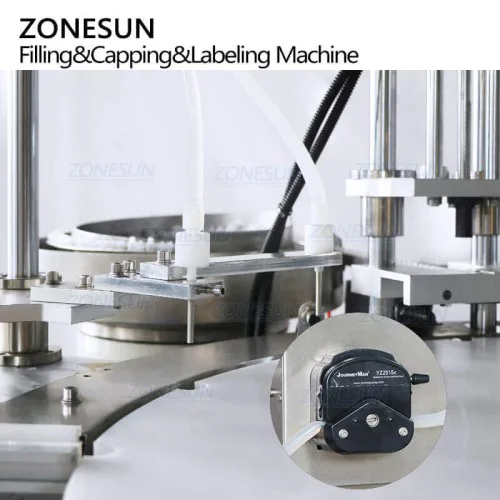

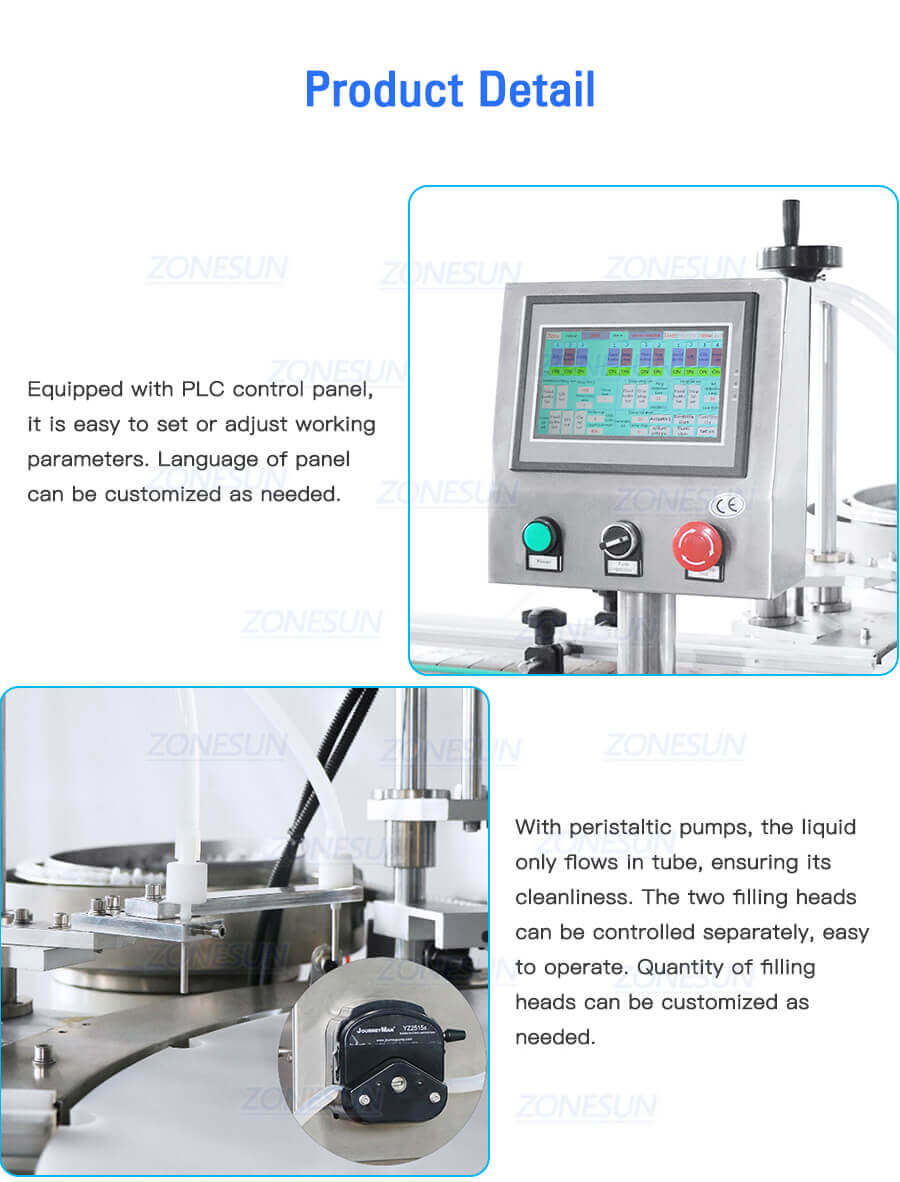

| Filling Pump | Peristaltic Pump |
| Working Speed | About 15-20 bottles/min(depending on bottle size and liquid) |
| Max Flow Rate | 2L/min(each nozzle and based on water) |
| Suitable Bottle Size | Can be customized |
| Bottle Cap Diameter | Can be customized |
| Air Pressure | 0.6-0.8MPa |
| Package Size | About 1800*1070*1760mm |
| Gross Weight | About 445kg |

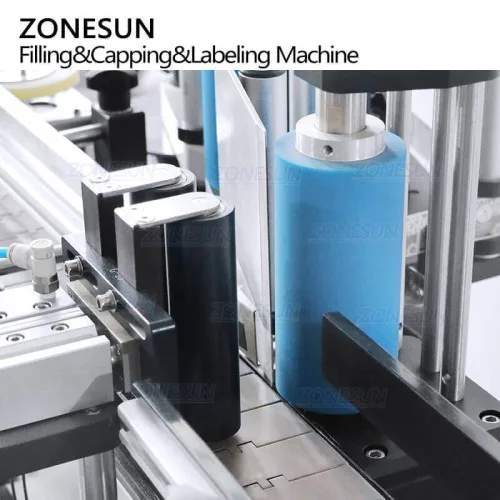

Labeling Machine:
| Model | ZS-TB260R |
| Power Supply | AC220V 50Hz/60Hz 1000W |
| Labeling Capacity | 25-50 bottles/min(dependingon bottle size) |
| Labeling Accuracy | ±1.0mm |
| Suitable Bottle Diameter | φ12-100mm |
| Label Size | (L)20-300mm (H)15-150mm |
| Roll Inside Diameter | φ76mm |
| Roll Outside Diameter | φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine Size | About 2000*820*1380mm |
| Net Weight | About 180kg |
| Packing Size | About 2100*890*1520mm |
| Gross Weight | About 250kg |
