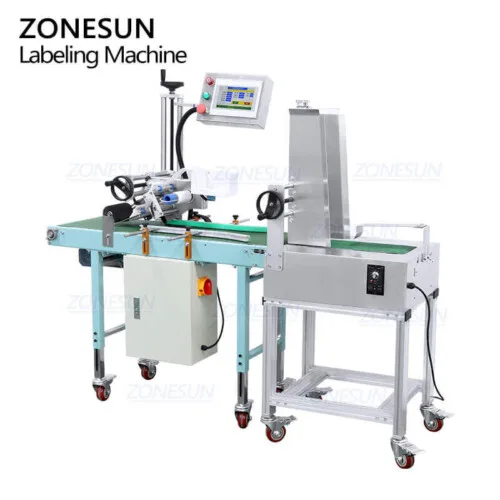

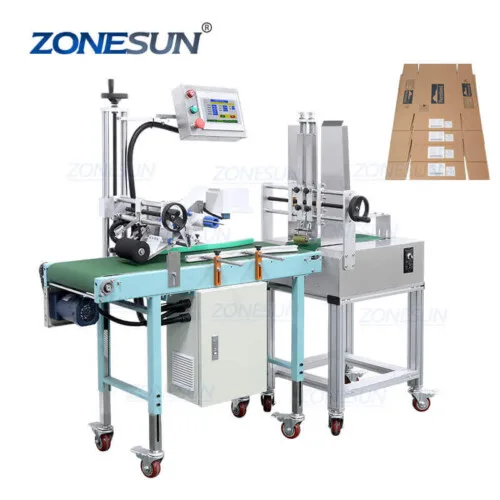

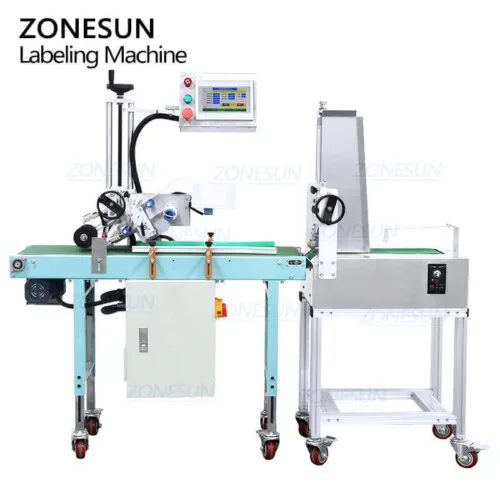

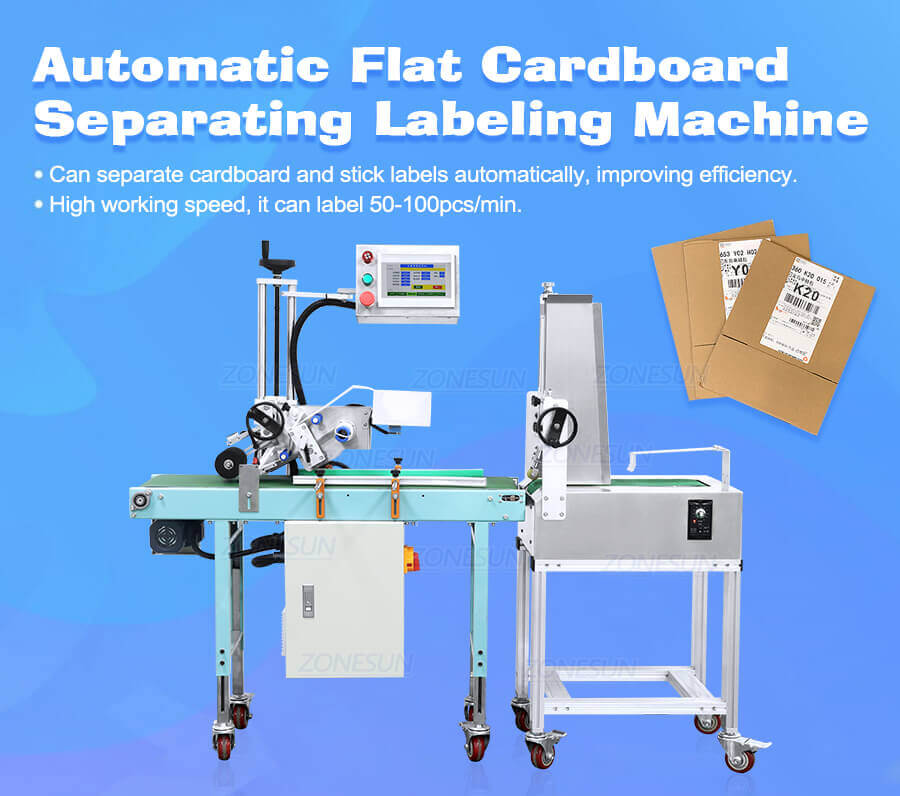

Flat Cardboard Labeling Machine

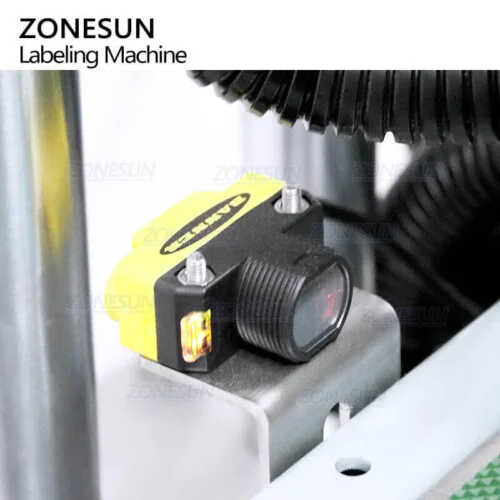

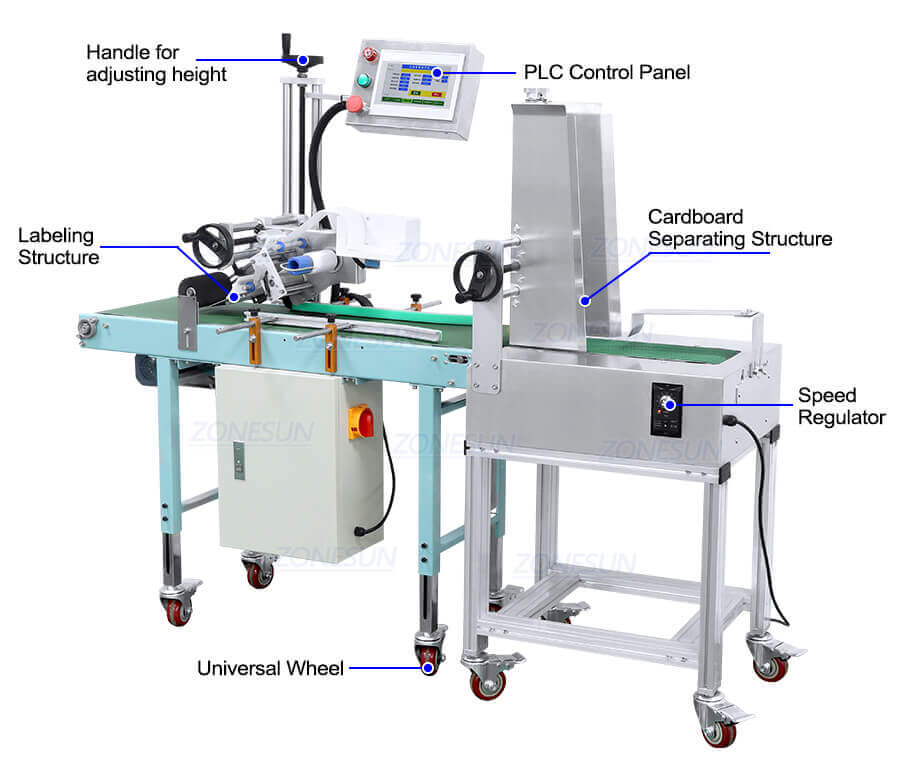

This label applicator is equipped with stack feeder, which can separate stacked flat carton box and convey them to the labeling structure, when electric eye detect flat cardboard, the stickers will be labeled onto it. This machine is suitable for food, daily chemical, cosmetics industries.
Share to
Description:
This label applicator is equipped with stack feeder, which can separate stacked flat carton box and convey them to the labeling structure, when electric eye detect flat cardboard, the stickers will be labeled onto it. This machine is suitable for food, daily chemical, cosmetics industries.
| Machine Model | ZS-TB160P |
| Voltage | 220V/110V 50-60Hz |
| Power | About 300W |
| Labeling Speed | About 50-100pcs/min(depending on product size) |
| Labeling Accuracy | ±3mm |
| Height of Worktable | 600-850mm |
| Cardboard Size | 160-420mm(L)*160-420mm(W)*2-20mm(Thickness) |
| Conveying Speed | 31m/min |
| Machine Size | About 1530*500*1220mm(L*W*H) |
| Machine Weight | About 120kg |

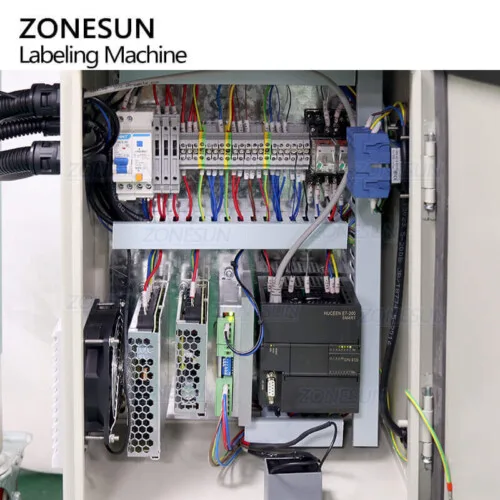

| Machine Configuration | ||
| Machine Component | Brand | Origin |
| PLC | HUCEEN | Shenzhen, China |
| Stepper Motor | YAKO | Shenzhen, China |
| Switching Power Supply | MEANWELL | Taiwan, China |
| Leakage Switch | Schneider | France |
| Emergency Stop Button | Schneider | France |

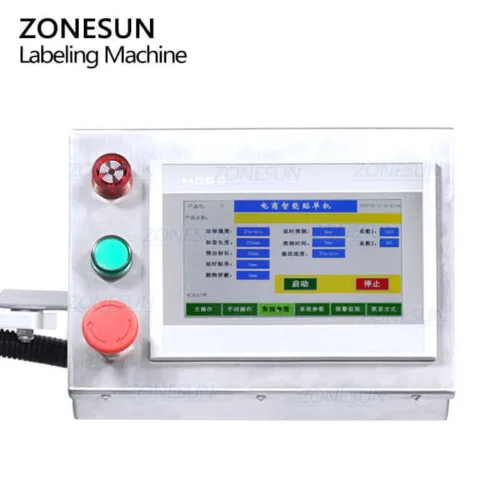

| Touch Screen | MCGS | China |

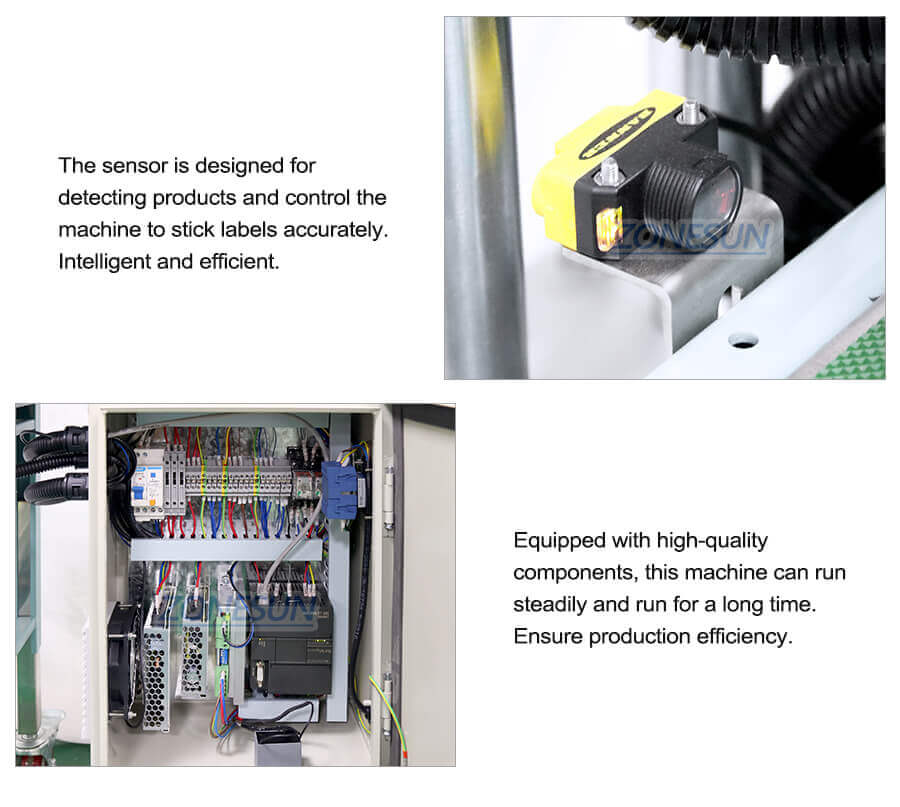

| Label Sensor | Leuze | Germany |
