Full Automatic Cosmetic Paste Filling Line

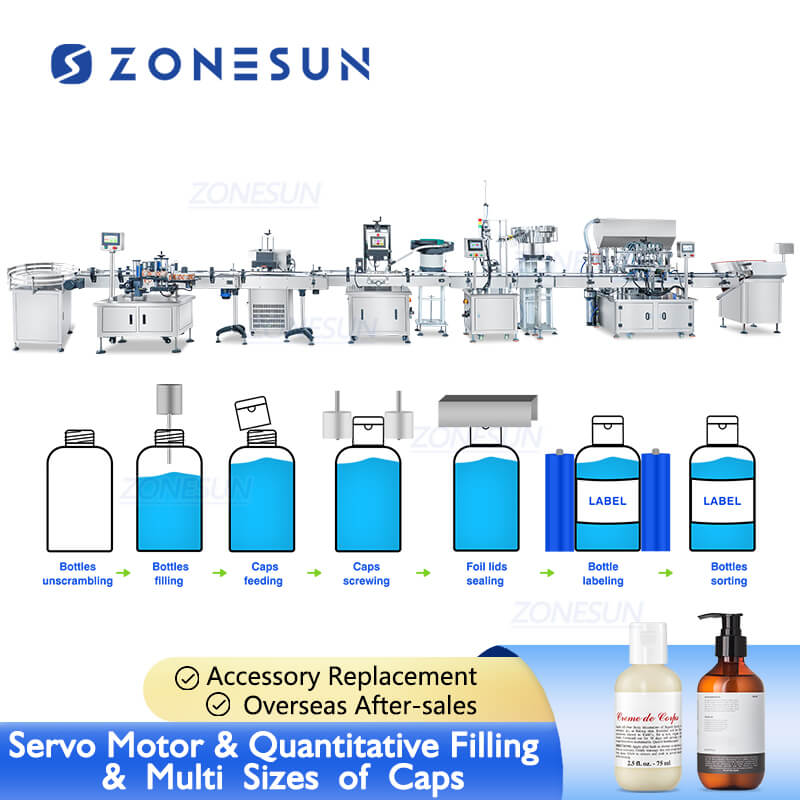

This filling line is suitable for packaging personal care products like shampoo, body gel. It can finish bottle sorting, thicker liquid or paste filling,cap feeding, cap tightening, sealing, and labeling process.It is suitable for small and medium scale production.
Share to
Product Description:
This filling line is suitable for packaging personal care products like shampoo, body gel. It can finish bottle sorting, thicker liquid or paste filling,cap feeding, cap tightening, sealing, and labeling process.It is suitable for small and medium scale production.
Product Parameters:
Bottle Sorting Machine
| Machine model | ZS-LP750 |
| Machine voltage | 110/220V 50-60HZ |
| Machine power | < 500W |
| Rotary plate diameter | 755mm |
| Suitable bottle diameter | Customized according to your bottles |
| Working speed | 20-80 bottles/min |
| Machine size | About 570*685*1325mm |
| Machine weight | About 177kg |
| Package size | About 1110*1080*1490mm |
| Package weight | About 208kg |
Servo Filling Machine
| Machine Model | ZS-YT6T-6PX |
| Voltage | 220V/110V 50-60Hz |
| Power | 2KW |
| Filling Heads | 6 Heads(Can be customized) |
| Filling Range | 100-1000 ml(Can be customized) |
| Filling Speed | About 30-70 bottles/min(depending on materials and bottle size) |
| Filling Pump | Servo Piston Pump |
| Filling Accuracy | ±1% |
| Air Pressure | 0.5-0.8 MPa |
| Data Storage Function | Available |
| Machine Size | About 3020*900*1850 mm |
| Package Size | About 2030*900*1980 mm |
| Package Weight | About 401kg |
Pump Cap Feeding Machine
| Machine model | ZS-XG445S |
| Voltage | 110/220V |
| Power | 1.5 KW |
| Capacity | 5-25 Bottle/Min(based on bottle and cap size) |
| Air pressure | 0.5-0.8 Mpa |
| Suitable bottles | Customize according to sample |
| Cap feeding way | Pneumatic fetch |
| Machine size | About 3000*1300*2100 mm(L*W*H) |
| Packaging size | About 1090*640*1960 mm(machine)+About 1060*970*1570 mm (Vibratory bowl sorter) |
| Packaging weight | About 210 kg(machine)+About 106 kg(Vibratory bowl sorter) |
Servo Capping Machine
| Machine model | ZS-XG440S2 |
| Voltage | 110/220V 50-60 HZ |
| Machine power | About 3.55 KW |
| Suitable bottle size | H=50-300 mm φ=30-120 mm |
| Suitable cap size | φ=20-60 mm(Size of two caps needs to be close) |
| Working speed | About 40 bottles/min |
| Machine size | About 2000*765*1750 mm |
| Machine weight | About 400 kg |
| Package size | About 2060*800*1860 mm |
| Package weight | About 450 kg |
Water-cooled Induction Sealing Machine
| Machine Model | ZS-FK6000 |
| Voltage | 220V 50Hz |
| Power | 3.6kW |
| Sealing Speed | About 0-80 bottles/min |
| Sealing Diameter | 15-60mm(Can be customized) |
| Sealing Height | 50-335mm |
| Cooling Method | Water Cooling |
| Application | Suitable for normal bottles and sharp mouth bottles, plastic and glass bottles. Inapplicable for glass caps, metal bottles or metal caps. |
| Machine Size | About 707*950*1510mm(L*W*H) |
| Machine Weight | About 76kg |
| Package Size | About 660*790*1430mm |
| Package Weight | About 106kg |
Round Bottle Labeler
| Model | ZS-TB260R |
| Power supply | AC220V 50Hz/60Hz 1000 W |
| Labeling capacity(bottles/min) | 25-50 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0 mm |
| Suitable Bottle Size | Φ=30-100 mm H=30-200mm |
| Label size(mm) | (L)20-300 mm (H)12-130 mm(Can be customized) |
| Roll inside diameter(mm) | Φ76mm |
| Roll outside diameter(mm) | Φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About (L)2000*(W)820*(H)1380(mm) |
| Machine weight | About 180kg |
| Packing Size | About (L)2100*(W) 890*(H)1520(mm) |
| Package weight | About 250 kg |
Product Details:

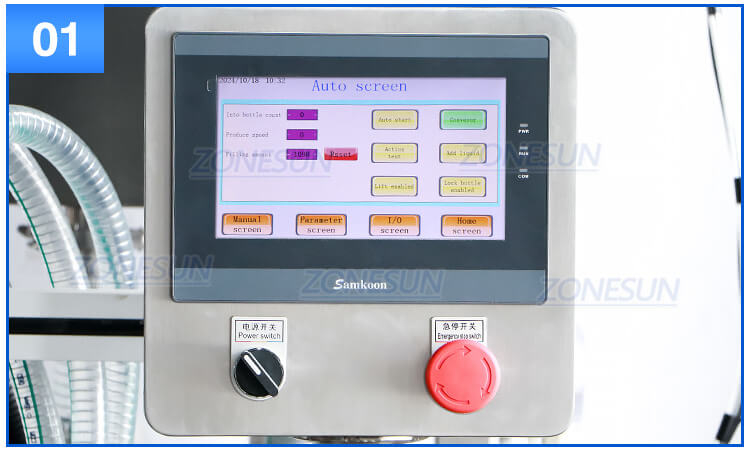

Control Panel
Servo motor controls, set filling volume through control panel directly, parameter shows more intuitively.

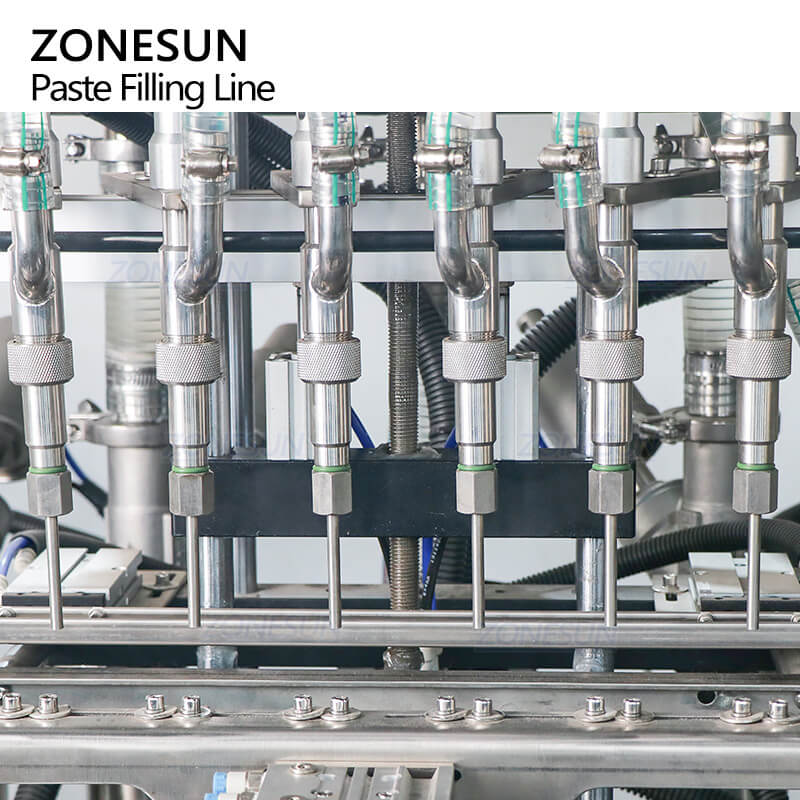

Filling Nozzle
Quantity of filling nozzles is customizable, anti-dripping nozzles can be customized as needed.

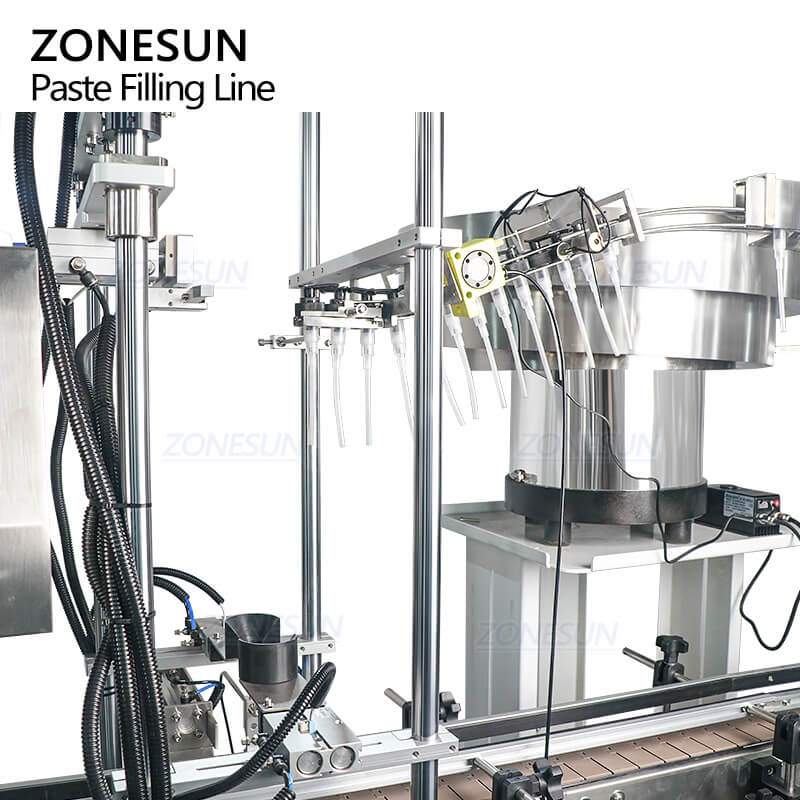

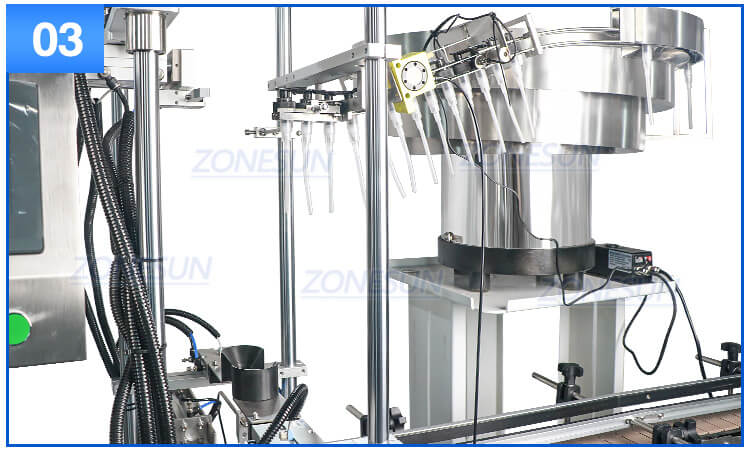

Cap Feeding Structure
Can accurately take caps and place caps, this machine is suitable for spray caps with long and hard tubes.

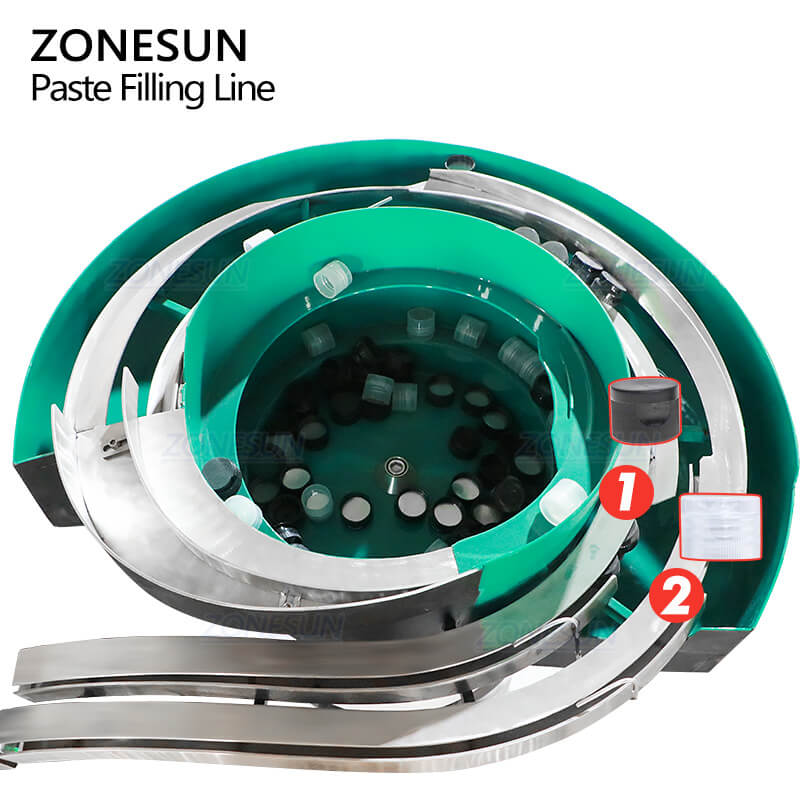

Vibratory Bowl Sorter
Vibrating machine with two guide rail, this is suitable for 2 caps with similar sizes, it is no need to change parts.

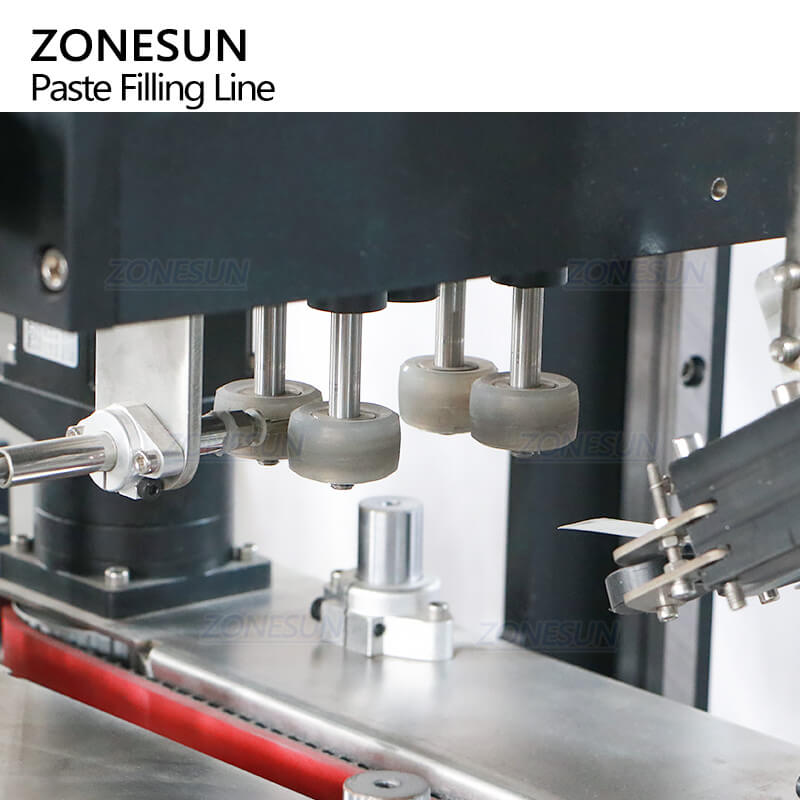

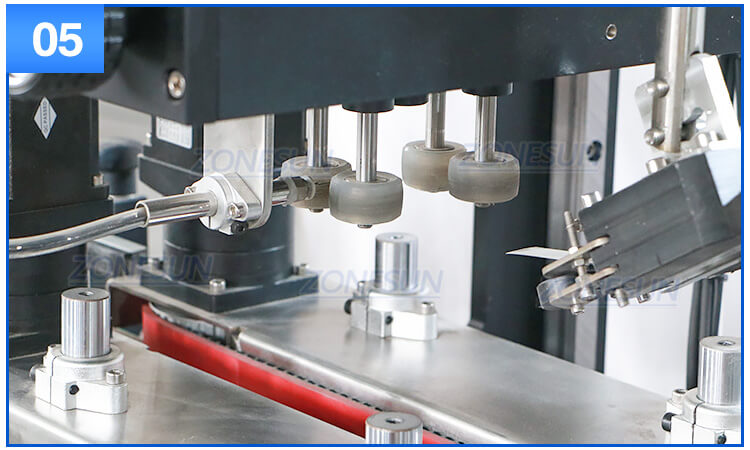

Capping Structure
Controlled by servo motor, capping accuracy and working capacity can be improved greatly.

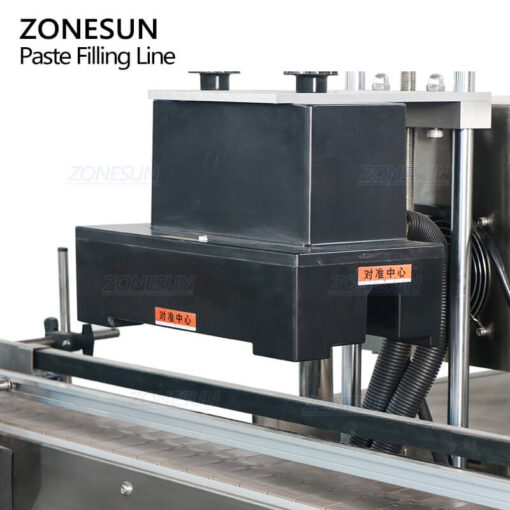

Sealing Structure
It is widely used for normal bottles and sharp mouth bottles

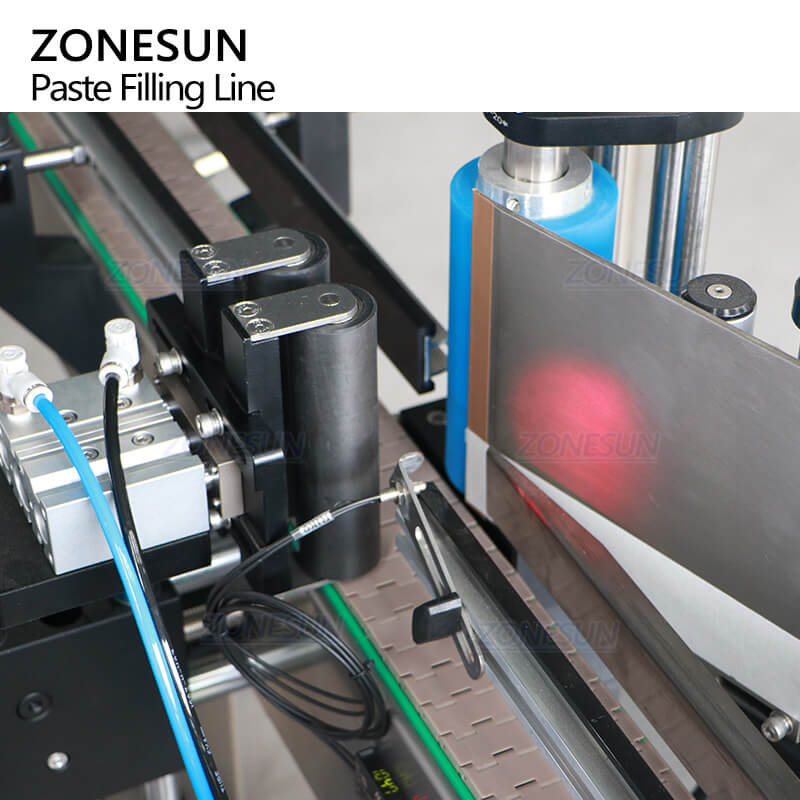

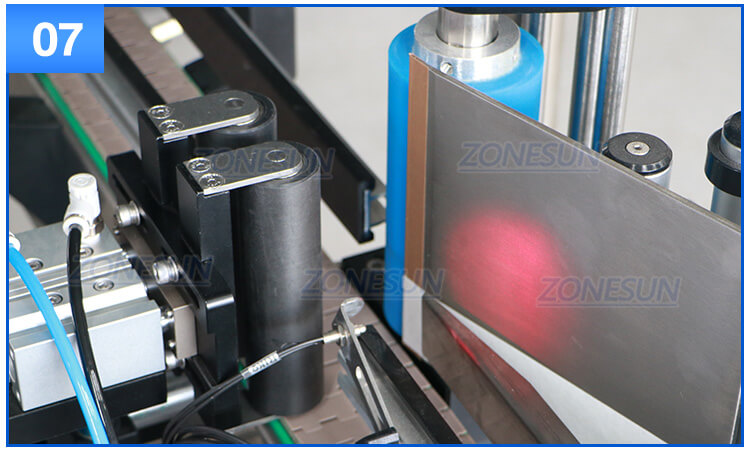

Labeling Structure
Use three rollers to stick labels on bottles, it suits single side, double sides and wrap-around labeling.
Bottle Sorting
Feed and collect bottles in time, ensure the smooth packaging work.
