ZONESUN Full Automatic Filling Capping Labeling Machine For Production Line

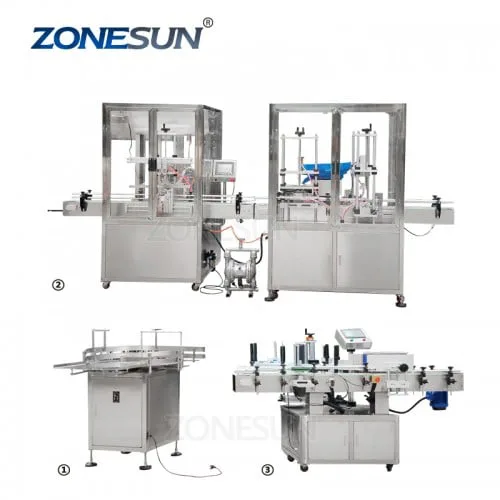

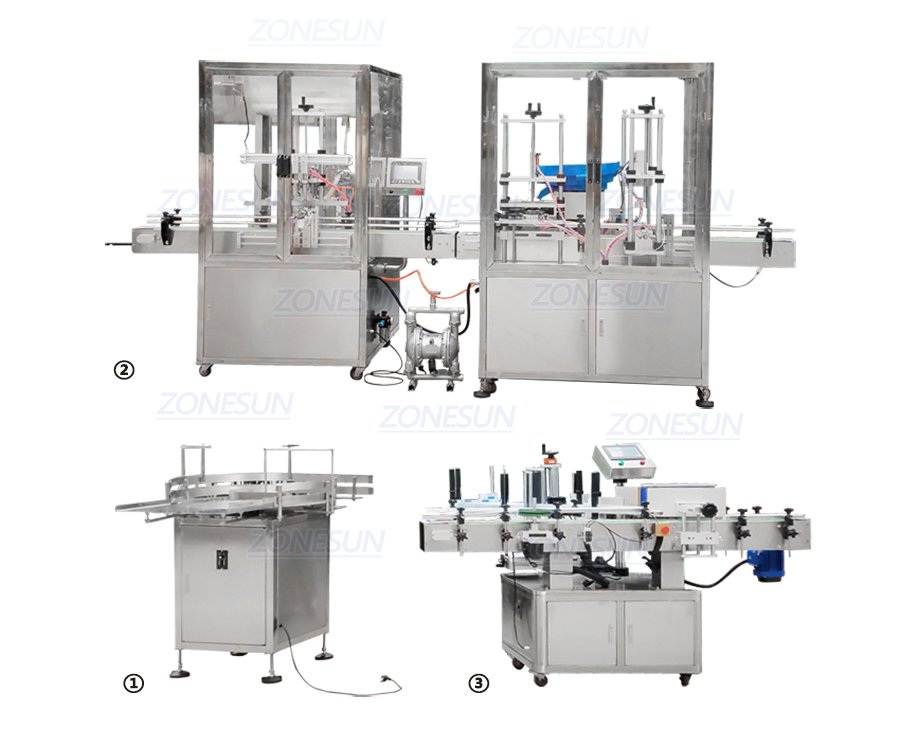

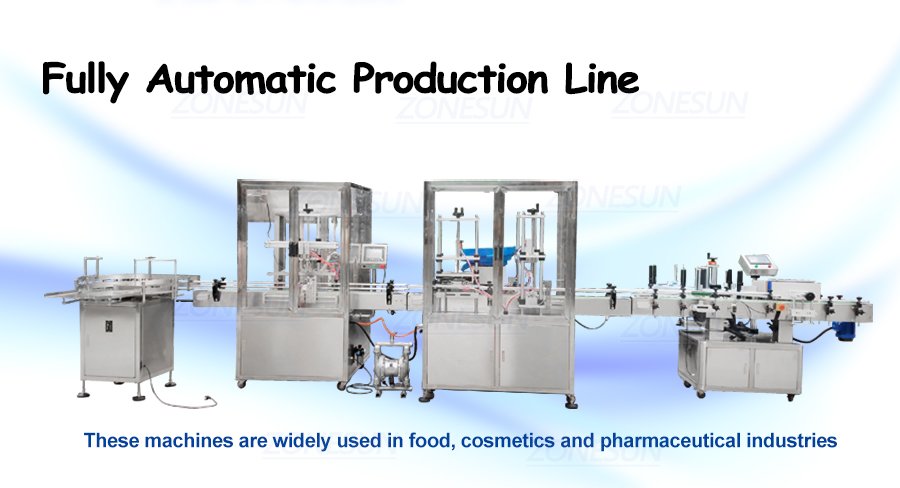

This production line are composed by bottle-grouping machine, filling machine,capping machine,labeling machine.It can automatically finish bottle-grouping,filling,capping,labeling,these improve your working efficiency and save a lot of production cost.
Share to
ZONESUN Full Automatic Filling Capping Labeling Machine For Production Line

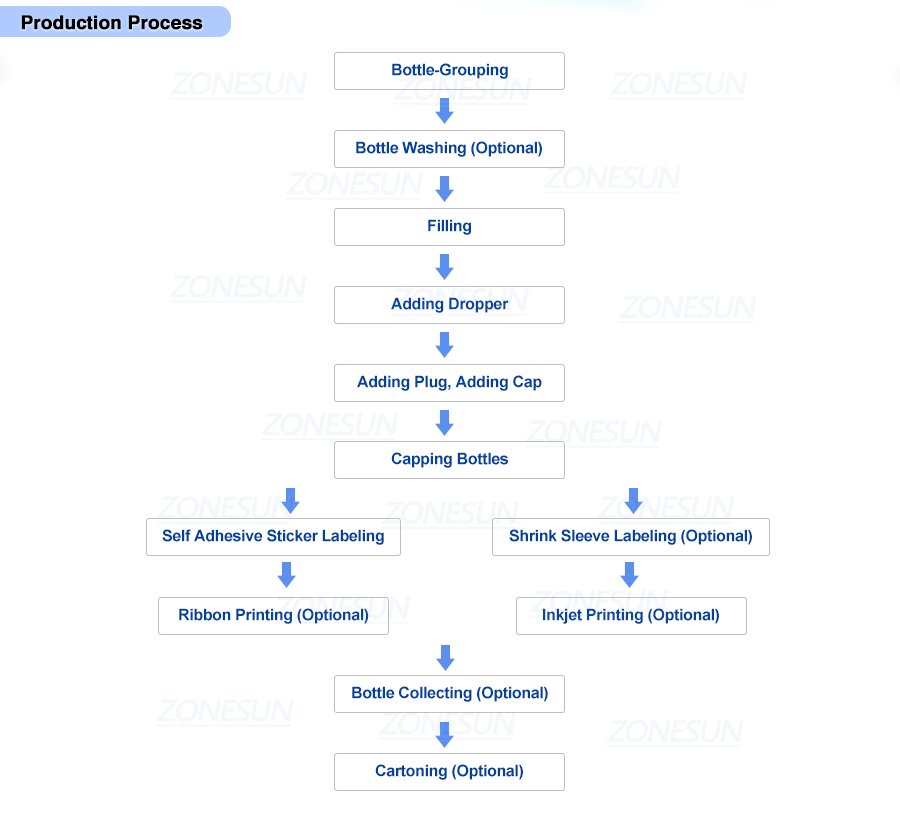

This production line are composed by bottle-grouping machine, filling machine,capping machine,labeling machine.It can automatically finish bottle-grouping,filling,capping,labeling,these improve your working efficiency and save a lot of production cost.
Parameter：
| Machine | Bottle Arranging Machine |
| Suitable Bottle Diameter | 30-100mm |
| Working Speed | 40-60 bottles/min(depends on bottle size) |
| Power | 180W |
| Power Supply | 220V/50-60HZ |
| Machine Weight | 65kg |
| Machine | Automatic Filling Machine |

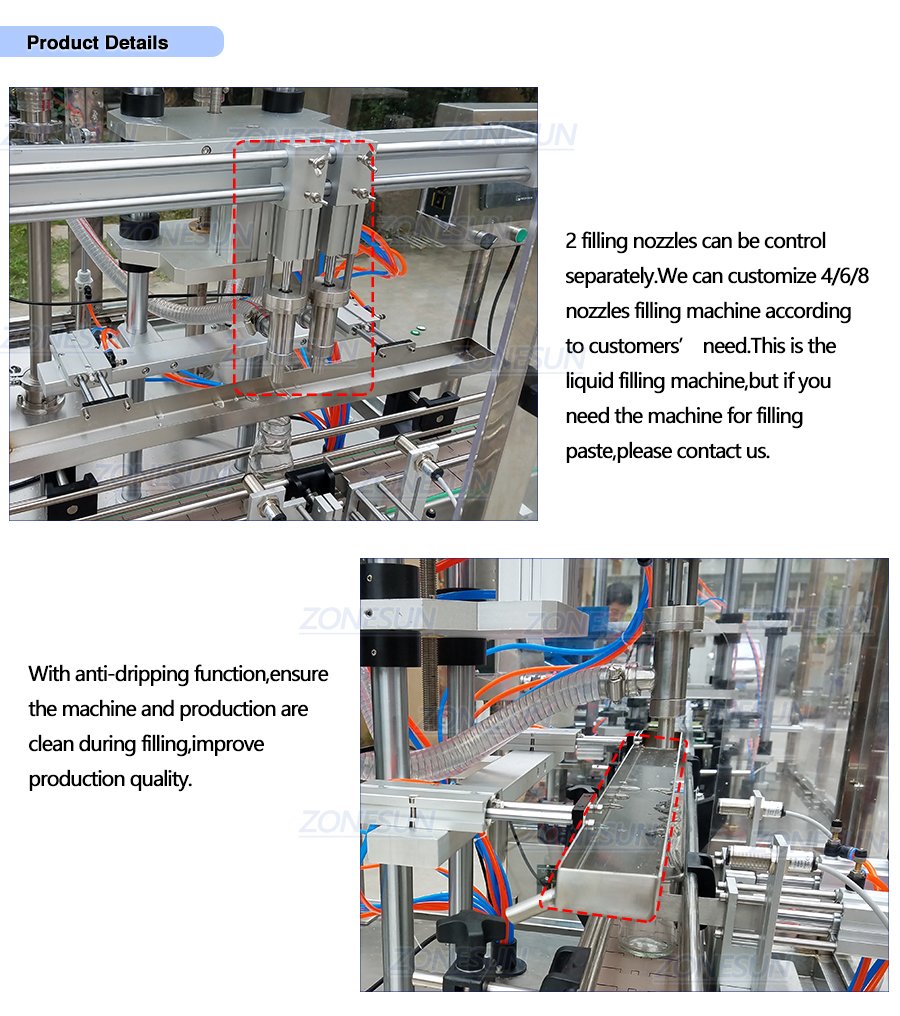

| Number of Filling Nozzles | 2 Nozzles(Can customize nozzle if need) |
| Filling Speed | 0-100 bottles/min(based on water) |
| Power | 1000W |
| Power Supply | 220V/50-60HZ |
| Air Pressure | 0.5-0.7Mpa |
| Filling Capacity | 90-520ml (Customize) |
| Model | 50-500ml/100-1000ml/500-3000ml/1000-5000ml |

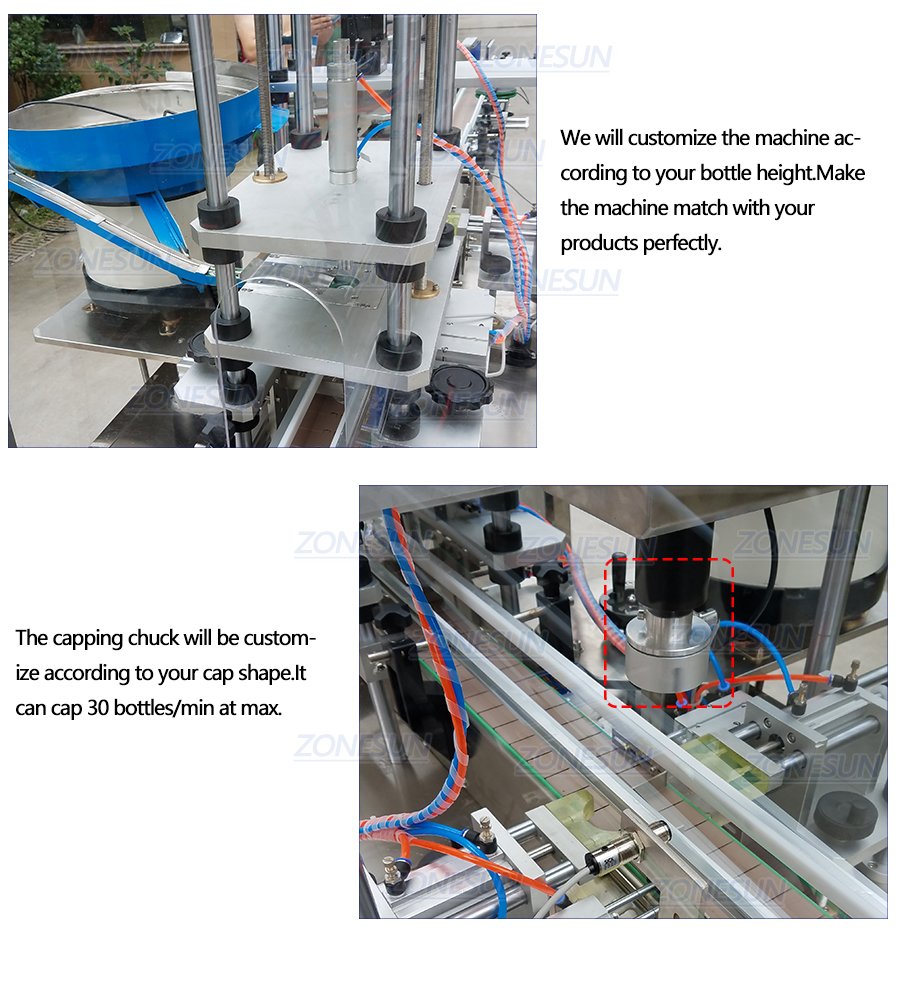

| Machine | Automatic Capping Machine |
| Caps Diameter | Custom |
| Power Supply | 220V/50-60HZ |
| Bottle Height | Custom |
| Working Speed | 0-30 bottles/min |
| Machine | Automatic Labeling Machine |
| Working Speed | 20-200pcs/min |
| Bottle Diameter | 30-120mm |
| Label Size | (L)25-300mm x 15-200mm(H) |
| Power Supply | 220V/50-60HZ 1500W |
| Roll inside diameter(mm) | 75mm |
| Roll outside diameter(mm) | 300mm |
| Machine Weight | 200kg |
FAQ：
Q:Can I buy one of these machines?
A:Yes,these machine can work together as the production line and work separately
Q:Do you offer the after-sale service?
A:Yes,we have the professional technicists to help you solve problems.We can offer the video showing how to do this.
Q:Do you have manual for these machines?
A:Yes,all of these machine will be sent with English manual
