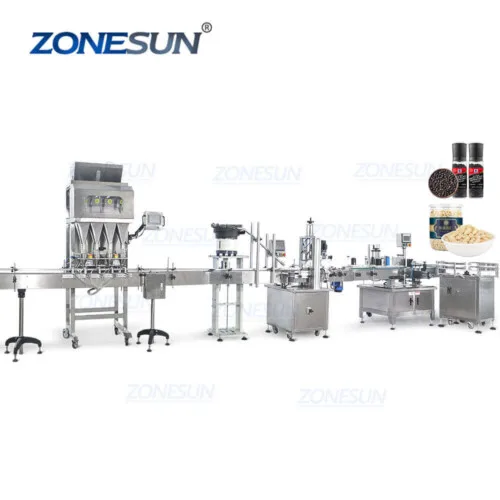

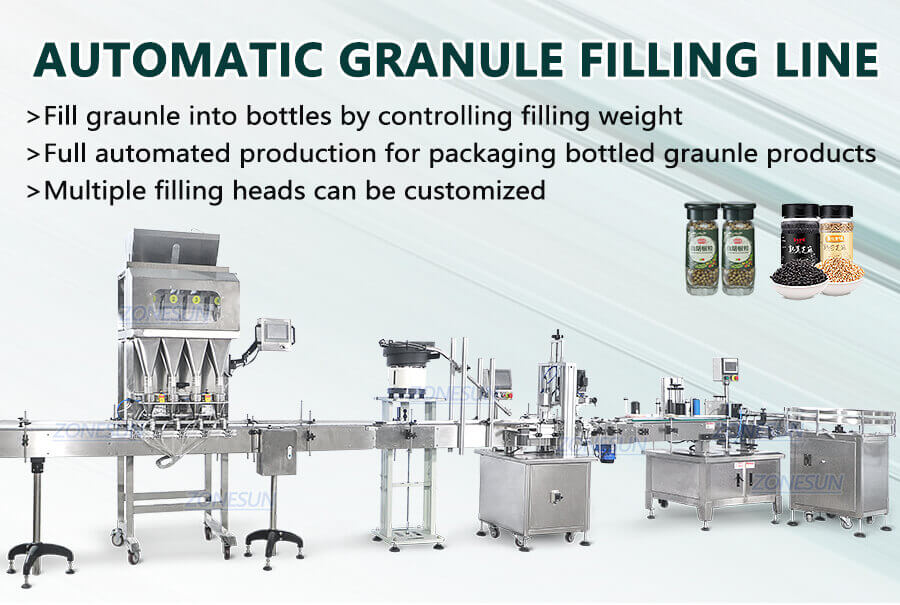

Granule Weighing Filling Line

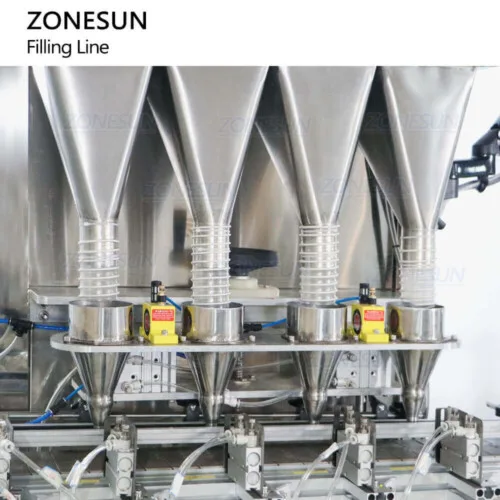

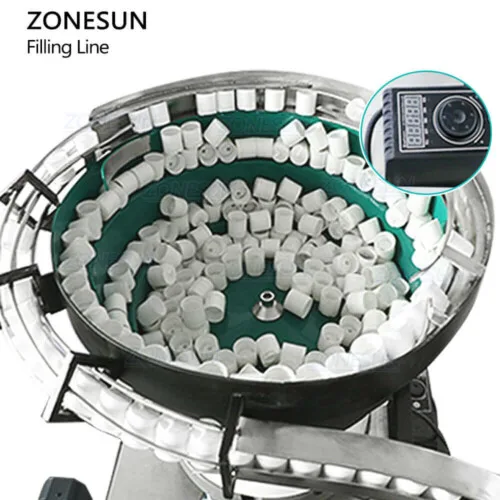

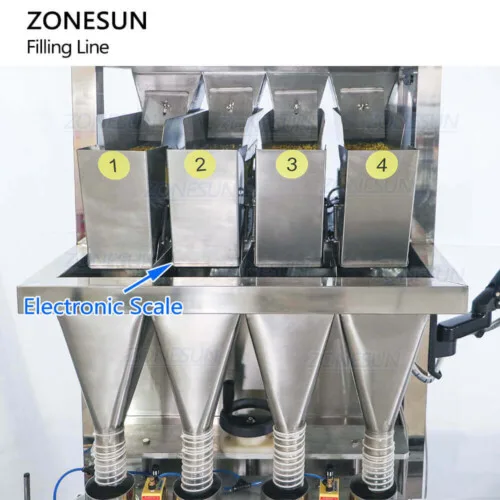

This filling line is used to package bottled granule products,it fills granule by conrtolling the filling weight.Equipped with cap vibratory bowl sorter to feed bottle caps automatically.It is widely used in food,daily chemical and cosmetics industries.
Share to
Description:
This filling line is used to package bottled granule products, it fills granule by conrtolling the filling weight. Equipped with cap vibratory bowl sorter to feed bottle caps automatically.It is widely used in food,daily chemical and cosmetics industries.
Parameter:

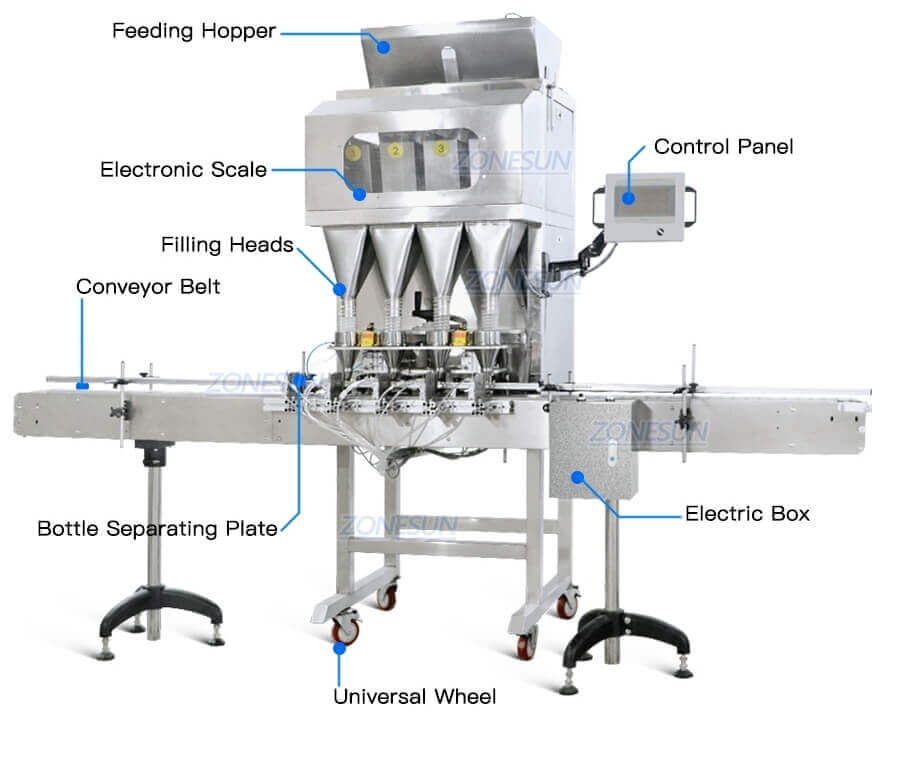

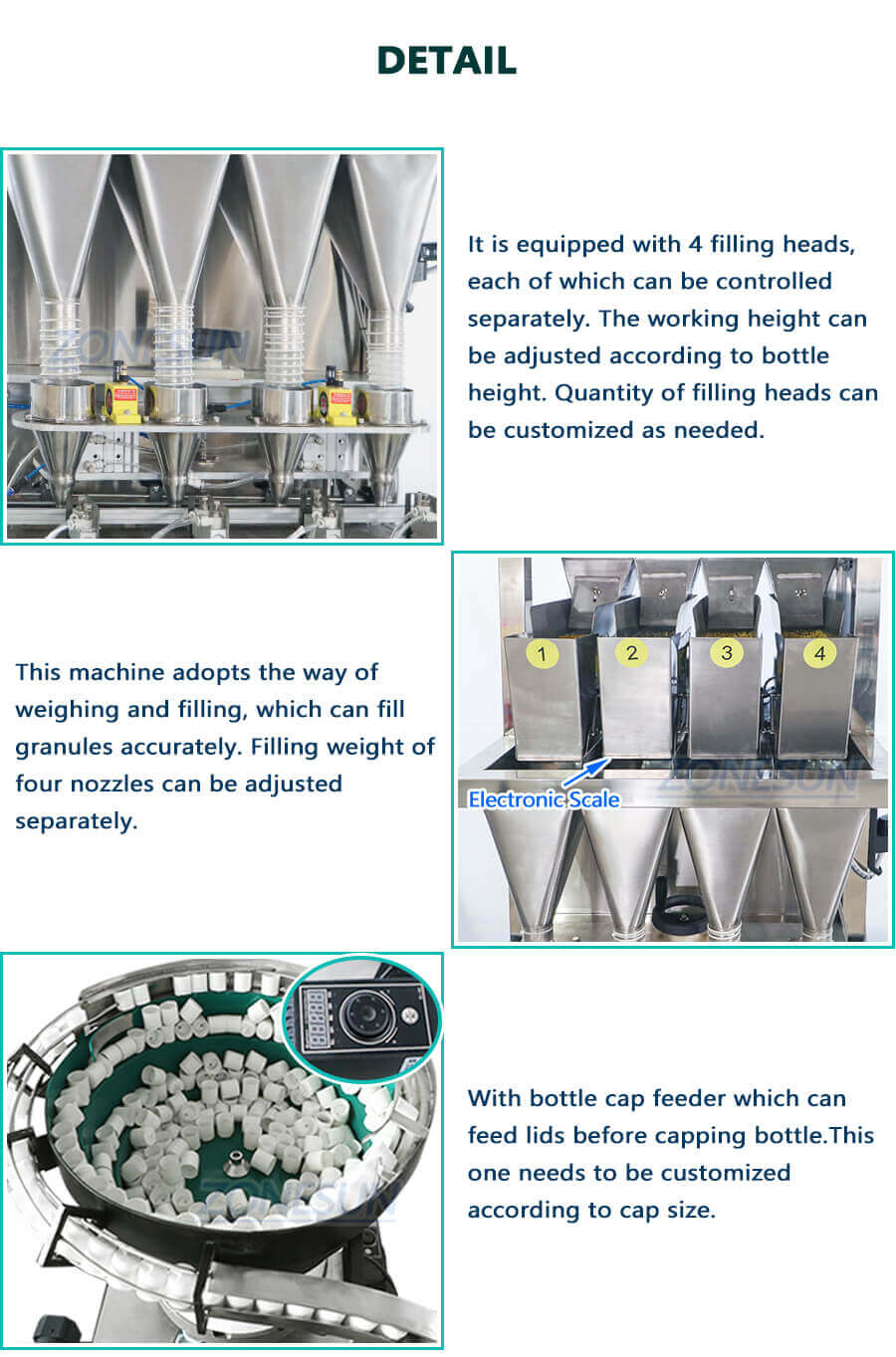

| Machine Model | ZS-GW4 |
| Voltage | 220V 50-60Hz |
| Power | About 3kW |
| Working Speed | About 20-30 bottles/min(depending on bottle size and filling material) |
| Weighing Range | 20-100g per bottle |
| Weighing Error | ±1% |
| Air Pressure | 0.4-0.6MPa |

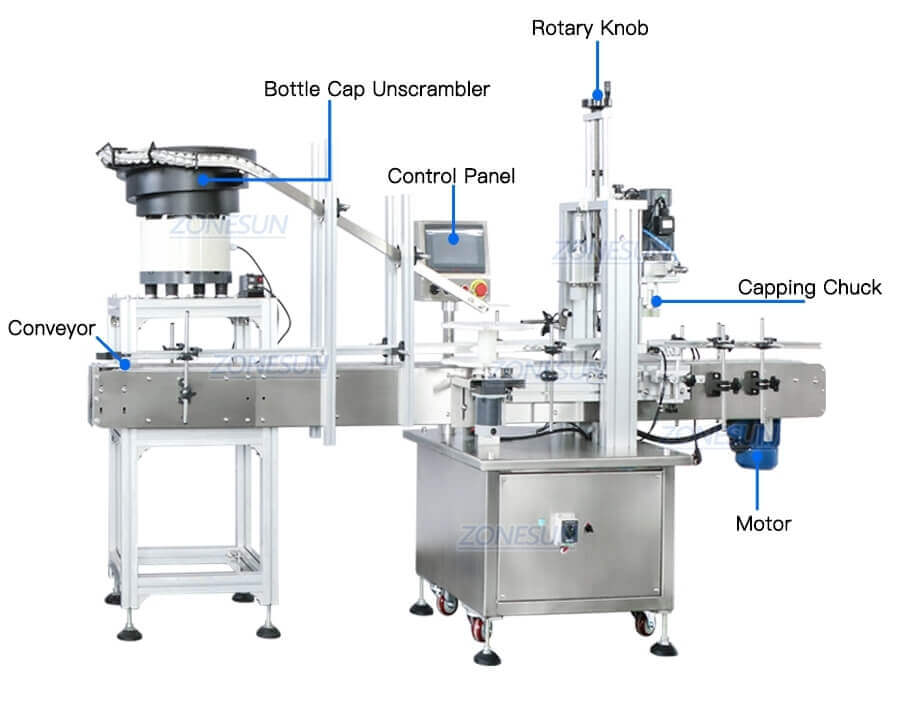

| Machine model | ZS-XG16V |
| Bottle height | 30-300mm |
| Cap Diameter | 18-70mm |
| Botle Diameter | 20-160mm |
| Working speed | 20-60 bottles / minute (depending on bottle and cap size and shape) |
| Working voltage | AC220V/110V 50-60HZ |
| Wokingn pressure | 0.4-0.6MPa |
| Machine size | About 1930*740*1600mm |
| Machine weight | About 150kg |
| Package size | About 2000*820*1760mm |

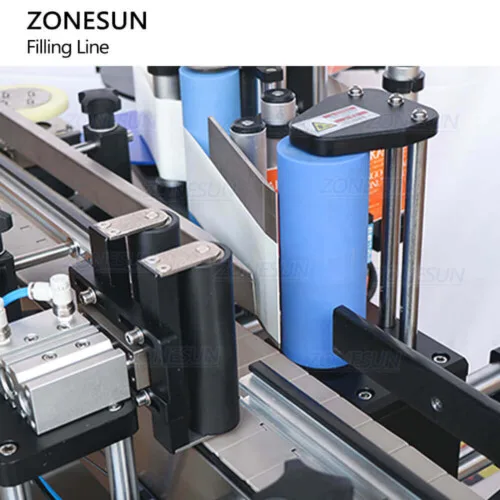

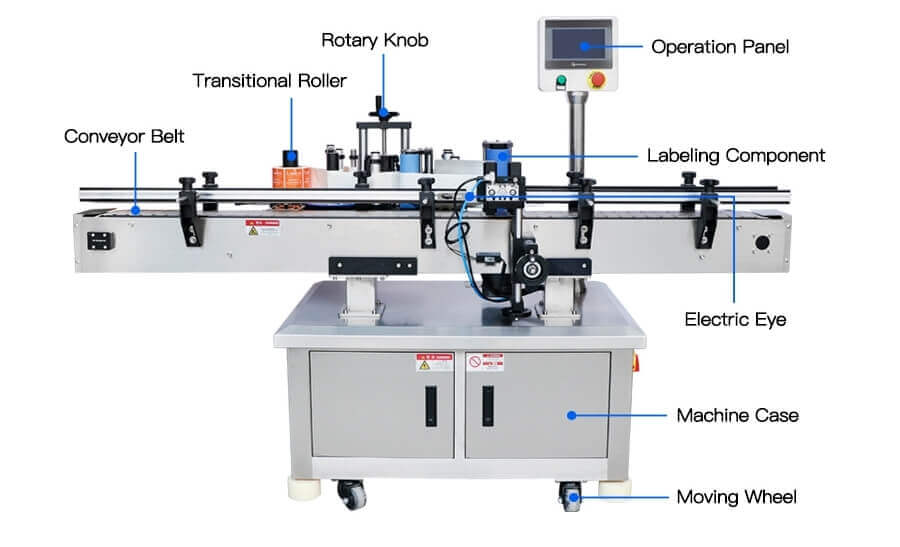

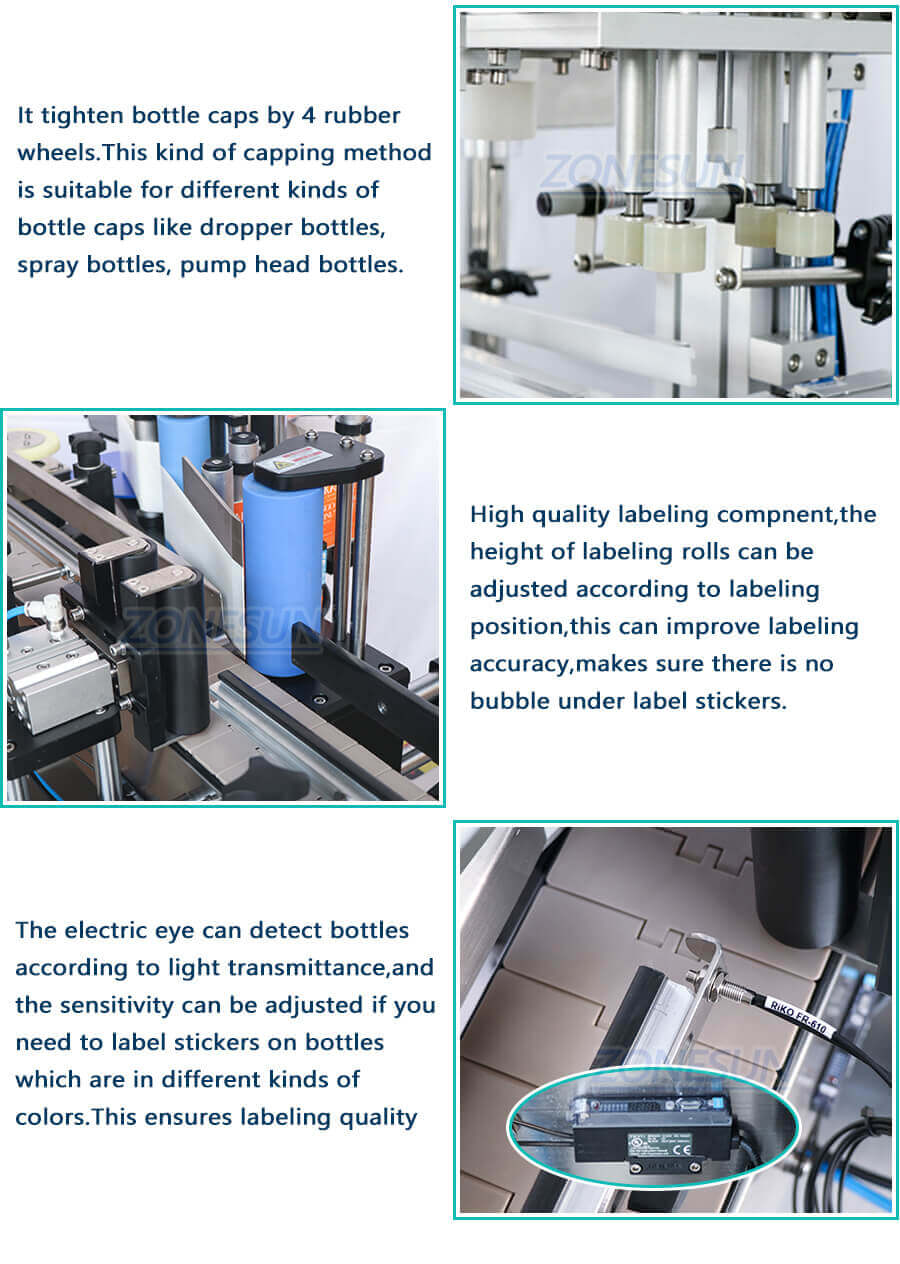

| Model | ZS-TB260R |
| Power supply | AC220V 50Hz/60Hz 1000W |
| Labeling capacity | 25-50 bottles/min(depends on bottle size) |
| Labeling accurac | ±1.0mm |
| Suitable Bottle Diameter | φ12-100mm |
| Label size | (L)20-300mm (H)15-150mm(Can be customized) |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About 2000*820*1380mm |
| Machine weight | About 180kg |
| Packing Size | About 2100*890*1520mm |
| Package weight | About 250kg |
