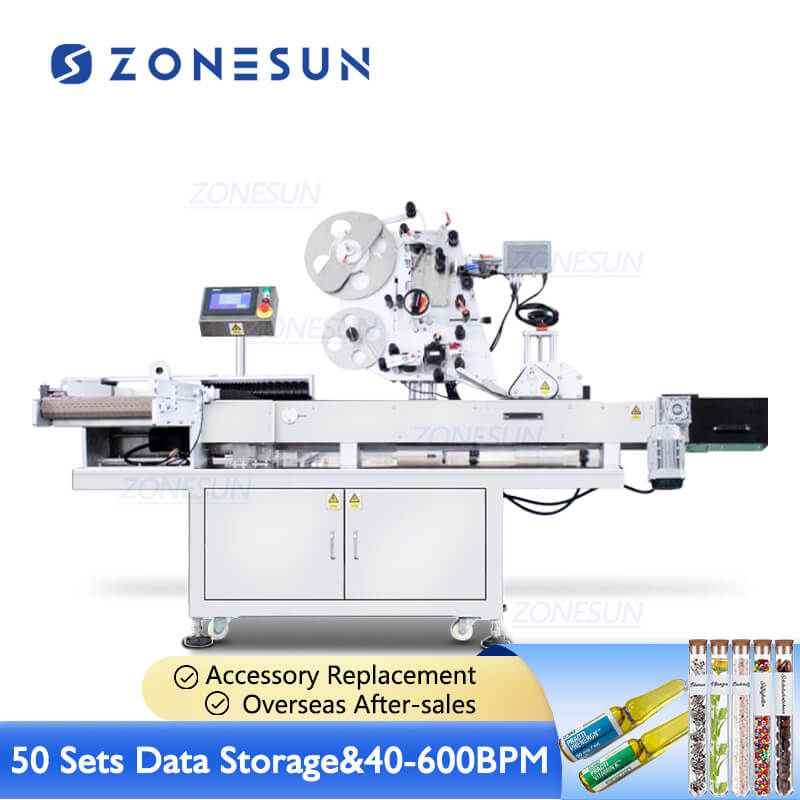

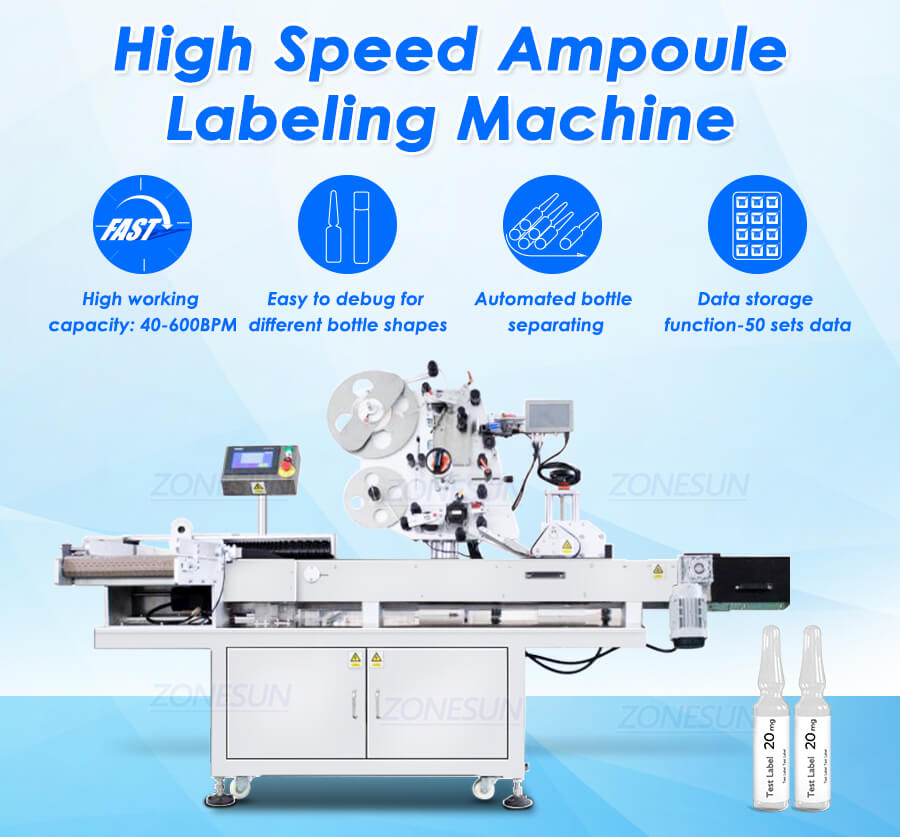

High Speed Ampoule Labeling Machine
The labeling machine is designed for all kinds of cylindrical objects especially for small round bottles, such as glass bottles,plastic bottles. The horizontal conveying and labeling methods are adopted to increase stability and improve labeling efficiency. The ribbon printer and inkjet printer are optional, and the production batch number, production date and other information can be printed at the same time.
Share to
Product Description:
The labeling machine is designed for all kinds of cylindrical objects especially for small round bottles, such as glass bottles,plastic bottles. The horizontal conveying and labeling methods are adopted to increase stability and improve labeling efficiency. The ribbon printer and inkjet printer are optional, and the production batch number, production date and other information can be printed at the same time.
Product Parameters:
|
Machine model
|
ZS-HTB832
|
|
Machine voltage
|
110/220V 50-60HZ 980W
|
|
Working capacity
|
40-600BPM(based on label length)
|
|
Labeling accuracy
|
±1mm
|
|
Bottle size
|
φ=25-120mm H=20-300mm
|
|
Label size
|
W=15-300mm*H=10-150mm
|
|
Label roll inner diameter
|
φ=76mm
|
|
Label roll outer diameter
|
φ=300mm
|
|
Conveyor width
|
Customized
|
|
Package size
|
About 1950*1100*1300mm/About 76.8*43.4*51.2 inch
|
|
Package weight
|
About 200kg
|

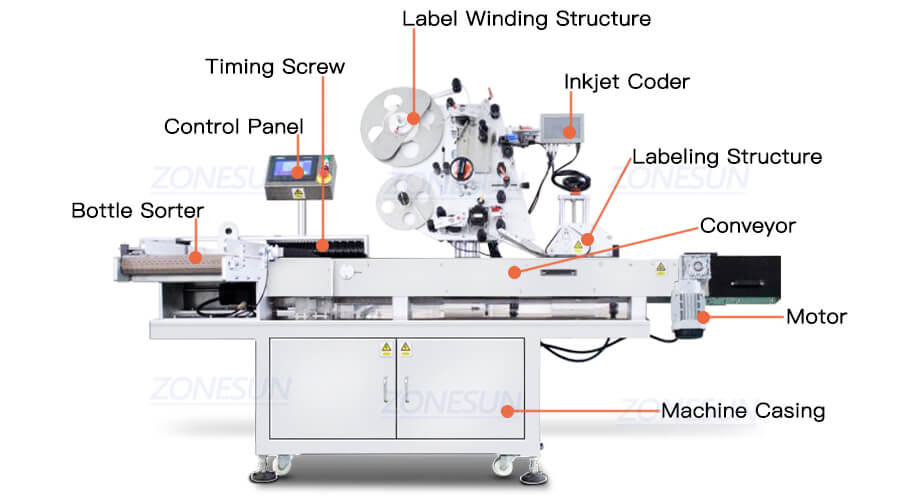

Product Details:

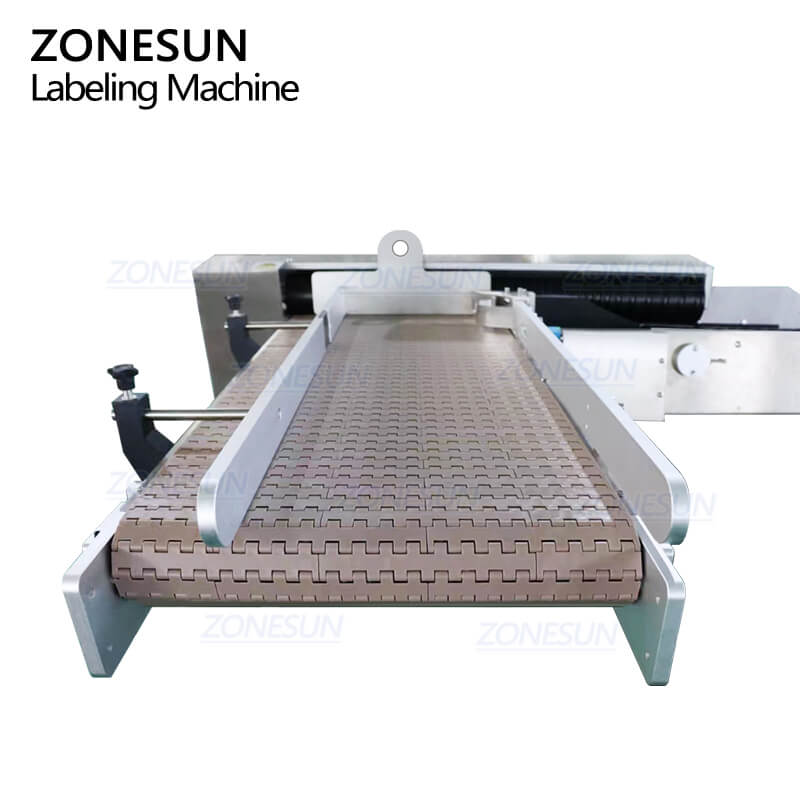

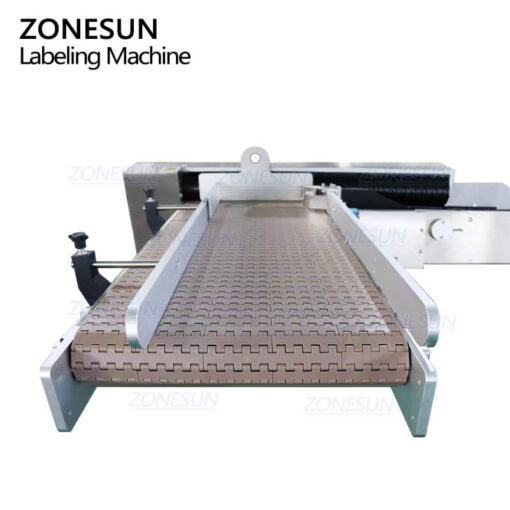

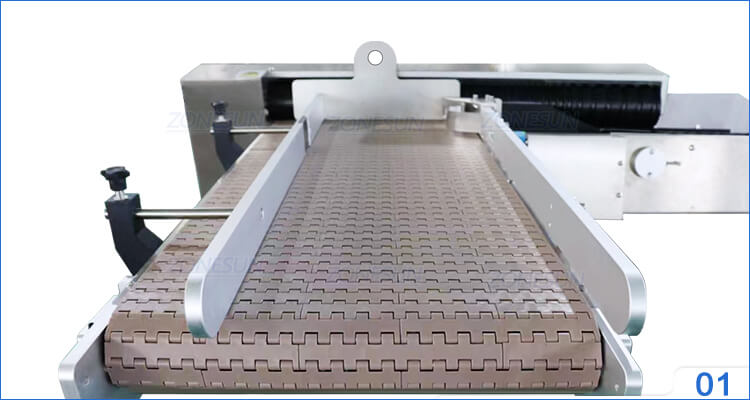

Feeding Structure
Feeding structure is customized according to labeling objects size, it suits larger scale production.

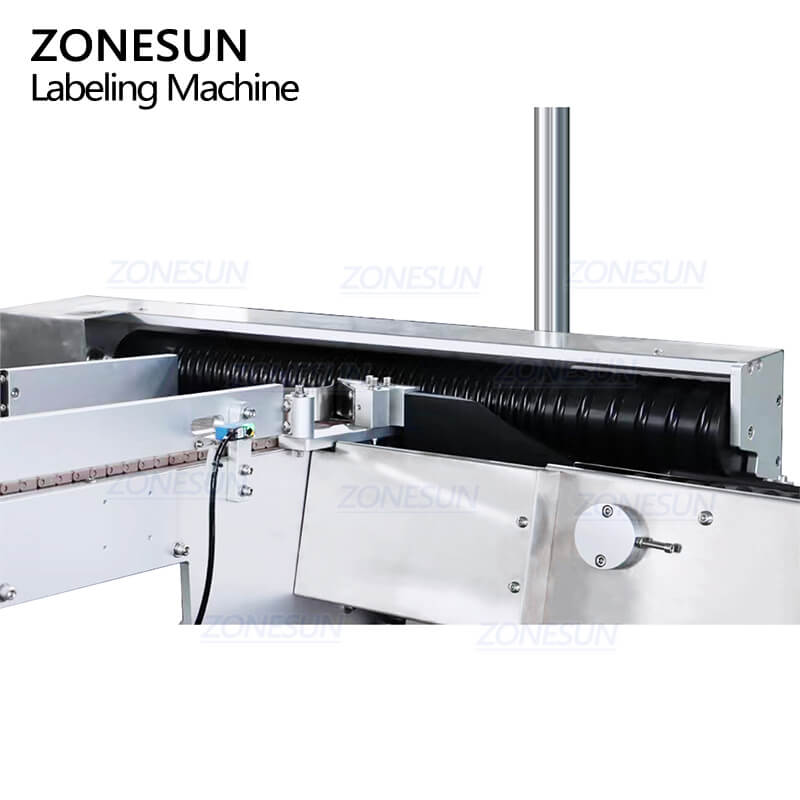

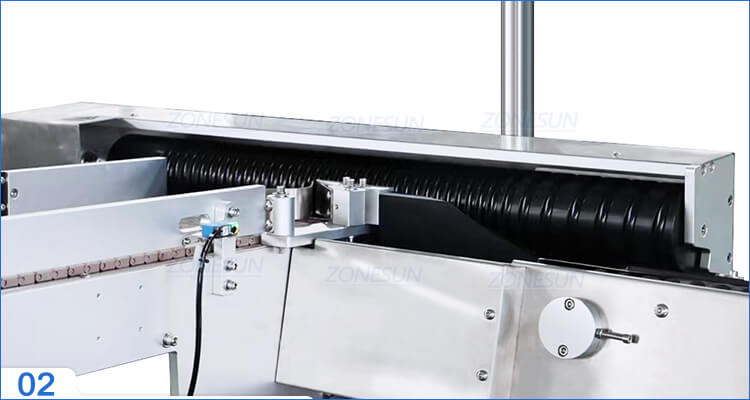

Timing Screw
With automatic bottle separation function, it can effectively eliminate the unsmooth bottle separation caused by the bottle error.

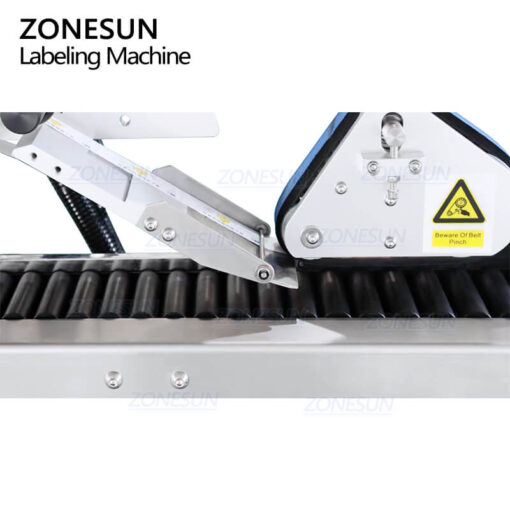

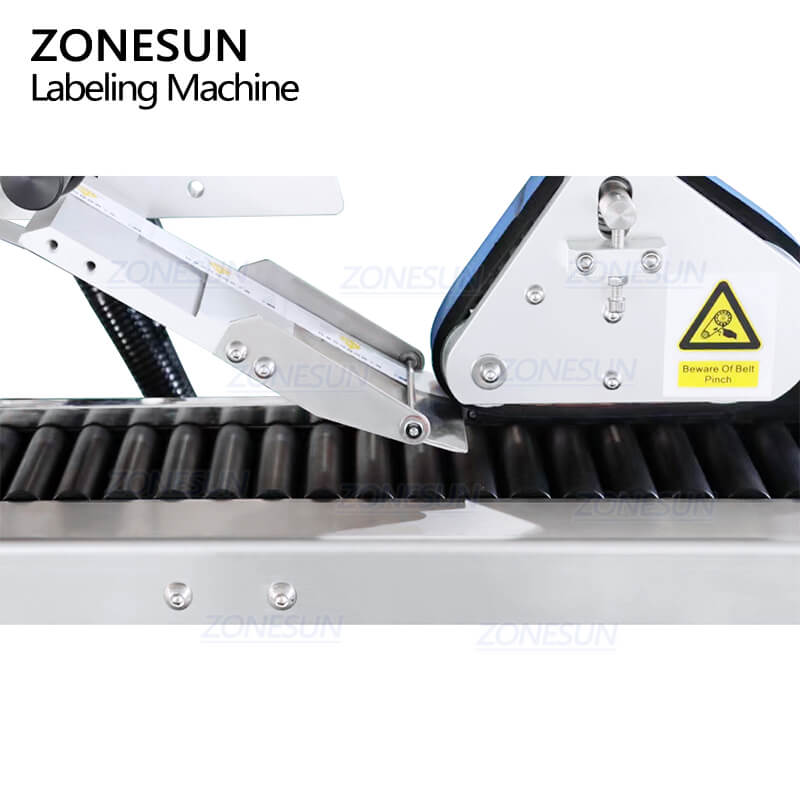

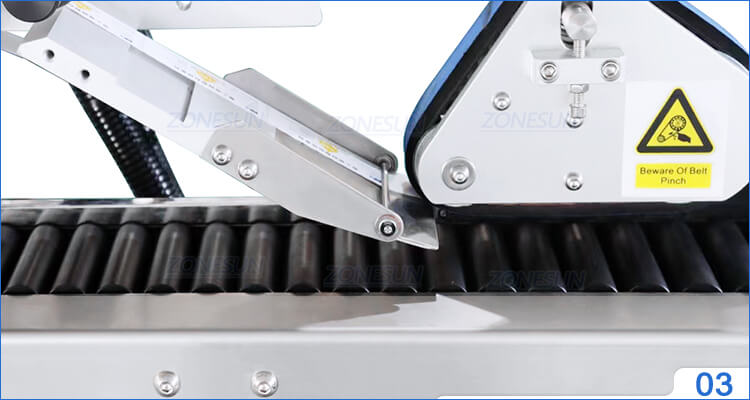

Labeling Structure
With automatic stop function, the machine will stop working when the electric eye does not sense the labeling object.

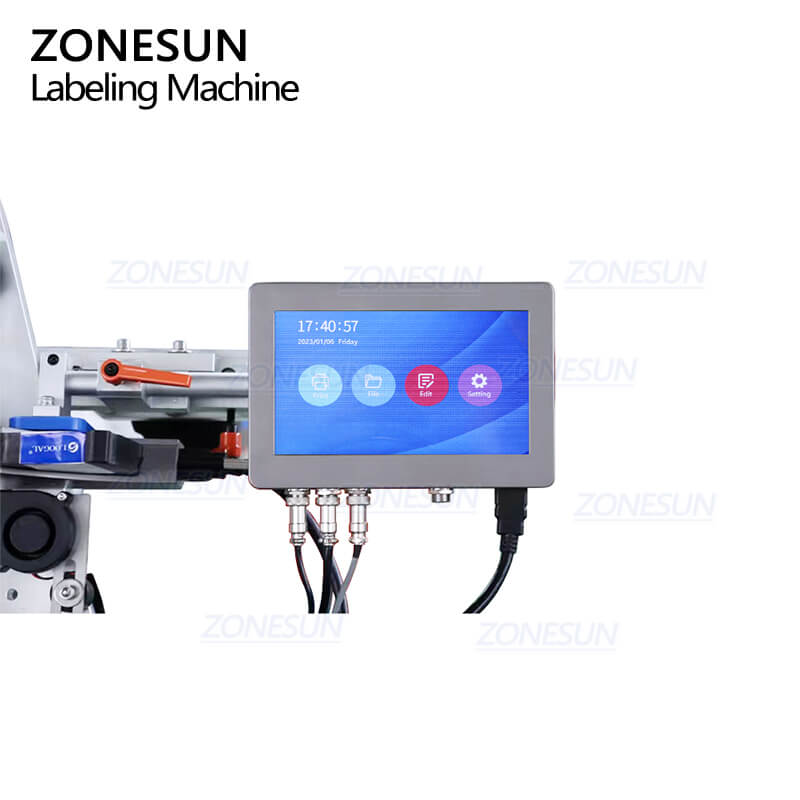

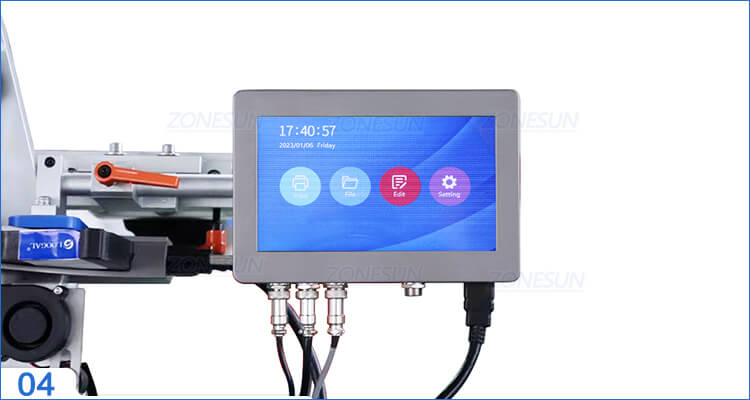

Inkjet Coder
Can be equipped with inkjet coder to print batch number, production date on labels to simplifies production process.

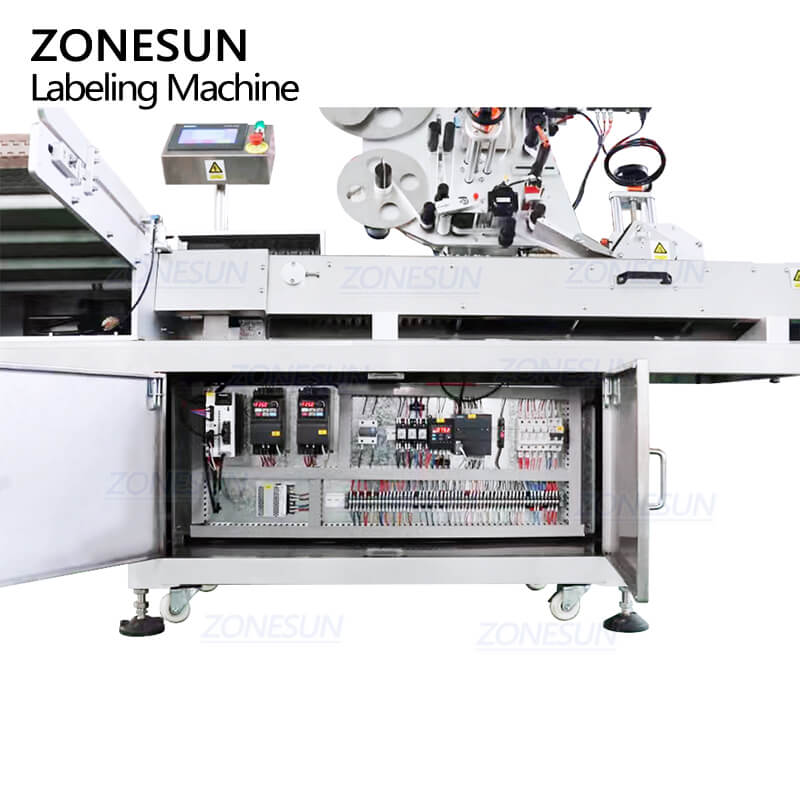

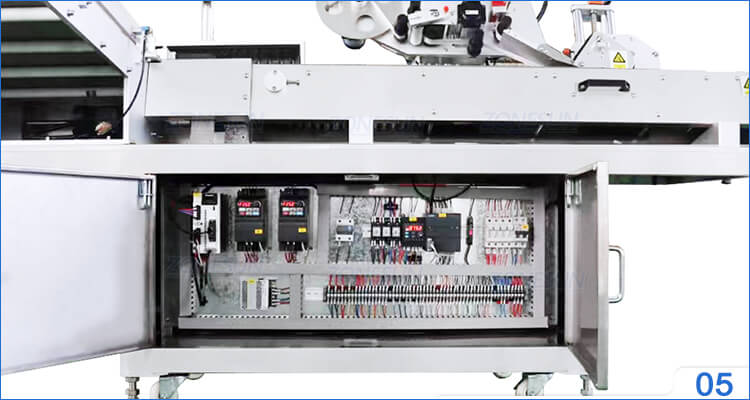

Electric Circuit
Electric circuit are connected neatly to ensure stable and safe machine operation.
