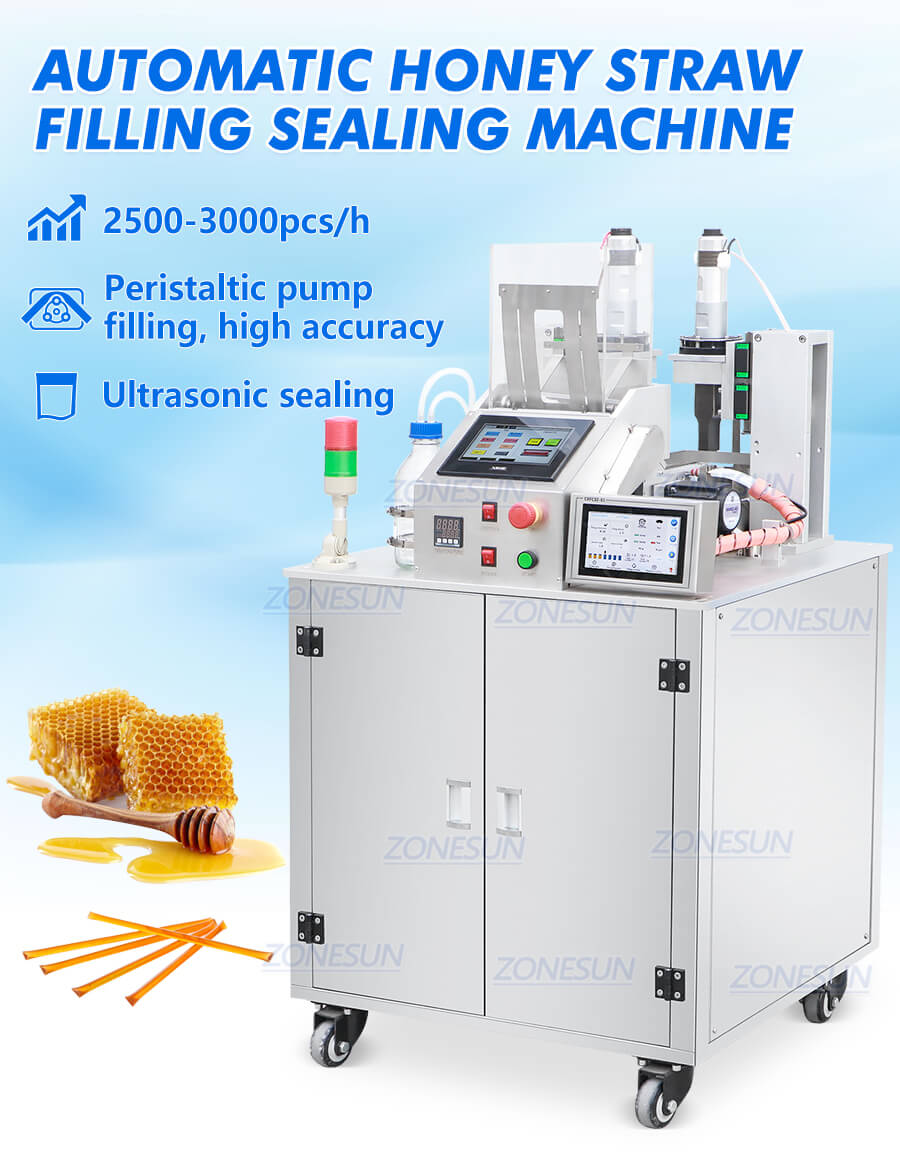

Honey Straw Filling Machine

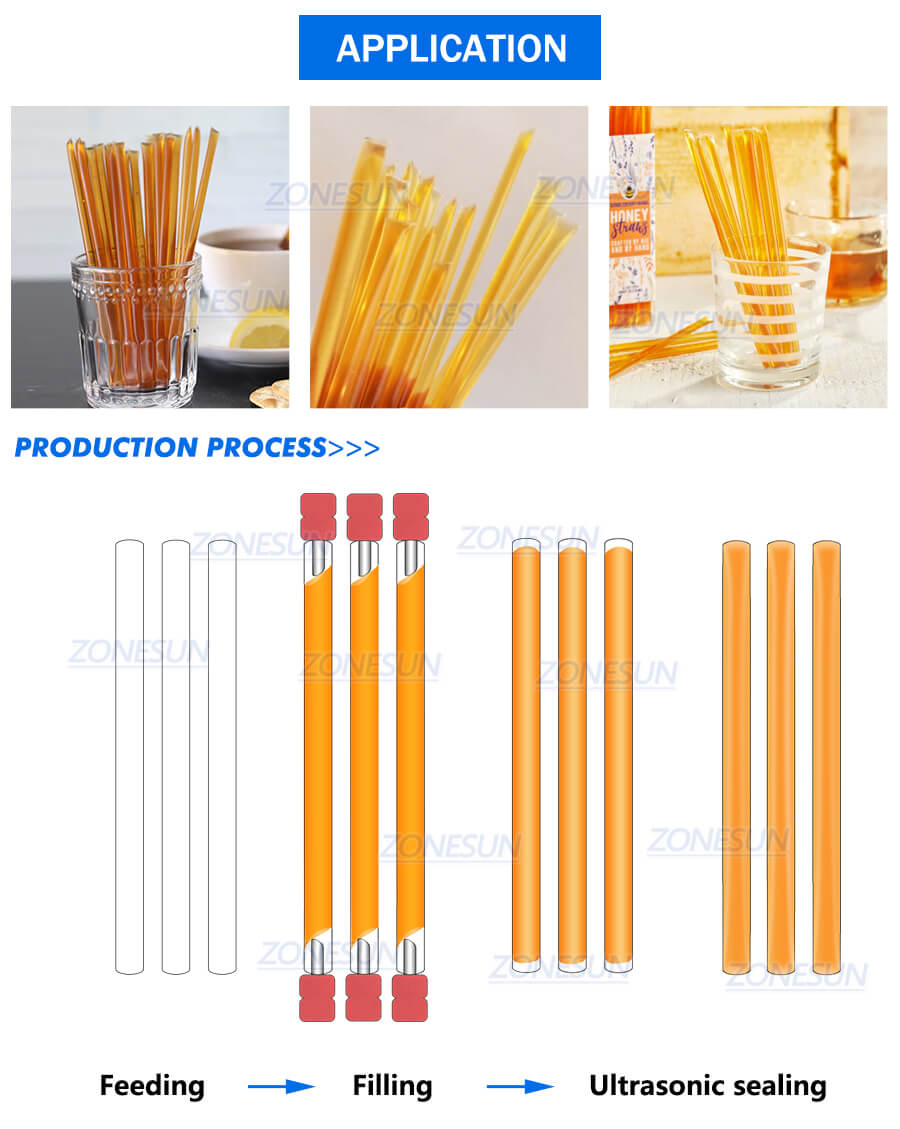

A Honey Straw Filling Machine is a device that automates filling honey into straws and sealing them for portable, mess-free use. It ensures precise portions, boosts efficiency, and suits small or large-scale honey producers, often with options for eco-friendly straws.
Share to
Product Description:
A Honey Straw Filling Machine is a device that automates filling honey into straws and sealing them for portable, mess-free use. It ensures precise portions, boosts efficiency, and suits small or large-scale honey producers, often with options for eco-friendly straws.
Product Parameters:
|
Machine Model
|
ZS-FSHS21
|
|
Voltage
|
220V 50-60Hz
|
|
Power
|
3kW
|
|
Working Speed
|
About 2500-3000pcs/h (depending on straw size)
|
|
Filling Pump
|
Peristaltic Pump
|
|
Flow Rate of Pump
|
0-1140ml/min
|
|
Sealing Method
|
Ultrasonic Sealing
|
|
Ultrasonic Frequency
|
20kHz
|
|
Original Straw Length
|
197mm(can be customized)
|
|
Finished Straw Length
|
172mm(can be customized)
|
|
Machine Size
|
About 750*700*1370mm/ About 29.5*27.6*53.9 inch
|
|
Machine Weight
|
About 220kg
|

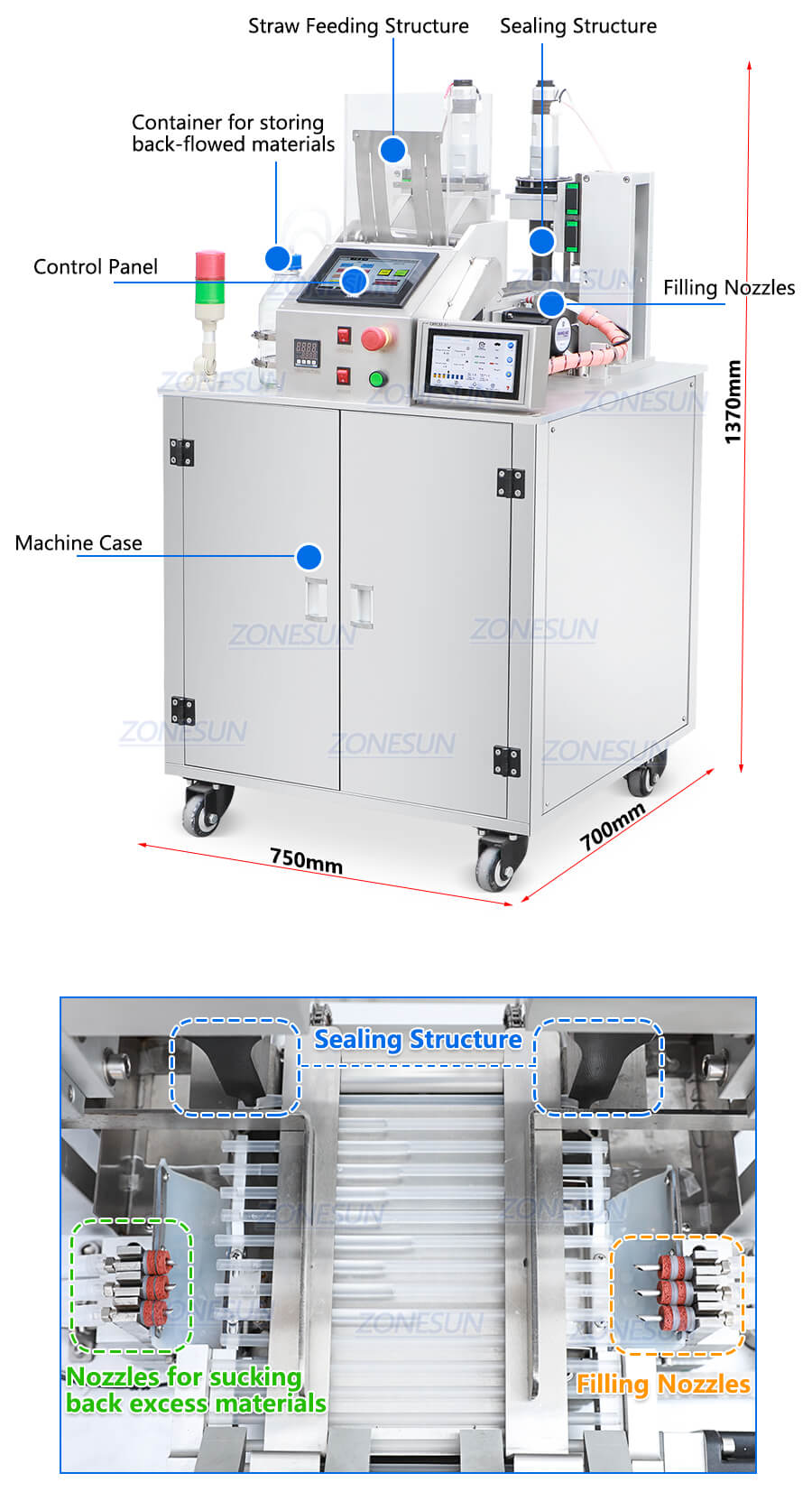

Product Details:

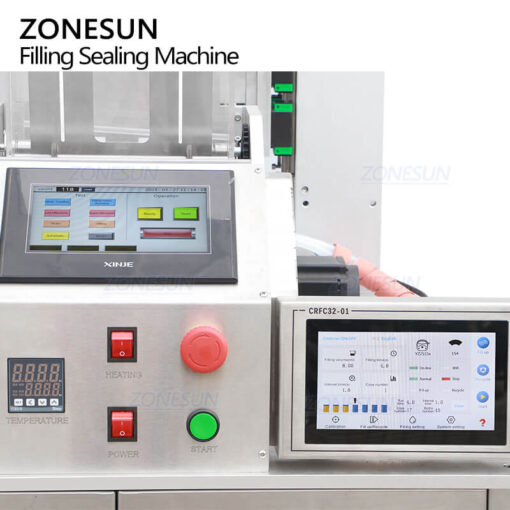

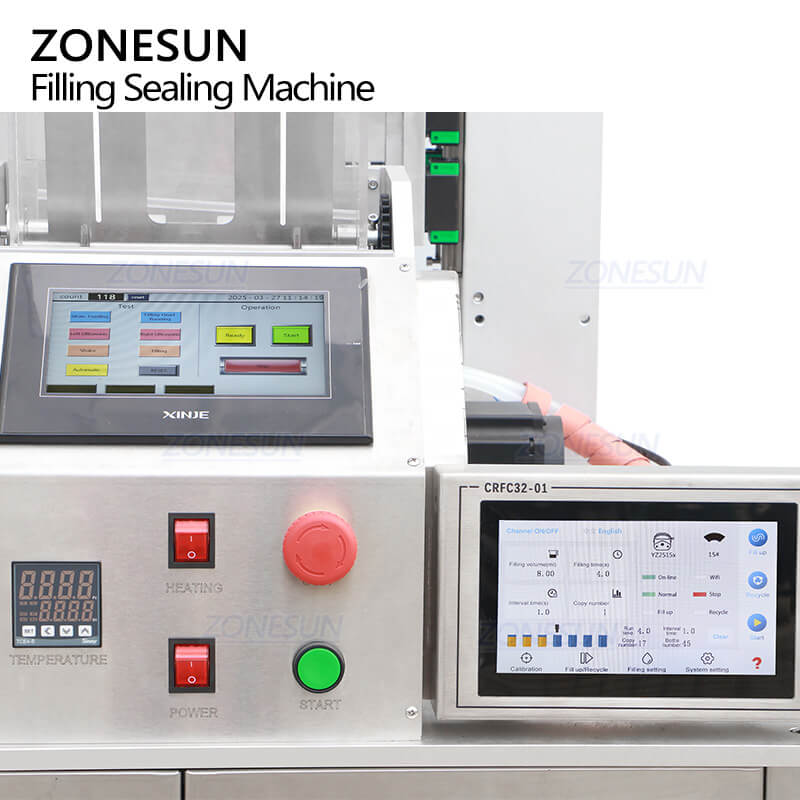

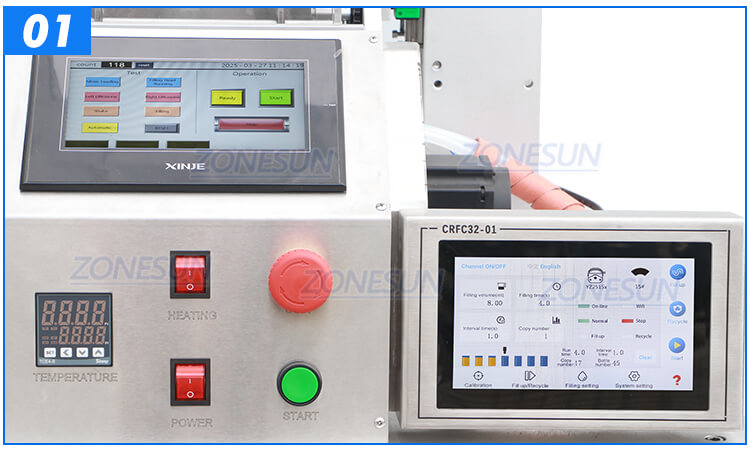

Control Panel
Touchscreen panel makes parameter setting more intuitive. Multiple languages can be customized as needed.

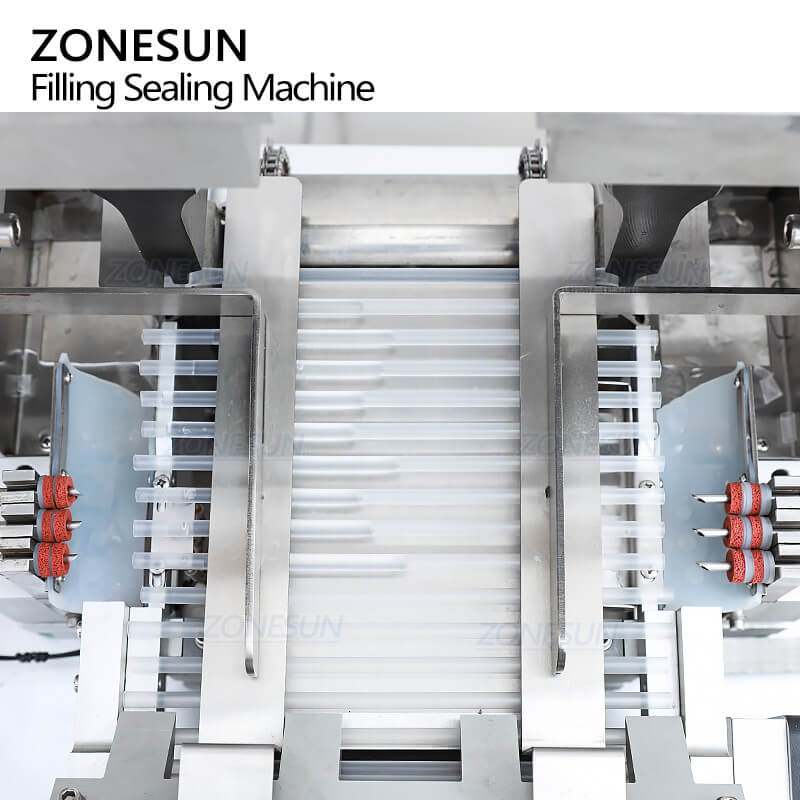

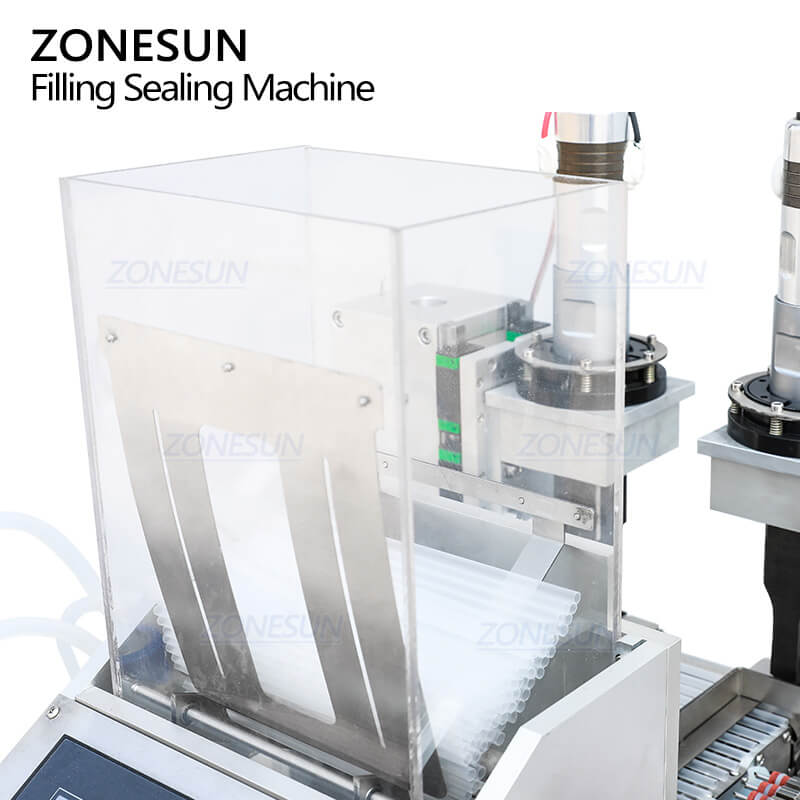

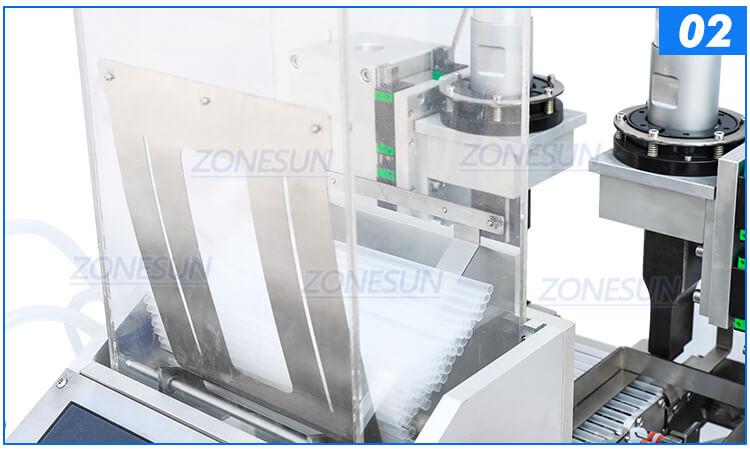

Straw Feeding Structure
It can feed straws to working area automatically. The structure can store about 500 straws at max.

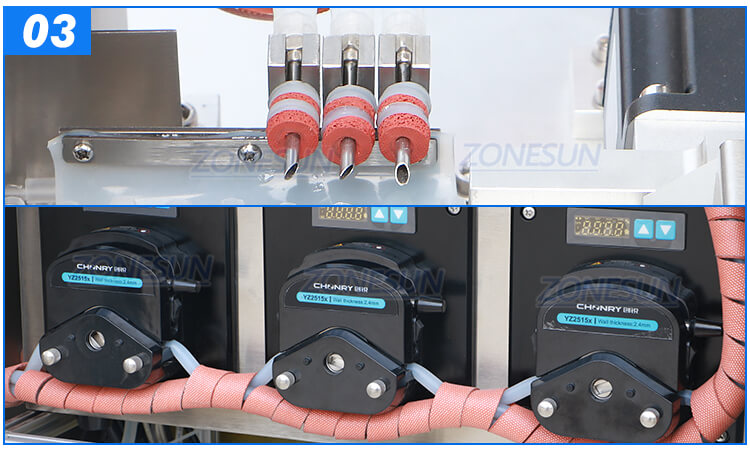

3 Filling Nozzles
With peristaltic pumps, liquid only flows through pump, ensuring its cleanliness.

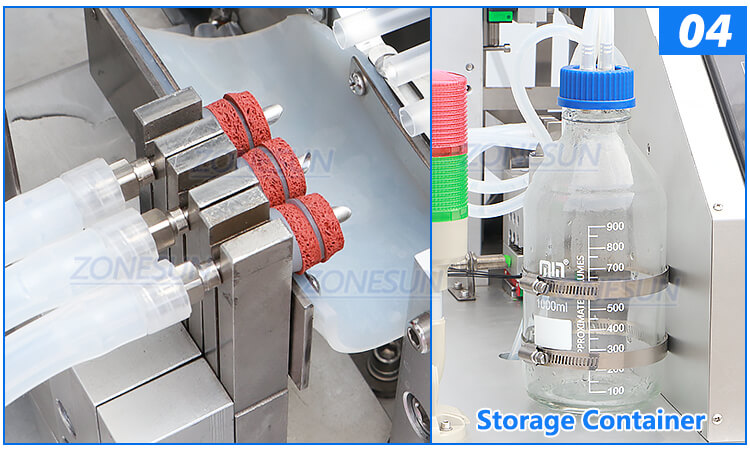

Material Sucking Structure
It is designed for sucking back excess materials, ensuring filling accuracy.

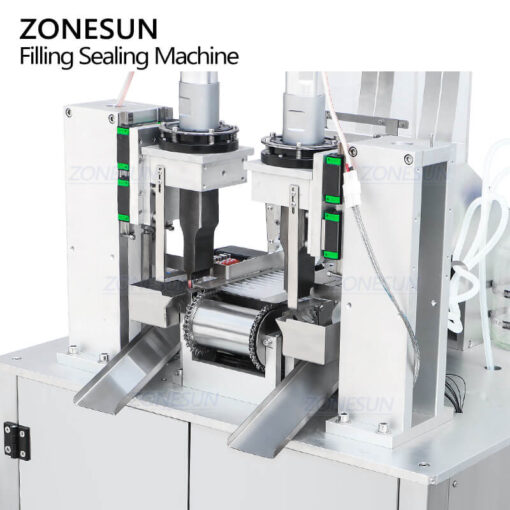

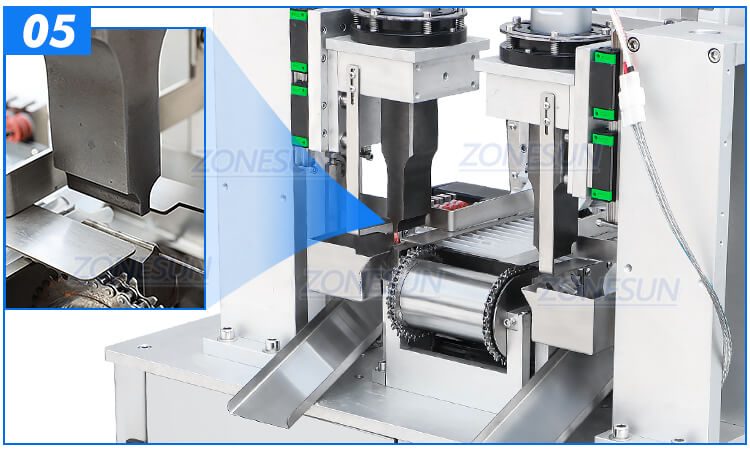

Sealing Structure
Adopting ultrasonic sealing method, it can seal honey straws firmly and beautifully.
