ketchup Sauce Bottles Servo Filling Line

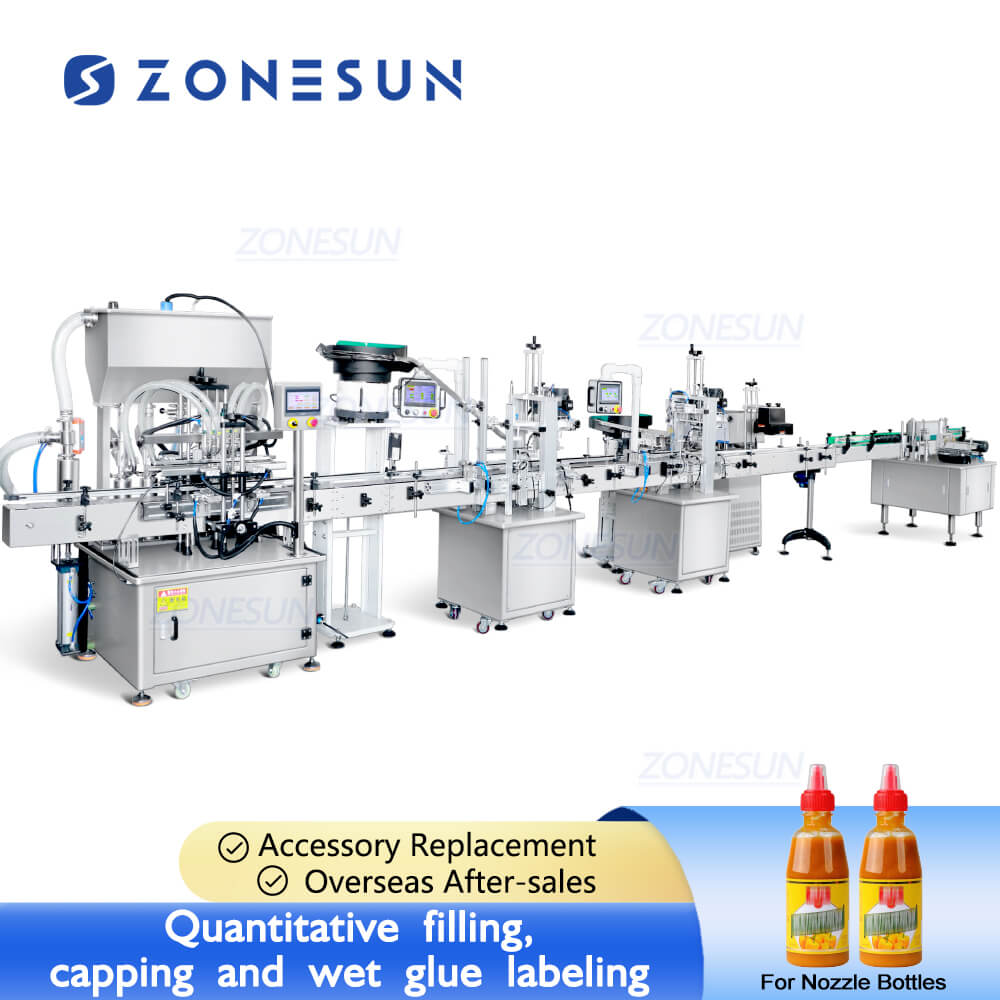

This filling line includes filling, cap placing, capping (including leakproof lids and narrow nozzles), and labeling (wet glue labeling). the servo filling machine enables precise filling and can be customized with mixing and heating functions as needed. it is suitable for packaging sauces such as salad dressing, ketchup, and seafood sauce.
Share to
Product Description:
This filling line includes filling, cap placing, capping (including leakproof lids and narrow nozzles), and labeling (wet glue labeling). the servo filling machine enables precise filling and can be customized with mixing and heating functions as needed. it is suitable for packaging sauces such as salad dressing, ketchup, and seafood sauce.
Product Parameters:
Servo Filling Machine
| Machine model | ZS-YT4T-4PX |
| Voltage | 110/220V 50-60HZ 1KW |
| Filling range | 10-180 ml/30-500 ml/100-1000 ml |
| Working speed | About 30-50bottles/min |
| Filling pump | Piston pump |
| Air pressure | 0.6-0.8 MPa |
| Filling accuracy | ±1% |
| Filling Nozzle | 4(can be customized) |
| Machine size | About 2000*800*1800mm |
| Machine weight | About 200kg |
| Packaging size | About 2070*960*2010mm(100-1000ml) |
| Packaging weight | About 392kg(100-1000ml) |

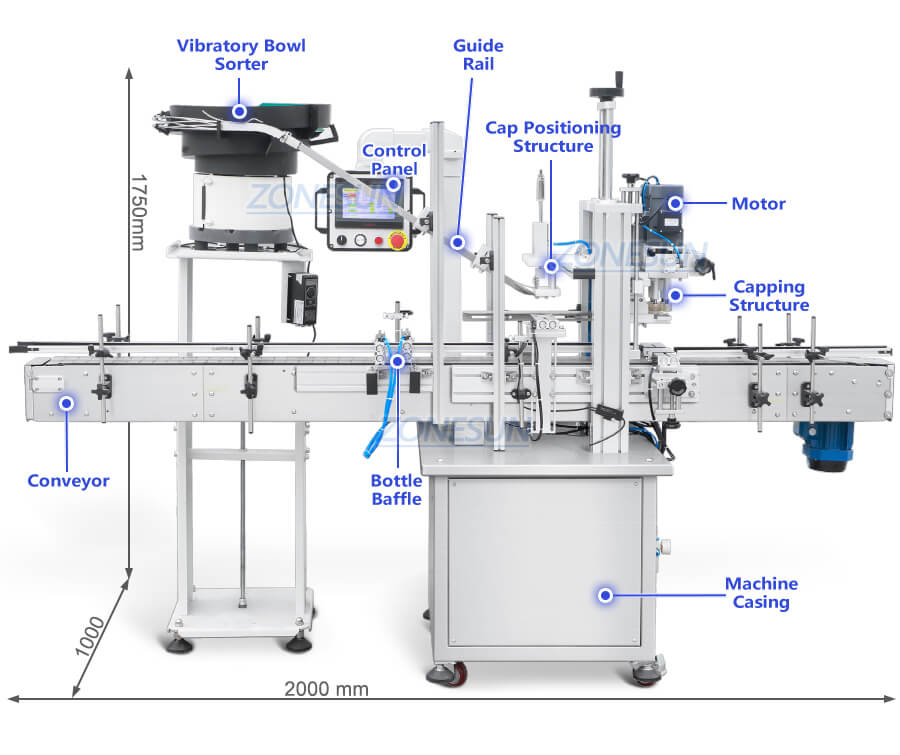

Capping Machine (For Leakproof Caps)
| Machine model | ZS-XG16V |
| Working voltage | AC220V/110V 50-60HZ |
| Bottle height | 30-300mm |
| Cap diameter | 18-70mm |
| Bottle diameter | 20-160mm |
| Working speed | 10-25 bottles / minute (based on cap size) |
| Working pressure | 0.4-0.6MPa |
| Machine size | About 2000*1000*1750mm |
| Machine weight | About 150kg |
| Package size | About 2000*820*1760mm |
Capping Machine (Narrow Nozzle)
| Machine model | ZS-XG16E |
| Working voltage | AC220V/110V 50-60HZ |
| Bottle height | 30-300mm |
| Cap diameter | 18-70mm |
| Bottle diameter | 20-160mm |
| Working speed | 10-25 bottles / minute (based on cap size) |
| Working pressure | 0.4-0.6MPa |
| Machine size | About 1930*740*1600mm |
| Machine weight | About 150kg |
| Package size | About 1970*990*1740mm |
| Package weight | About 334kg |

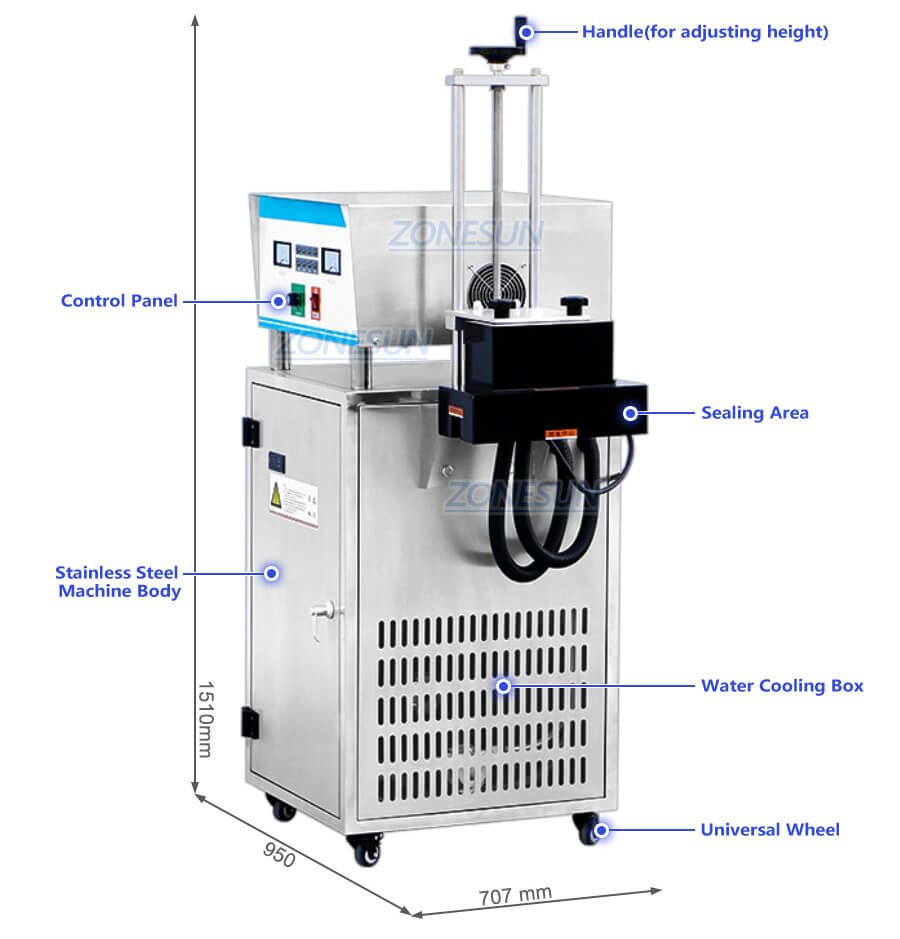

Sealing Machine
| Machine Model | ZS-FK6000 |
| Voltage | 220V 50Hz |
| Power | 3.6kW |
| Sealing Speed | About 0-80 bottles/min |
| Sealing Diameter | 15-60mm(Can be customized) |
| Sealing Height | 50-335mm |
| Cooling Method | Water Cooling |
| Application | Suitable for normal bottles and sharp mouth bottles, plastic and glass bottles. Inapplicable for glass caps, metal bottles or metal caps. |
| Machine Size | About 707*950*1510mm(L*W*H) |
| Machine Weight | About 76kg |
| Package Size | About 660*790*1430mm |
| Package Weight | About 106kg |
Wet Glue Labeling Machine
| Machine model | ZS-WGTB01 |
| Power supply | 220V/380V 50Hz/60Hz |
| Installed power | 1.3 KW |
| Bottle/can diameter | ≤110 mm |
| Label size | 20-330 mm*20-150 mm(W*H) |
| Production speed | 30-70 BPM |
| Air consumption | 4-6 Kgs * 18L/min |
| Adhesive used | Resin Glue |
| Machine size | About 3050*960*1120 mm(L*W*H) |
| Package size | About 3160*1220*1500 mm(L*W*H) |
| Package weight | About 480 kg |
Product Details:

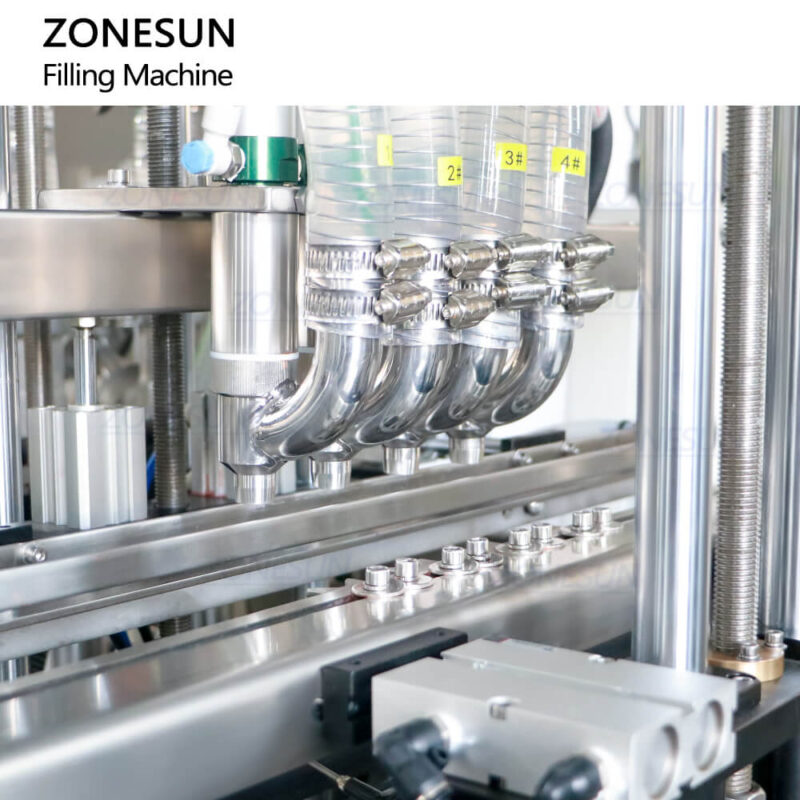

Anti-dripping Nozzles
Quantity of filling nozzles is customizable, anti-dripping can improves filling accuracy.

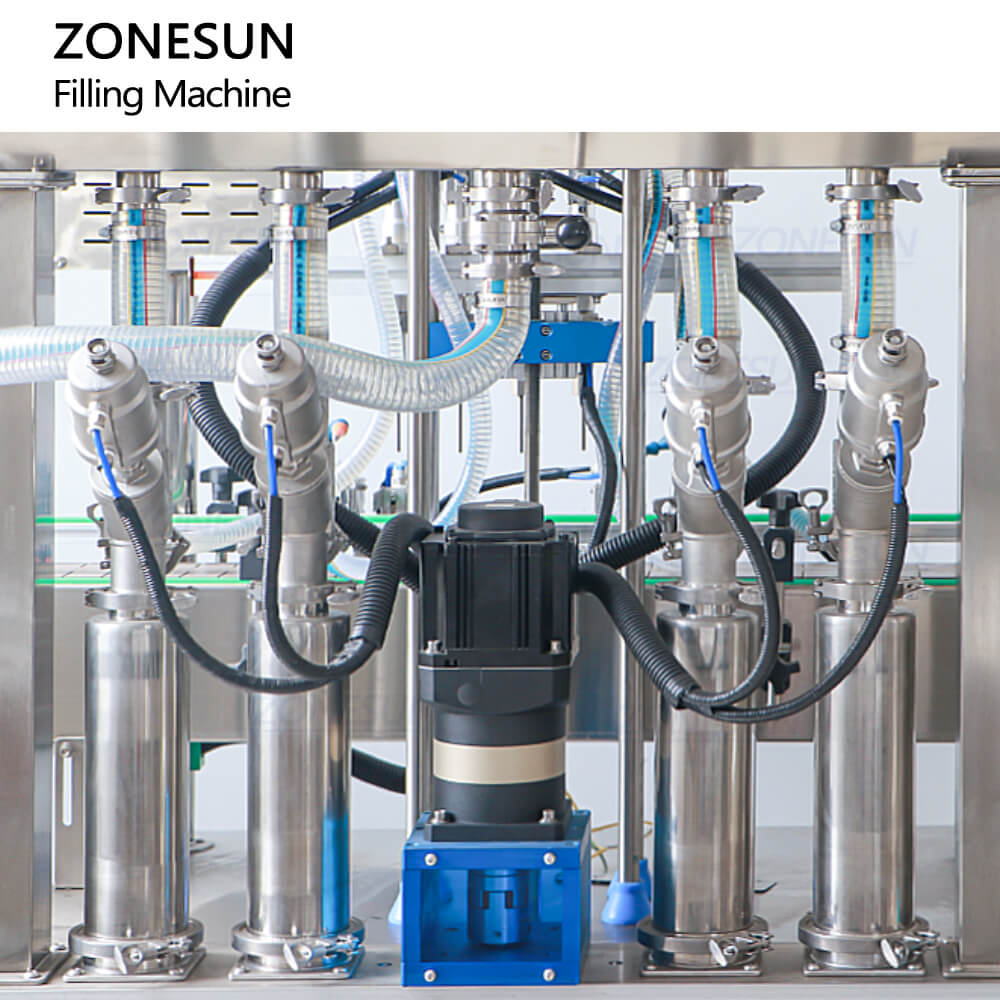

Servo Piston Pump
Piston pump controls quantitative filling,set filling volume directly, feeding pump can supply filling material in time.

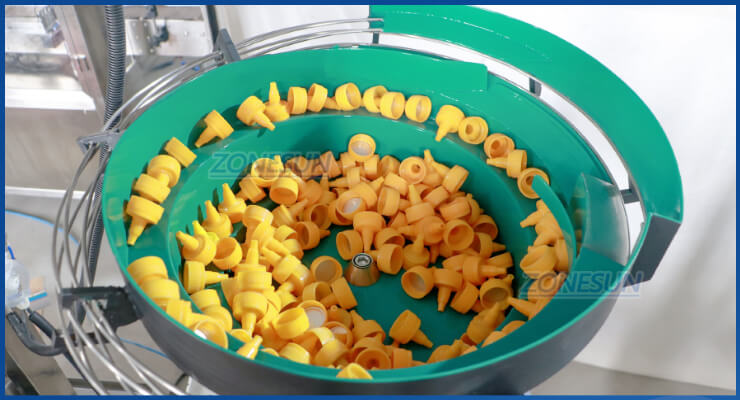

Vibratory Bowl Sorter
This is customized based on cap size, it can feed caps in time.
Capping Structure
This is customzied based on cap size, it can position caps and tighten caps at the same time.

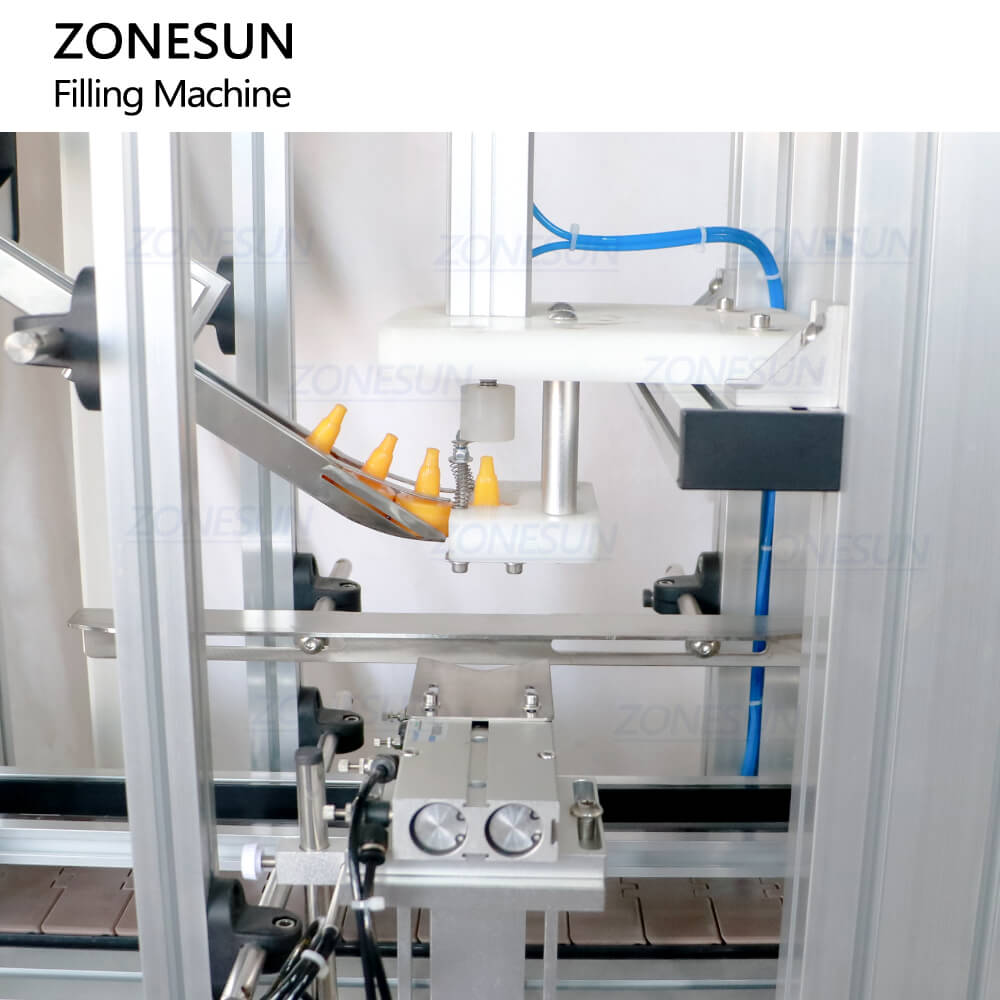

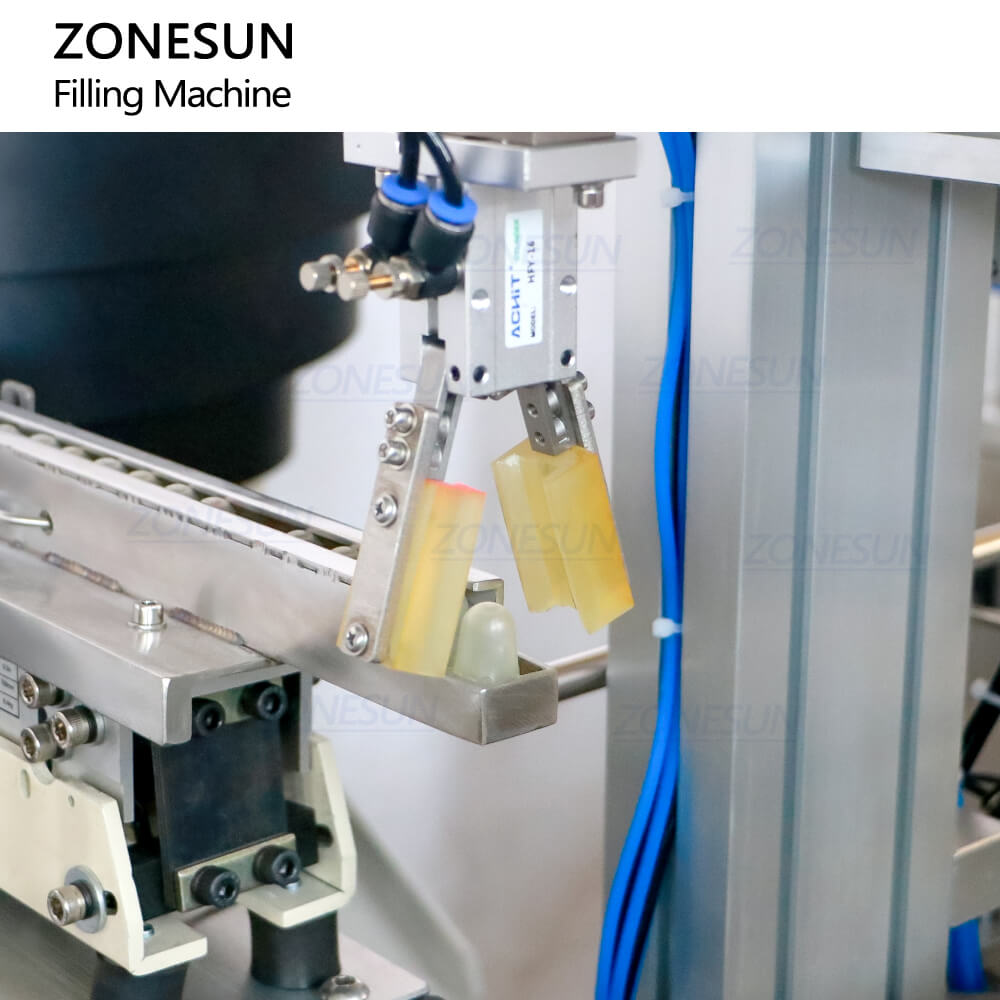

Cap Feeding Structure
This can imitate human hands to place lids, improving work accuracy.

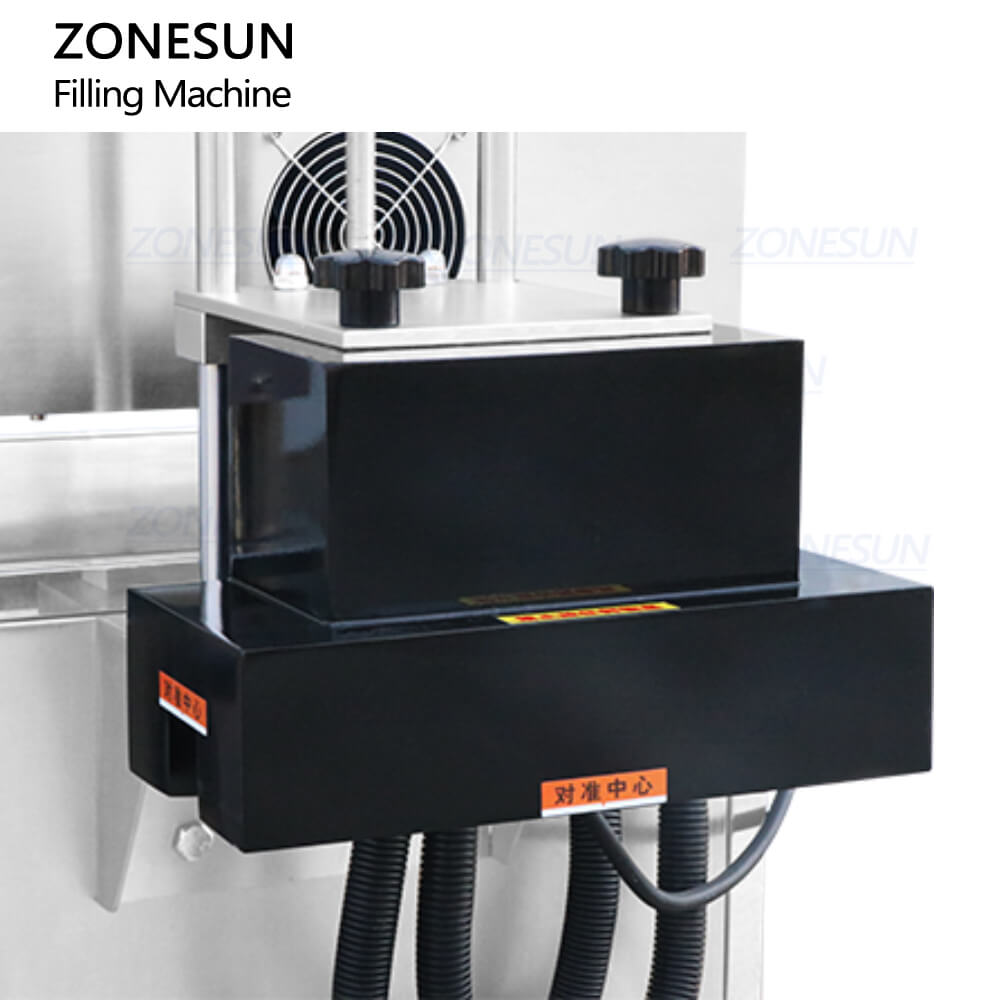

Sealing Structure
Water-cooled induction sealing, it can dissipate heat effectively.

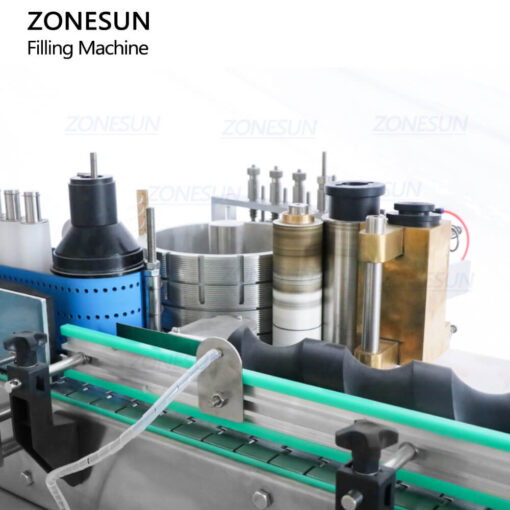

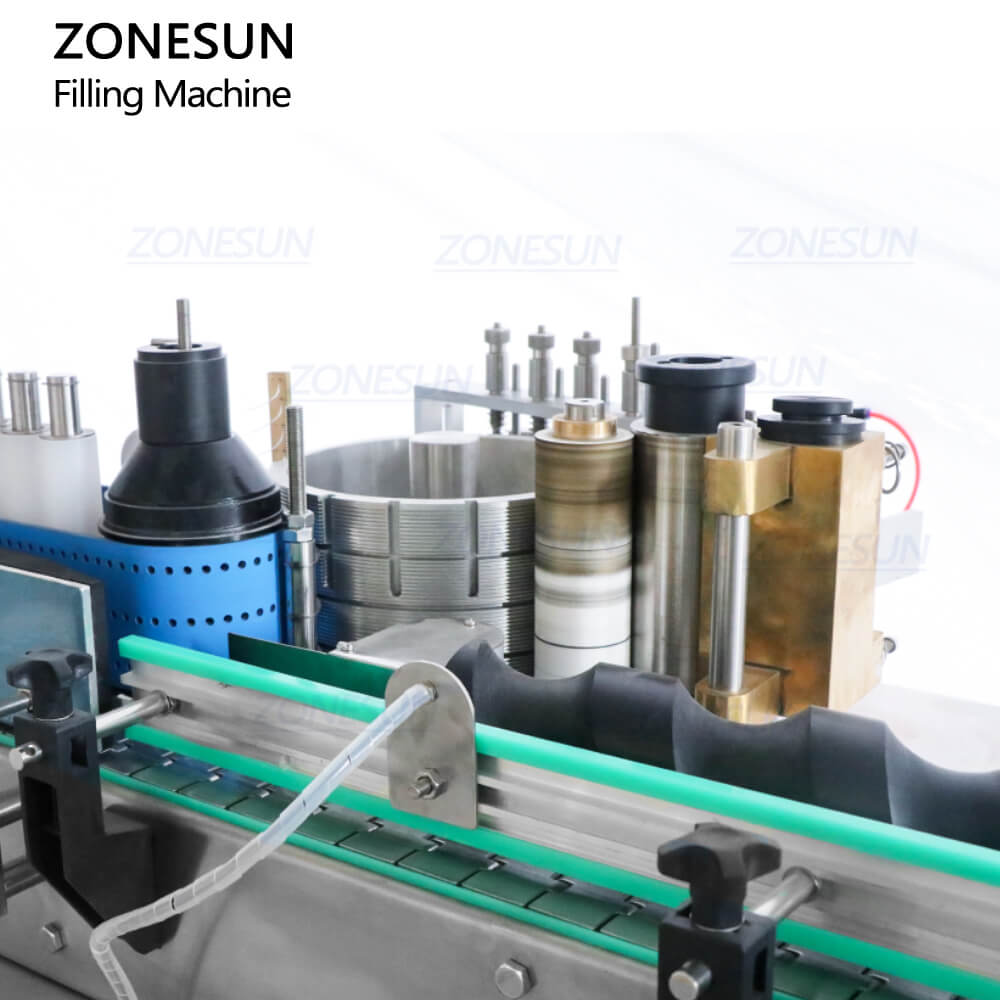

Labeling Machine
This labeling structure applies a thin layer of adhesive to the labels, picks up glued label and transfers it to the bottle surface
