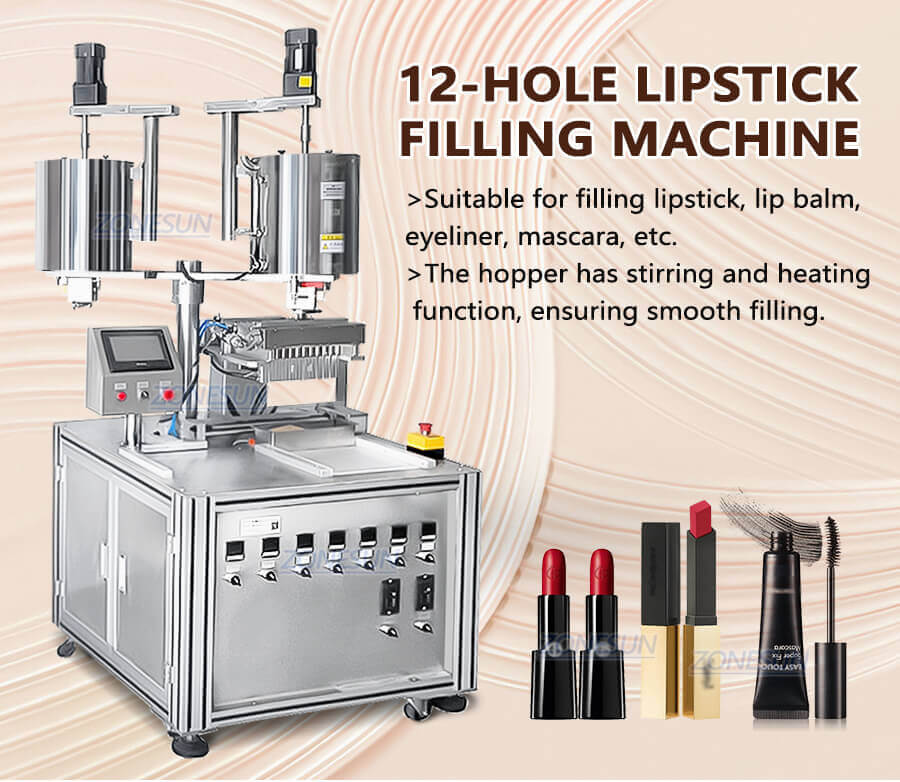

Lipstick Filling Machine
This machine is designed for liquid paste cosmetics,such as lipstick,pen lipstick,eyebrow pencil,lip oil,lip gloss,etc.Independent barrel mixing and temperature control design to meet the demand of diversified raw materials.
Share to
Description:
This machine is designed for liquid paste cosmetics,such as lipstick,pen lipstick,eyebrow pencil,lip oil,lip gloss,etc.Independent barrel mixing and temperature control design to meet the demand of diversified raw materials.
Parameter:
| Machine Model | ZS-GTL12 |
| Voltage | 380V 50Hz |
| Total Power | 7.5kW |
| Heating Tube | 2kW*2 |
| Working Capacity | About 450mould/h (based on 12-hole mould) |
| Filling Range | 1-11ml |
| Filling Pump | Piston Pump |
| Temperature Range | 0-140℃ |
| Hopper Capacity | 20L*2 |
| Stirring Speed | 0-90r/min |
| Height of Worktable | 720mm |
| Machine Size | About 970*1000*2000mm |
| Machine Weight | About 320kg |
| Machine Configuration | ||
| Machine Component | Brand | Origin |
| PLC | XINJE | China |
| Operation Screen | XINJE | China |
| Air Cylinder | AirTac | Taiwan,China |
| Relay | CHNT | Zhejiang,China |
| Sensor | AirTac | Taiwan,China |
| Filling Motor(Stepper Motor) | XINJE | China |
