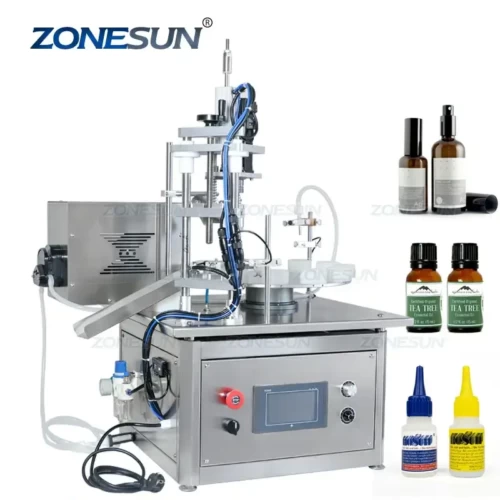

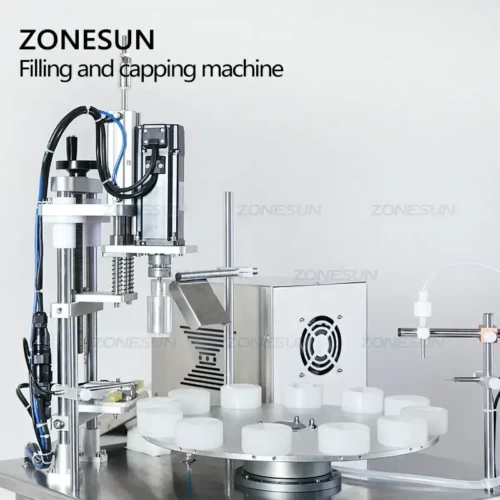

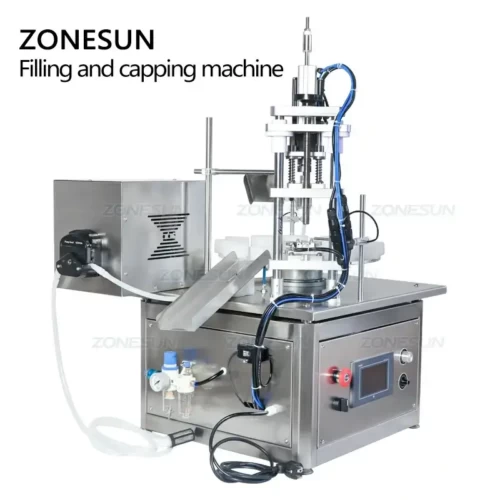

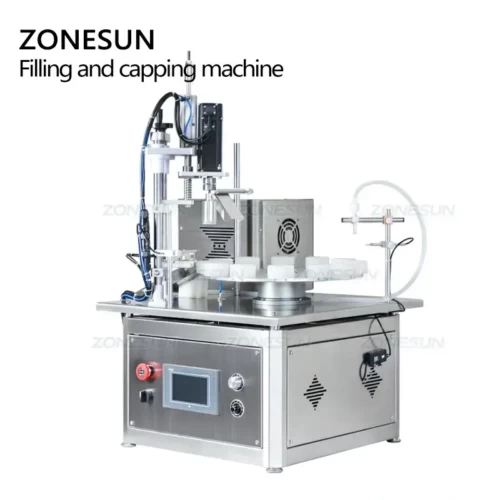

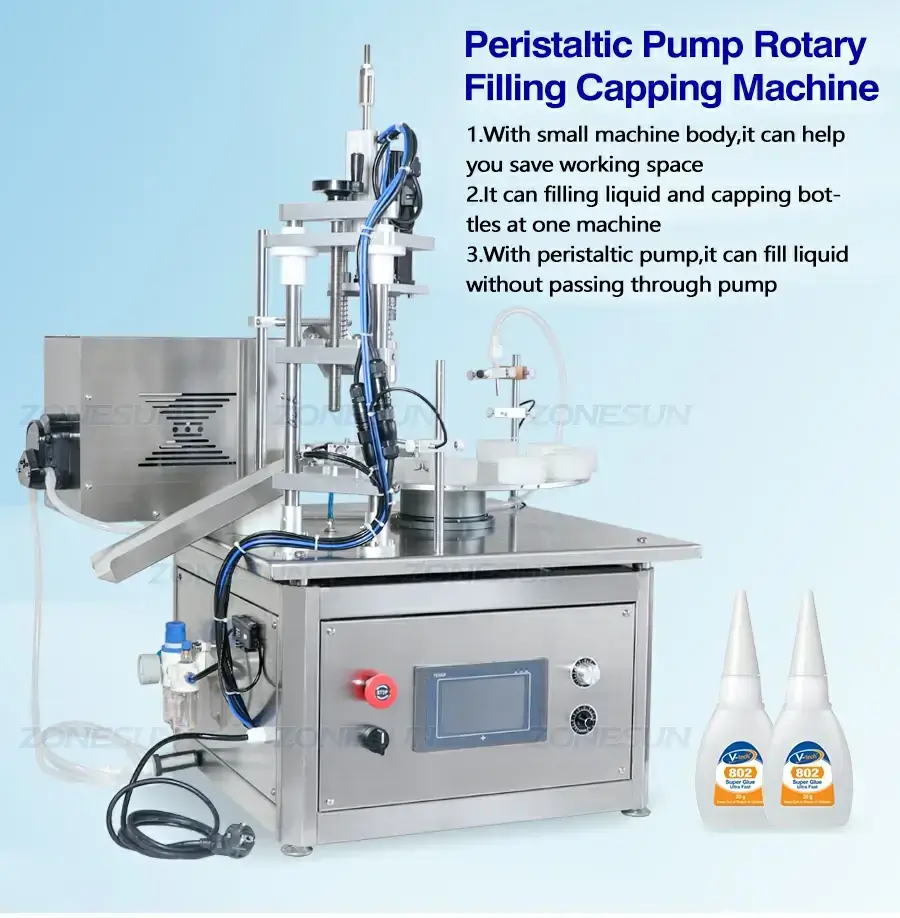

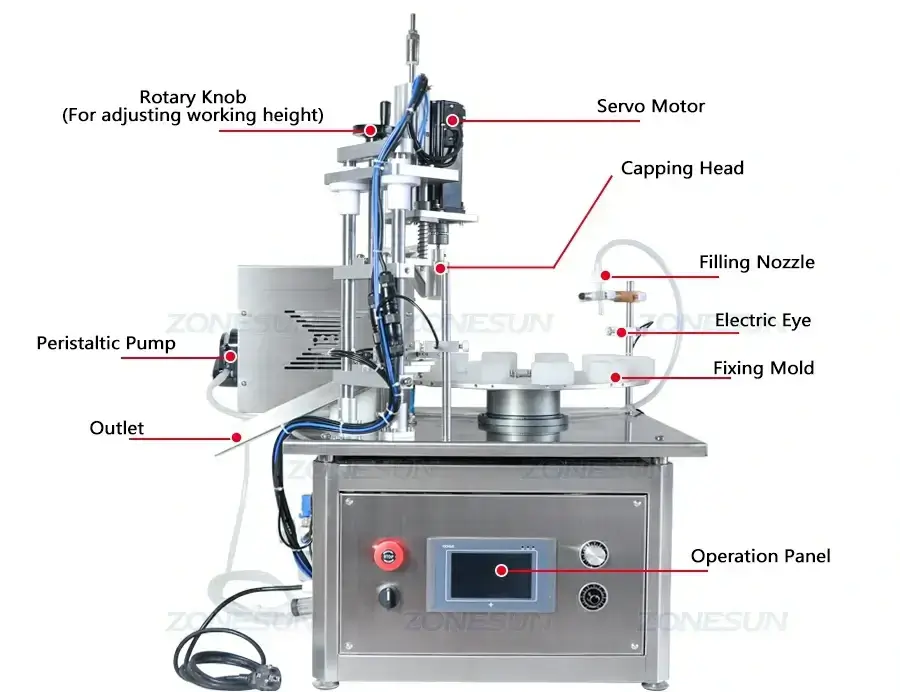

Peristaltic Pump Filling Capping Machine

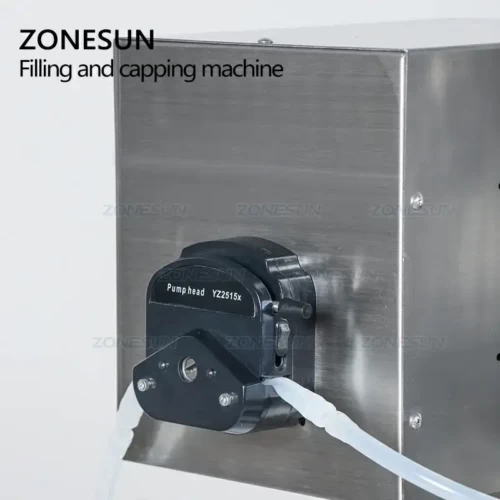

This automatic machine is with function of filling and capping,the small machine body can help you save working space.It is equipped with peristaltic pump which can fill liquid without passing through pump. Multiple filling nozzles can be customized according to your operation needs.
Share to
Description:
This automatic machine is with function of filling and capping,the small machine body can help you save working space.It is equipped with peristaltic pump which can fill liquid without passing through pump.Multiple filling nozzles can be customized according to your operation needs.
Parameter:
| Machine model | ZS-AFC1P |
| Voltage | 110/220V |
| Machine power | 500W |
| Filling Pump | Peristaltic Pump |
| Bottle diameter | 10-40mm |
| Filling range | ≤100ml |
| Bottle height | ≤120mm(Can customize for higher bottles) |
| Cap diameter | Customize |
| Size of filling nozzle | OD 6mm |
| Working speed | 20-50bottles/min(depends on liquid and bottle size) |
| Machine size | About 510*510*970mm |
| Machine weight | About 69kg |
| Package size | About 860*715*1030mm |
| Package weight | About 95.5kg |
