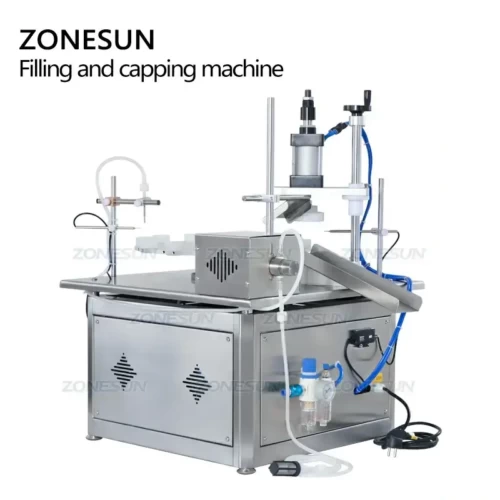

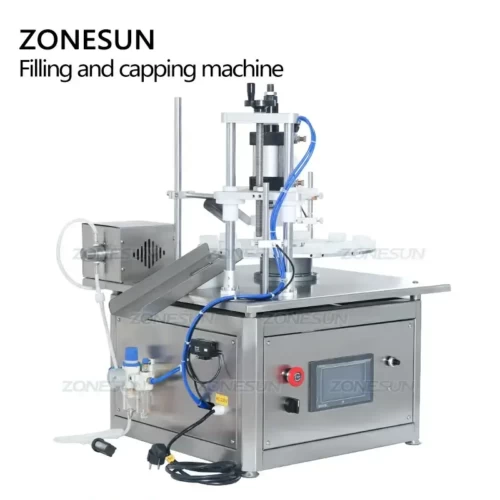

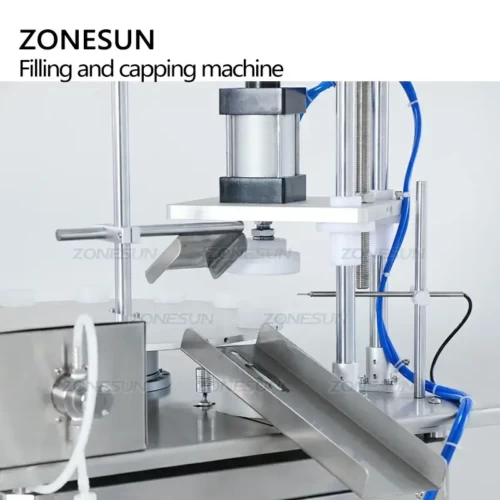

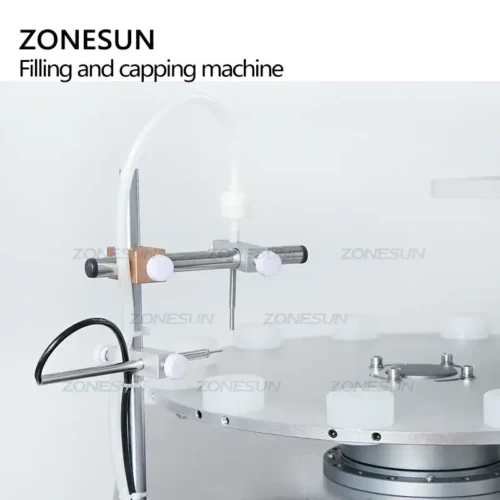

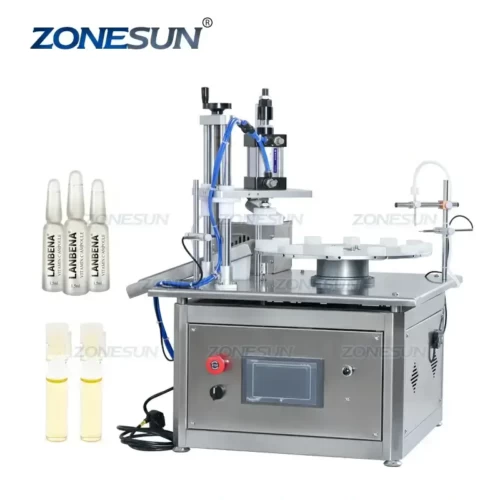

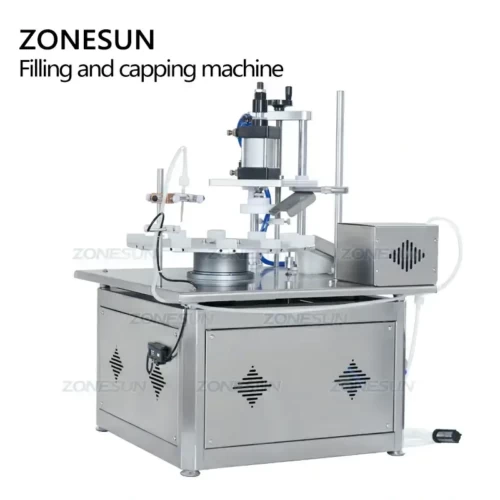

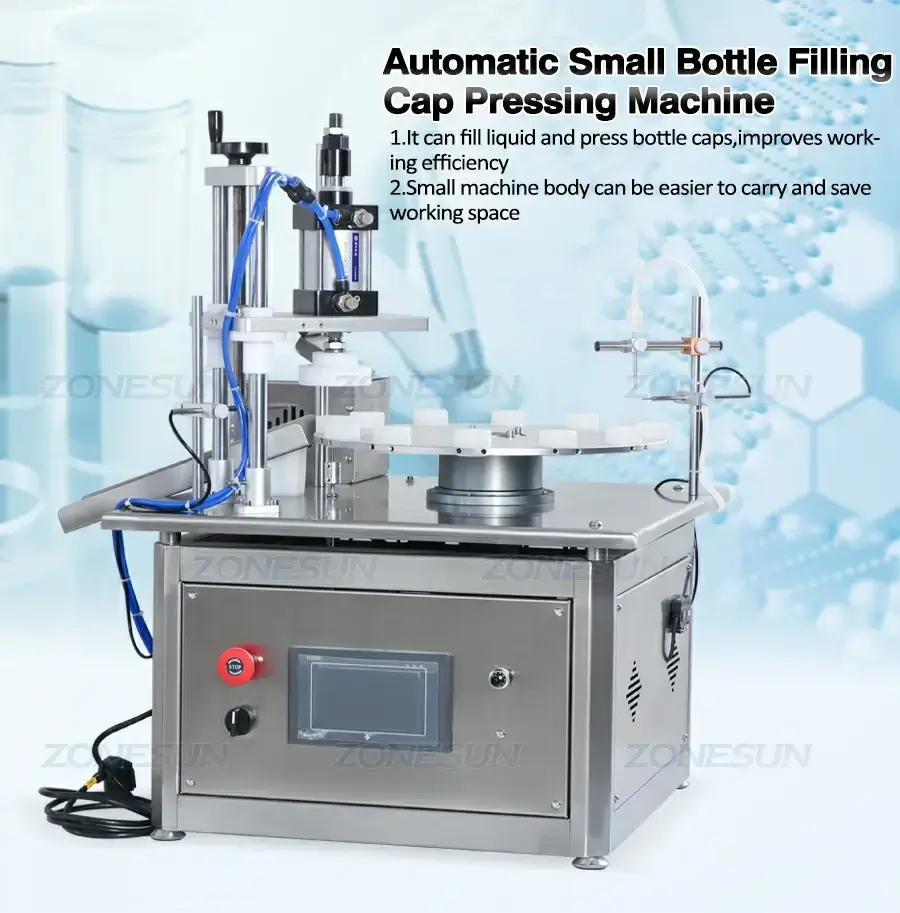

Filling And Pressing Machine

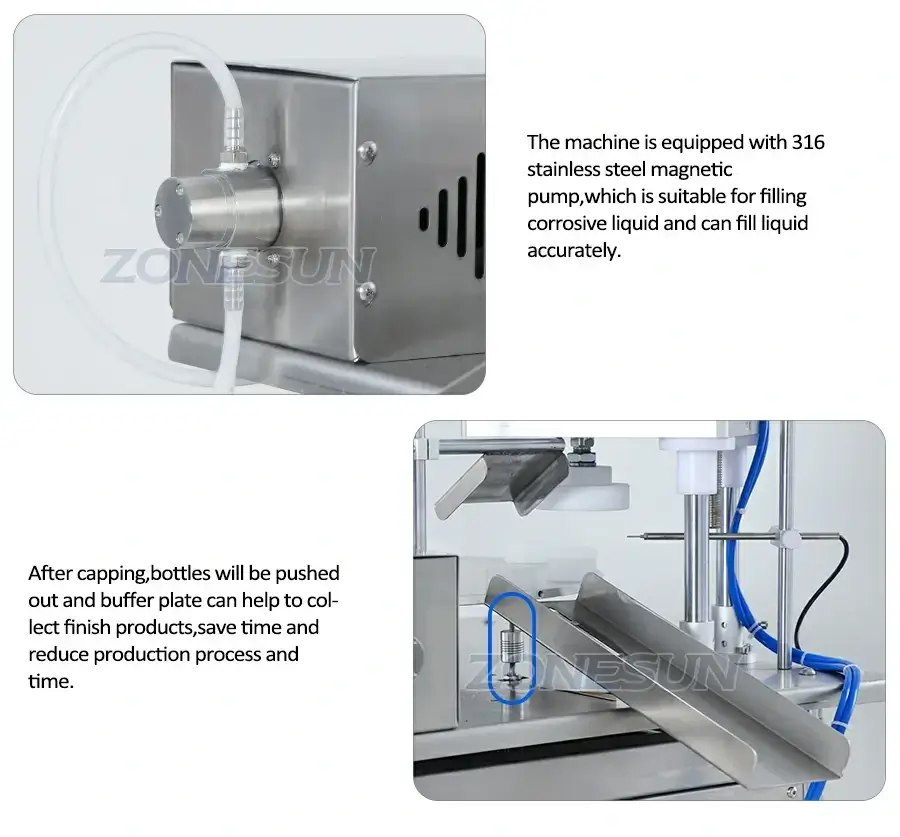

This rotary filling and capping machine is in small design which is more convenient to carry and save production space.It is equipped with high quality magnetic pump and can fill low viscosity liquid accurately.This machine is widely used in chemical industries.
Share to
Description:
This rotary filling and capping machine is in small design which is more convenient to carry and save production space.It is equipped with high quality magnetic pump and can fill low viscosity liquid accurately.This machine is widely used in chemical industries.
Parameter:

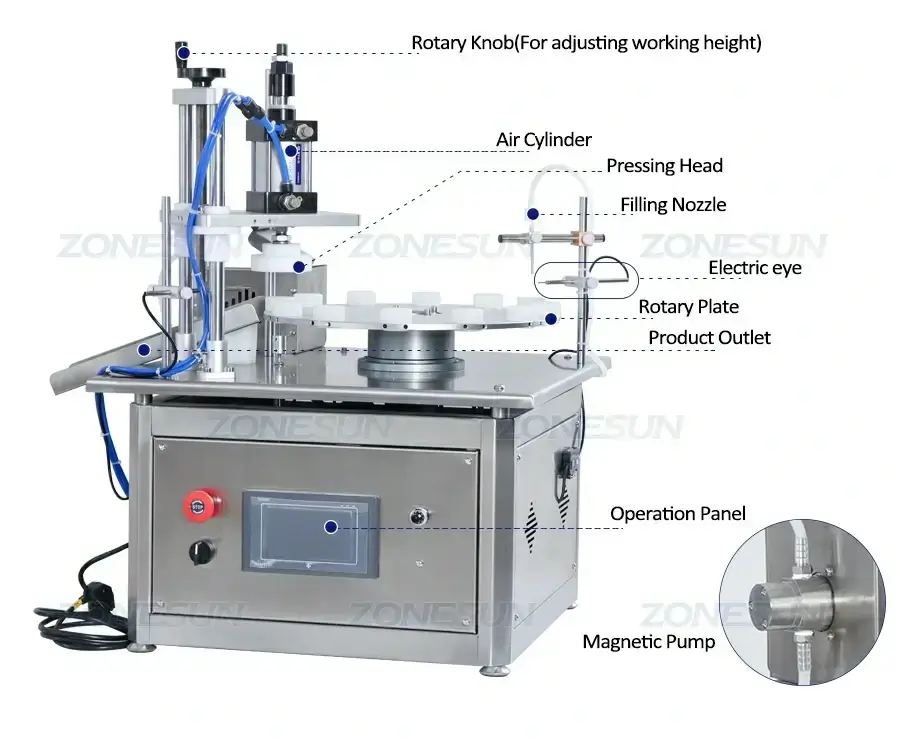

| Machine model | ZS-AFC1C |
| Voltage | 110/220V |
| Filling pump | Magnetic pump |
| Machine power | 500W |
| Bottle diameter | 10-40mm |
| Filling range | ≤100ml |
| Bottle height | ≤120mm(Can customize for higher bottles) |
| Cap diameter | Customize |
| Size of filling nozzle | OD 2mm |
| Working speed | 20-50bottles/min(depends on liquid and bottle size) |
| Machine size | About 580*580*800mm |
| Machine weight | About 52kg |
| Package size | About 800*670*990mm |
| Package weight | About 77kg |
